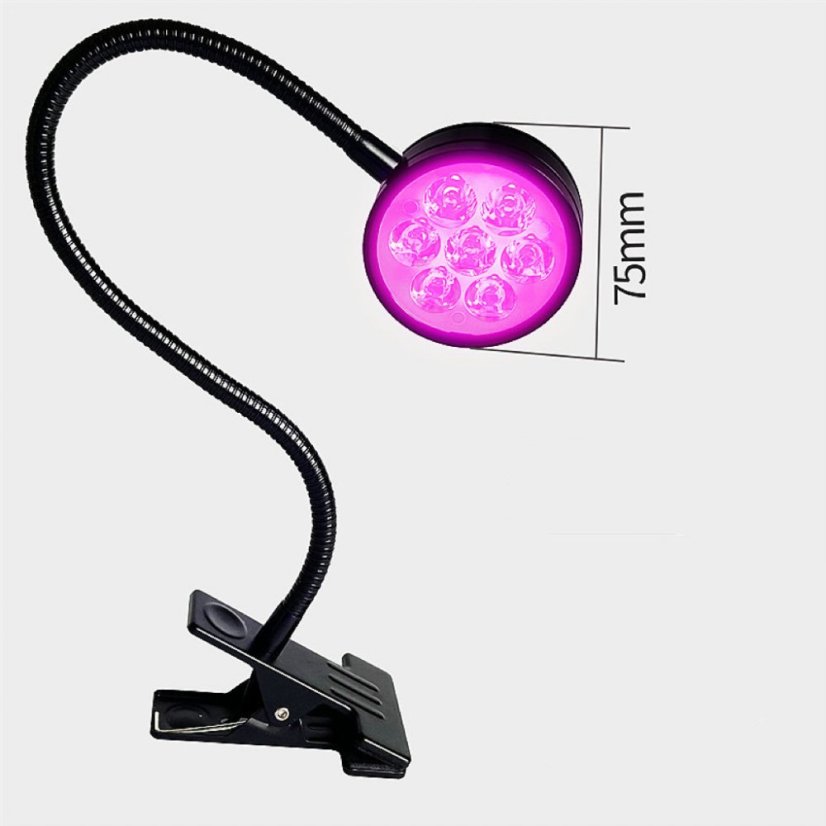

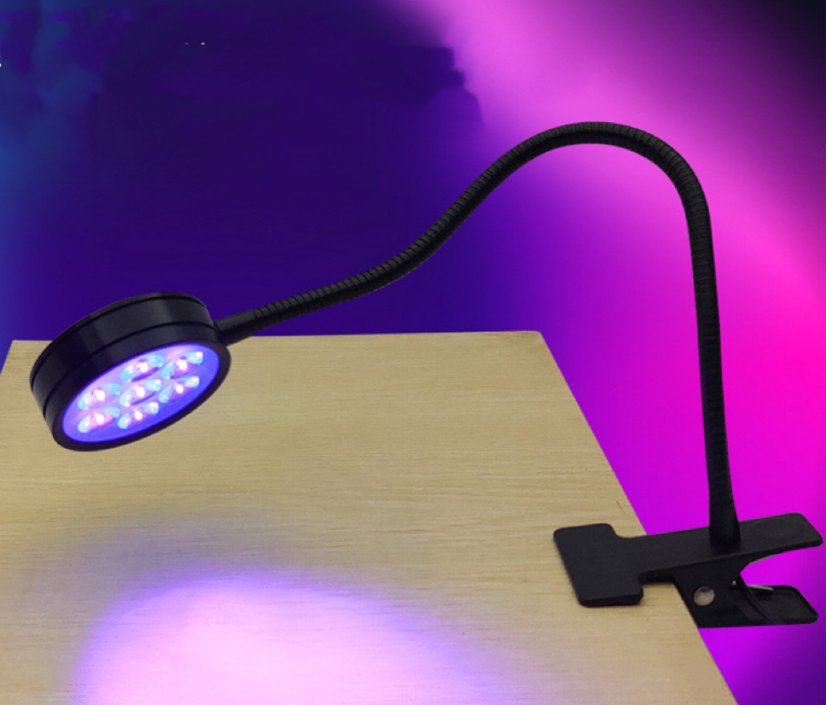

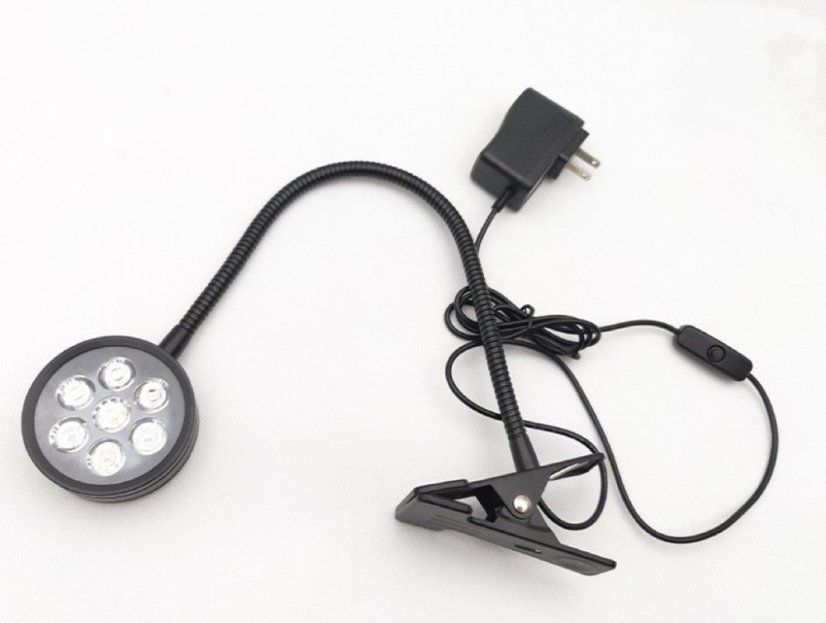

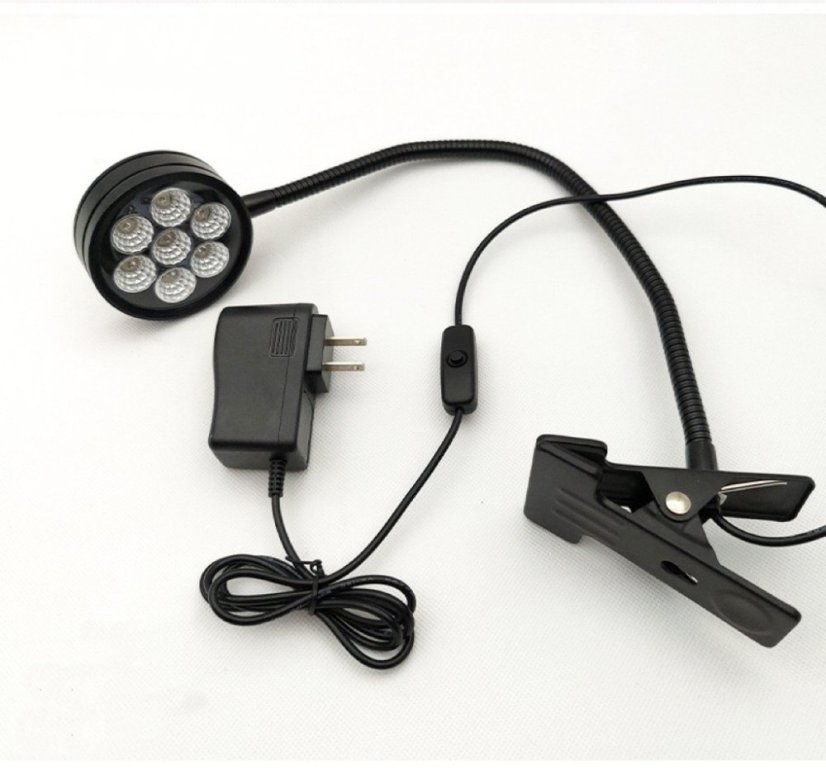

WH7 - 7W, 395nm Desktop UV Lamp for Curing

WH7 - 7W, 395nm Desktop UV Lamp for Curing

The UV lamp features UV LEDs designed for curing UV-sensitive lacquers, adhesives, and sealants. This lamp is equipped with high-performance UV LEDs that emit light directionally and possess a narrow spectrum. It offers significantly faster and more efficient curing compared to traditional UV tubes. The curing time for materials that previously required ten minutes under a UV fluorescent lamp is now reduced to approximately 2 minutes.

The lamp is designed for curing UV LOCA adhesives for reattaching LCD touch screens and similar UV-sensitive materials, such as UV lacquers for non-soldering mask.

EU adapter included!

Specifications:

• Model: WH7
• Light source type: LED
• Power consumption: 7W
• Wavelength: 395nm
• Fixture: 7x 1W LG 45mil UV LEDs
• Cooling: passive
• Irradiation distance: up to 1 cm (maximum effect)
• Dimensions (width - height - depth) [mm]: 310x210x70
• Weight: 0.36kg
• Power supply voltage: 230V/50Hz
• Cable length: ~1.2 m (EU)
• Package weight [kg]: 0.6 kg

Suitable for both professional and home use across various projects where quick UV material curing is required.
