WiFi 2.4/5 GHz FPC Antenna 10x45 with 4dBi Gain
Variants6
| Length | RF connectors | Availability | Price incl. VAT | Quantity (ks) | |||
|---|---|---|---|---|---|---|---|
 |
10cm | Soldering | in stock | 1,20 EUR | |||
|
10m | IPEX 1. gen | in stock | 1,30 EUR | |||
|
10m | IPEX 4. gen | Out of Stock Watch availability | 1,50 EUR | Demand | ||
|
20cm | IPEX 1. gen | in stock | 1,30 EUR | |||
|
20cm | IPEX 4. gen | in stock | 1,50 EUR | |||
|
20cm | Soldering | in stock | 1,20 EUR |

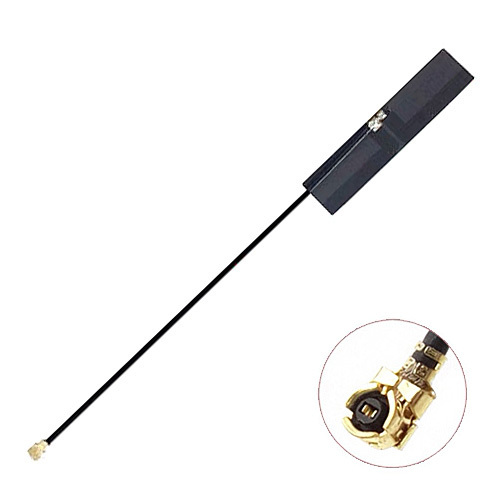

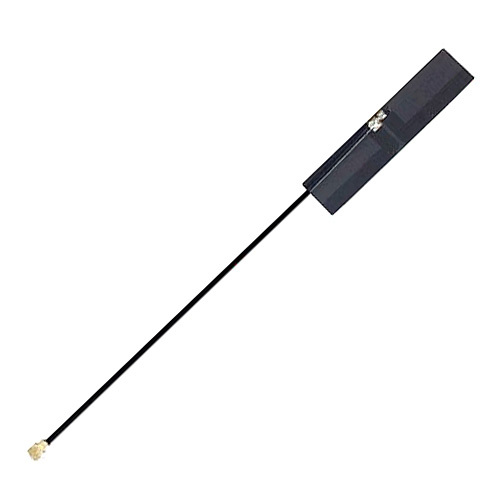

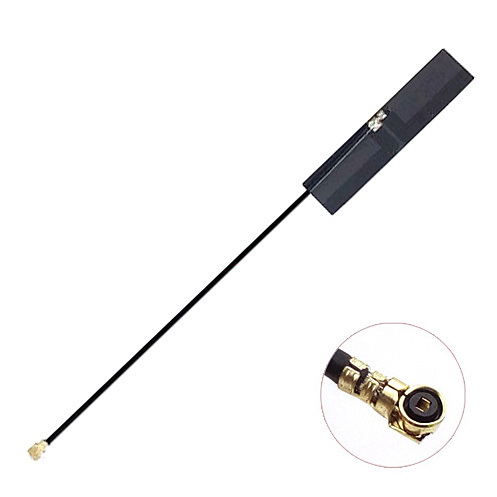

WiFi 2.4/5 GHz FPC Antenna 10x45, 4dBi
Directional internal antenna with 4dBi gain, operating in the 2.4GHz and 5GHz bands, designed for receiving/transmitting WiFi signals. The antenna is suitable for devices supporting WLAN technology.
Specifications:
- TYPE: FPC
- FREQUENCY BANDS: 2400 MHz ~ 2500 MHz / 4900 MHz ~ 5900 MHz
- IMPEDANCE: 50 Ohm
- GAIN: 4dBi

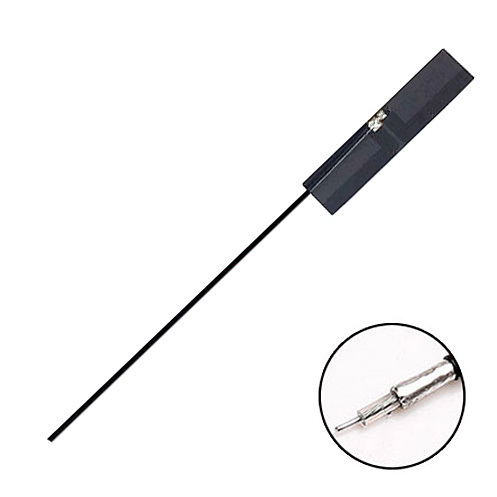

- CONNECTOR: none/IPEX1/IPEX4
- CABLE: RG1.13 50/100/150/200mm
- POLARIZATION: Vertical
- DESIGN: Internal
- TECHNOLOGY: WiFi / Bluetooth / WiMAX / MIMO System
- VSWR: <1.5
- MOUNTING METHOD: Adhesive
- OPERATING TEMPERATURE: -30 °C to +90 °C
- DIMENSIONS: 42 x 12 x 0.15 mm
- WEIGHT: 0.061 g
