WR-010 4G CDMA LTE gsmNB-IOT3 12dBi Internal FPC Antenna

WR-010 4G CDMA LTE gsmNB-IOT3 12dBi Internal FPC Antenna

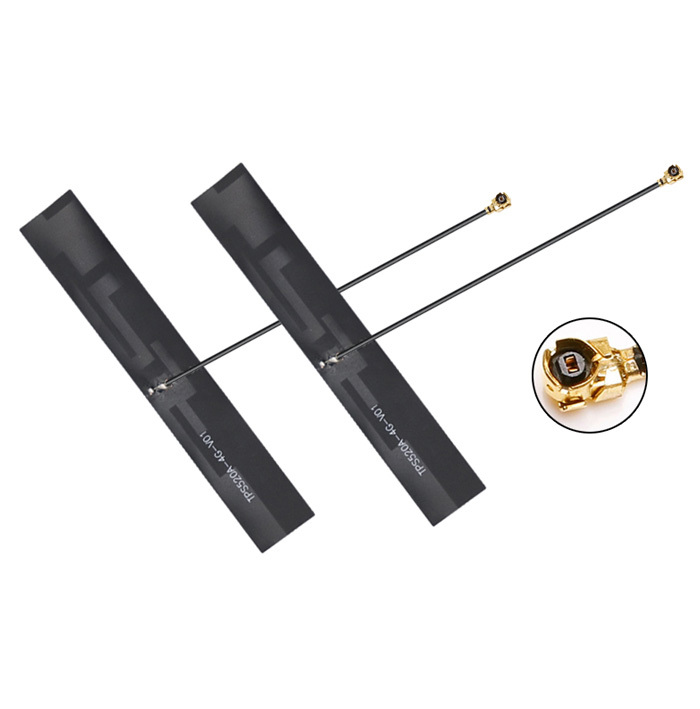

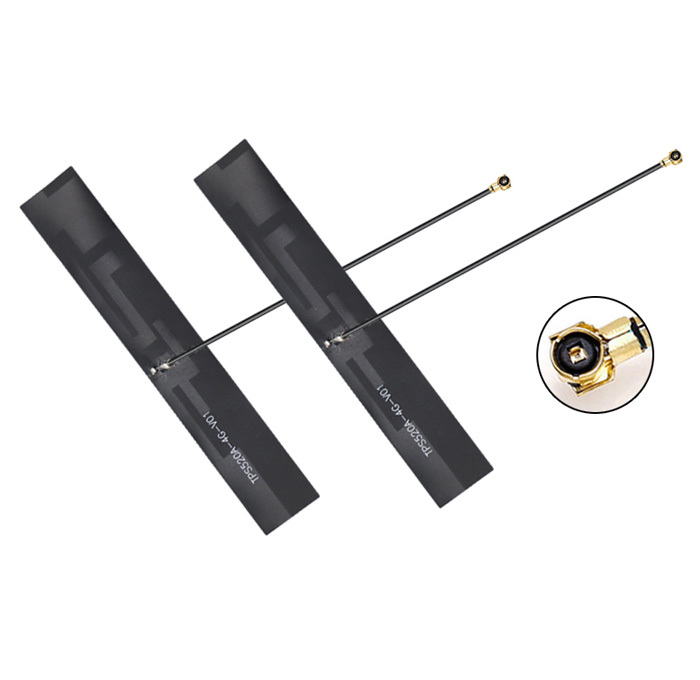

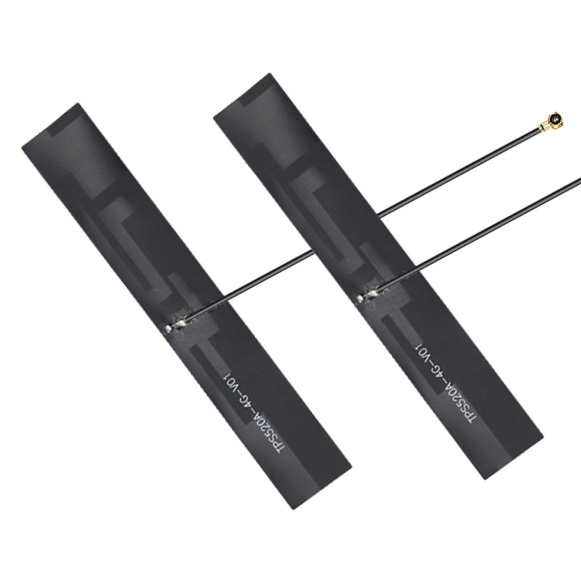

Directional internal antenna with a gain of 12dBi, operating in the 700-2700MHz band, designed for receiving/transmitting 4G/LTE signals. Compatible with devices supporting GSM/4G/LTE technology. U.FL connector.

Specifications:

• MODEL: WR-010
• CABLE: RG1.13 10/20cm
• FREQUENCY BANDS: 700MHz ~ 2700 MHz
• IMPEDANCE: 50 Ohm
• GAIN: 12dBi

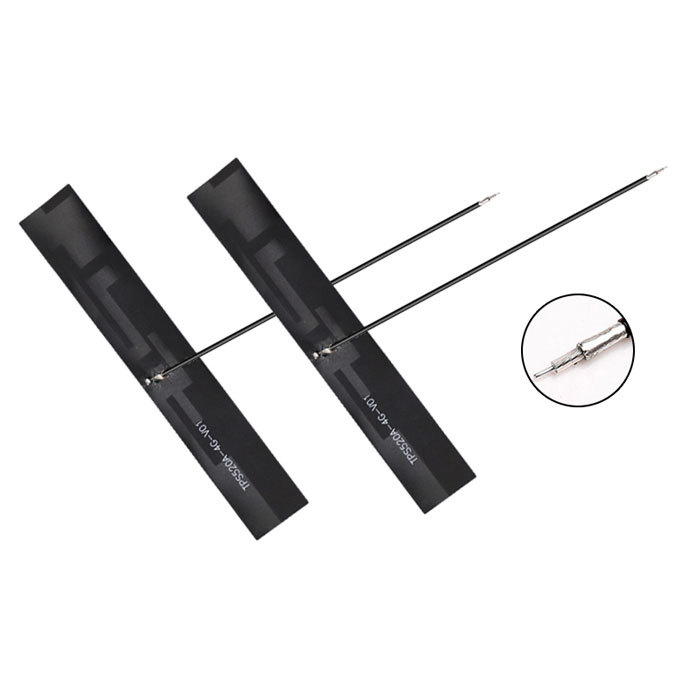

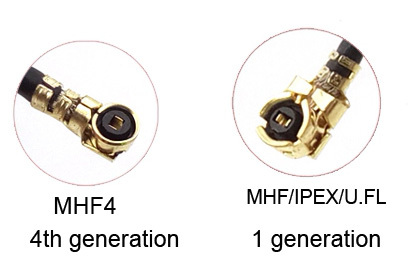

• CONNECTOR: U.FL/IPEX 1st generation/4th generation/no connector
• MAXIMUM INPUT POWER: 10 W max
• POLARIZATION: Linear
• TYPE: Internal
• DIRECTIONALITY: Directional
• TECHNOLOGY: 2G/3G/GSM/4G CDMA LTE gsmNB-IOT3
• VSWR: <1.5

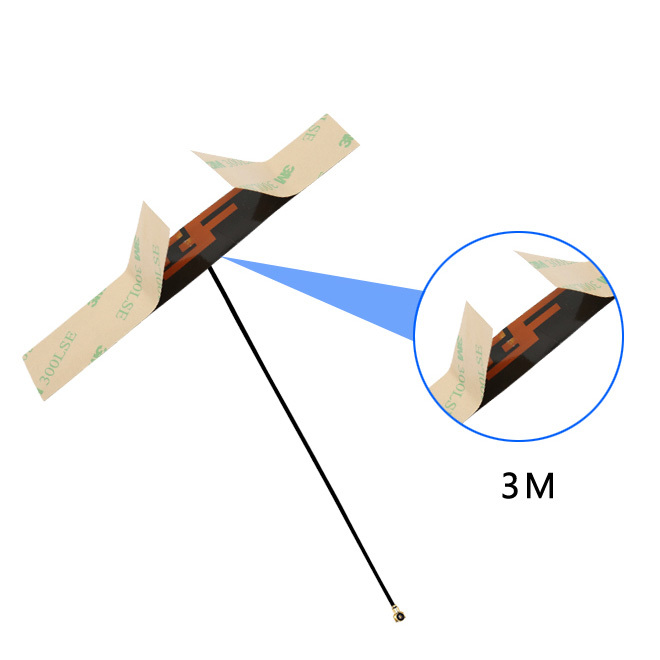

• MOUNTING METHOD: Adhesive
• OPERATING TEMPERATURE: -30 °C - +90 °C

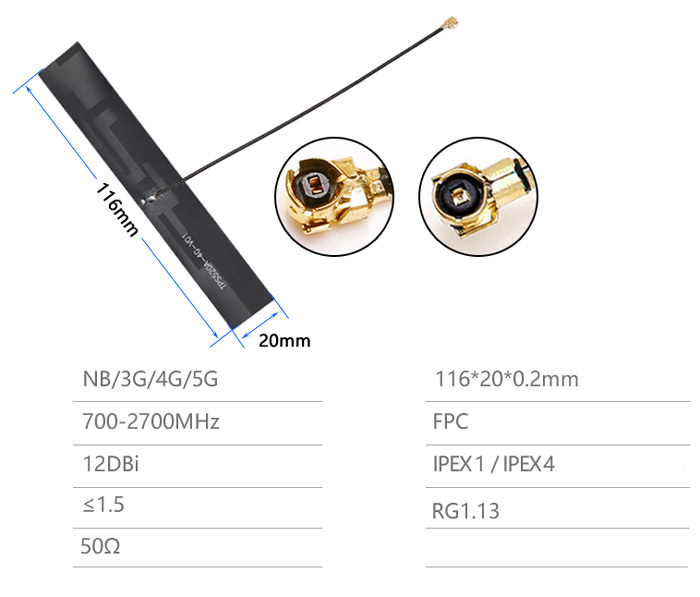

• DIMENSIONS: 116 x 20 x 0.2 mm
