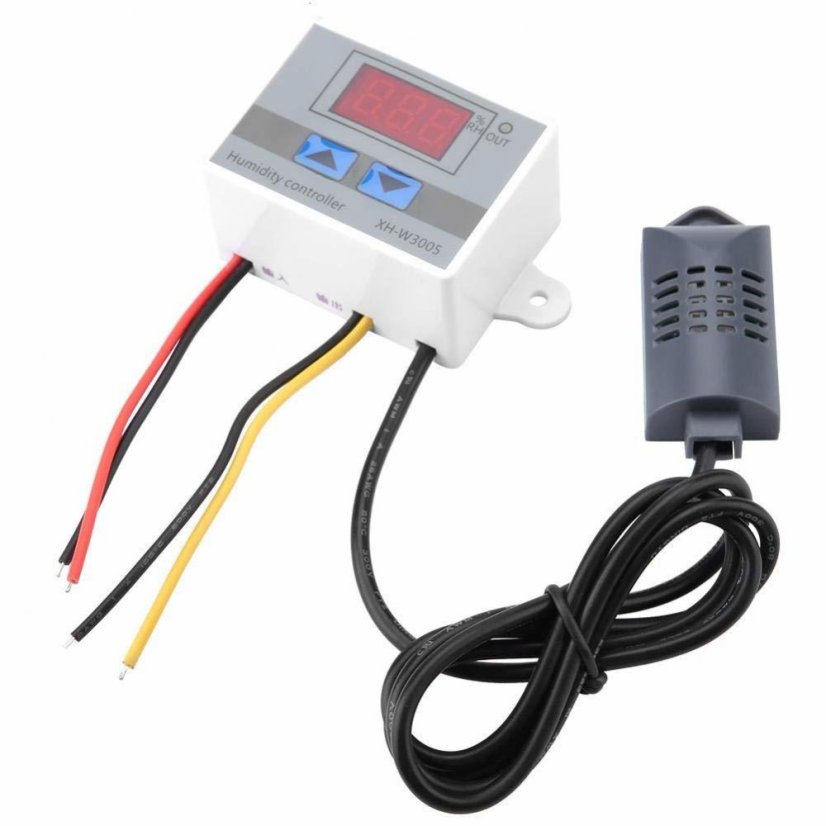

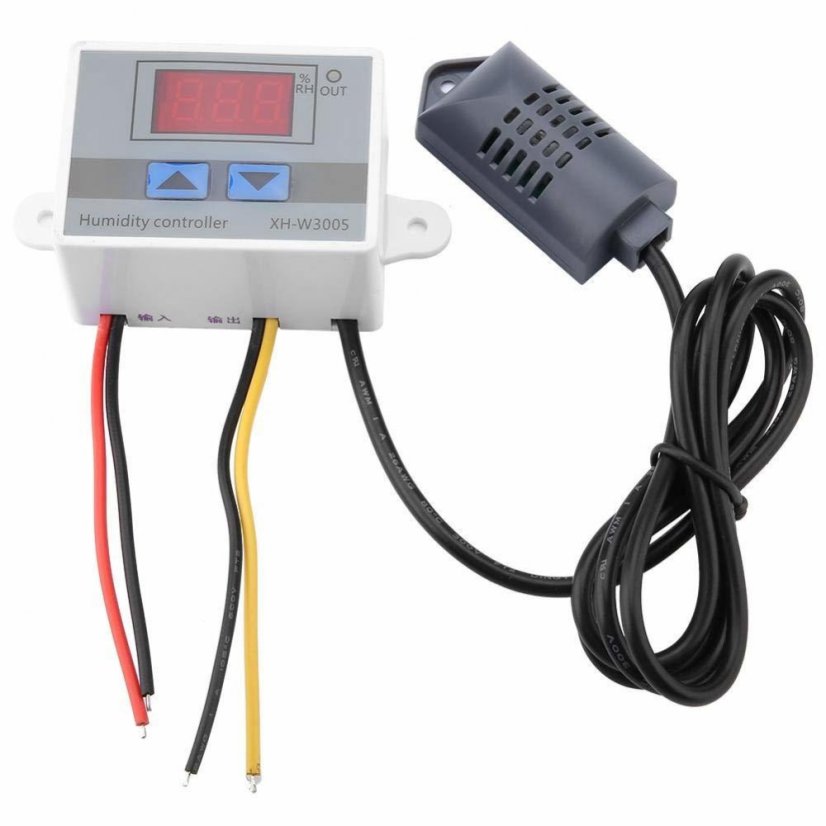

XH-W3005 Digital Humidity Controller

The XH-W3005 humidity controller easily connects to a 12V, 24V, or 220V outlet and starts operating immediately. On the clear display with easily readable digits, you can set the desired relative humidity level, the operating mode (dehumidification/humidification), and the hysteresis to prevent frequent on/off cycling during operation.

Technical Specifications

• Model: XH-W3005
• Humidity Measurement Range: 0..99% RH
• Control Accuracy: 0.1% RH
• Measurement Accuracy: ±2% RH
• Output: 1x relay switch 250 VAC / 10A
• Sensor: SHT20 1m
• Power Supply: 12V DC, 24V DC, or 230V AC
• Dimensions: 60 x 45 x 31 mm (2.36 x 1.77 x 1.22 in)
• Weight: approx. 68 g (0.15 lb)

Settings:

The thermostat allows the setting of humidity levels T1 and T2, where T1 represents the humidity at which the thermostat activates, and T2 is the humidity at which the thermostat deactivates. The activation of the thermostat is indicated by a red LED in the upper right corner of the display (labelled "OUT").

• To set humidity T1, press and hold the up arrow. Once the display starts blinking, you can adjust the switch-on humidity level using the arrows.
• To set humidity T2, press and hold the down arrow. Once the display starts blinking, you can adjust the switch-off humidity level using the arrows.

Operating Modes:

• Humidification mode (T1 < T2): Upon turning on the device, the hygrometer's output is activated until the measured humidity reaches level T2. Once the measured humidity drops to level T1, the output is reactivated.
• Dehumidification mode (T1 > T2): Upon turning on the device, the output is inactive until the measured humidity reaches level T1. Once the measured humidity reaches level T2, the output is deactivated.

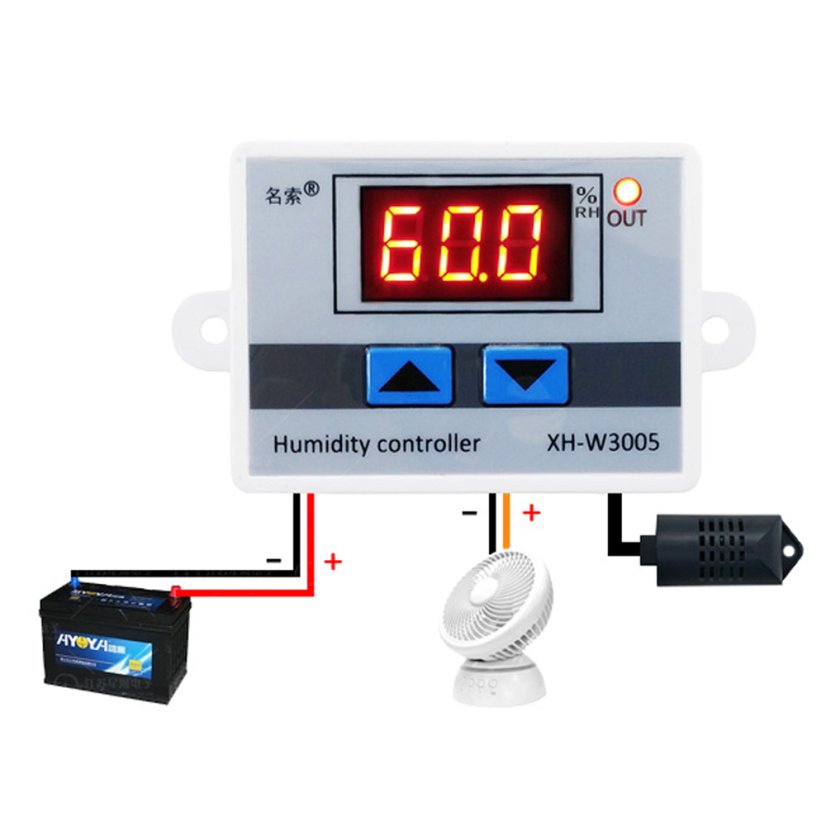

Connection: see the diagrams below

Contents:

Warning: This model is not suitable for industrial use
