YD-ESP32-C6 ESP32 Wi-Fi 6 & Bluetooth 5 Dev Board

YD-ESP32-C6 ESP32 Wi-Fi 6 & Bluetooth 5 Dev Board

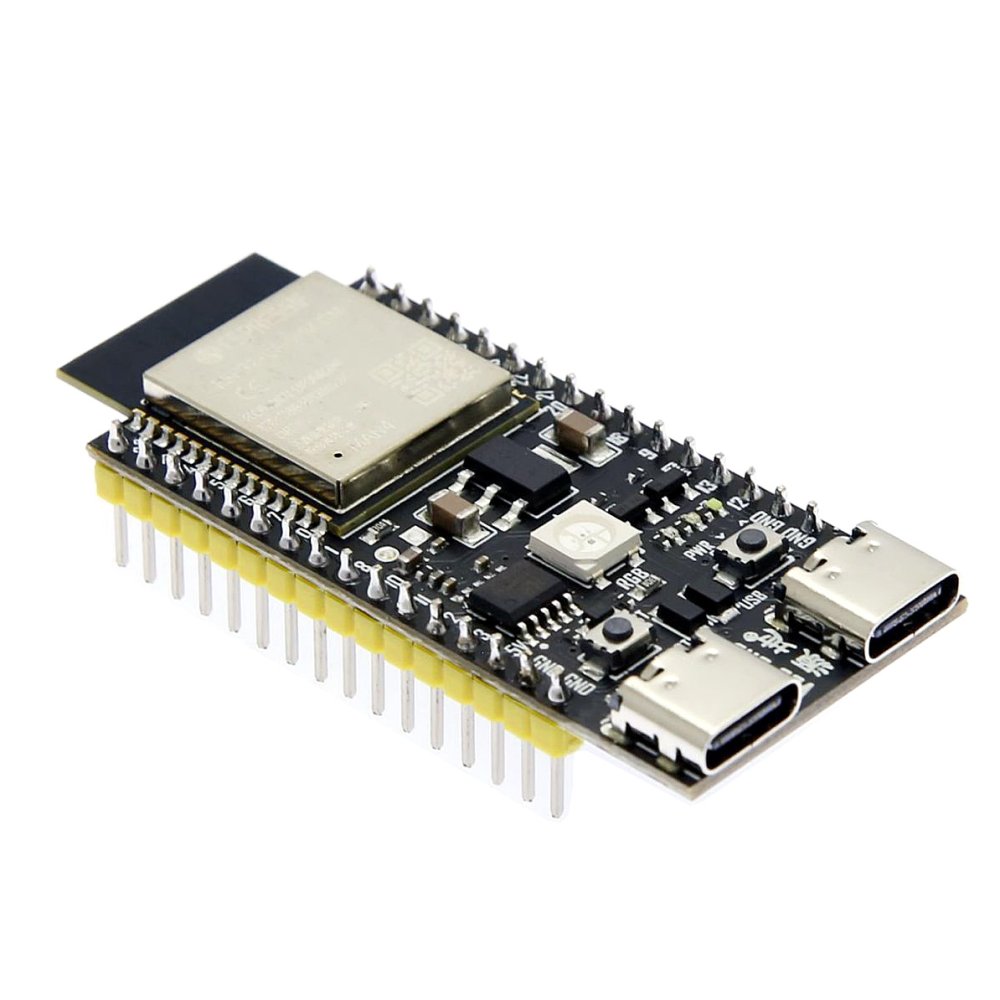

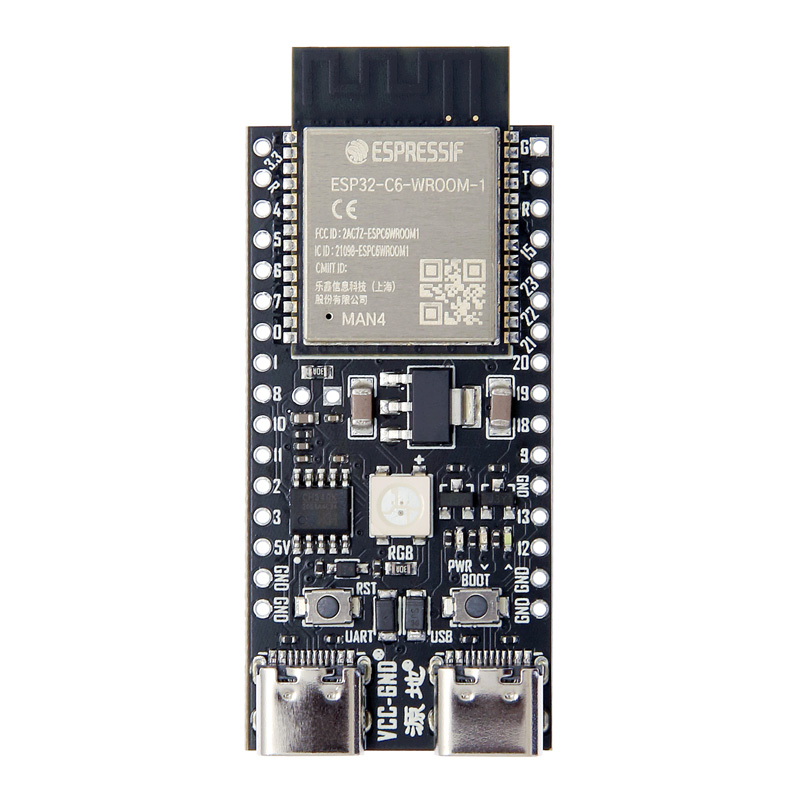

The YD-ESP32-C6 is a development board based on the ESP32-C6 SoC, compatible with the ESP32-C6-DevKitC-1.
It features Wi-Fi 6 and Bluetooth 5 (LE) connectivity and is ideal for IoT, smart home devices, wireless sensors, and embedded development.

The board includes multiple GPIO pins, USB Type-C interface for programming and power, and is supported by the ESP-IDF development framework, making it easy to prototype and develop advanced wireless applications.

Specification:

• Model: YD-ESP32-C6

• Chipset: ESP32-C6 SoC

• CPU: 32-bit RISC-V single-core @ up to 160 MHz

• Wireless Connectivity:

  • Wi-Fi 6 (2.4 GHz, IEEE 802.11ax)

  • Bluetooth 5 LE

• Flash Memory: 4 MB

• SRAM: 512 KB

• Interface: USB Type-C (power and programming)

• Operating Voltage: 3.3V (onboard regulator)

• GPIO Pins: Multiple, supporting ADC, PWM, I2C, SPI, UART

• Programming Support: ESP-IDF, Arduino IDE, PlatformIO

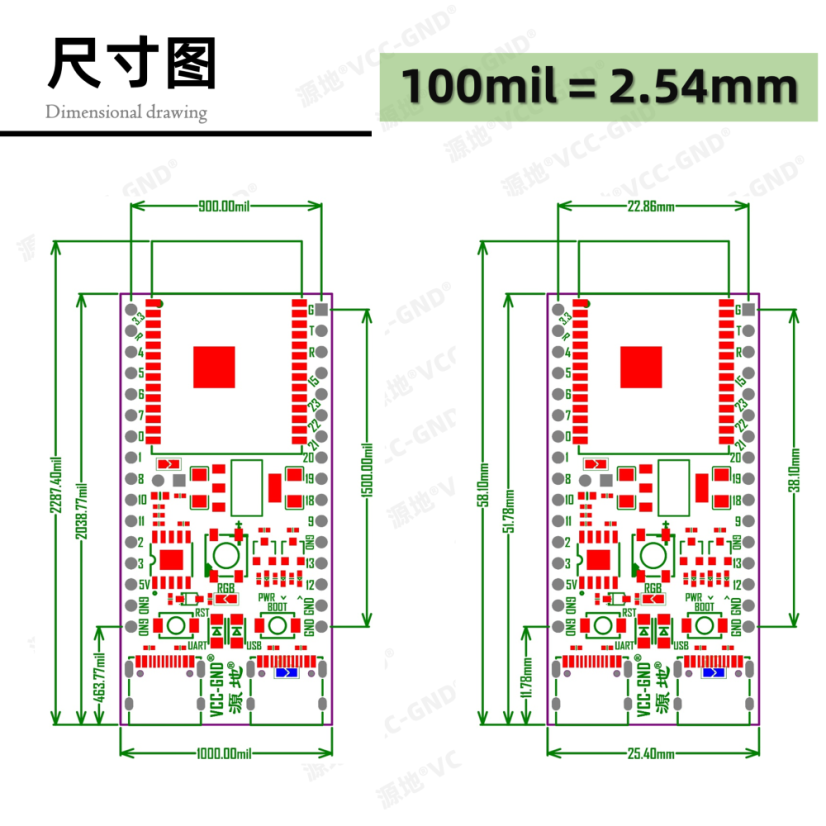

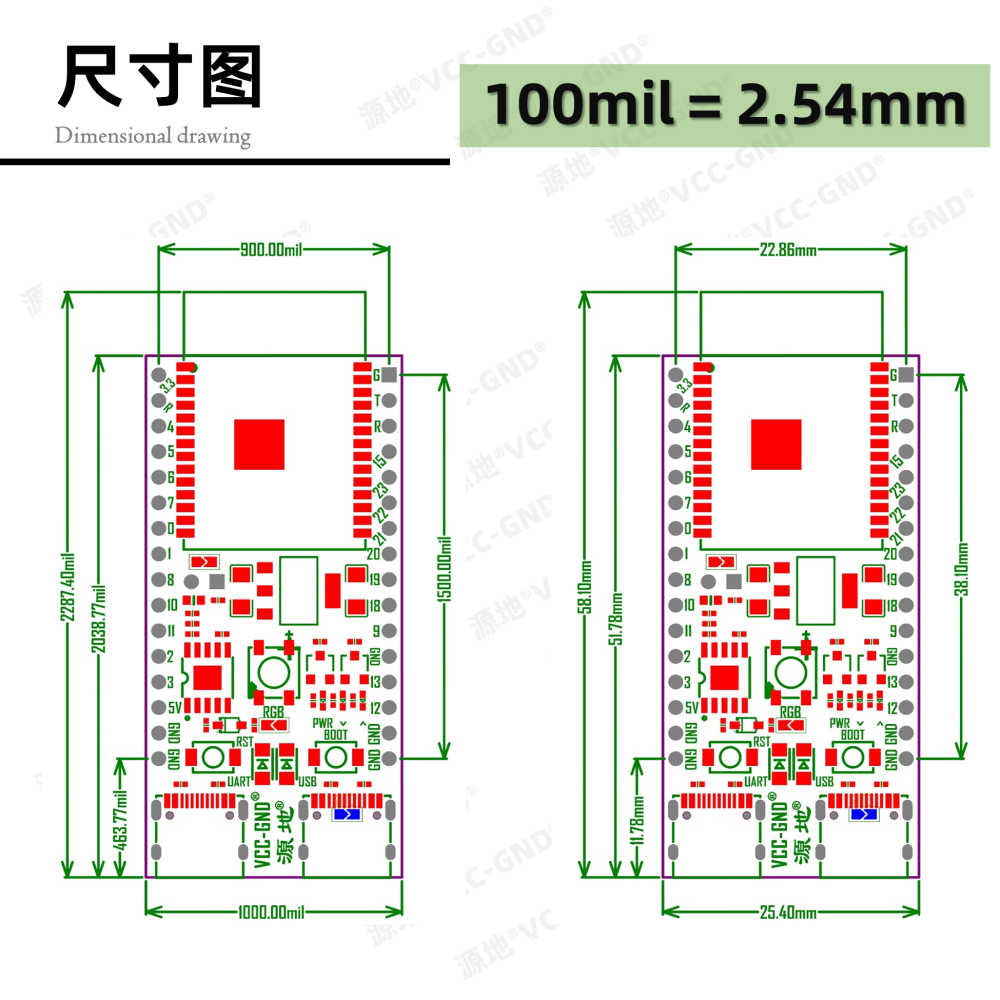

• Dimensions: ~50 mm x 25 mm

• Weight: ~10 g

• Compatibility: ESP32-C6-DevKitC-1 software and peripherals
