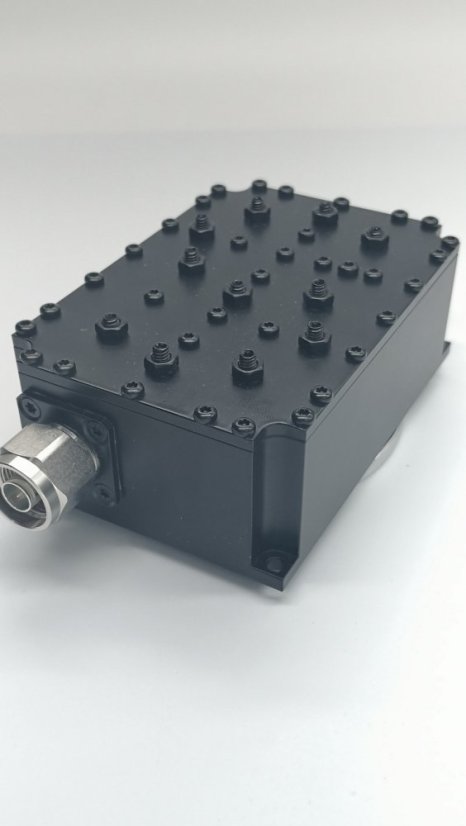

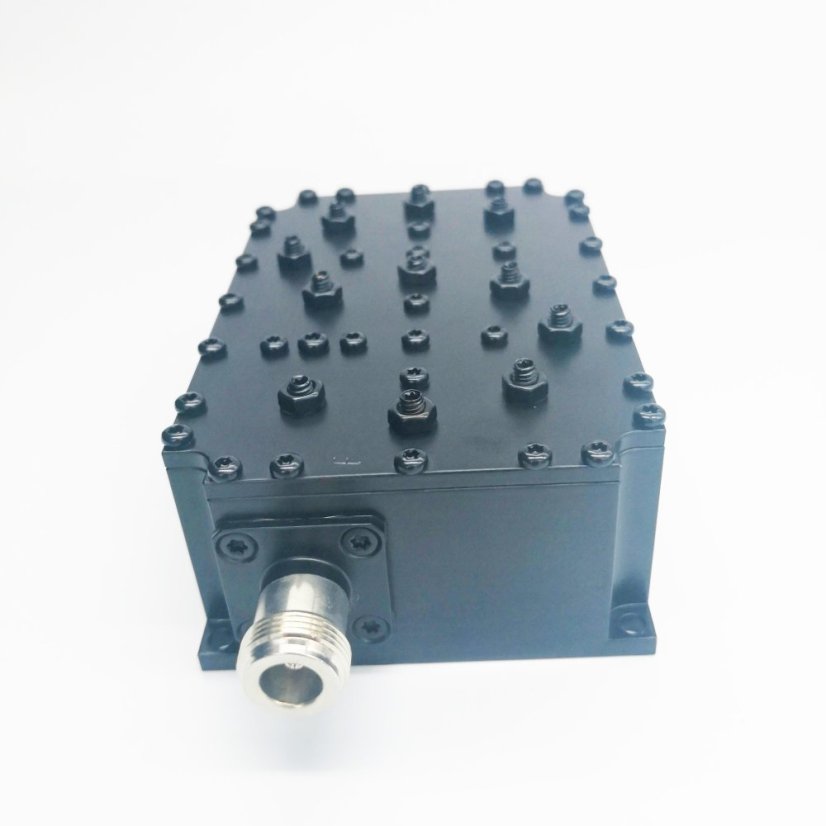

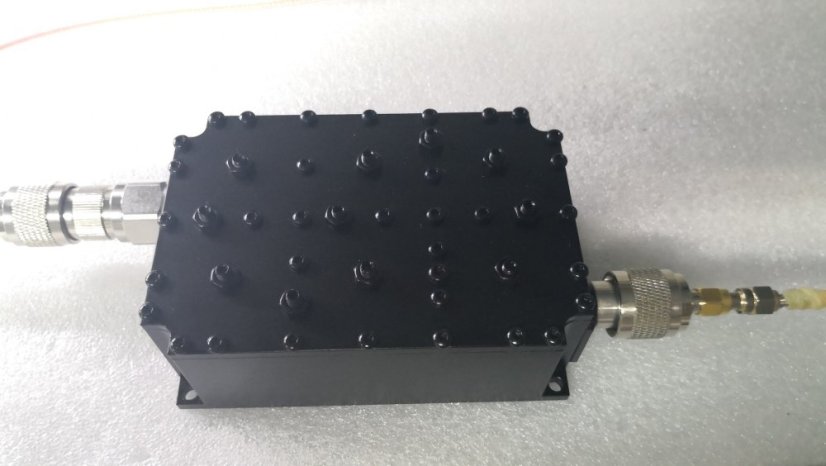

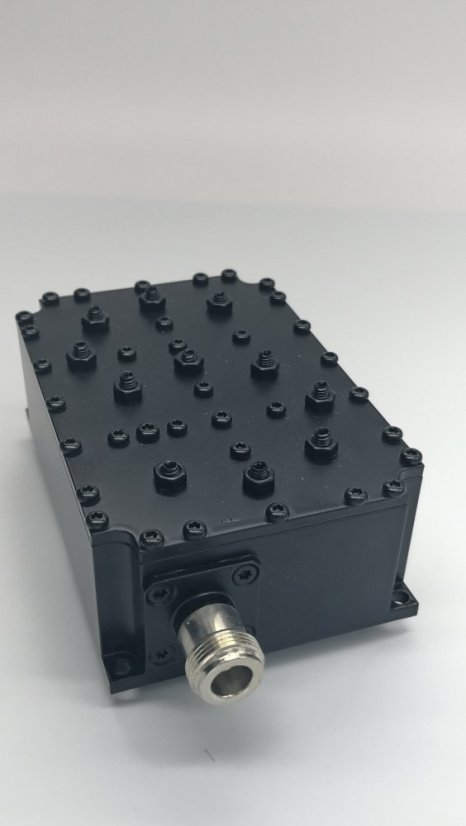

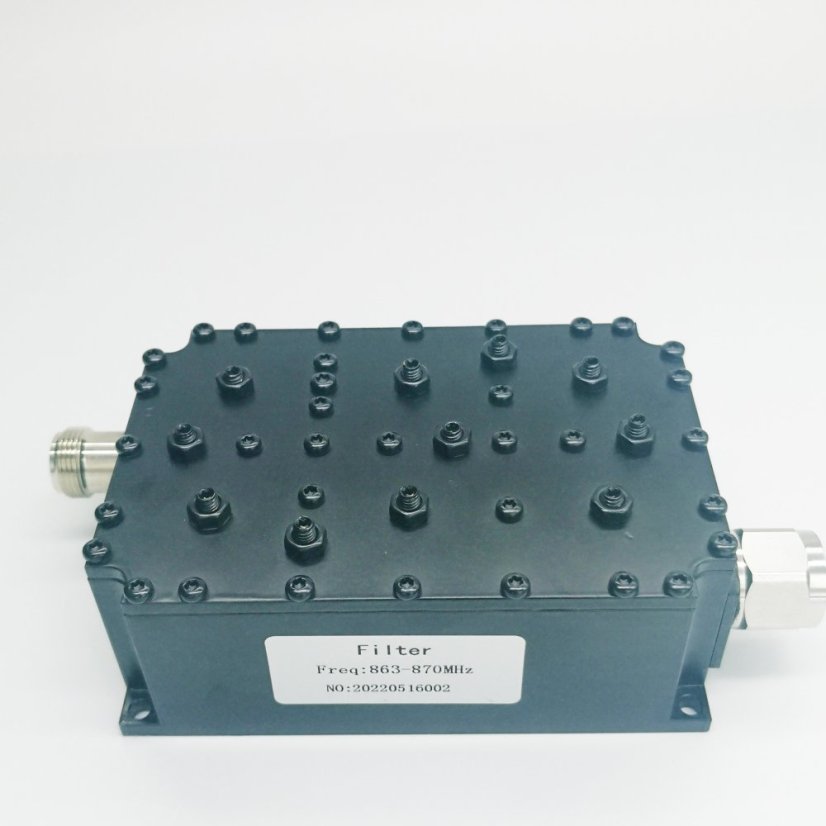

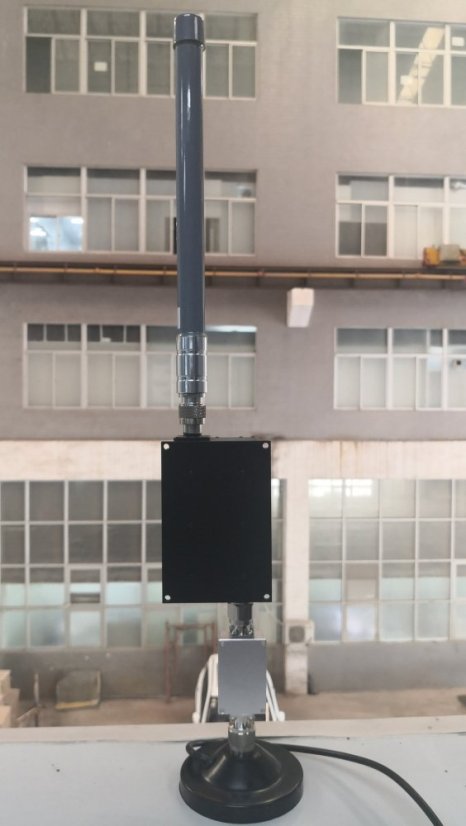

YR-CF-868 868Mhz Cavity Filter

YR-CF-868 868Mhz Cavity Filter

The YR-CF-868 cavity filter features a metal casing and a ternary alloy plating on the cavity wall. It is distinguished by low insertion loss, low standing wave ratio, and high out-of-band rejection. This filter can be widely used in mobile base stations, signal detection, and various other applications. This product series can be customized according to user requirements.

Specifications:

• Model: YR-CF-868
• Center Frequency: 868 MHz
• Bandwidth: 7 MHz
• Insertion Loss: ≤ 1.5 dB
• Ripple in Bandwidth: 0.6
• VSWR: ≤ 1.2:1
• Power: 1W
• Rejection: ≥ 60dB @100-853MHz
• ≥ 60dB @880-2700MHz
• Finish: Black spray paint
• Port Connectors: N male to N female

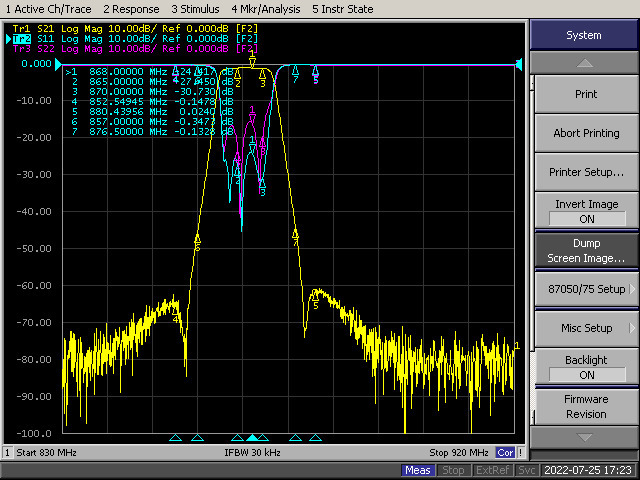

Amplitude-Frequency Curve

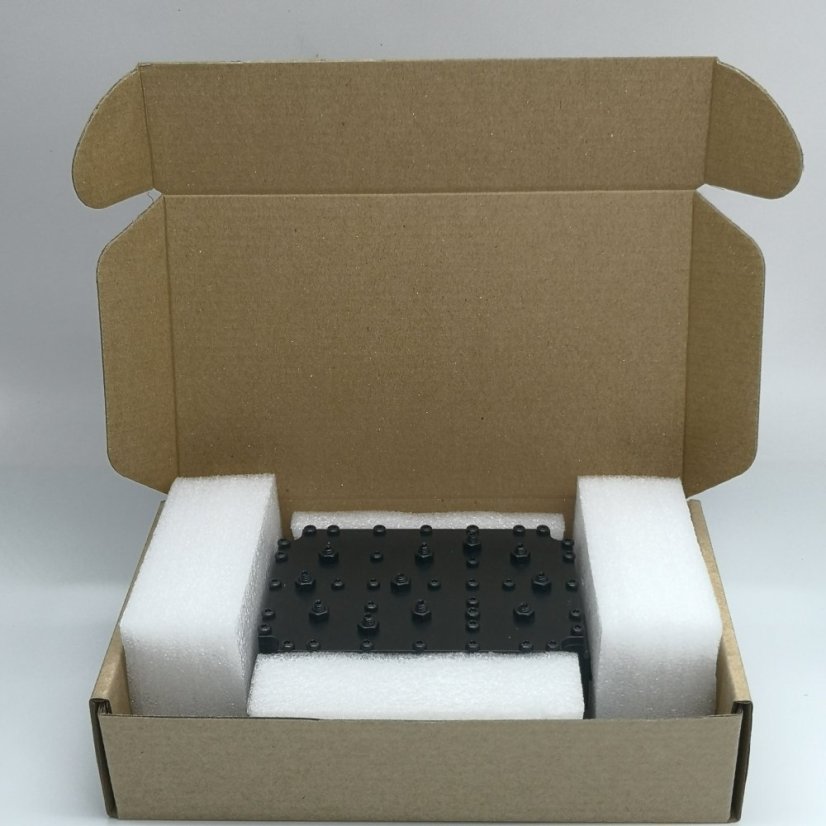

The package includes:

1x YR-CF-868 868Mhz Cavity Filter
