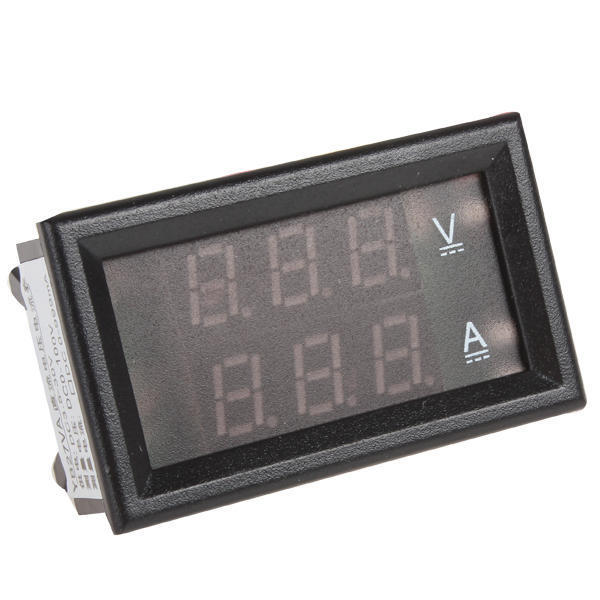

Digital Ammeter/Voltmeter YB27VA 0-100V DC - Rated load current: 100A

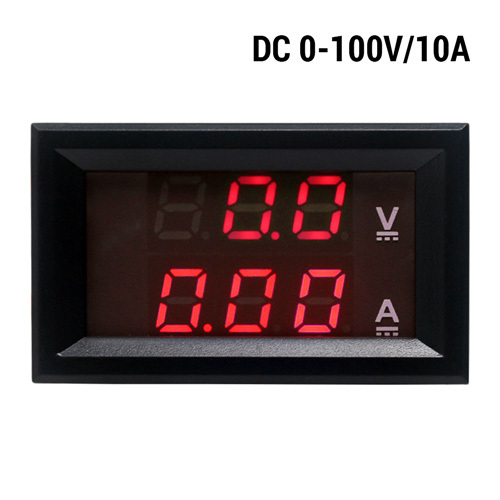

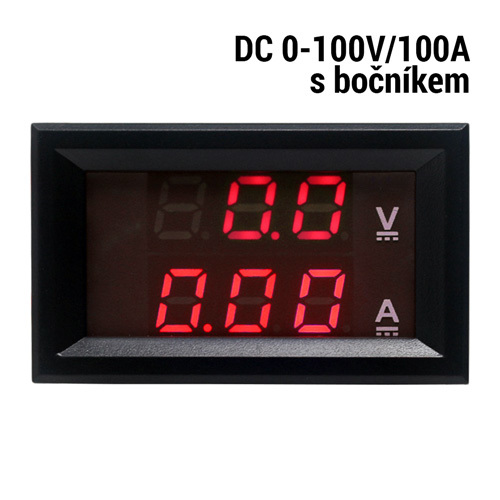

Dual LCD panel meter YB27VA, measuring voltage from 0V to 100V DC and current up to 100A.
Technical parameters:
- Model: YB27VA
- Voltage measurement range: DC 0-100V
- Current measurement range/resolution:
- 10A - 0-9.99A/0.01A
- 50A - 0-50.0A/0.1A
- 100A - 0-99.9A/0.1A
- Accuracy: approx. 1%.
- Power supply: 4.5–30V

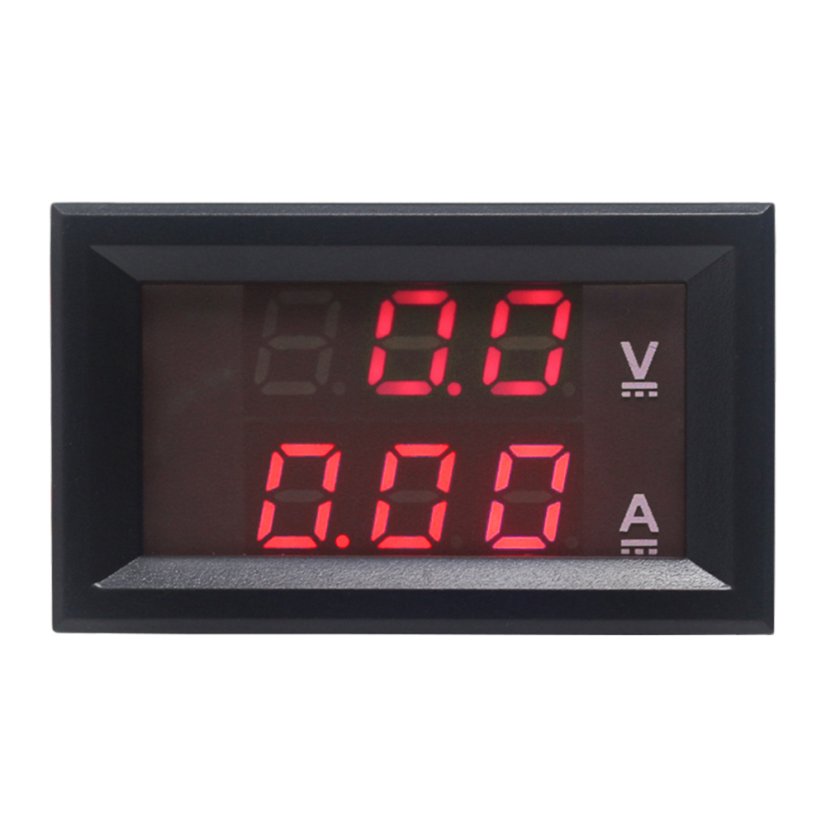

- Display: dual-color 0.28" LED display
- Operating temperature: 10°C - 65°C.
- Dimensions: approx. 48×29×26mm

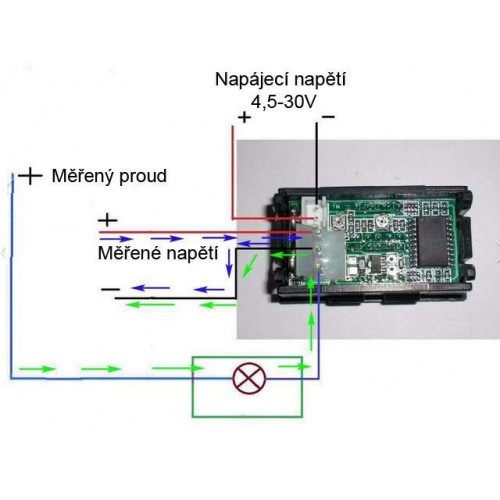

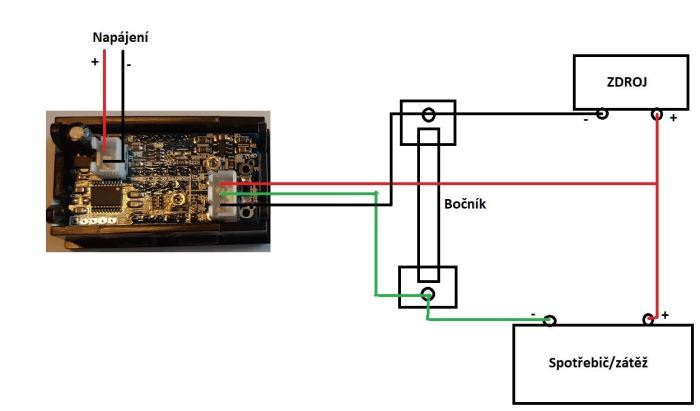

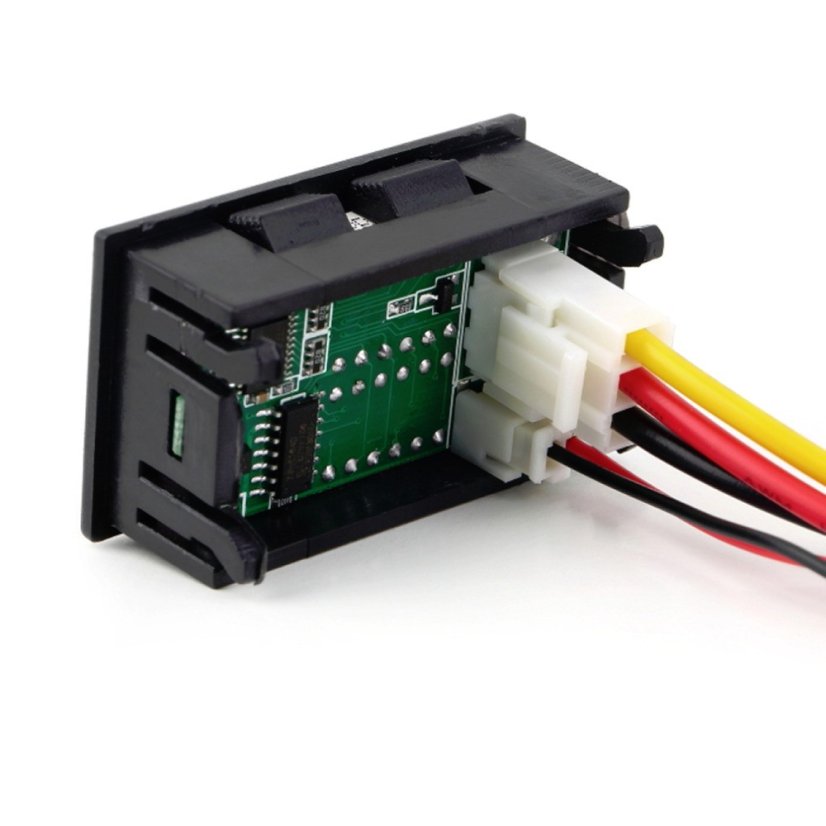

Electrical wiring
- thick wire
- Black wire: COM, common measurement
- Red wire: power +
- Yellow wire: IN +, current input +
- thin wire (4.5 - 30V)
- Black wire: DC input -
- Red wire: DC input +

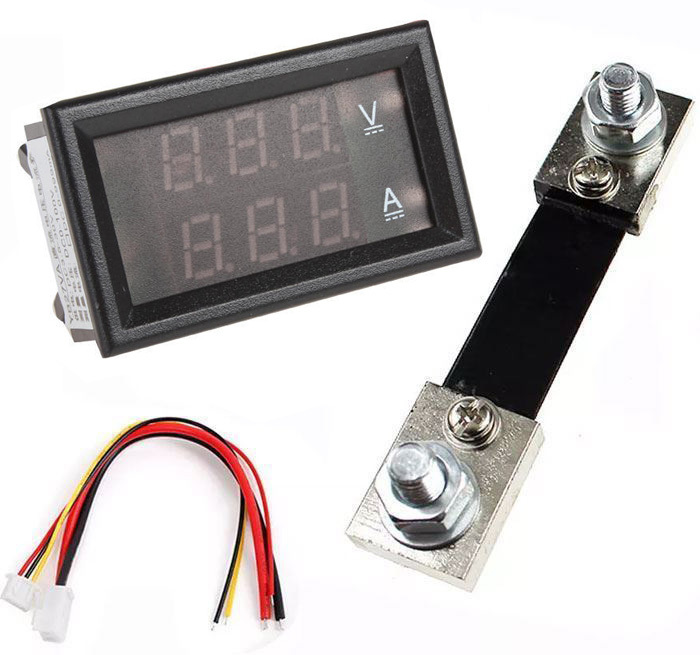

Package includes:
- 1 x YB27VA ammeter/voltmeter
- shunt for 50A and 100A models
