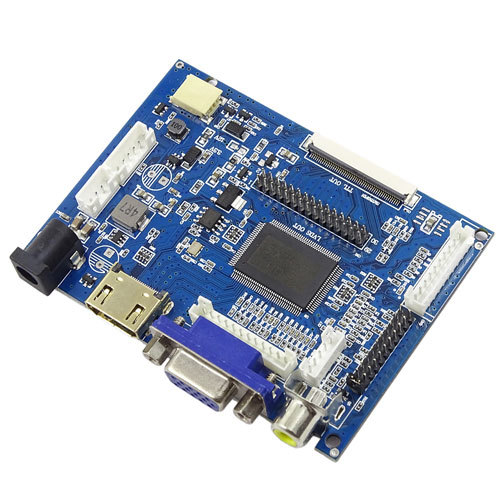

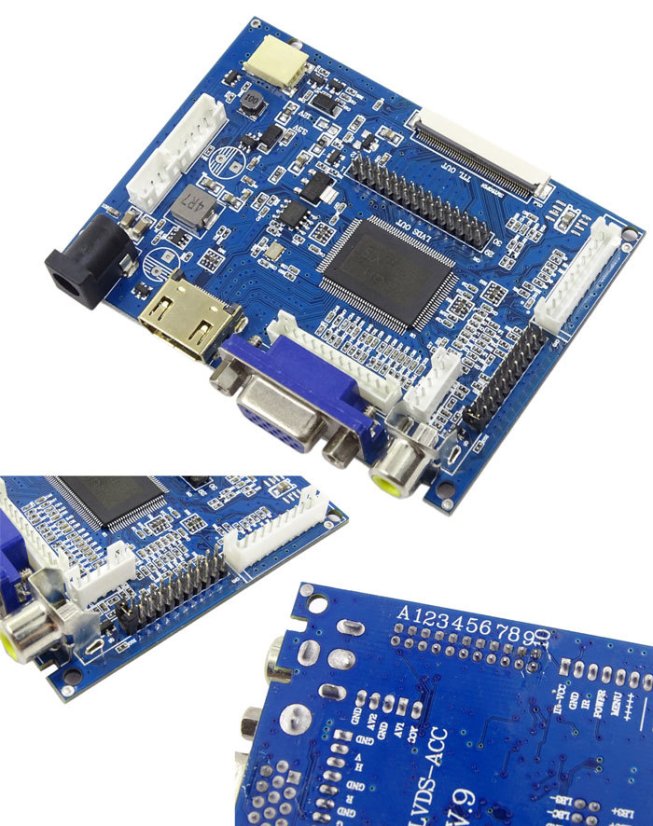

PCB800099 VGA-HDMI-TTL Controller Board for TFT LCD Display

PCB800099 VGA-HDMI-TTL Controller Board for TFT LCD Display

Universal controller board for car AV LCD displays with dual LVDS and TTL outputs, supporting resolutions from 800x480 up to 1920x1200.

Specifications:

• Model: PCB800099-V.9 / VS-TY2662L-V1
• IC Chip: RTD2662/RTD2660H
• Inputs:
  • 1x VGA
  • 2x AV (NTSC, PAL)
  • 1x HDMI (HDMI 1.2 supported)
• Outputs:
  • TTL 50-pin 6bit/8bit dual/single (flat cable)
  • LVDS 30-pin
• Supported screen sizes: 7 - 22 inches
• Output resolution:
  • Up to 1920x1080p
  • H-frequency: 30~80KHz
  • V-frequency: 65~85Hz
• Power supply:
  • For display: 12V
  • For the board: 3.3V, 5V, 12V
• Power consumption: low power mode; standby < 1W
• Button functions: Auto, Menu, Vol-, Vol+, Power On
• OSD languages: Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Japanese, Korean
• Dimensions: 91x65x19mm
• Manufacturer: SIXTHHD - China

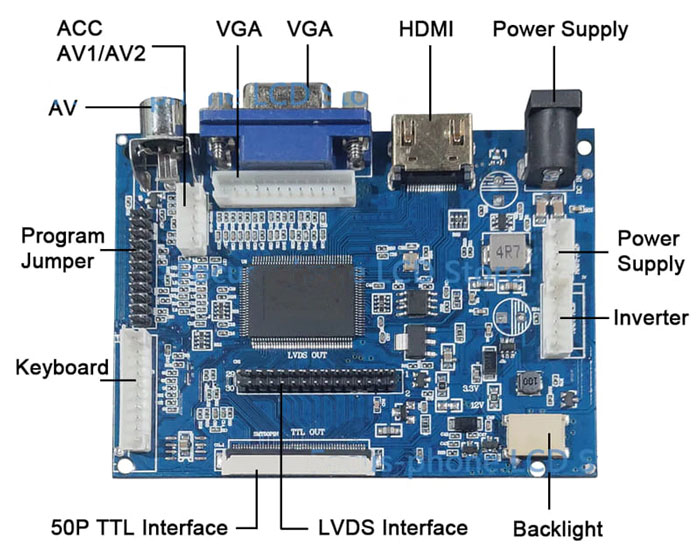

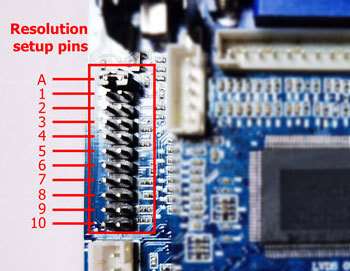

Configuration by pins:

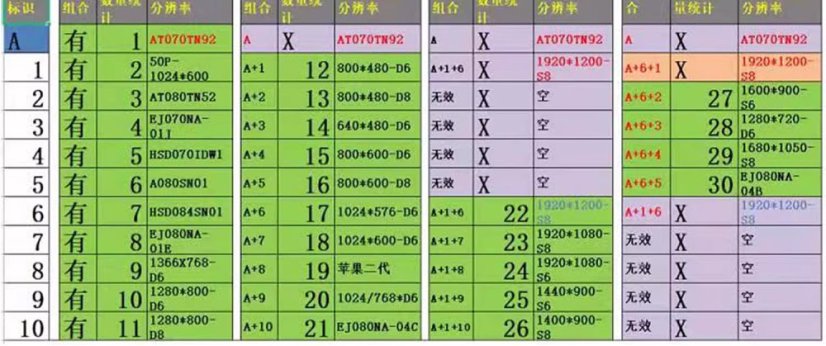

Supported resolutions/displays:

Poznámky:

1. Pre výstupy s vysokým rozlíšením, ako je 1920x1080 a 1440x900 môžu CPU potrebovať prídavné chladenie. Sledujte teplotu vášho CPU a ak je to potrebné, nainštalujte ventilátor.
2. VGA môže priamo vložiť YPBPR signál.
3. Táto doska podporuje diaľkové ovládanie.
4. Podporuje reverzné ovládanie a displej na AV2. Reverzné napätie podporuje vstup napätia do 50V.

Notes:

1. For high resolution outputs (1920x1080 and 1440x900), CPUs may require additional cooling. Monitor your CPU temperature and install a fan if necessary.
2. VGA can directly receive YPBPR signal
3. This board supports remote control.
4. Supports reverse control and display on AV2. Reverse voltage supports input voltage up to 50V.

Package includes:

1x Main control board PCB800099

1x keyboard
