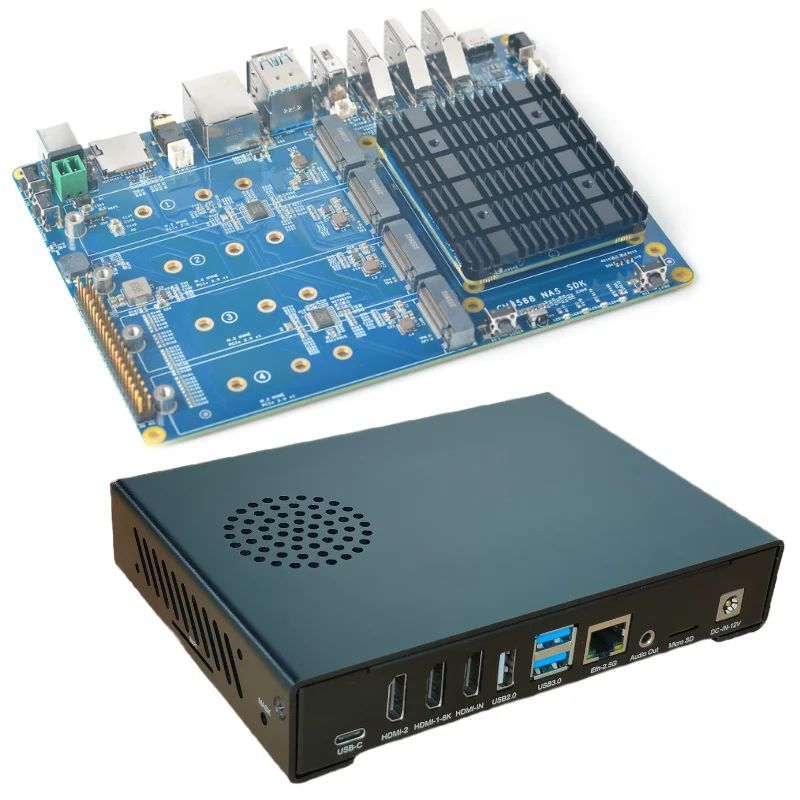

CM3588+ Complete Set with Metal Cover

CM3588+ Complete Set with Metal Cover

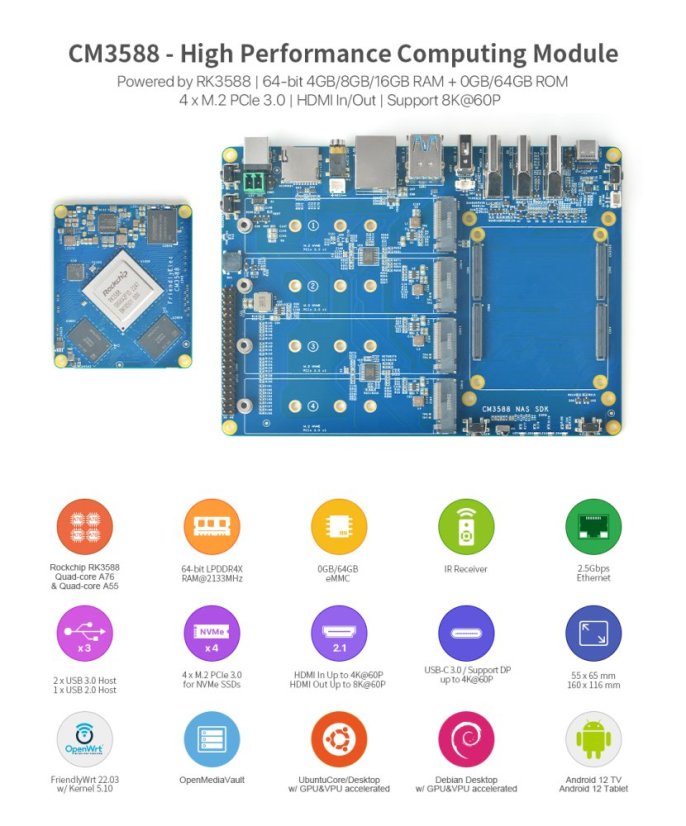

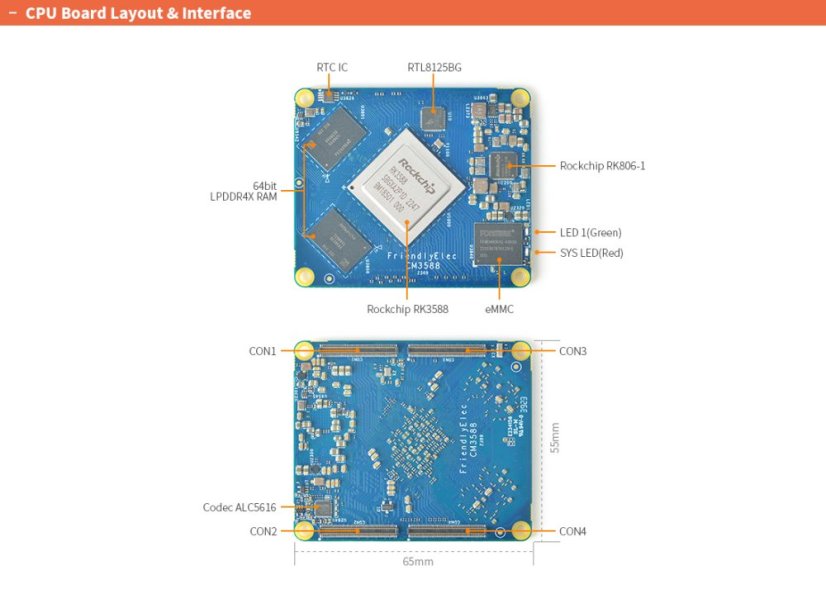

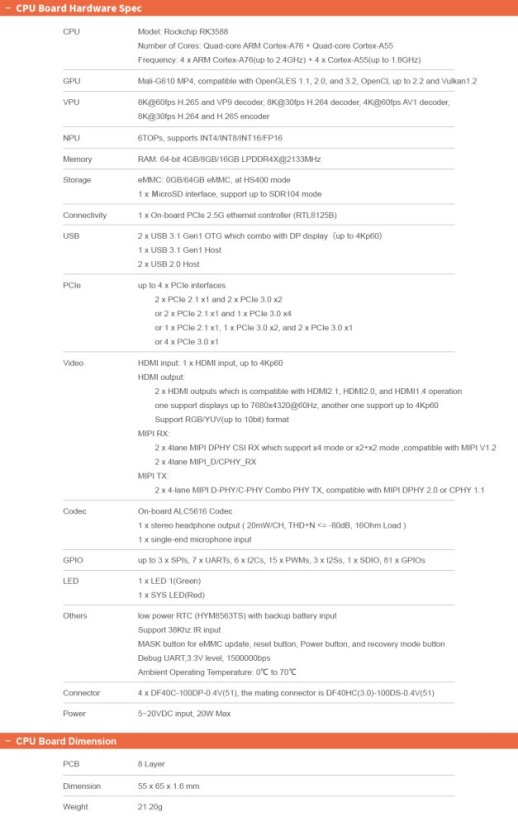

The CM3588+ is a high-performance ARM module designed and developed by FriendlyElec. It is based on the RK3588 SoC from Rockchip. The standard version comes with 4/8/16 GB LPDDR4x or 32 GB LPDDR5 RAM, and 32 GB/64 GB/256 GB eMMC Flash (optional). The CM3588 features four 100-pin connectors that expose nearly all IO resources.

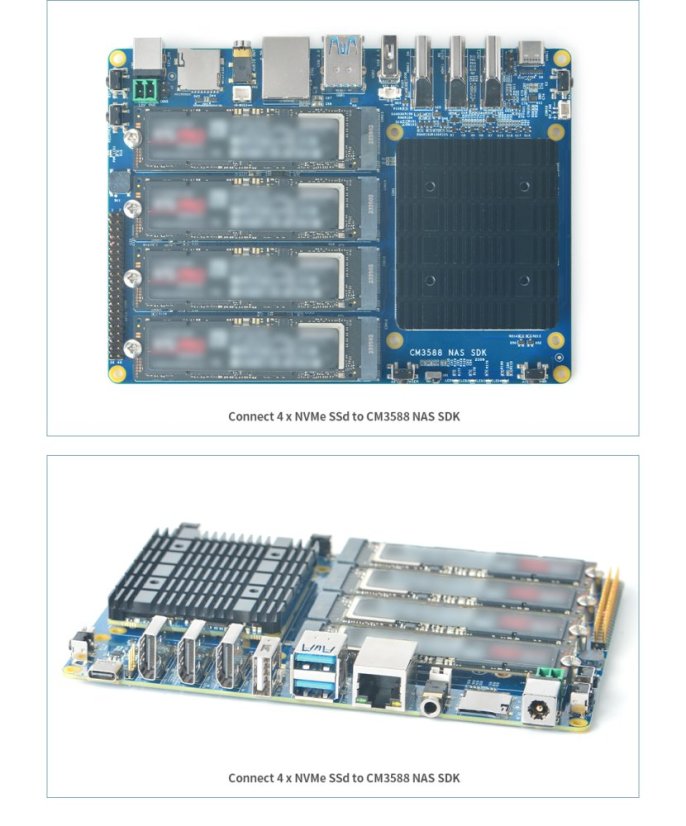

The CM3588+ computing module boasts a variety of peripherals and expansion interfaces. It can connect to a carrier board supporting 4 NVMe high-speed SSDs with read/write speeds of up to 1 GB/s. Additionally, it includes dual HDMI-Out interfaces, 1 HDMI-In interface, 2 USB 3.0 ports, 1 USB 2.0 port, 2.5G Ethernet interface, and more.

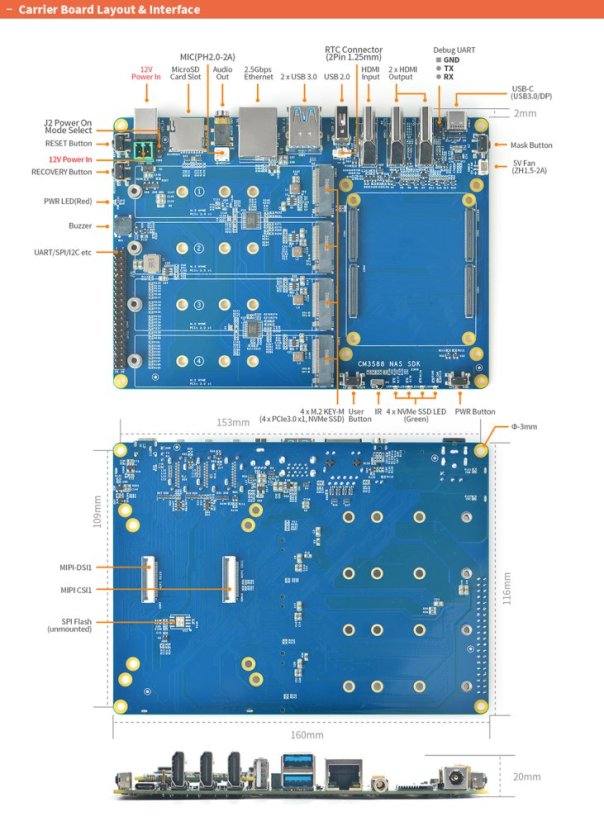

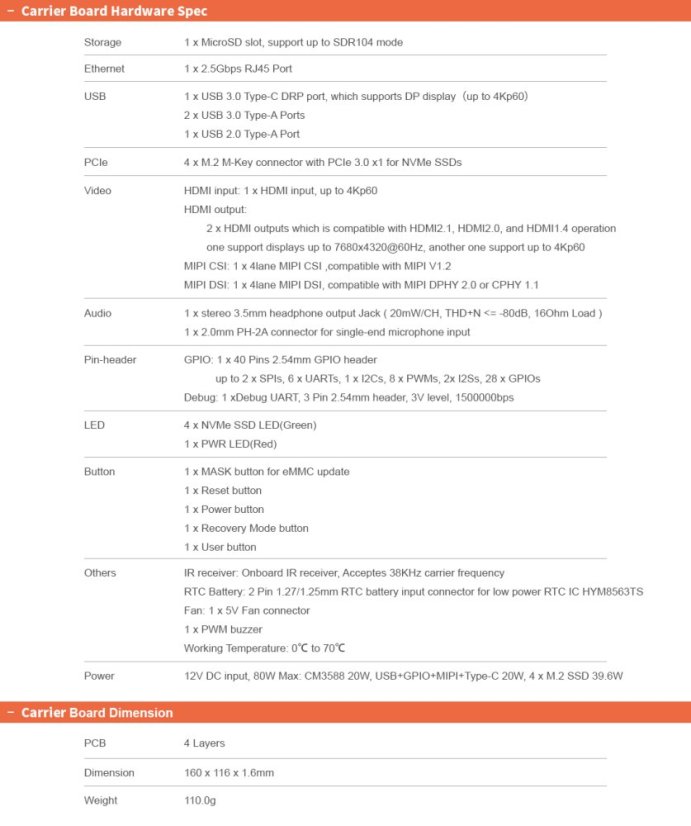

The carrier board (CM3588+ NAS Kit) has 2 HDMI output interfaces and 1 HDMI input interface, which can decode and play videos in formats such as up to 8K60p H.265/VP9 and 8K30p H.264, with the ability to record 4K60p H.265 videos.

The CM3588 offers the OpenMediaVault NAS system and supports various operating systems including Android, Ubuntu, Debian, Buildroot, and OpenWrt. It has well-established software support. It is the perfect platform for startups to develop applications and prototypes in the fields of facial recognition, machine vision, VR, autonomous driving, deep learning, AI, and more.

Wiki: https://wiki.friendlyelec.com/wiki/index.php/CM3588

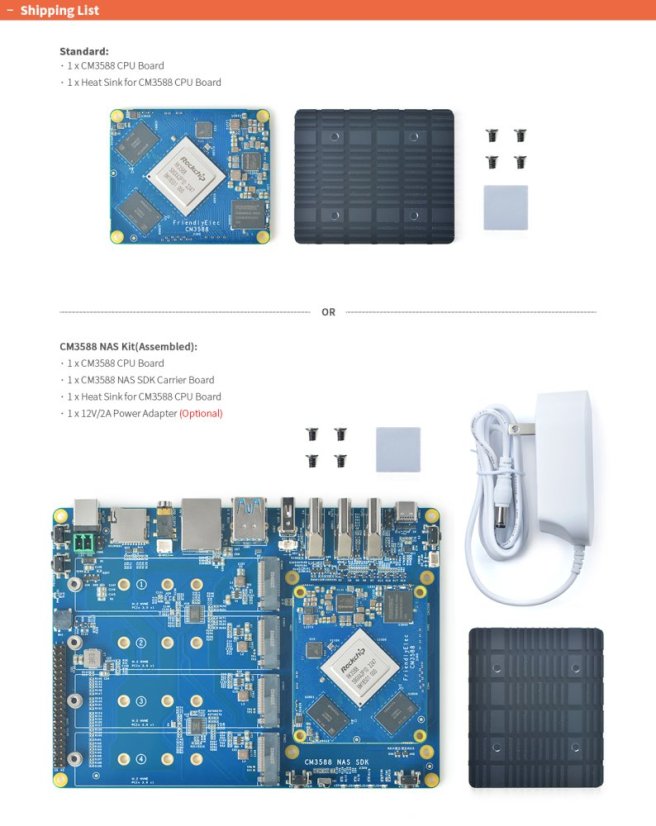

Package Includes:
