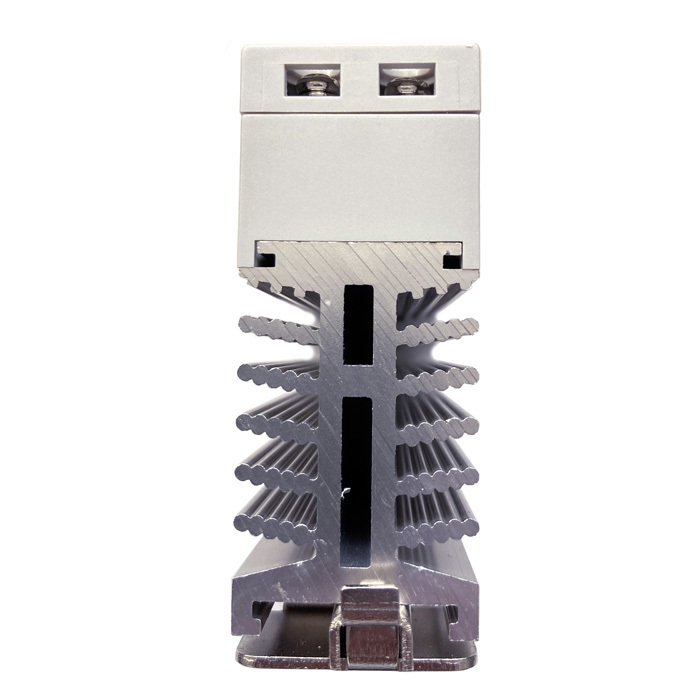

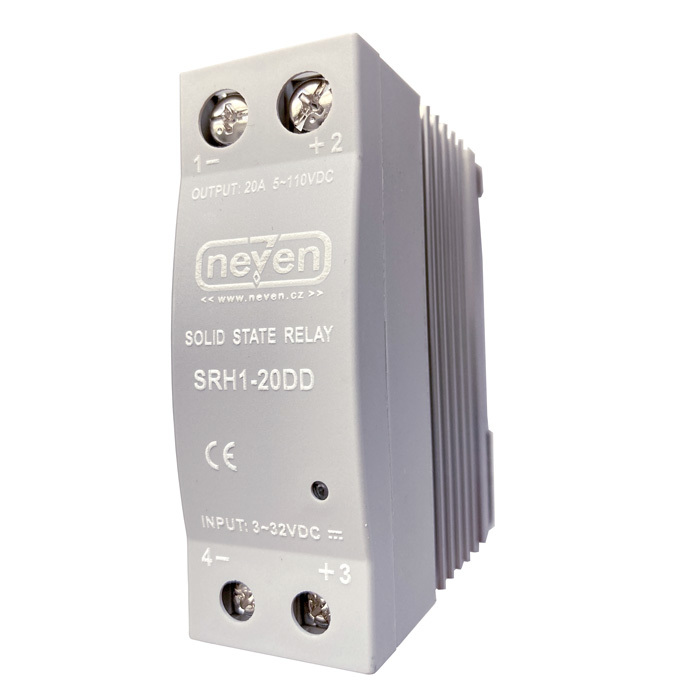

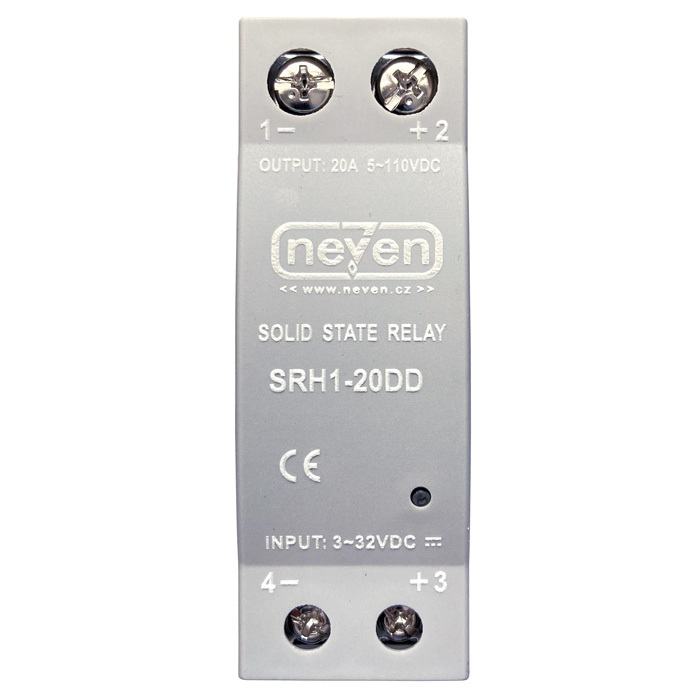

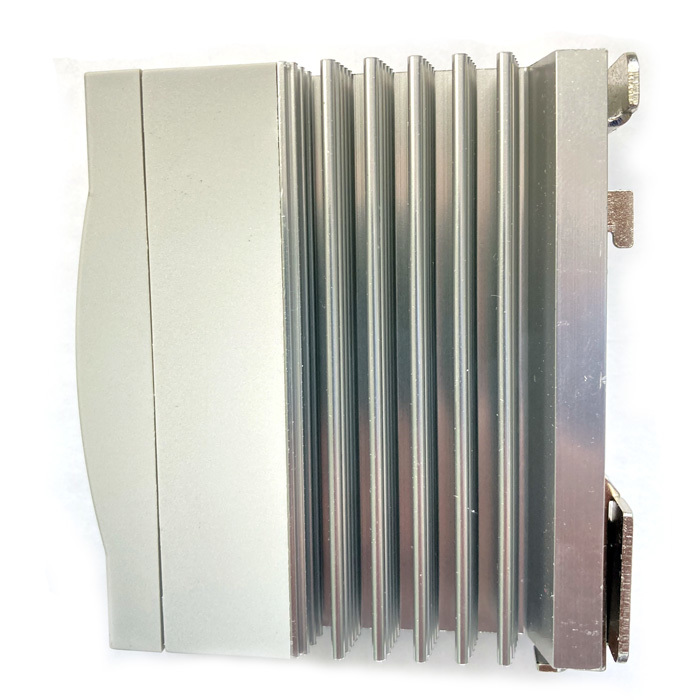

DC-DC Slim SSR DIN Relay

DC-DC Electronic Relay (SSR) Series SRH1 Switching Contact 10A, 15A, 20A, 30A, 40A

Suitable for mounting on a 35mm DIN rail. DC output circuit (anti-parallel thyristors), high number of switching cycles (without arcing of contact material), silent switching, and low control power.

• Long lifespan, no moving parts, no contact burning
• Quiet operation, very advantageous for commercial and medical applications
• Minimal electrical noise due to "zero crossing" switching capability
• Easy control and minimal power consumption for operation
• Resistance to shocks and vibrations, can be mounted in any position
• Fast switching (≤1ms)
• Low weight

Suitable Applications / Segments:

• Heating control,
• HVAC, ventilation
• Lighting
• Motor control
• Mobile applications
• Military technology
• Medical technology
• Food industry
• Smart buildings
• Wind and solar energy

Technical Parameters

• Model: SRH1-xxDD
• Design: Instantaneous switching (zero crossing)
• Switching: DC/DC
• Type of contact: 1 switching contact
• Number of phases: single-phase
• Max. turn-on/off time: ≤1ms
• Continuous switched current: 10A, 15A, 20A, 30A, 40A
• Continuous switching voltage: 5-110V DC
• Control voltage: 3-32V DC
• Max operating current: 30mA
• Min. ON voltage: 3VDC
• Min. OFF voltage: ≤1VDC
• With integrated heatsink: YES
• Ambient temperature -20 - 80 °C
• Dielectric strength 2.5kV

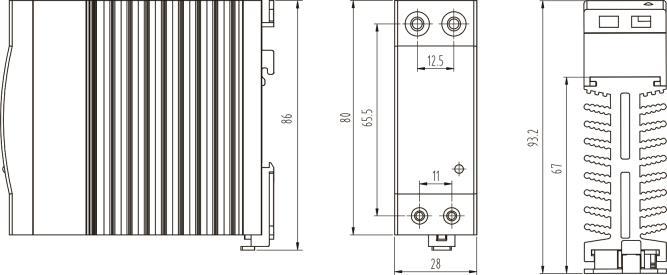

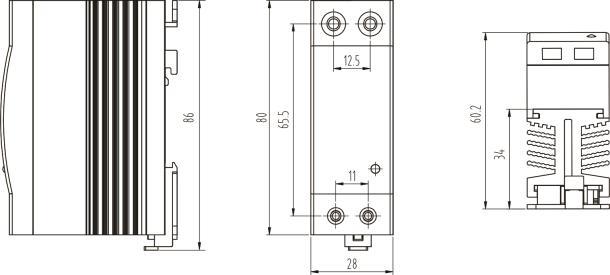

• Dimensions:
• 80x28x60.2cm (10A, 15A, 20A)
• 80x28x93.2cm (23A, 30A, 40A)

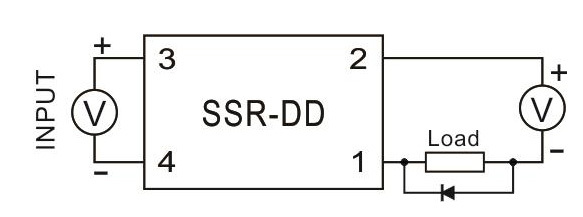

Wiring Diagram
