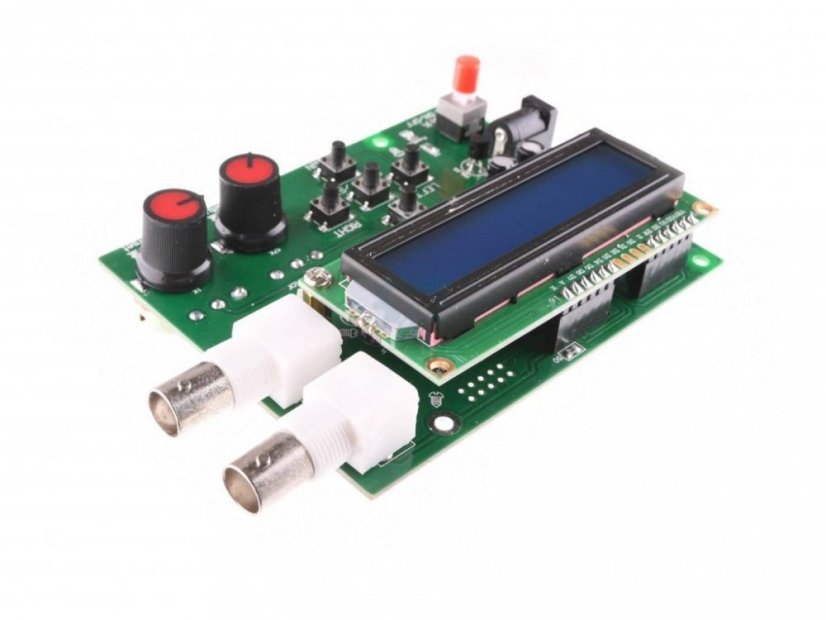

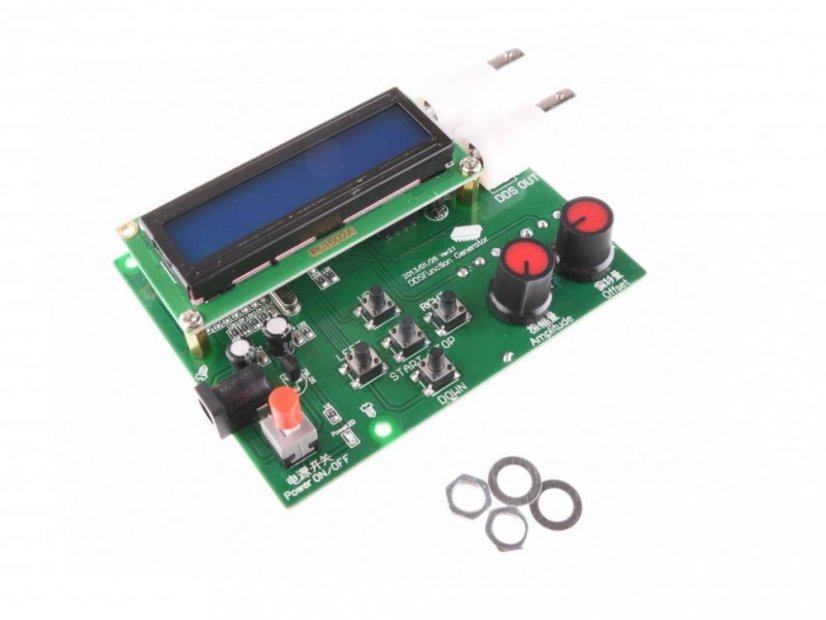

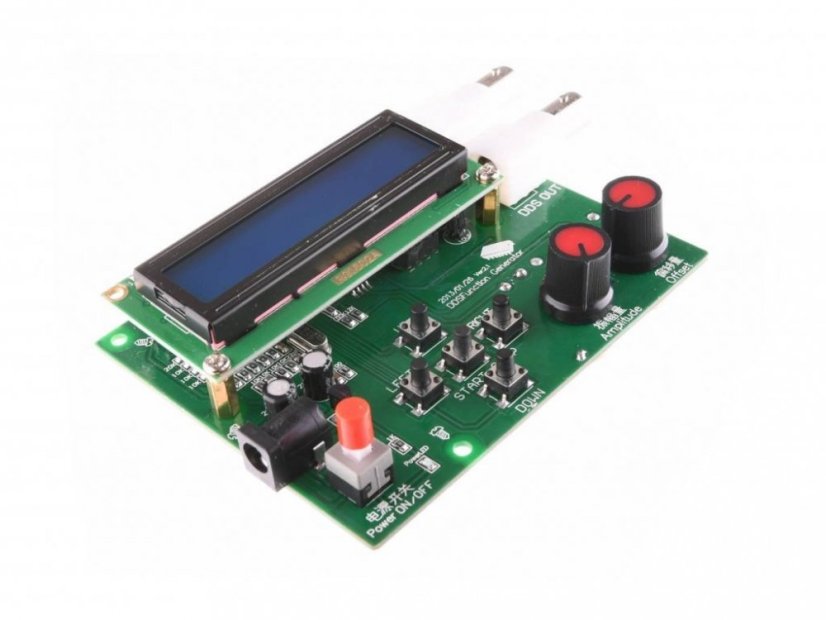

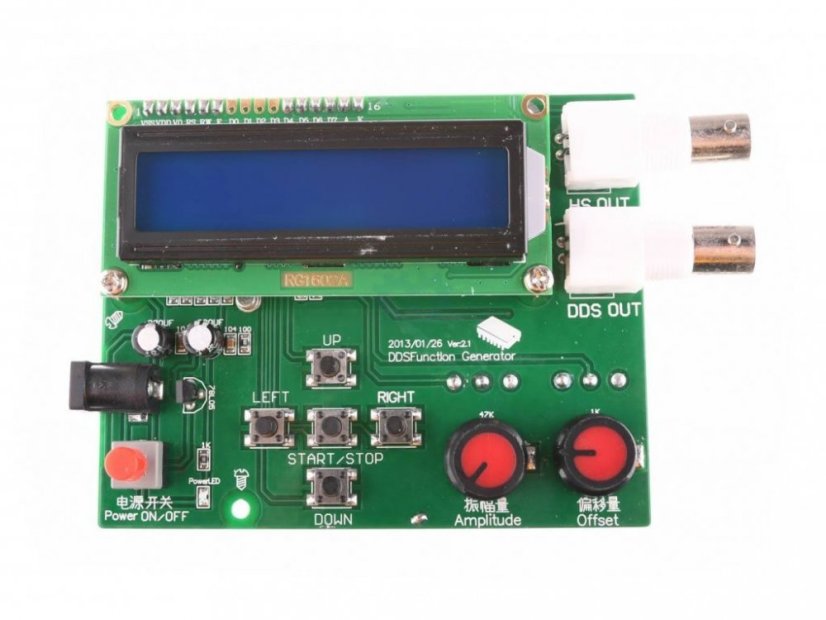

DDS-082 Low Frequency Signal Generator

DDS Low Frequency Signal Generator / Signal Generator for Sine, Square, and Triangle Waves.

Function generators are used to generate various types of electrical waveforms across a wide frequency range. The most common waveforms produced by function generators include sine waves, square waves, triangle waves, and sawtooth waves. Many function generators also feature the ability to add DC offset.

Direct Digital Synthesis (DDS) is a method used by function generators to create arbitrary waveforms from simple fixed-frequency reference clocks.

DDS Signal Generator Parameters:

• Model: DDS-082
• Power Supply: 7-9V
• Frequency Range: 1Hz - 65KHz

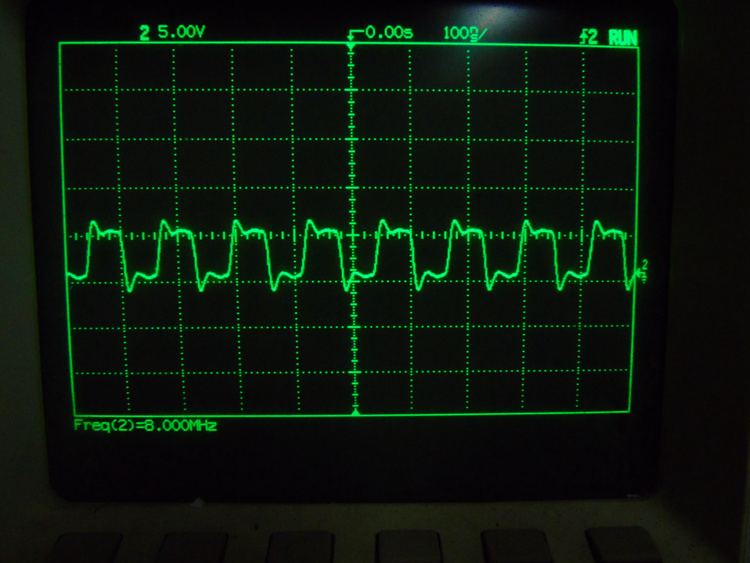

• HS Output: up to 8MHz;
• Output Impedance: 50?±10%
• Step Frequency Value: 1, 10, 100, 1000, 10000 Hz;
• Output Impedance: 20-200 ohms
• Dimensions: 100x80 mm
• Number of Channels: 1 channel
• Offset: 0.5pp-5Vpp
• Output: 0.5Vpp-14Vpp

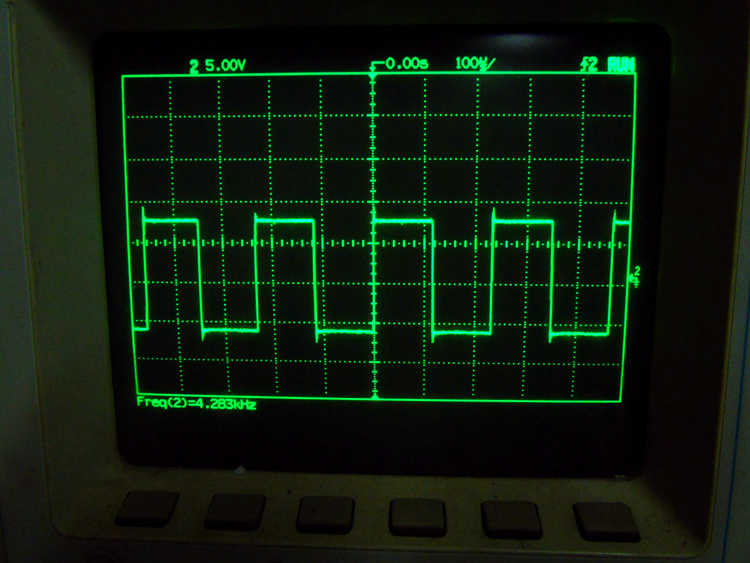

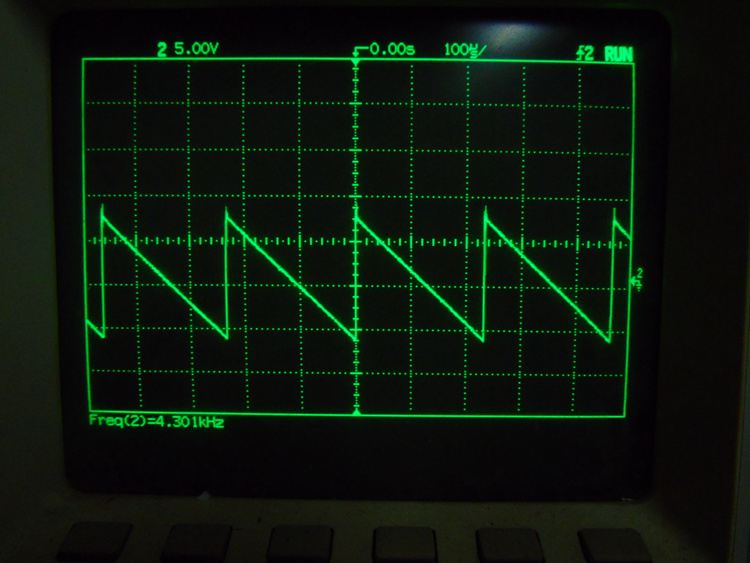

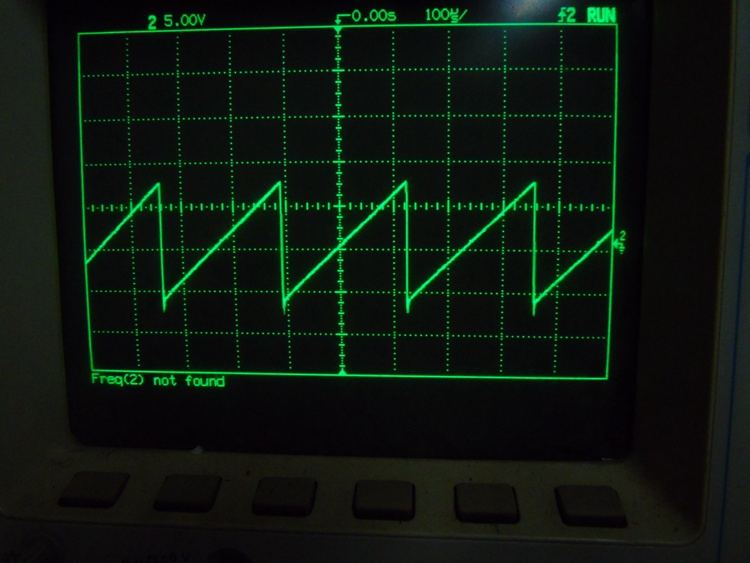

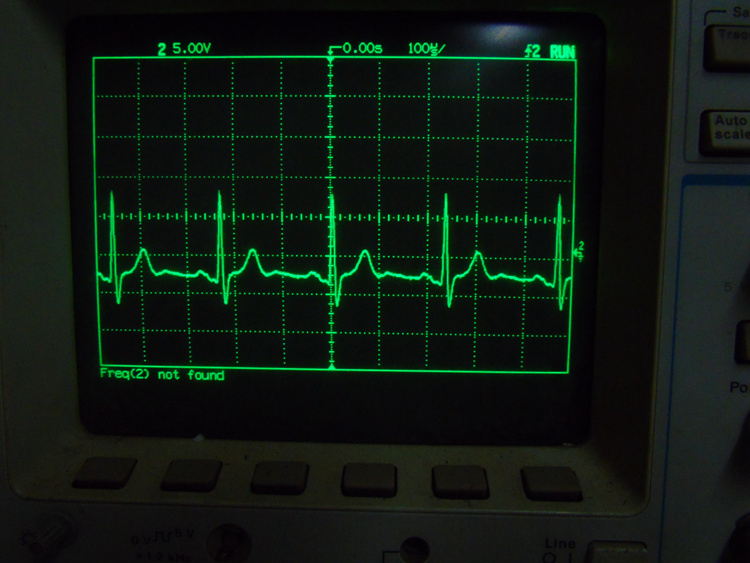

• Generated Signals: sine, square, sawtooth, inverted sawtooth, triangle, ECG, and noise.

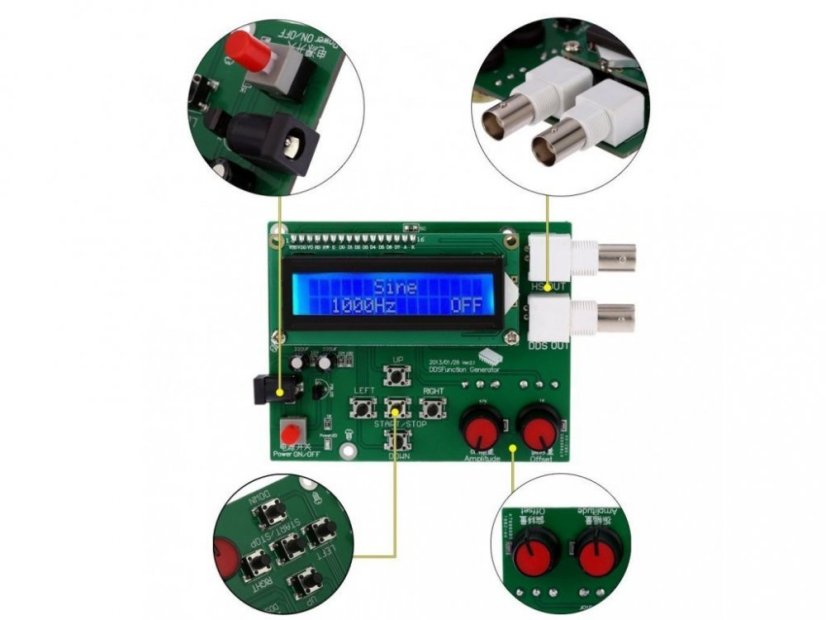

• 1602 LCD display;
• Intuitive keypad.
• Automatic recall of the last used configuration upon power on.

Main Functions:

• UP waveform output
• DOWN select output waveform
• LEFT decrease output frequency
• RIGHT increase output frequency
• STOP / RUN to stop / start output

Package Contents:

1x DDS-082 DDS Signal Generator
