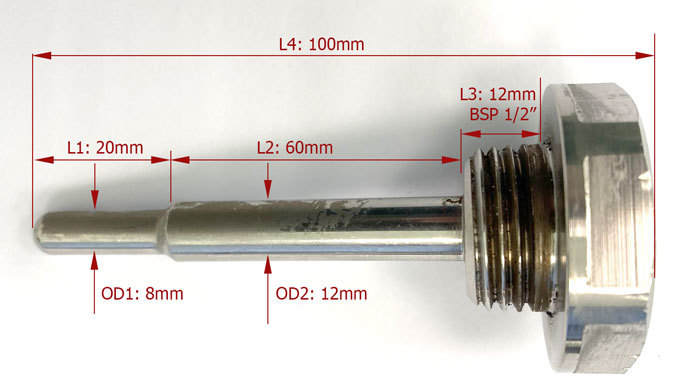

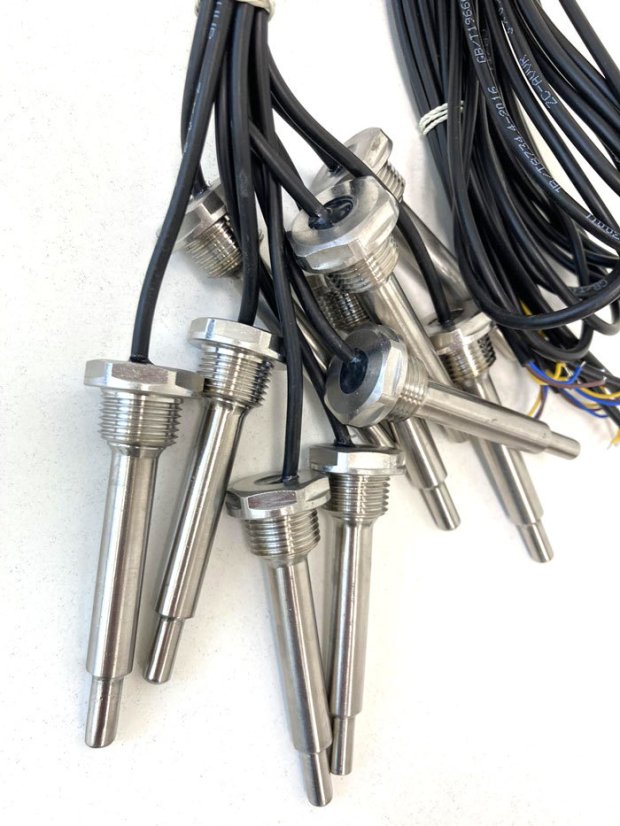

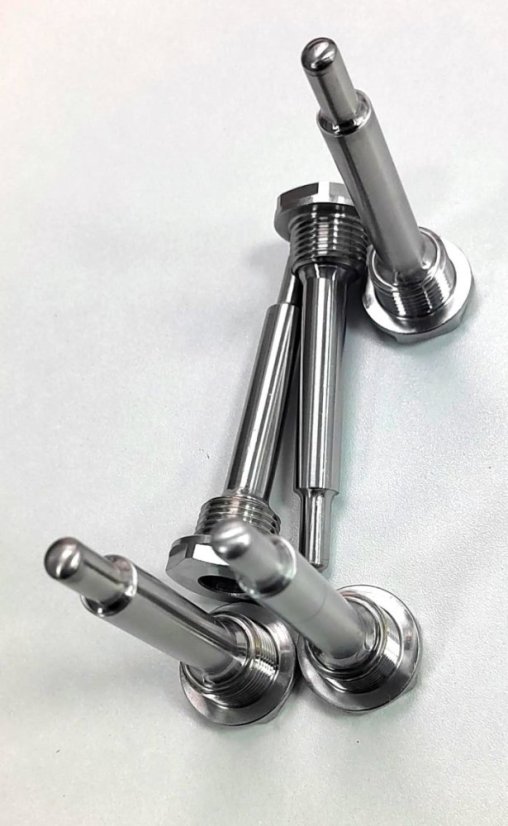

DS18B20 Temperature Sensor 1.5m with BSP 1/2" Thread
Stainless steel 304 temperature probe suitable for wet or harsh environments. The spring is made of nickel-plated steel and is not stainless steel!
Technical Product Description
Model: LTS40-D18B20P-1.5M
Temperature Sensor: DS18B20 (non-original)
Measuring temperature from -55 ℃ to +125 ℃
Probe: stainless S304
Thread: BSP 1/2"
Supply voltage range: 3.0V to 5.0V
Accuracy in the range -10 ℃ to 85 ℃: ± 0.5 ℃
Cable: black PVC, 1.5m
VCC: /+/ red
DATA: green
GND: /-/ yellow
Package Includes
1 x DS18B20 Waterproof Sensor
For orders over 200 pieces, it is possible to customize the tip, cable, and connector according to your requirements. Larger orders and custom orders are processed within 10 business days.
