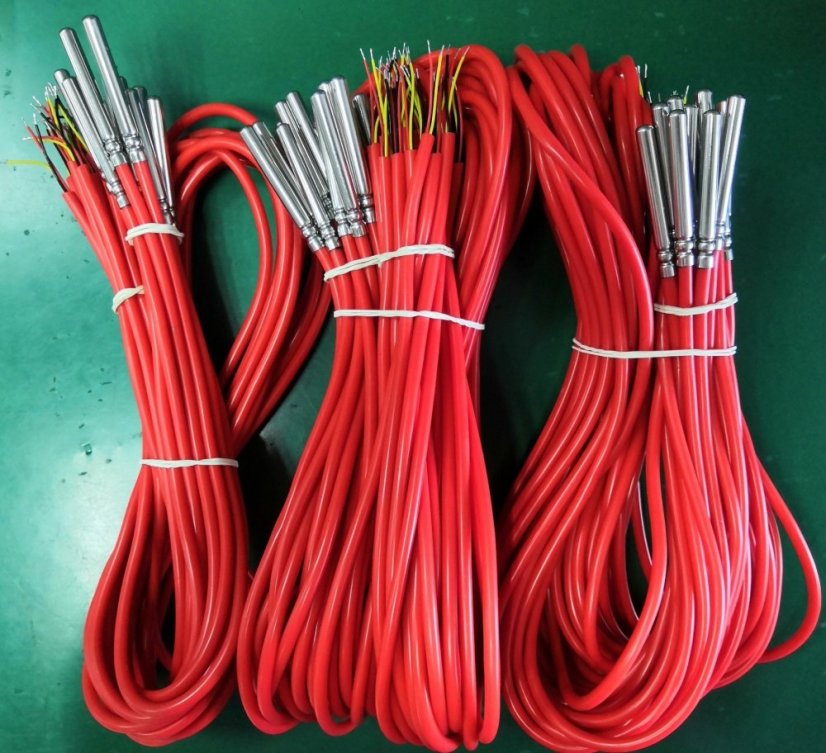

Waterproof temperature sensor DS18B20 BMS-DS18B20-202, 1m
Waterproof DS18B20 Temperature Sensor, 1 Wire, Arduino
Technical Product Description
- Sensor: DS18B20 non-original, clone / original
- Model: BMS-DS18B20-202
- Measures temperature from -55 ℃ to +125 ℃

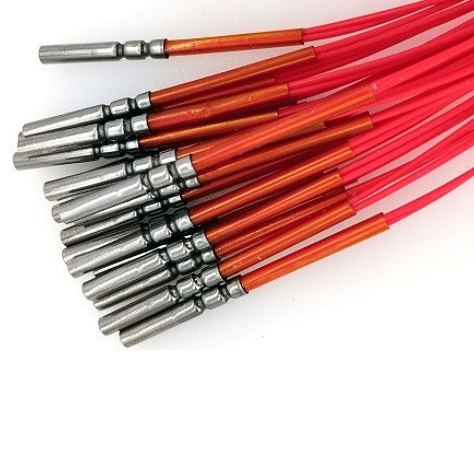

- Temperature probe made of stainless steel suitable for wet or harsh environments
- Power supply range: 3.0V to 5.0V
- Accuracy in the range of -10 ℃ to 85 ℃: ± 0.5 ℃
- VCC: /+/ red
- DATA: yellow
- GND: /-/ white
- Cable: red silicone cable 100 cm
- 1 x DS18B20 Waterproof Sensor
All DS18B20 sensors are based on the DS18B20 TO92 chip (non-original). For orders over 200 units, we can customize the tip, cable, and connector based on your requirements. Larger orders and custom requests are processed within 10 business days.
Usage:
This sensor operates in "parasitic" mode. This means it draws power from the data line and only requires two wires. The two wires can be directly connected to a TTL-to-USB adapter. It is possible to connect multiple sensors in parallel.
In Windows, the temperature can be read using the "1-Wire" software from Maxim: 1-Wire Drivers x86
However, third-party Windows software can also be used: LogTemp
In Linux, support is provided by the Digitemp low-level sensor driver: Digitemp sensor driver
