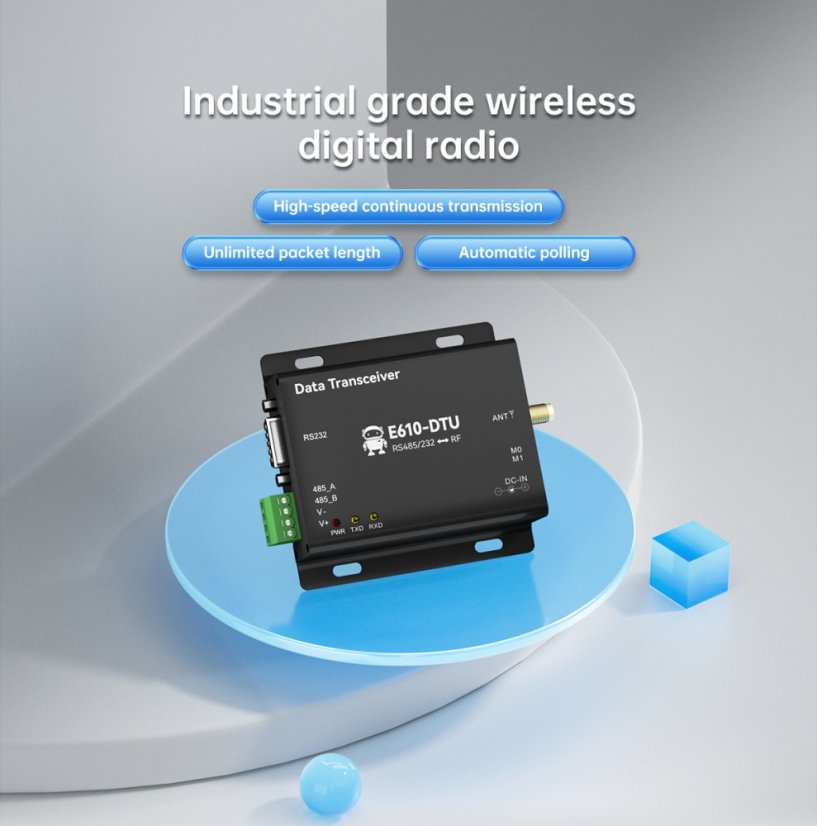

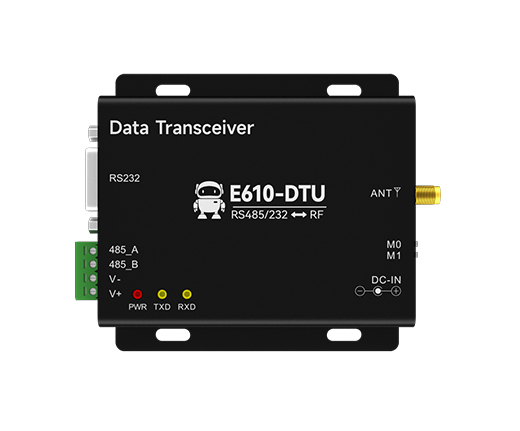

E610-DTU Wireless Station for Continuous Data Transmission

E610-DTU Wireless Station for Continuous Data Transmission

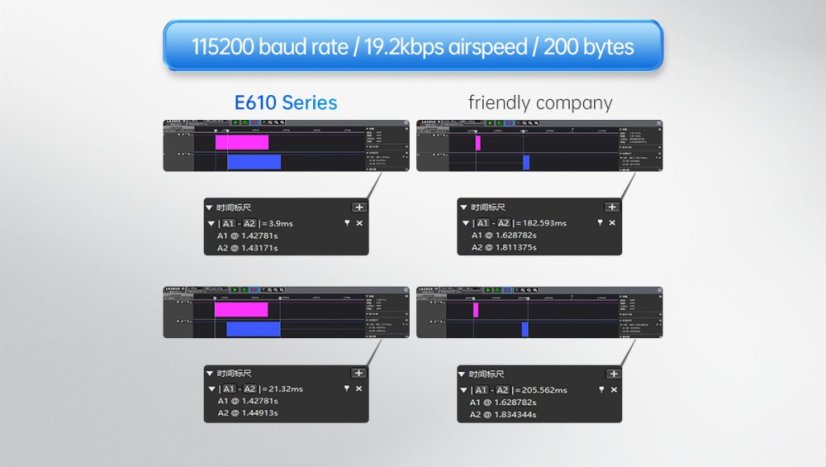

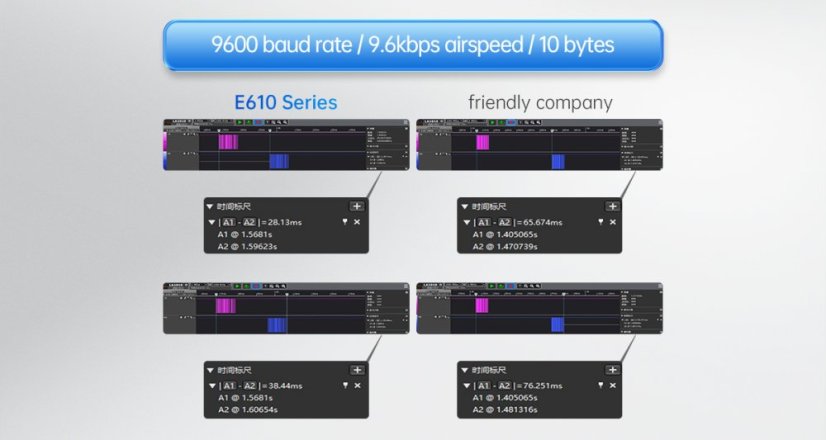

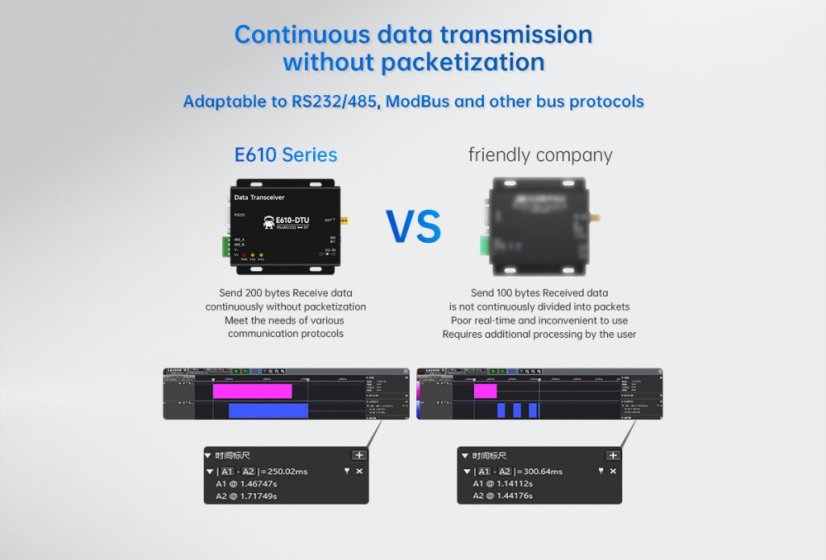

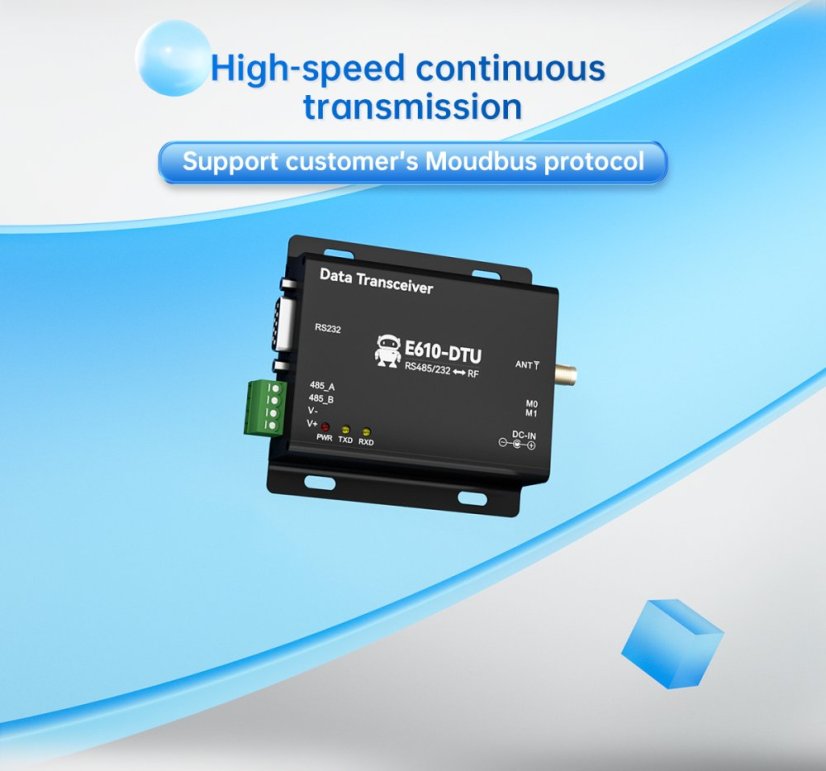

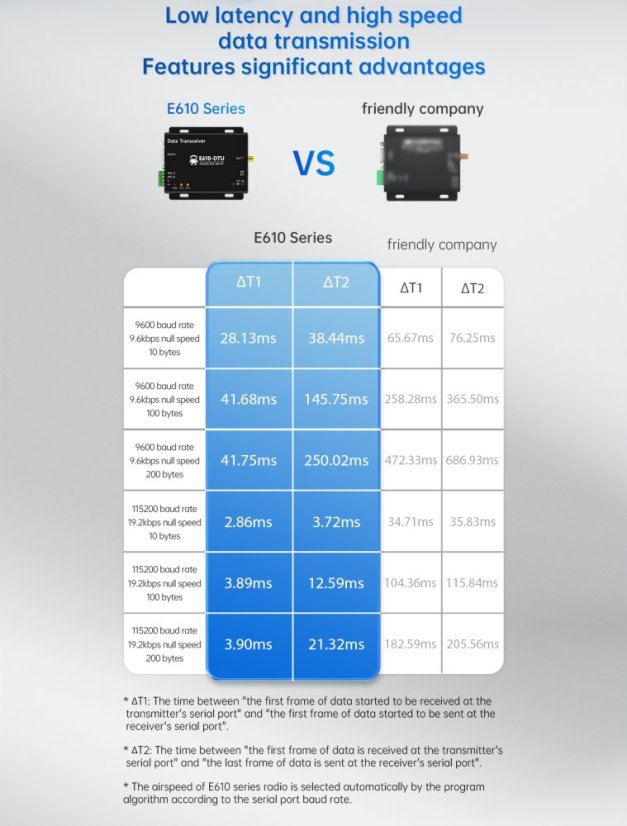

The E610-DTU is a 433MHz wireless station designed for continuous data transmission, equipped with a high-performance microcontroller and wireless transceiver chip. It supports a frequency range of 410 to 441 MHz (default 433 MHz) and boasts a transmission power of 20/30 dBm. Its main function is to allow uninterrupted data transmission at various serial port speeds in continuous transmission mode, minimizing data latency at the receiving end. This makes it ideal for scenarios requiring rapid transfers of large data volumes.

Features:

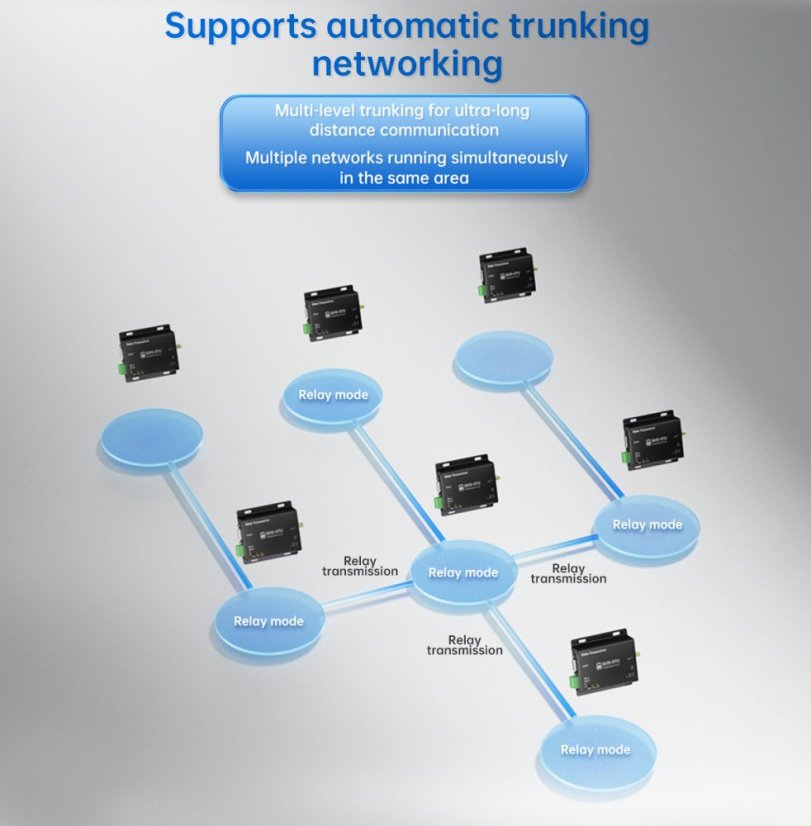

• Supports automatic relay networks for long distances.
• Multiple networks running simultaneously in one area.
• Efficient power supply design, supports 8-28V.
• Temperature compensation, frequency stability greater than ±1.5PPM.
• All-aluminum casing, compact size, easy installation, and good heat dissipation.
• Multiple protective functions: reverse voltage protection, overvoltage protection, and antenna protection.

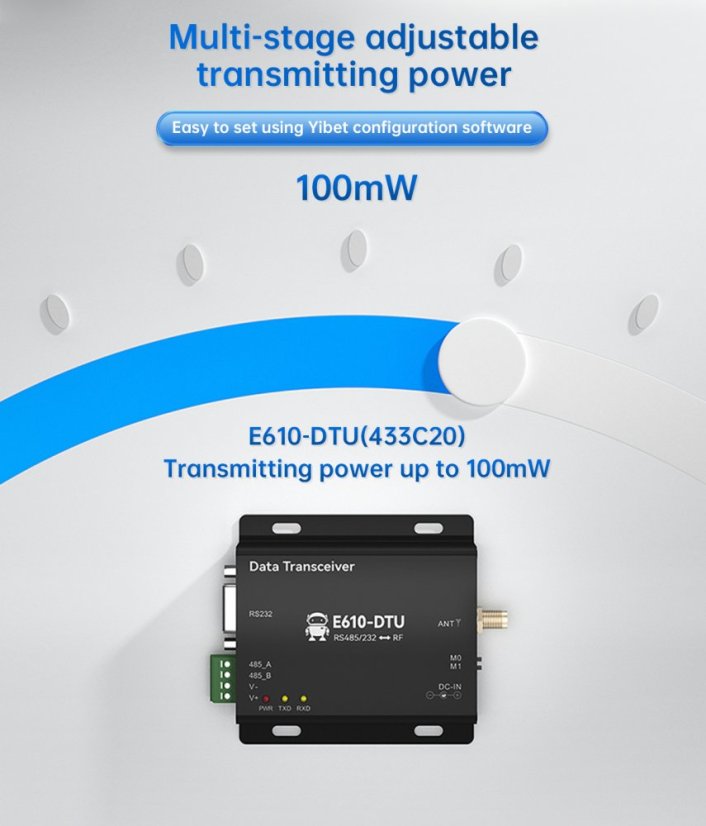

• All parameters adjustable through programming: power, frequency, speed, ID address, and more.

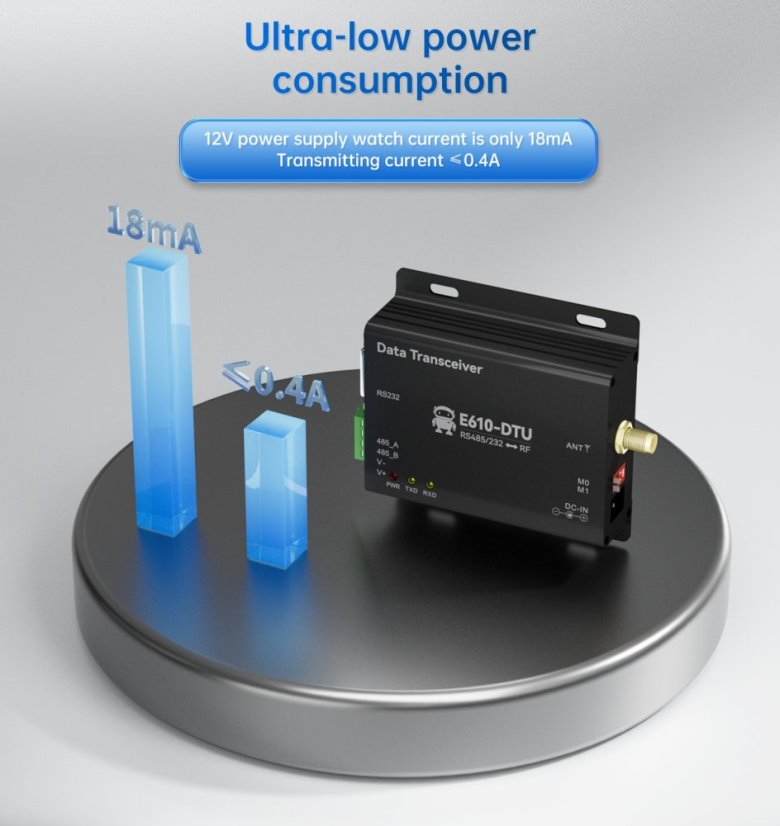

• Ultra-low power consumption, with 12V consumption of only 16mA, transmission current ≤ 0.4A.

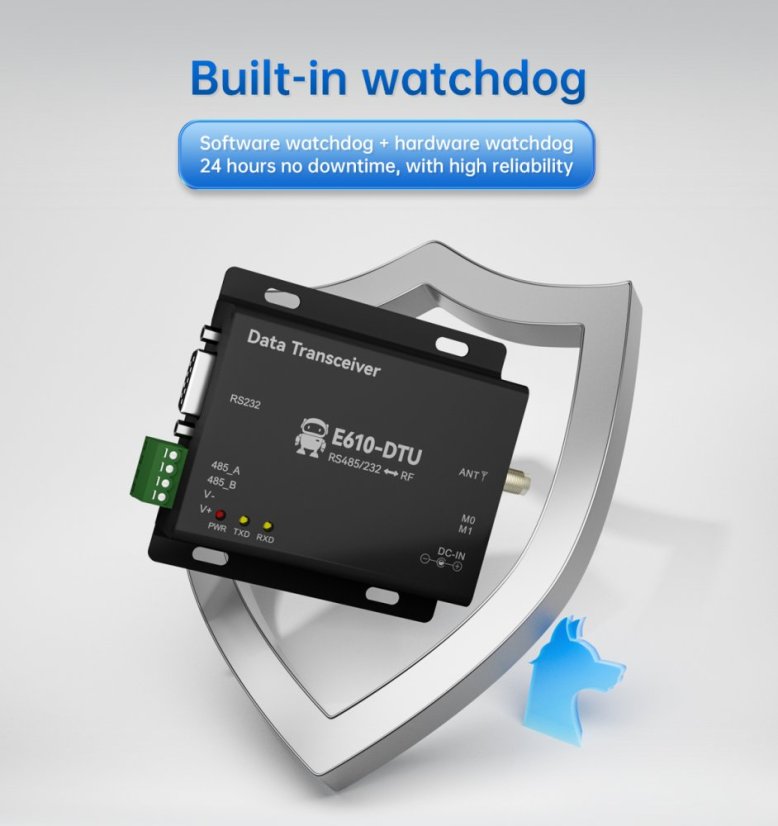

• Built-in watchdog for automatic restarting in case of abnormalities.

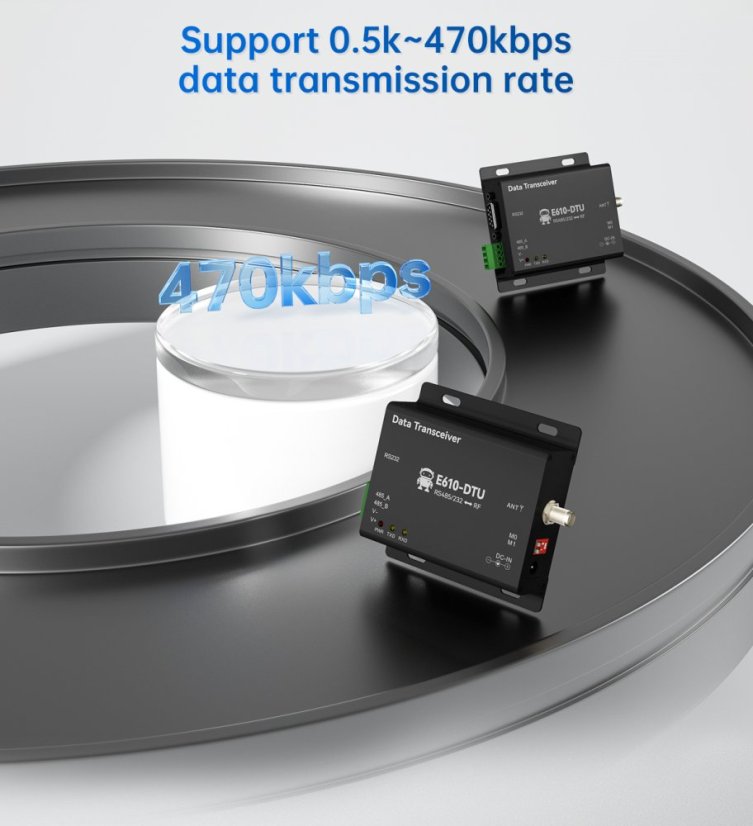

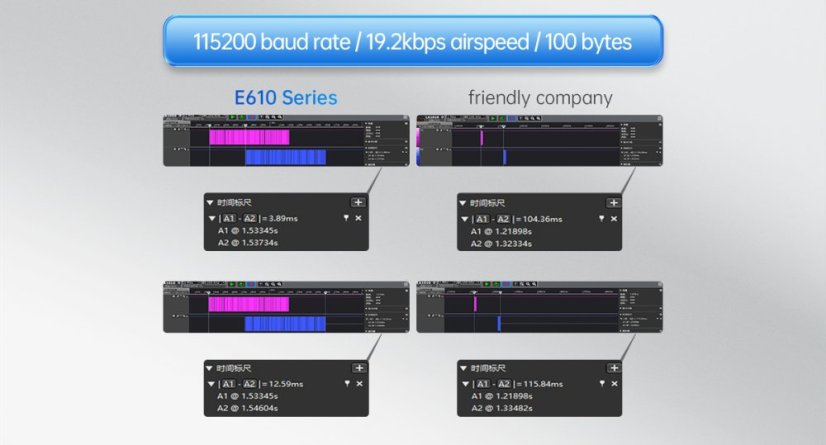

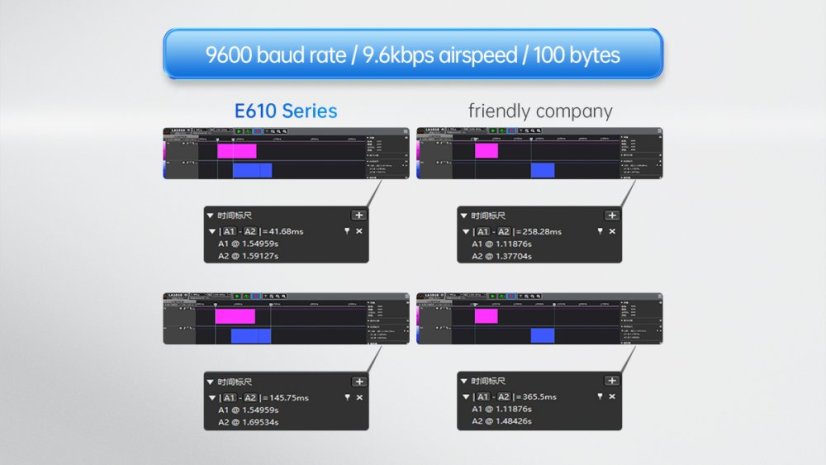

• Supports data transmission speeds from 0.5k to 470kbps.

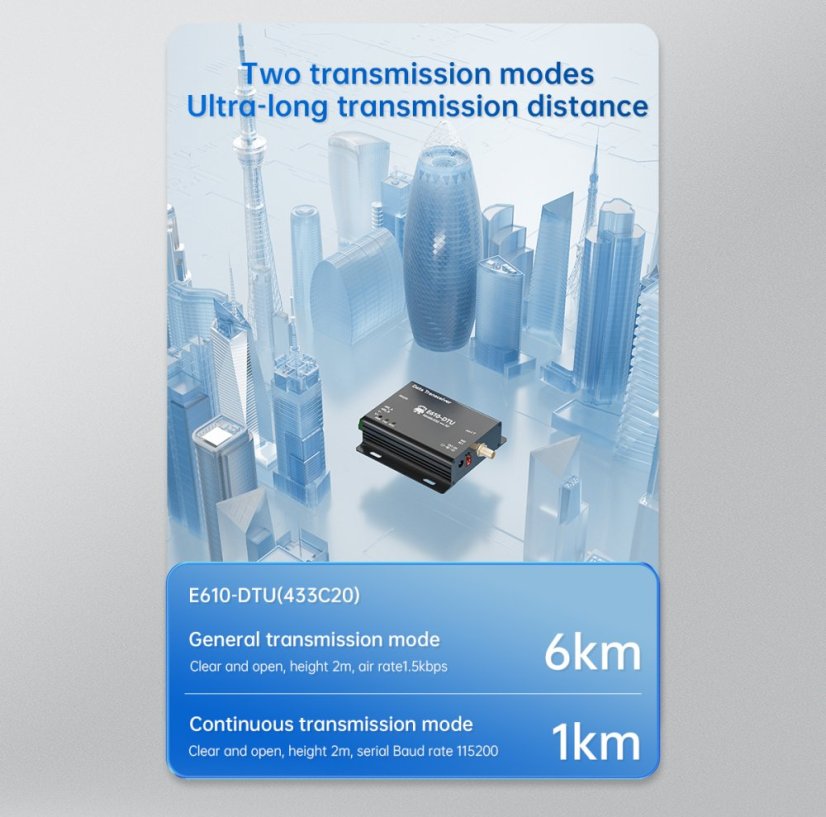

• Range up to 10km (E610-DTU (433C30)) and 6km (E610-DTU (433C20)) under ideal conditions.
• RSSI signal strength indication for assessing signal quality.
• User-configurable communication key to ensure user data confidentiality.
• Parameter storage on power-off, restoration of settings after power-on.
• Operating temperature range: -40 ℃ ～ +85 ℃, ideal for harsh environments.

Specifications:

• Model: E610-DTU (xxxCxx)
• Frequency: 433MHz
• Transmission Power: 20dBm (3km), 30dBm (8km)
• Interface: RS232/RS485
• Power Supply: DC 8-28V
• Operating Temperature: -40℃～+85℃
• Dimensions: 82x62x25mm

Package Contents:

1x E610-DTU (xxxCxx)-V8 Wireless Data Transmitter (without power supply and antenna)
