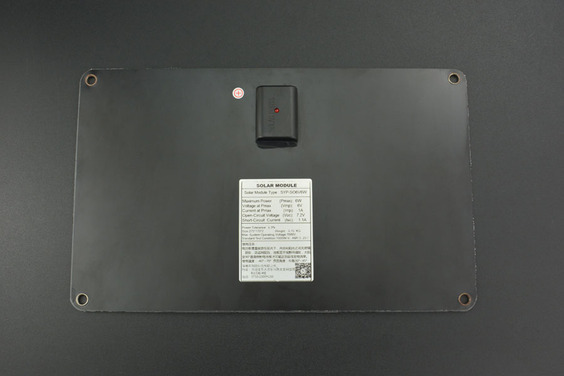

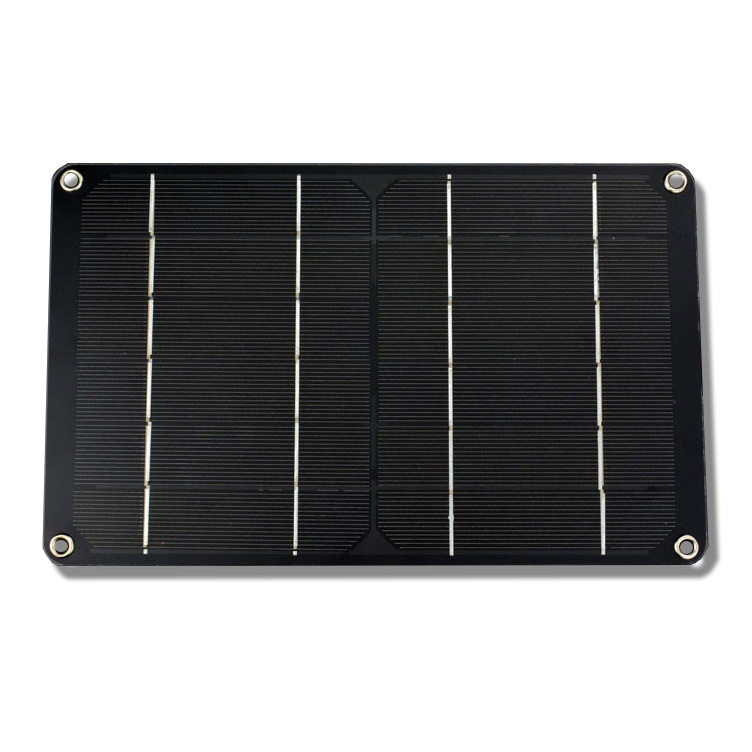

Monocrystalline Solar Panel 5V/6W USB

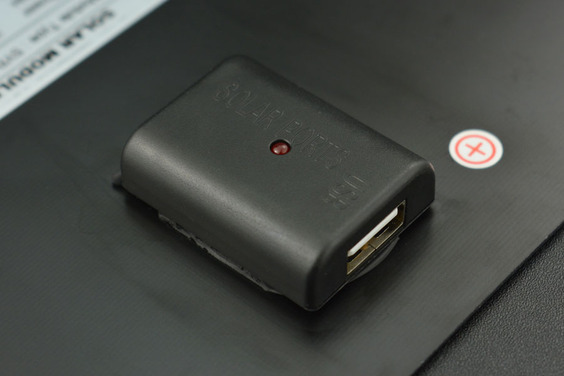

This is a highly efficient, lightweight, portable monocrystalline silicon solar panel in a PET package, featuring an integrated voltage regulator for 5V input, functional indicators, and a standard USB Type-A output port; simply connect and use. It can provide a significant amount of energy in various environments, preventing system shutdown even during rainy days.

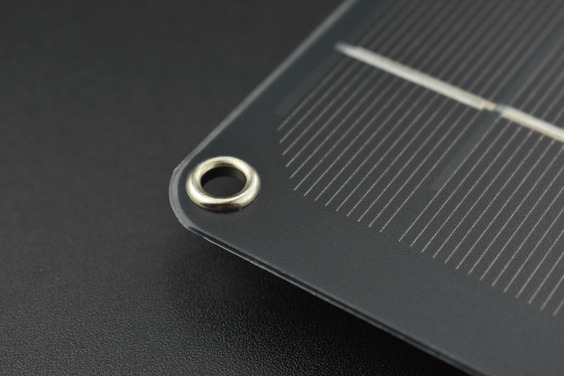

The energy from the solar panel will be particularly effective when connected to the DFRobot solar power and control panel. These panels come with open holes and copper clips, enabling easy attachment directly onto a backpack for convenient portability and use. The ultra-thin, lightweight design weighs just 90g, significantly lighter than traditional glass-packaged solar panels.

When hanging this panel, ensure that it is directed towards the sun and that no shadows cover the solar panel.

SPECIFICATIONS

• Model: FIT0601
• Operating Voltage: 5V (with USB voltage control module)
• Open Circuit Voltage: 7.2V
• Operating Current: 1A(MAX)
• Short Circuit Current: 1.1A
• Maximum Power: 6W
• Material: Monocrystalline Silicon Flexible Laminate
• Connection Length: 1m
• Product Dimensions: 27.5cm × 16cm × 0.2cm / 10.82in × 6.3in × 0.078in
• Operating Temperature: -30℃~70℃
