FNIRSI WD-02: Smart Wall and Metal Detector

FNIRSI WD-02 Smart Wall and Metal Detector

The WD-02 is an intelligent metal and object detector designed for use within walls.

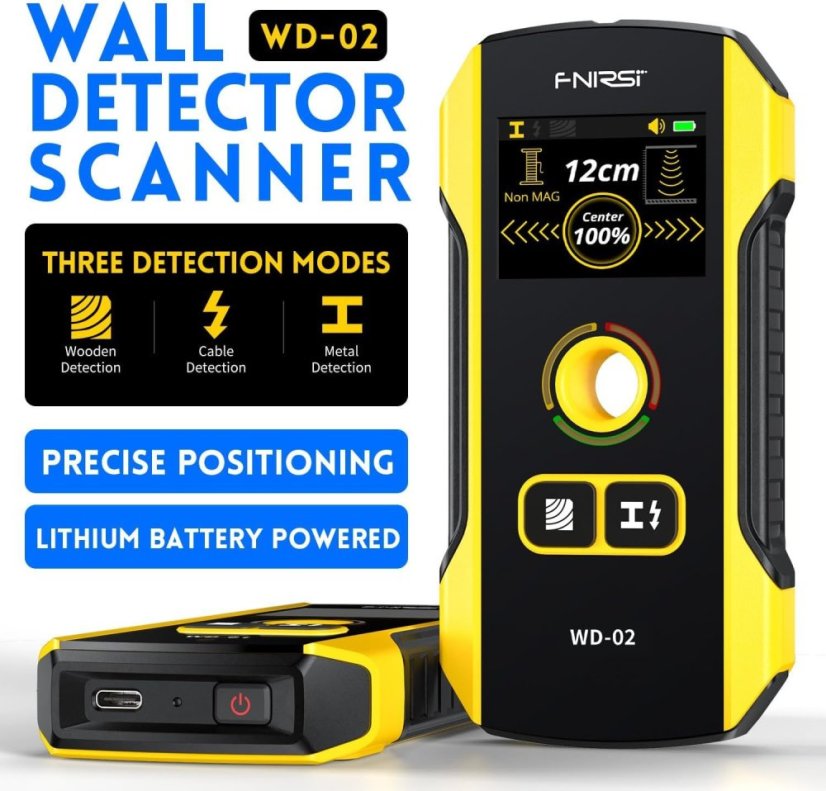

FNIRSI WD-02 is an intelligent detector for ferrous and non-ferrous metals, live wires, and wooden structures within walls, featuring a three-level sensitivity setting for more accurate measurements. It can be utilized to detect steel rods, metal beams, metallic pipes, wood, and live wires in walls, ceilings, and floors. There are three detection modes available: metal detection, wood detection, and AC detection.

• By default, the detector will enter the "metal detection" mode upon power on. At this point, a signal will appear on the display if metals are interfering. It will alert that calibration is required.
• Calibration method: Place the detector in an environment free of metal and strong magnetic field interference (e.g., lift the detector into the air, etc.). Press and hold the "Metal/Cable Detection" button until the display signal returns to zero and the green light turns on. At this point, release the button, and calibration is complete.
• For metal detection: Pressing the metal detection button will switch to metal detection mode. At this point, a metal detection pattern will appear on the display, and the green light will illuminate.
• Place the detector on the object's surface and move the device left or right in the same horizontal direction. As the device gets closer to the metal object, the signal strength on the display will gradually increase. Simultaneously, the intensity percentage will also gradually increase.
• As the device slowly moves away from the object, the signal strength will gradually decrease, and the intensity will also decrease.

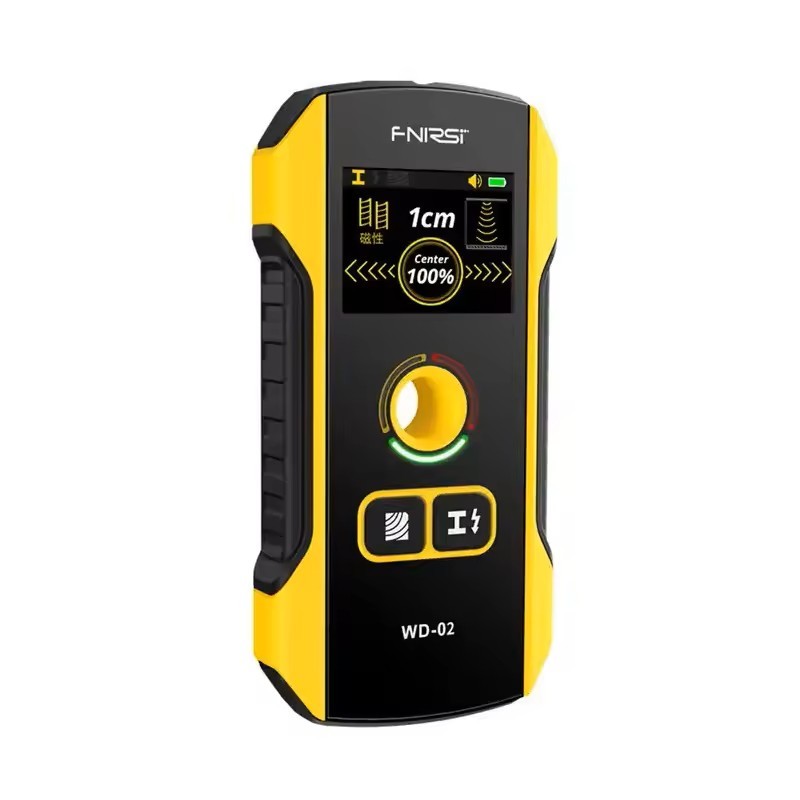

• When the program determines that the signal received by the device has reached its maximum, it indicates that the metal object is just beneath the center of the detector. The center icon (Center) will be displayed on the screen.
• When detecting metal materials, the yellow or red indicator light of the detector will illuminate.
• If both metal materials and alternating current signals are detected simultaneously, the red indicator light will flash, and the detector will continuously beep.
• When the detector displays a non-magnetic metal symbol, it indicates that the currently measured item is generally a wire or copper pipe.

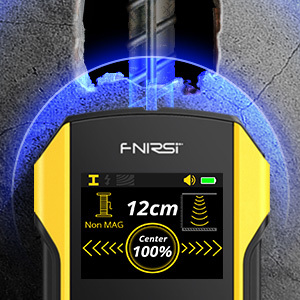

• If the detector displays a magnetic metal symbol, it indicates that the currently measured item is generally a steel rod.
• If the detector does not display a magnetic or non-magnetic metal symbol, it means that the currently measured item is generally an alloy.
• When the AC symbol flashes on the device, it indicates that an alternating current signal is nearby.
• During metal detection, the displayed value of detection depth on the screen is synchronized with the detection operation. The accuracy of the depth value relates to the shape and material of the measured metal, the distribution of the measured object relative to the detector, and the characteristics of the medium surrounding the measured object, etc.

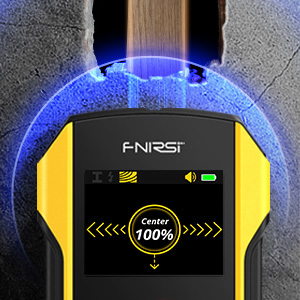

The latest upgraded wood detector - the FNIRSI wood detector has a newly designed positioning hole, which can accurately and quickly mark the edges and center of metals, wooden structures, beams, pipes, and live AC wires in walls, floors, and ceilings. Quick detection saves users time and effort, allowing them to complete tasks more easily. Whether you are a professional, a homeowner, or a DIY enthusiast, this is a clear choice.

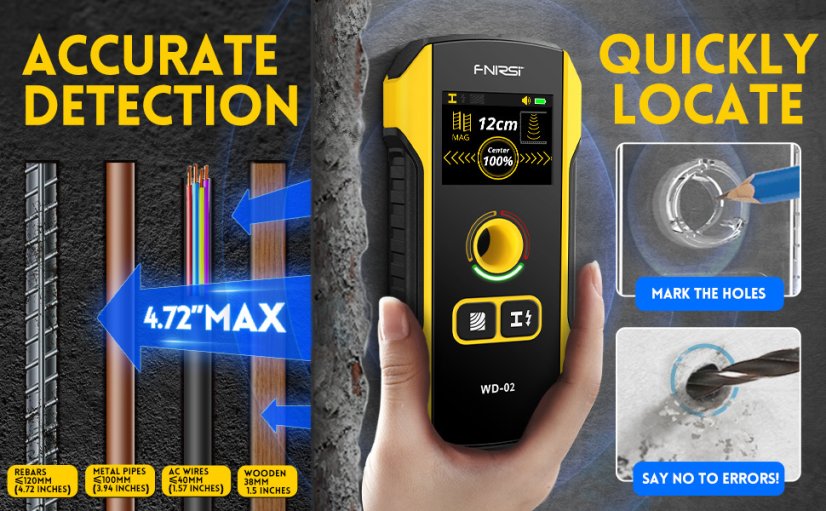

• MULTIFUNCTIONAL DETECTION: With an upgraded 6-in-1 detector, users get more. The precision detection mode locates the center and edges of wooden and metallic structures up to a depth of 2 cm. The depth detection mode identifies the center and edges of wooden and metallic structures up to a depth of 4 cm. The non-ferrous metal detector identifies metals (copper) up to a depth of 10 cm. The ferrous metal detector recognizes metals (iron) up to a depth of 12 cm. The AC detector detects live AC wires up to a depth of 5 cm. The copper wire detector identifies copper wire up to a depth of 4 cm.

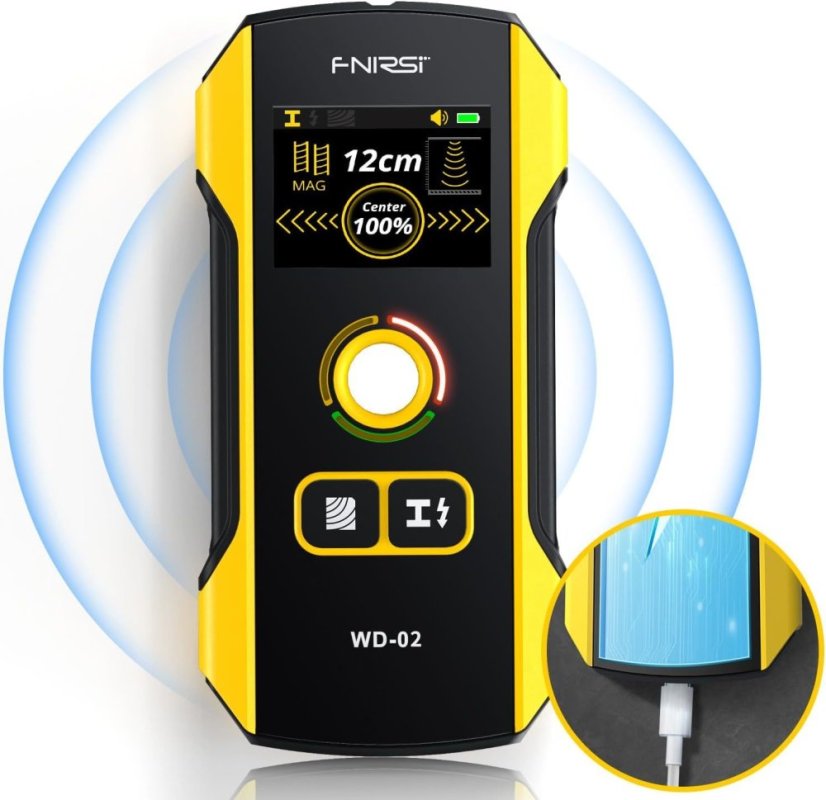

• DIGITAL LCD DISPLAY and SOUND ALARM: The detector has a large LCD display and a sound alarm to accurately determine the location of objects. When objects are found, the LED light at the center opening indicates the direction, and the strength of the detection signal indicates whether you are approaching the target. The type-C charging mode saves you the hassle of replacing batteries.
• EASY TO USE AND AUTOMATIC CALIBRATION: With an easy-to-read LCD display and ergonomic non-slip grip, detection is straightforward and comfortable. The detector can be automatically calibrated anywhere on the wall to successfully find the center of the structure in one step.
• WIDE APPLICATION: This detector quickly locates wooden structures, metal frameworks, and AC wires hidden within the walls, floors, and ceilings of your home. It can work on various wall surfaces, such as shiplap, wallpaper, hardwood flooring, acoustic ceiling panels, painted walls, etc., preventing dangers when mounting televisions, cabinets, garage shelves, etc.

Technical Parameters:

• Model: WD-02
• Display: TFT HD color display
• Maximum detection depth
• Metals 120 mm
• Non-ferrous metals (copper) 100 mm
• AC wire 50 mm
• Single copper wire 40 mm
• Wood precision mode 20 mm
• Depth mode: 38 mm
• Automatic shutdown after 5 minutes of inactivity
• Power supply: rechargeable lithium battery 300 mAh, USB-C charging
• Dimensions: 138 x 68 x 22 mm
• Weight: 122 g

Specifications:

1x FNIRSI WD-02 metal detector

1x USB cable

1x Carrying case

1x Manual
