HI-DS53-01 Temperature Sensor DS18B20 - with Original Chips

HI-DS53-01 Temperature Sensor DS18B20 with 100% Original Maxim/Dallas DS18B20 Chips Imported from the USA!

New! Digital temperature sensors with 100% original Maxim/Dallas DS18B20 chips imported from the USA! These original chips are highly recommended for industrial use. They are more stable, reliable, and have no faulty parts compared to their Chinese counterparts.

True import from the USA!

We test everything twice:

Technical Description

• Model: HI-DS53-01
• Chip: DS18B20+ Maxim Integrated (import from USA)
• Output Type: Digital
• Adjustable Resolution: 9-12 bits
• Temperature Measuring Range: -55 ~ +125 ℃
• Measurement Accuracy: ±0.5 °C
• Operating Voltage: DC 3-5.5V
• Operating Power Current: 1.5 mA
• Interface Type: 1-Wire

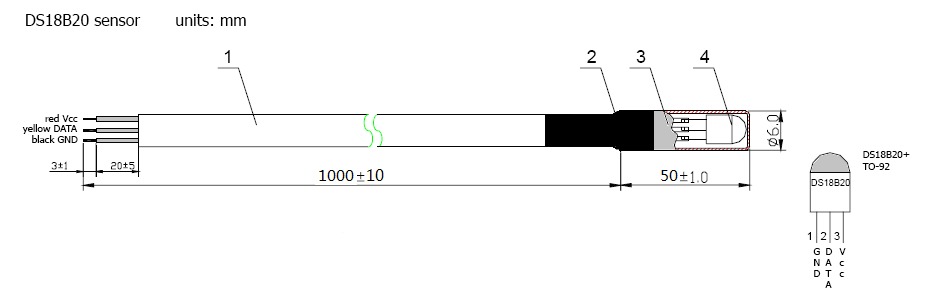

• Probe: stainless steel, length 30 mm, width 5 mm
• Cable: 1m, PVC

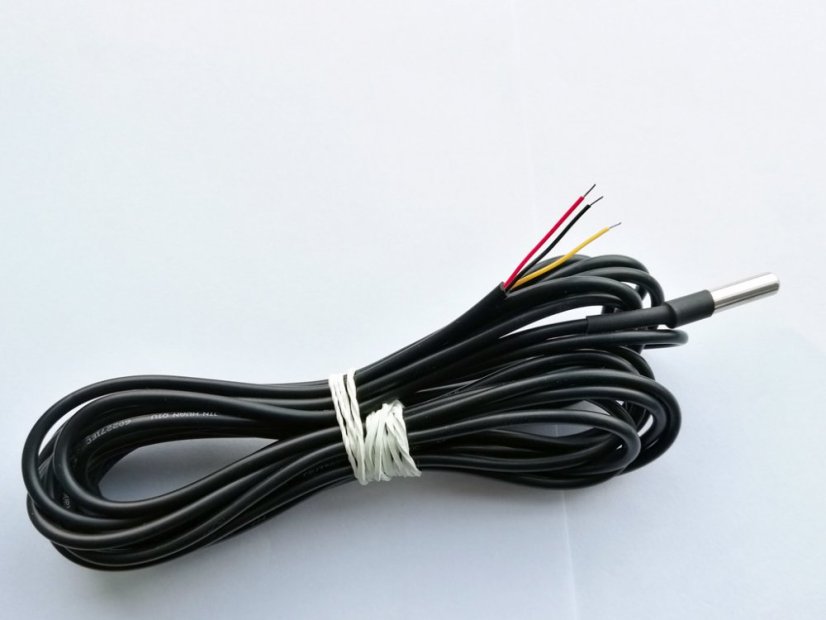

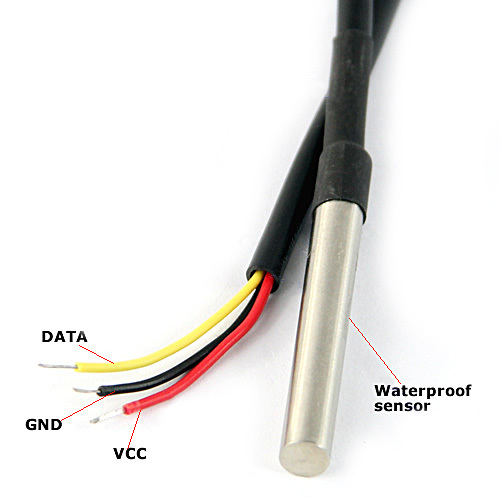

All DS18B20 sensors are based on the original Maxim (originally Dallas) DS18B20+ TO92 chip. The sensor probe is 30 mm long, 5 mm wide, with a black PVC cable. For orders over 200 pcs, we can customize the probe, cable, and connector based on your requirements. Larger orders and custom requests are processed within 10 business days.
