HI-DS53-SN Temperature Sensor with 100% Original Chips

HI-DS53-SN Temperature Sensor with 100% Original Maxim/Dallas DS18B20 Chips Imported from the USA!

New! Digital sensors with 100% original Maxim/Dallas DS18B20 chips imported from the USA! We strongly recommend these original chips for industrial use. These chips are more stable, reliable, and have no failure-prone components compared to their Chinese counterparts.

Technical Product Description

• Model: HI-DS53-SN
• Chip: DS18B20+ Maxim Integrated (Import from the USA)
• Output Type: Digital
• Adjustable Resolution: 9-12 bits
• Measured Temperature Range: -55 ~ +125 ℃
• Measurement Accuracy: ±0.5 °C
• Operating Voltage: DC 3-5.5V
• Operating Current: 1.5 mA
• Interface Type: 1-Wire

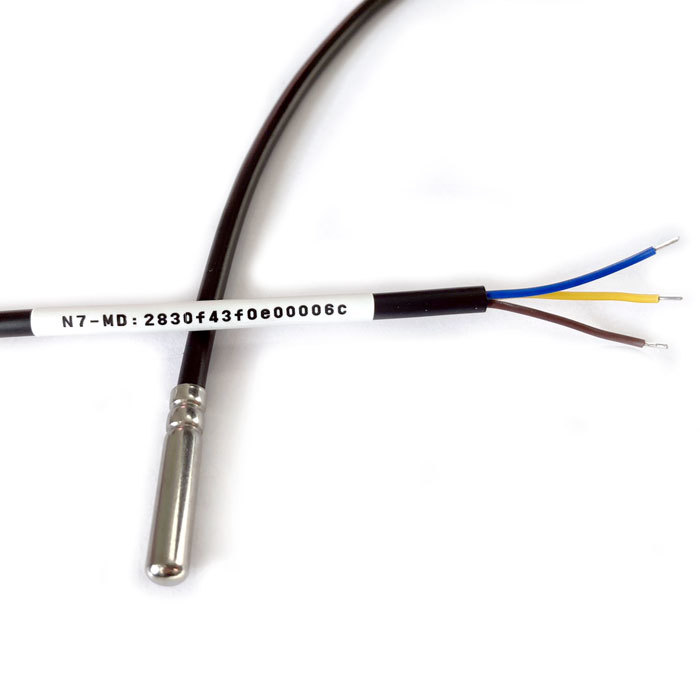

• Probe: Stainless Steel, Length 30 mm, Width 6 mm
• Cable: 0.3/1m, PVC

Wiring:
Yellow - Data
Brown - Vdd (+5V)
Blue - GND (-)

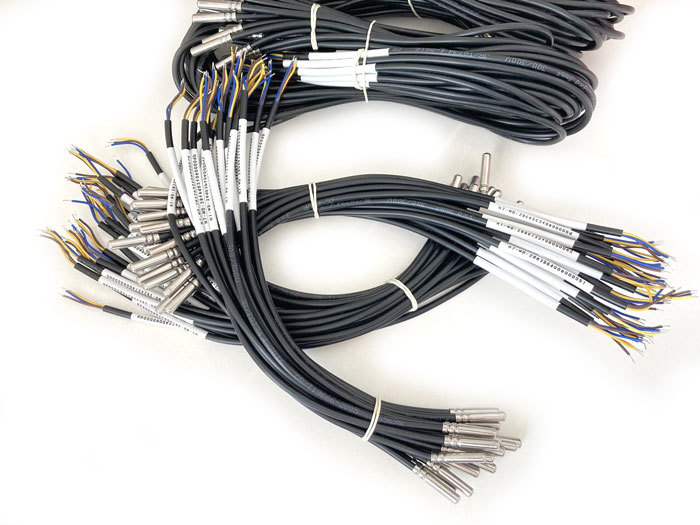

All DS18B20 sensors are based on the original Maxim (formerly Dallas) DS18B20+ TO92 chip. The sensor probe has a length of 30 mm, width of 6 mm, with a black PVC cable. For orders over 200 pcs, the probe, cable, and connector can be modified according to your requirements. Larger orders and custom orders are processed within 10 working days.
