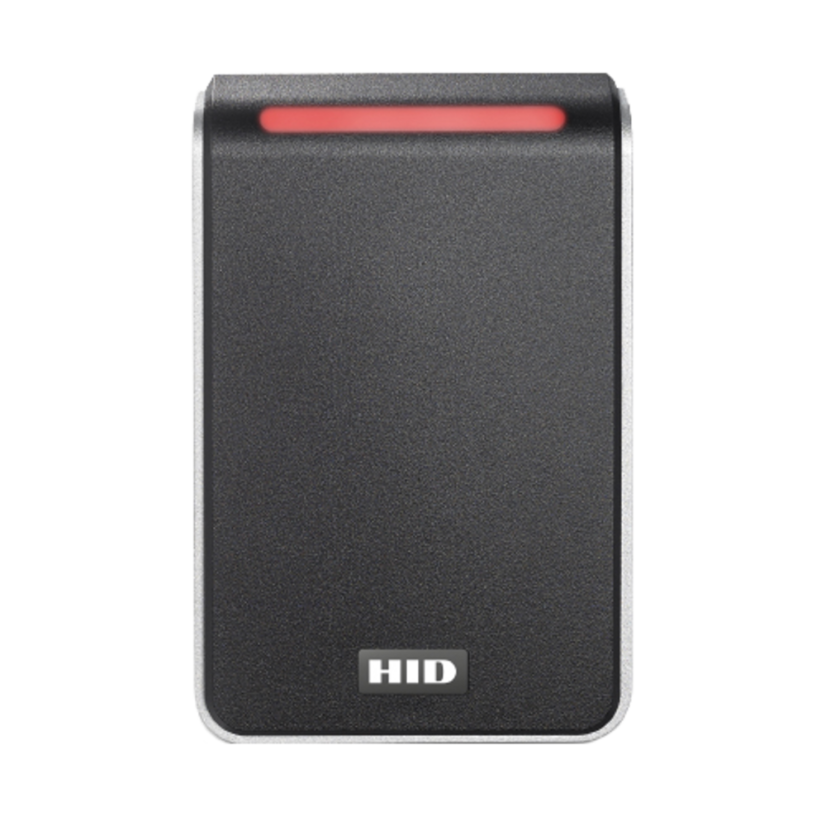

HID Signo Reader

HID® Signo™ Readers

Premium Series of Access Control Readers from HID

The HID Signo readers bring the future of access control to modern organizations. Along with an elegant and modern design, this high-performance reader platform offers reliable and flexible operation supporting a wide array of identification technologies. The HID Signo extends HID's leadership in access control while delivering unparalleled security and performance through new features that further enhance the safety of premises and facilities.

Upgrading to HID Signo readers ensures convenience and security today while preparing for future challenges – that is the main message of the Signo series.

Key Features

🔹 High Versatility – Supports the widest range of identification technologies, including HID Mobile Access® using Bluetooth® and Near Field Communication (NFC). The reader also supports Apple Enhanced Contactless Polling (ECP) for compatibility with Apple Wallet.

🔹 Unmatched Performance – Ultra-secure storage of encryption keys on a certified secure element. The new surface detection feature allows the reader to automatically calibrate and optimize reading range.

🔹 Future-Ready – All readers have native support for the Open Supervised Device Protocol (OSDP) for secure bi-directional communication. Additionally, each reader is designed for remote management with no physical intervention required.

Specifications:

• Model: HID Signo
• Reader Type: Contactless
• Supported Contactless Cards 13.56 MHz: Seos®, iCLASS SE, iCLASS®, MIFARE DESFire® EV1/EV2/EV3 and MIFARE® Classic.
• Supported Contactless Cards 125 kHz: HID Prox®, Indala® Prox, Dorado® Prox, and EM Prox (legacy contactless technologies).
• Output Format:
  • Open Supervised Device Protocol (OSDP)
  • Wiegand
• Max. Reading Range: 10cm
• Power Supply Voltage: 12V
• Keypad:
  • S20/S40 - No
  • S20k/S40k - No
• Protection Rating: IP65
• Connection Method: Pigtail
• Operating Temperature: -35 - 66 °C
• Relative Humidity: 0 - 95 %
• Dimensions:
  • S20/S20k - 45 × 121.5 × 19.5 mm
  • S40/S40k - 80 mm × 121.5 mm × 19.5 mm

Technical Sheets and Documentation (En):
https://www.hidglobal.com/products/20
https://www.hidglobal.com/products/20k
https://www.hidglobal.com/products/40
https://www.hidglobal.com/products/40k
