Low-Power DC 5.5/2 Power Splitter

Low-Power DC 5.5/2.1 Power Splitter

The power splitter cable is designed to connect various devices to power sources with 2 to 16 connectors, ensuring easy energy supply for cameras and other equipment.

• Wire Cross-section:
• Main cable: 0.75 mm² (10A max)
• Auxiliary cables: 0.5 mm² (3A max)
• Core Material: pure copper
• Insulating Material: polyvinyl chloride (PVC)
• Color: black
• Connectors: DC5.5x2.1 male/DC5.5x2.1 female

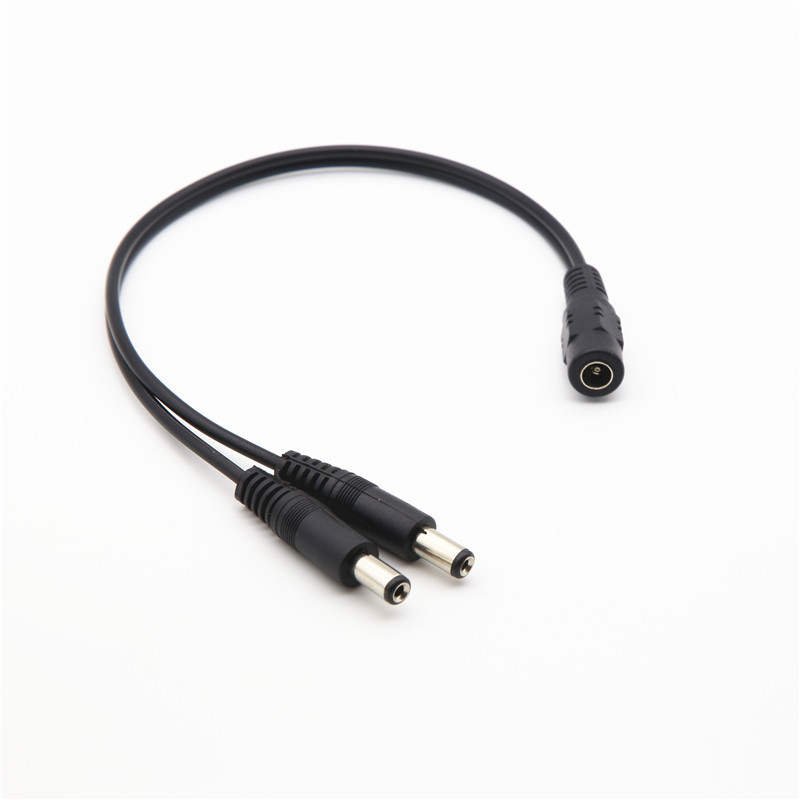

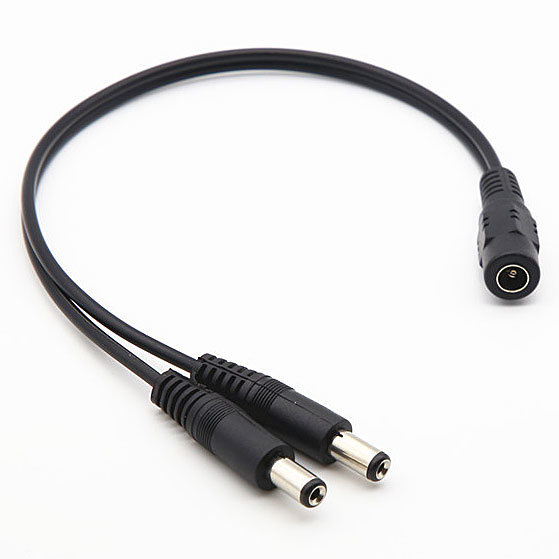

1-2

Length: Total length approx. 25 cm (9.84 inches)

Material: solid copper wire core

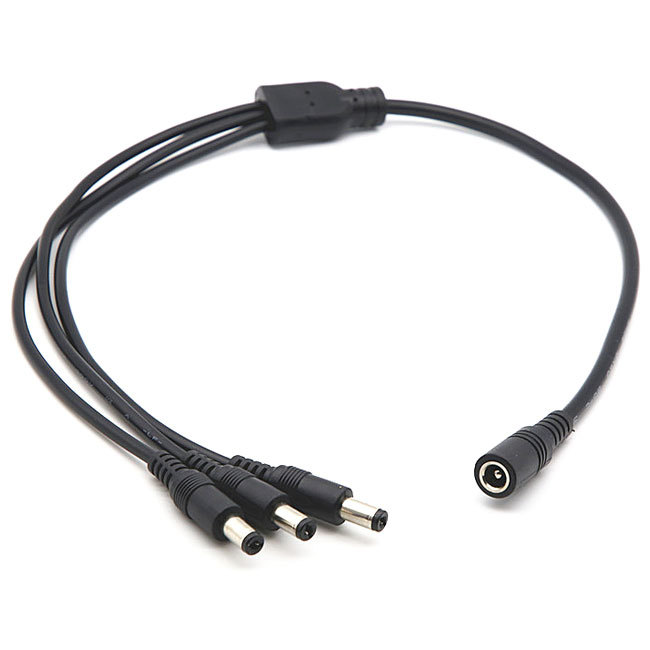

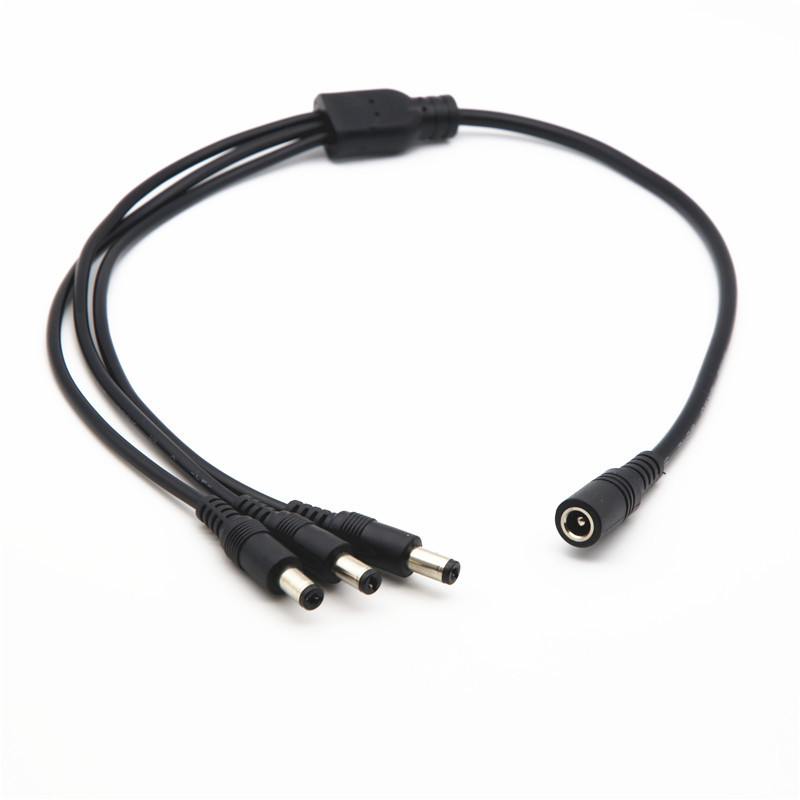

1-3

Main cable has a cross-section of 0.5 mm² and can withstand up to 5A

Length: Total length approx. 40 cm (15.75 inches), main cable 20 cm (7.87 inches), auxiliary cables 20 cm (7.87 inches)

Material: solid copper wire core

1-4

Main cable has a cross-section of 0.75 mm² and can withstand up to 10A, while the auxiliary cables 0.5 mm² can withstand up to 3A

Length: Total length approx. 70 cm (27.56 inches), main cable 30 cm (11.81 inches), auxiliary cables 40 cm (15.75 inches)

Material: solid copper wire core

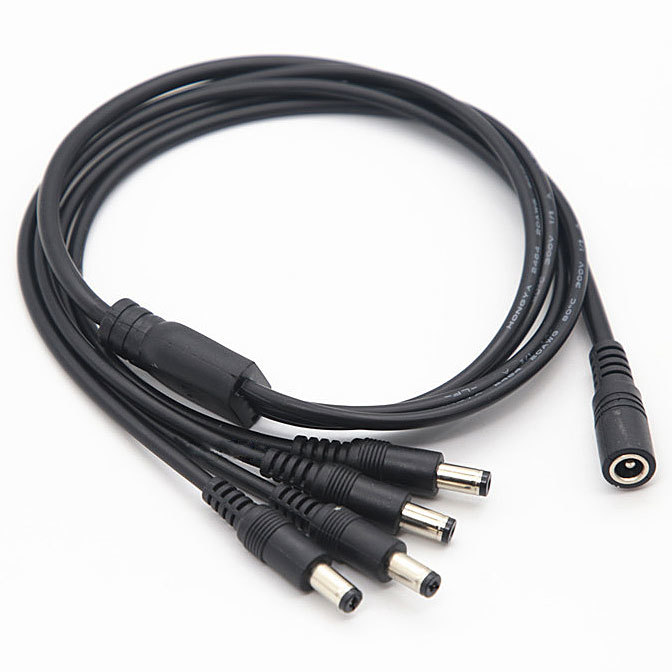

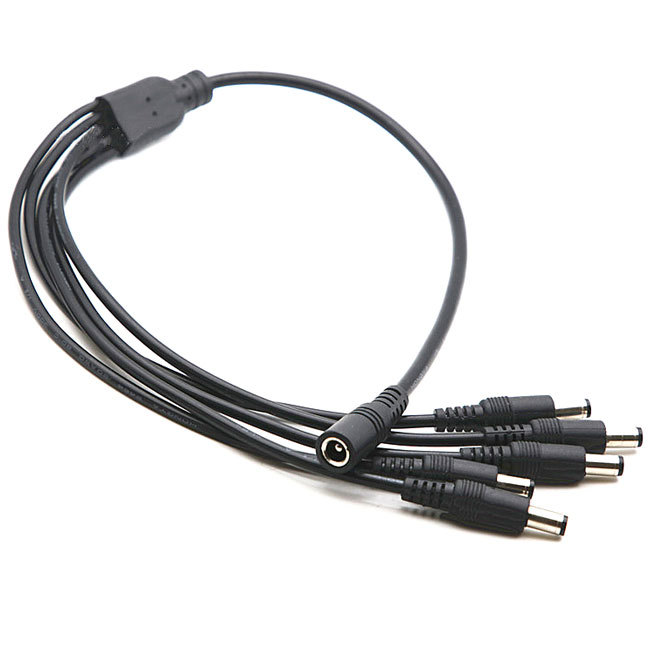

1-5

Main cable has a cross-section of 0.75 mm² and can withstand up to 10A, and auxiliary cables 0.5 mm² can withstand up to 3A

Total length: approx. 40 cm (15.75 inches), main cable 20 cm (7.87 inches), auxiliary cables 20 cm (7.87 inches) or approx. 70 cm (27.56 inches), main cable 30 cm (11.81 inches), auxiliary cables 40 cm (15.75 inches)

Material: solid copper wire core
