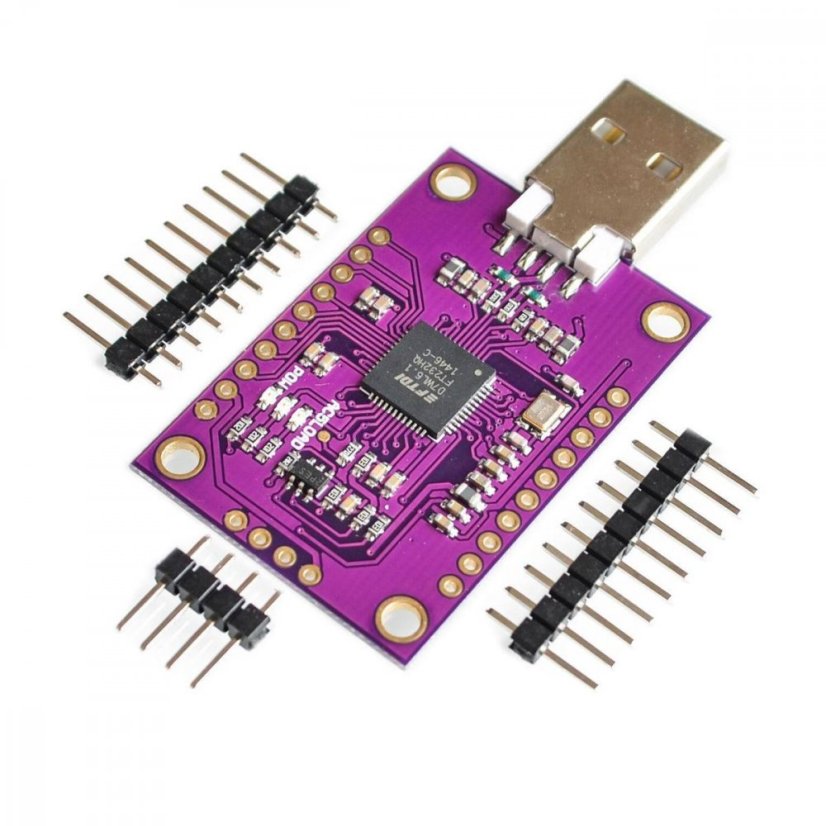

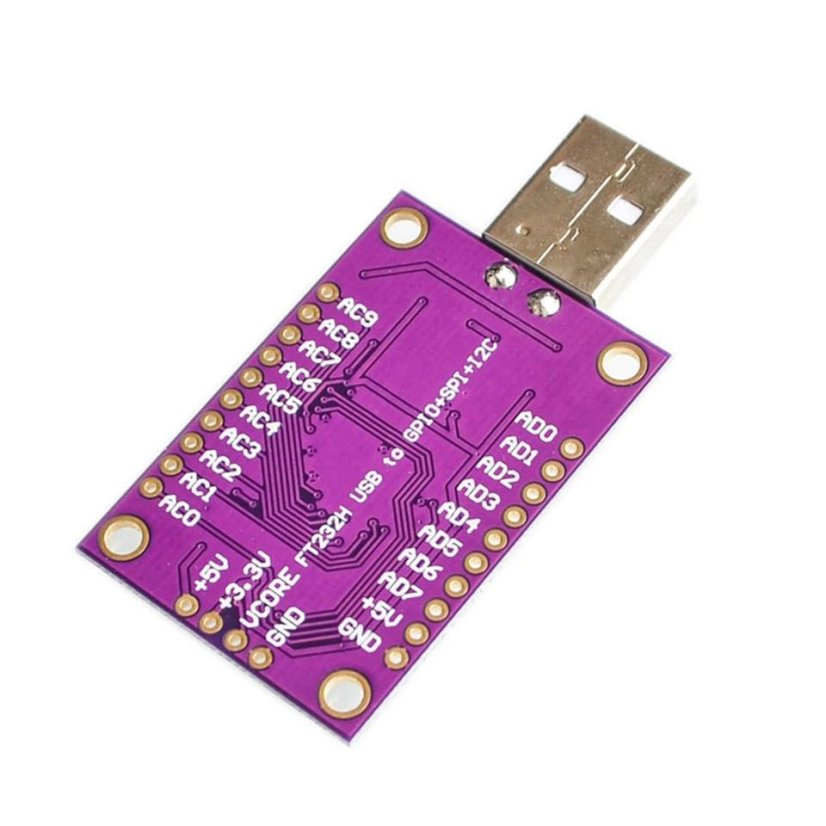

MCU FT232H USB Converter to UART, JTAG, SPI, and I2C

MCU FT232H USB Converter to UART, JTAG, SPI, and I2C

Features:

• Single-chip USB to serial / parallel ports with various configurations.
• The entire USB protocol is managed on-chip. No specific USB firmware programming is required.
• Compatible with USB 2.0 Hi-Speed (480 Mbits/s) and Full Speed (12 Mbits/s).
• Multi-Protocol Synchronous Serial Engine (MPSSE) simplifies the design of synchronous serial protocols (USB to JTAG, I2C, SPI (MASTER), or bit-bang).
• UART data transfer rate up to 12Mbaud. (RS232 data rate is limited by external level converter).
• USB to asynchronous 245 FIFO mode for data transfer rates up to 8 Mbytes/s.
• USB to synchronous 245 parallel FIFO mode for transfers up to 40 Mbytes/s.
• Supports proprietary half-duplex FT1248 interface with configurable width, bi-directional data bus (1, 2, 4, or 8 bits wide).
• CPU-style FIFO interface mode simplifies CPU interface design.
• Fast serial interface option.
• FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the need for USB driver development in most cases.
• Configurable receive buffer timeout.

Applications:

• Single-chip USB to UART (RS232, RS422, or RS485)

• USB to FIFO

• USB to FT1248

• USB to JTAG

• USB to SPI

• USB to I2C

• USB to Bit-Bang

• USB to Fast Serial Interface

• USB to Target CPU Interface (like memory)

FT232H Datasheet: https://www.ftdichip.com/Products/ICs/FT232H.htm
