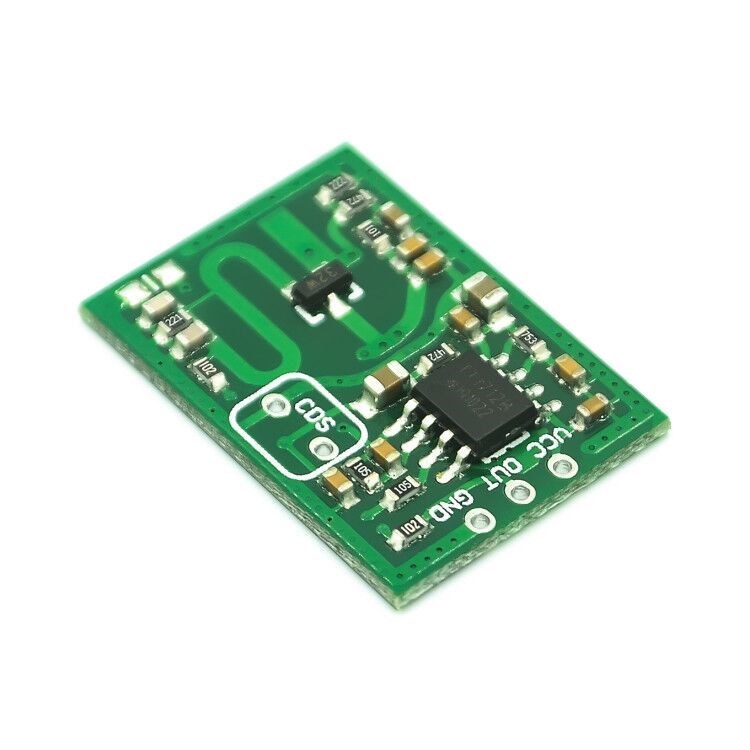

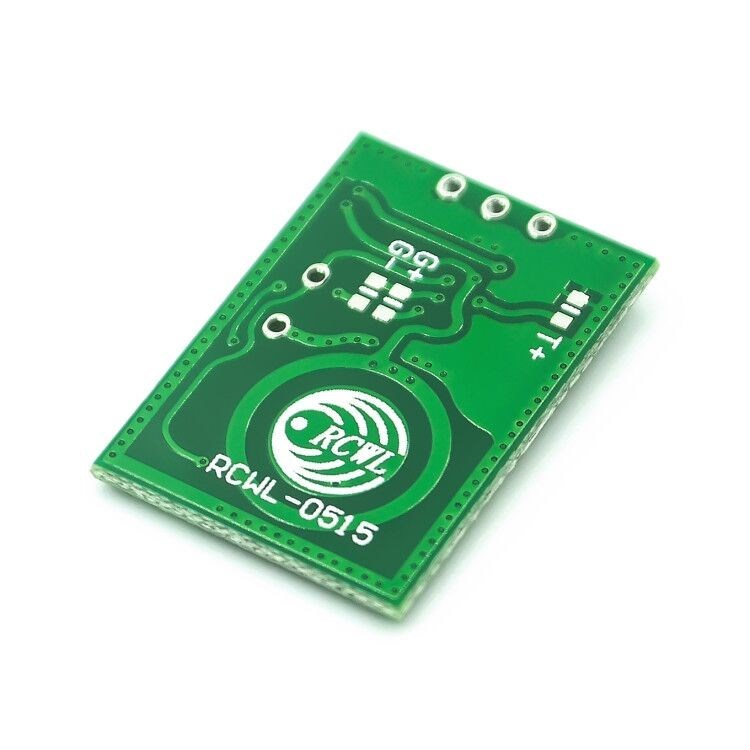

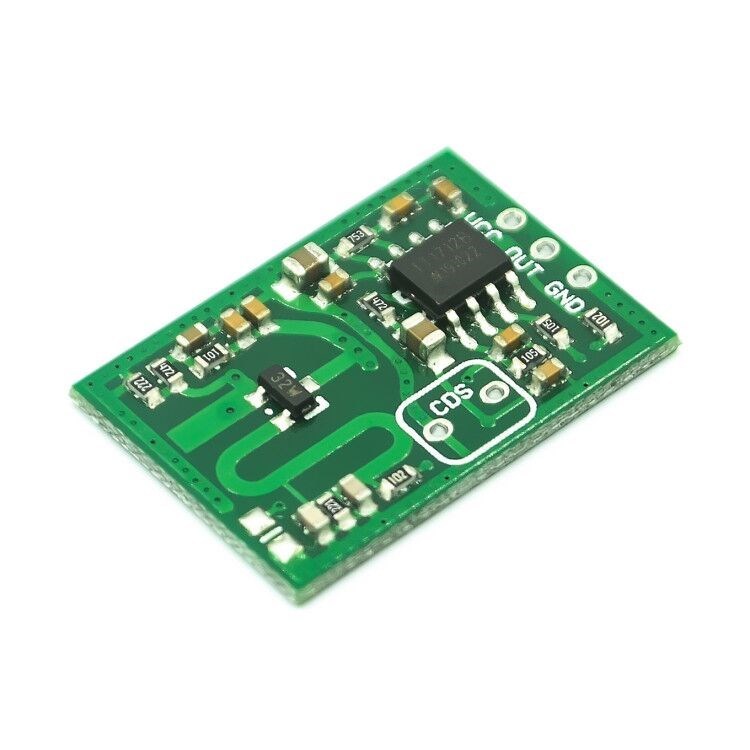

Microwave Radar Sensor RCWL-0515
Microwave Radar Sensor RCWL-0515
Microwave radar for motion detection with adjustable parameters.
Specifications:
- Model: RCWL-0515
- Detection Range: 12 m (approximately 39.37 ft);
- Power Supply: 4-18 V DC;
- Quiescent Current: 4mA;
- Operating Frequency: 2.7 GHz
- Output Signal: TTL (3.3V / 0V);
- Dimensions: 17 x 24 mm (0.67 x 0.94 in)
Pinout Description:
- GND – Ground
- OUT – Sensor output – Active=3.3V, Quiescent=0V
- VCC – Power supply 4–18V
