Microwave Radar Sensor RCWL-0516

A microwave radar for motion detection with adjustable parameters.

Specifications:

  • Model: RCWL-0516
  • Detection range: 4-8 m;
  • Detection angle: 180 degrees;
  • Power supply: 3.3-20 V DC;
  • Quiescent current: 4mA;
  • Transmitting power:
  • Output signal: TTL (3.3V / 5V),
  • Time delay: Default setting 20S / 30S (adjustable).
  • Dimensions: 23 x 33 mm

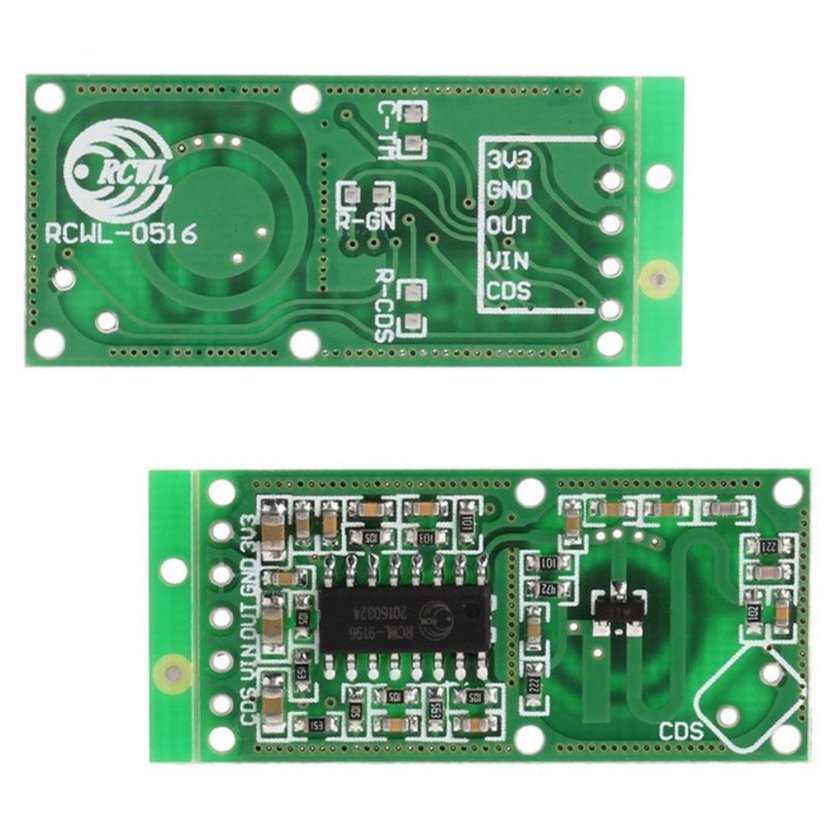

Pin Description:

  • 3V3 – output 3.3V, max. 100mA
  • GND – ground
  • OUT – sensor output – active=3.3V, idle=0V
  • VIN – power supply 4–28V
  • CDS – light sensor
