NanoPi 1-bay NAS Dock

NanoPi 1-bay NAS Dock

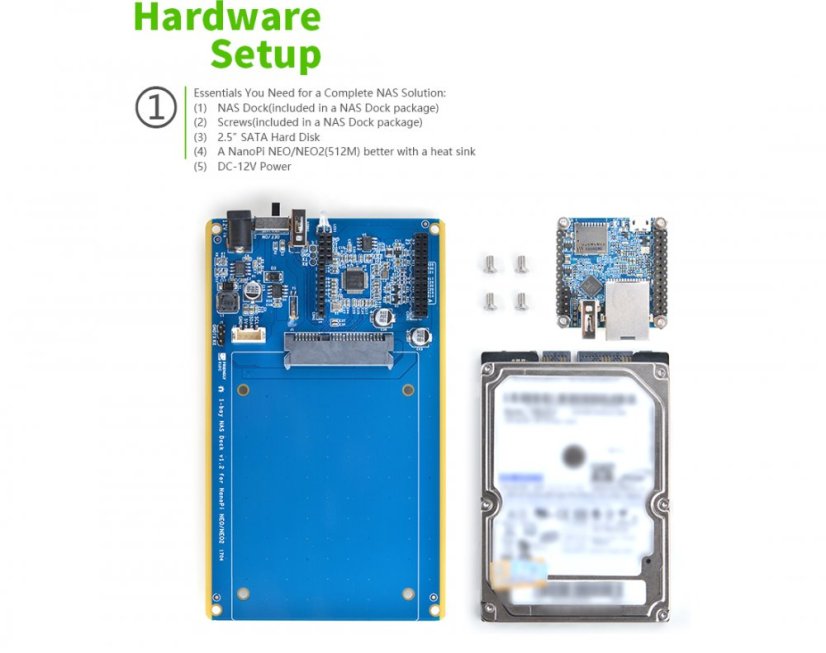

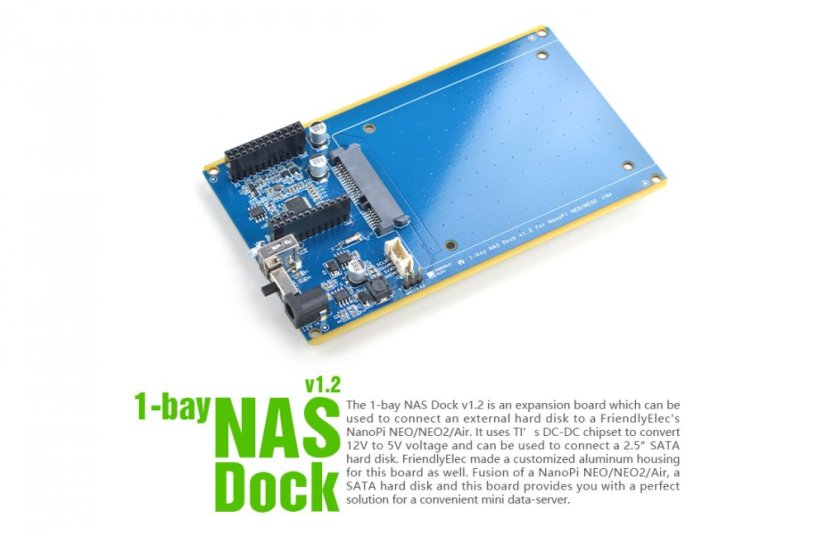

• The 1-bay NAS Dock v1.2 for NanoPi NEO/Air/NEO2 is an expansion board designed to connect an external hard drive to the NanoPi NEO/Air/NEO2 from FriendlyElec. Together with a custom aluminum case and the NanoPi NEO/Air/NEO2, you can quickly assemble a storage server.
• It uses a USB2SATA IC JM20329 and communicates with the NanoPi NEO/Air/NEO2 via USB interface.

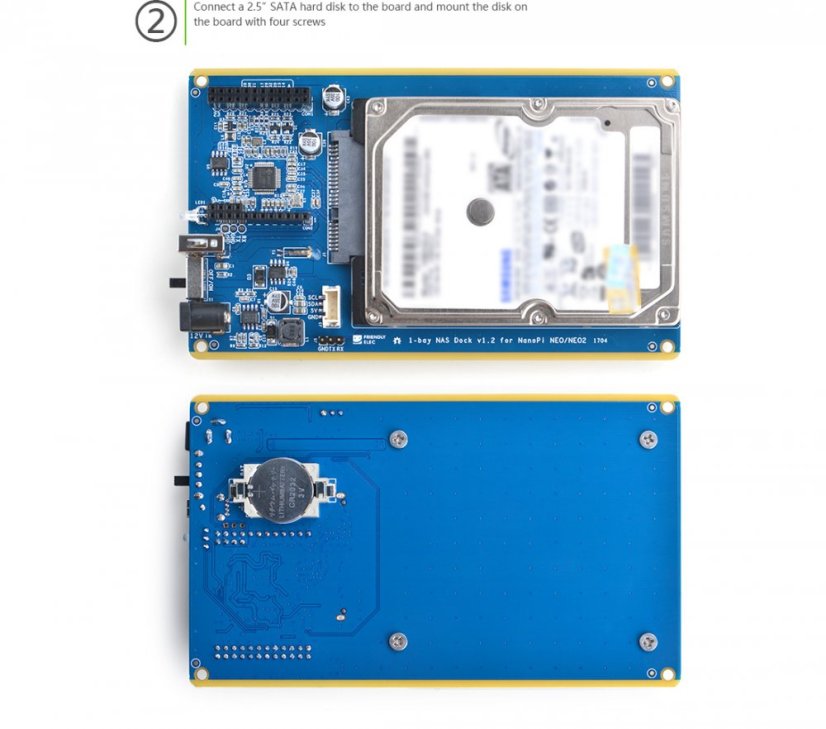

• Compatible with 2.5" SATA hard drives or SSDs.
• Utilizes a TI DC-DC chipset to convert a 12V input to 5V. It features a power switch for turning the device on and off.
• A dual-color LED can indicate the status of the connected hard drive. When the LED lights up green, it means power is on. When it blinks red, it indicates that the connected hard drive is reading/writing. Note: Do not turn off the power or plug/unplug while the red LED is blinking.
• The integrated DS1307 RTC IC can provide accurate time for the board. A button cell battery can power the RTC when the board is disconnected from the power source.
• It has an I2C interface.

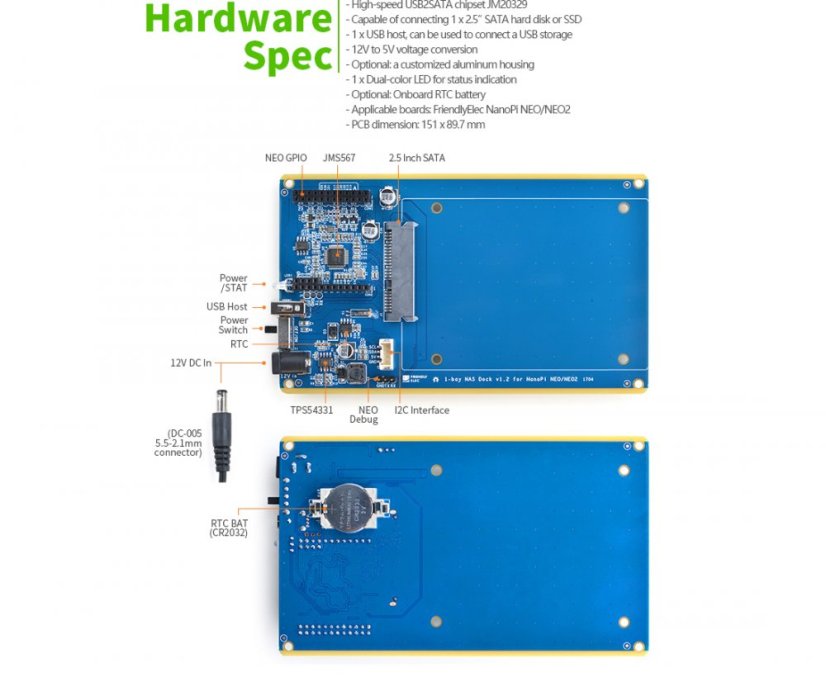

Hardware Specifications:

• High-speed USB2SATA IC JM20329
• Power input: 12V
• Built-in switch
• Dual-color status LED
• USB Host
• Custom aluminum case
• Plug-and-play software
• PCB dimensions (mm): 151 x 89.7
