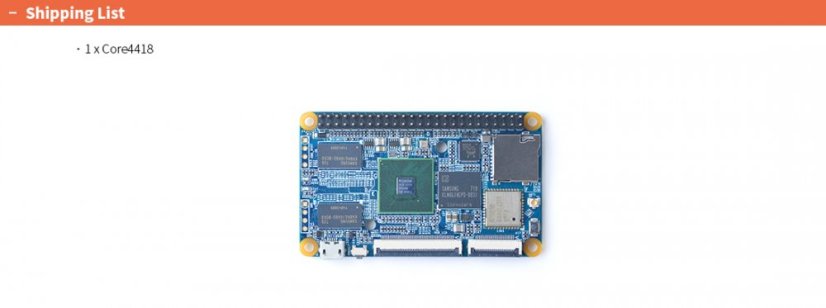

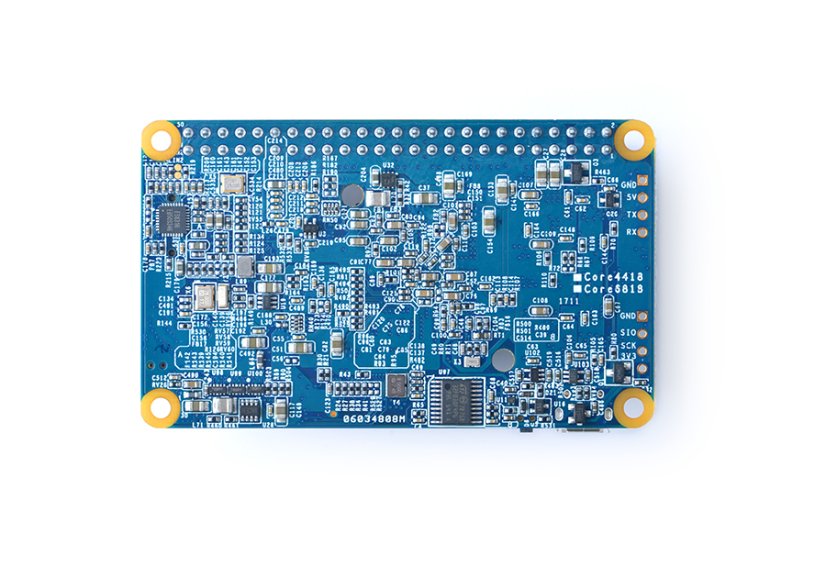

NanoPi Core4418 Development Board S5P4418 - 1GB RAM, 8GB eMMC

NanoPi Core4418 Development Board S5P4418 - 1GB DDR3 RAM, 8GB eMMC

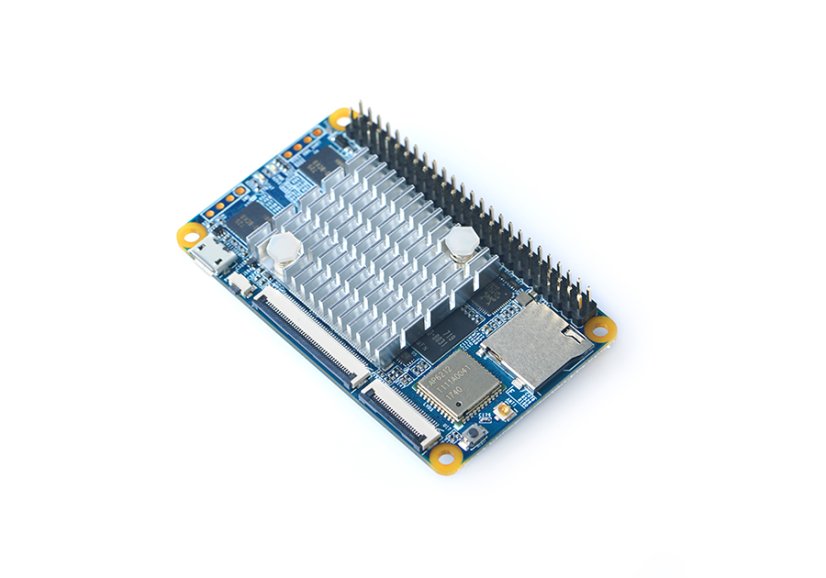

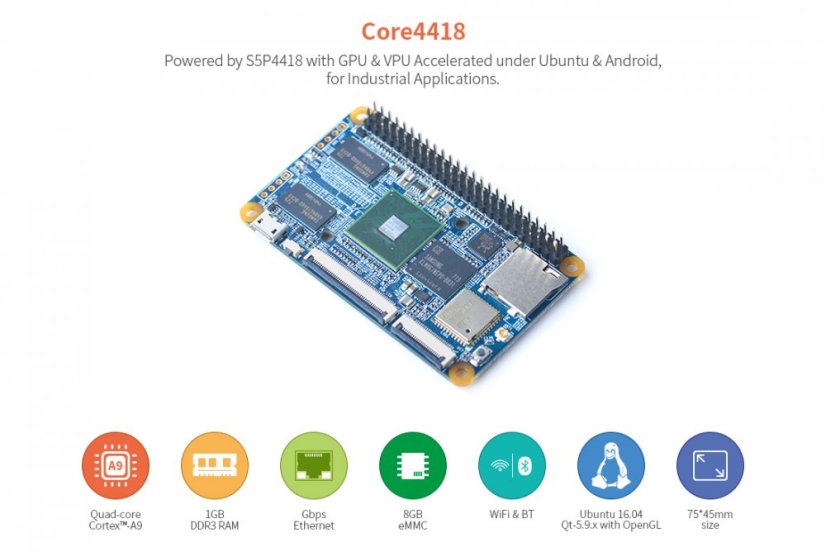

The Core4418 Development Board is designed and developed by FriendlyELEC for professional and enterprise users. It utilizes the Samsung Quad Core Cortex-A9 S5P4418 SoC with dynamic frequency scaling up to 1.4 GHz. The Core4418 features 8GB of eMMC, 512MB/1GB 32-bit DDR3, Wi-Fi/BT module, GigE, MicroSD, and an audio codec. To prevent overheating issues, the Core4418 is equipped with a heatsink with mounting pillars.

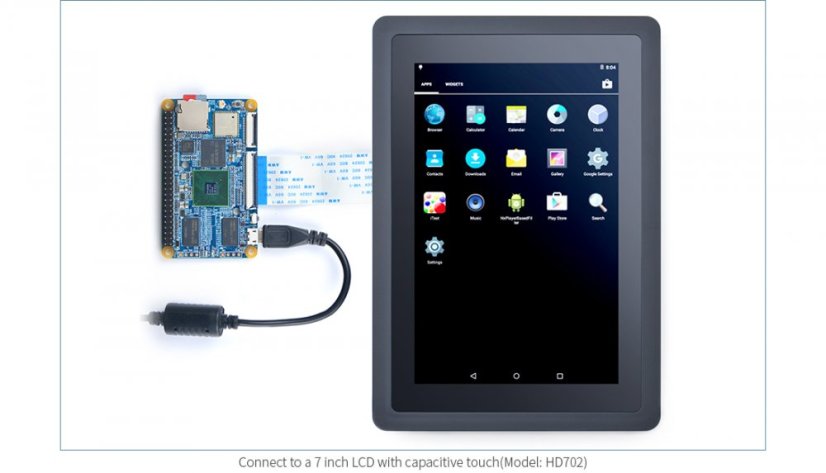

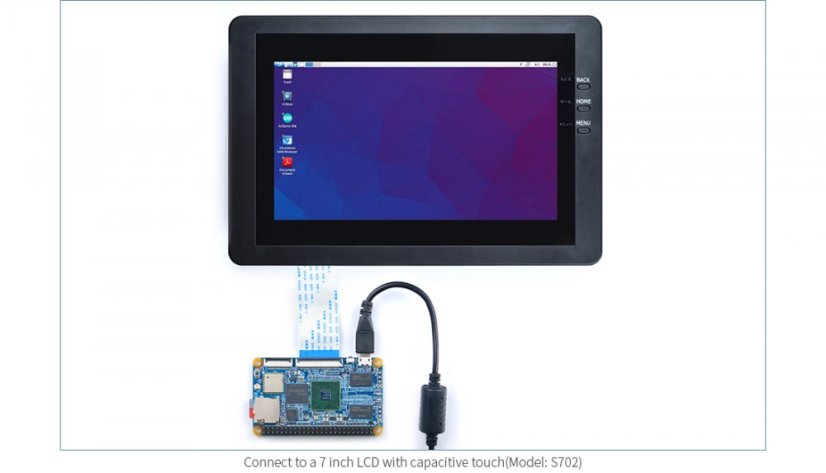

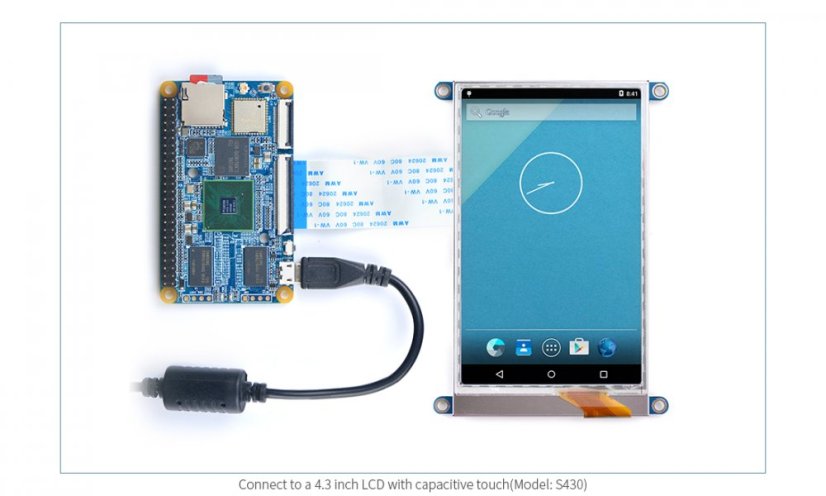

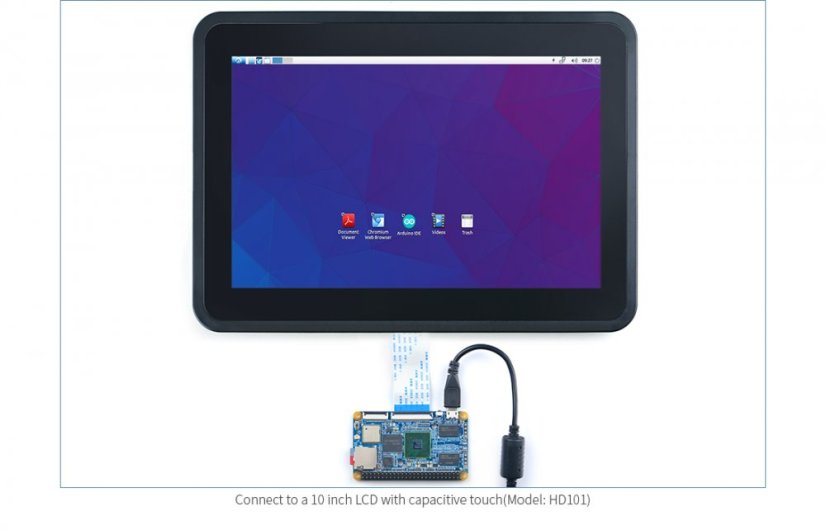

The Core4418 supports LVDS and RGB-LCD interfaces, both utilizing 0.5mm pitch FPC connectors and supporting both resistive and capacitive touch.

Additionally, the Core4418 has a 2.54mm 50-pin GPIO interface which includes USB HOST, UARTs, I2C, SPI, PWM, GPIO, and more.

Specifications:

• SoC: Samsung S5P4418 Quad Core Cortex-A9 with dynamic frequency scaling up to 1.4 GHz
• PMU Power Management: MCU controlled, supports software shutdown features and RTC alarm for wake-up
• System Memory: 1GB 32-bit DDR3 RAM
• eMMC: 8GB
• Storage: 1 x SD card slot
• Ethernet: Gbps Ethernet port (RTL8211E)
• Wi-Fi: 802.11b/g/n
• Bluetooth: 4.0 dual mode
• Antenna: Ceramic antenna with IPX connector
• Display: LVDS and RGB-LCD, FPC connector with 0.5mm pitch
• Audio: MIC input and headphone output on the 2.54mm 50-pin GPIO interface
• USB: 1 x USB 2.0 Host on the 2.54mm 50-pin GPIO interface
• MicroUSB: 5V power input and USB 2.0 Client
• GPIO: 2.54mm pin header with 50 pins
• Debug Serial Port: 2.54mm pin header with 4 pins
• LED: 1 x Power LED, 1 x GPIO LED
• User Button: 1 x PowerKey
• Power Supply: DC 5V/2A
• Heatsink: 1 x heatsink with mounting holes
• PCB: Six-layer, ENIG
• PCB Dimensions: 75 mm x 45 mm
• Operating Temperature: -40℃ to 70℃
• OS/Software: u-boot, Android 4.4, Android 5.1, and Debian 8
