NanoPi M4B with Heat Sink
NanoPi M4B Kit with Heat Sink

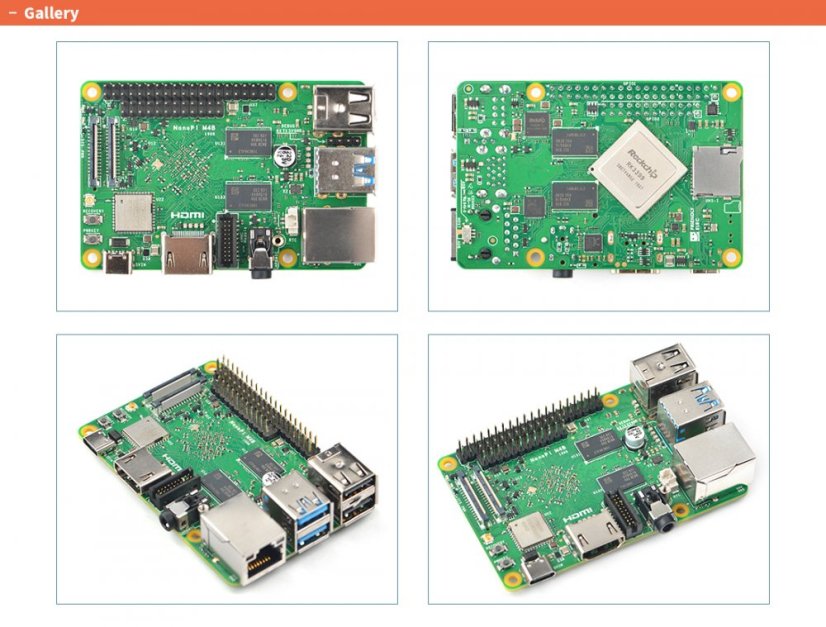

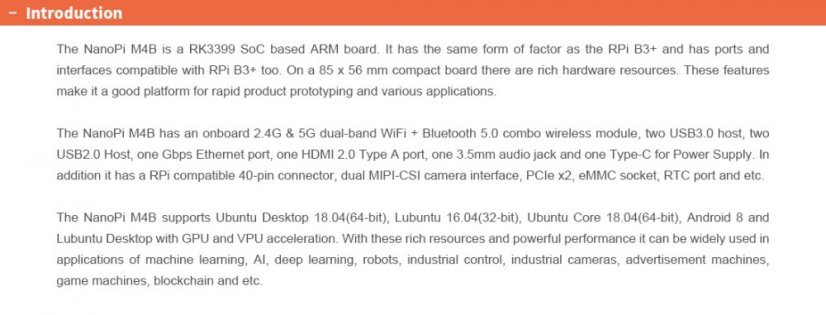

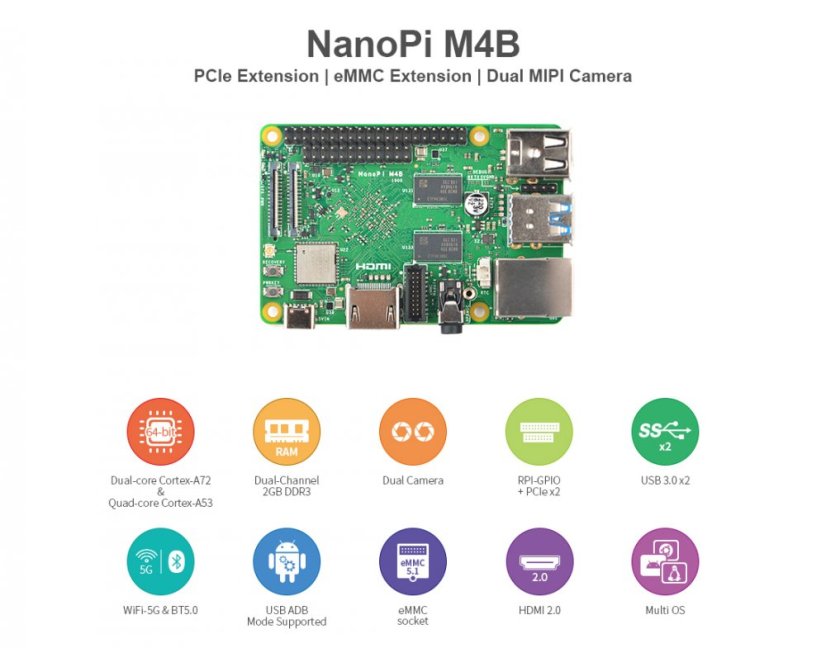

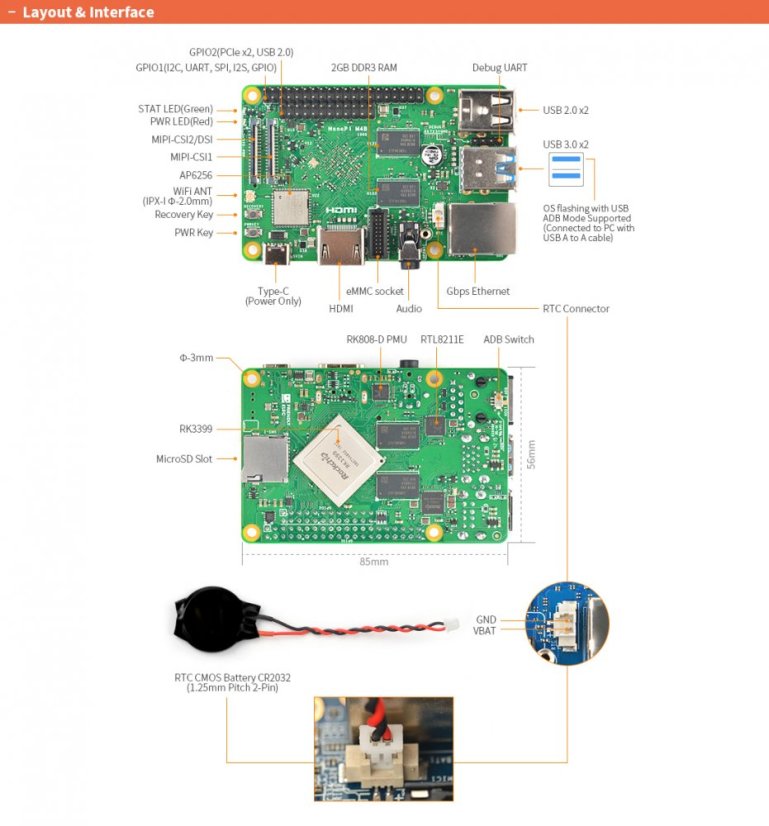

The NanoPi M4B is an ARM board based on the RK3399 SoC. It has the same form factor as the RPi B3+ and also features ports and interfaces compatible with the RPi B3+. This compact board, measuring 85 x 56 mm, is equipped with rich hardware resources and is suitable for rapid product prototyping and various applications.

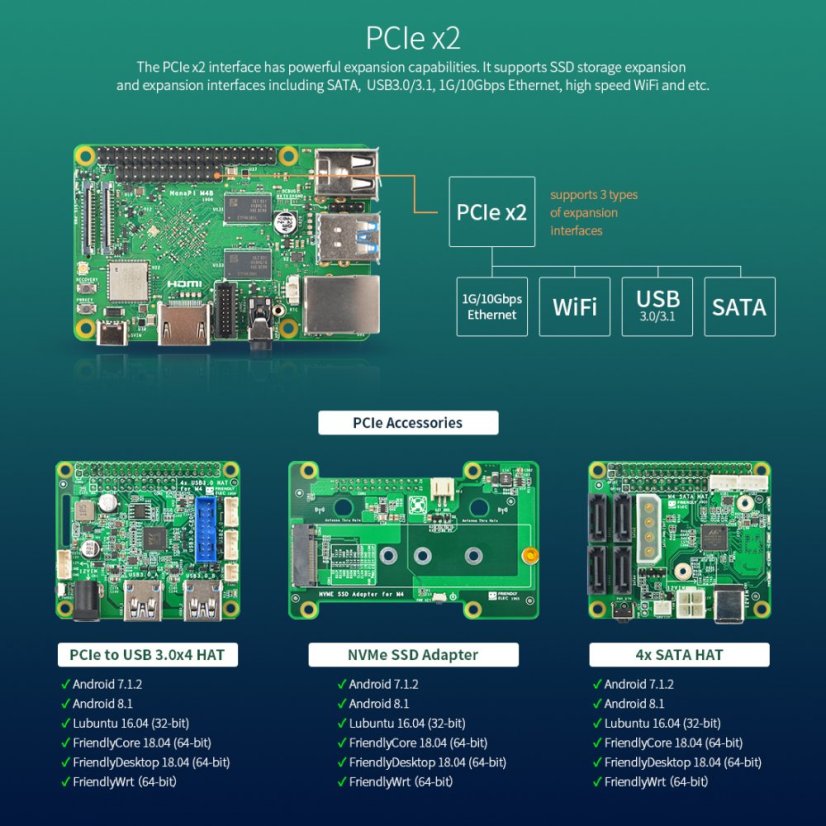

The NanoPi M4B features built-in 2.4 G & 5G dual-band WiFi and a Bluetooth 5.0 combo wireless module, two USB 3.0 ports, two USB 2.0 ports, one Gbps Ethernet port, one HDMI 2.0 Type A port, one 3.5mm audio jack, and one Type-C port for power. Additionally, it has a 40-pin connector compatible with RPi, a dual MIPI-CSI camera interface, PCIe x2, eMMC socket, RTC port, and more.

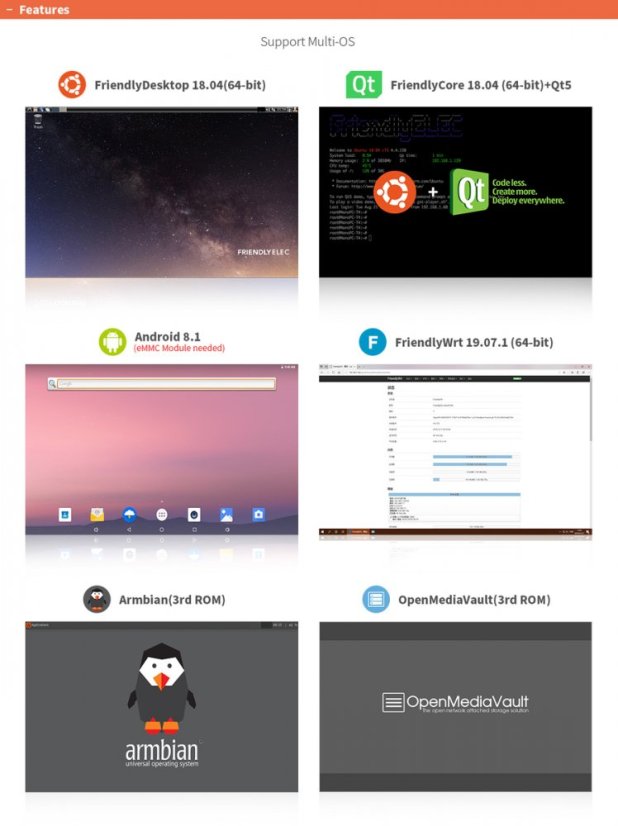

The NanoPi M4B supports Ubuntu Desktop 18.04 (64-bit), Lubuntu 16.04 (32-bit), Ubuntu Core 18.04 (64-bit), Android 8, and Lubuntu Desktop with GPU and VPU acceleration. Due to its rich resources and strong performance, it has wide applications in machine learning, artificial intelligence, deep learning, robotics, industrial control, industrial cameras, advertising machines, gaming machines, blockchain, and more.
Specifications:
| CPU | Model: Rockchip RK3399 Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53 Frequency: Cortex-A72 (up to 2.0GHz), Cortex-A53 (up to 1.5GHz) |
| GPU | Mali-T864 GPU, supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11 and AFBC |
| VPU | 4K VP9 and 4K 10bit H265/H264 60fps decoding, Dual VOP, etc. |
| Power Management | RK808-D PMIC, works with independent DC/DC, allows DVFS, software shutdown, RTC wake-up, system sleep mode |
| Memory | RAM: Dual-Channel 2GB DDR3 |

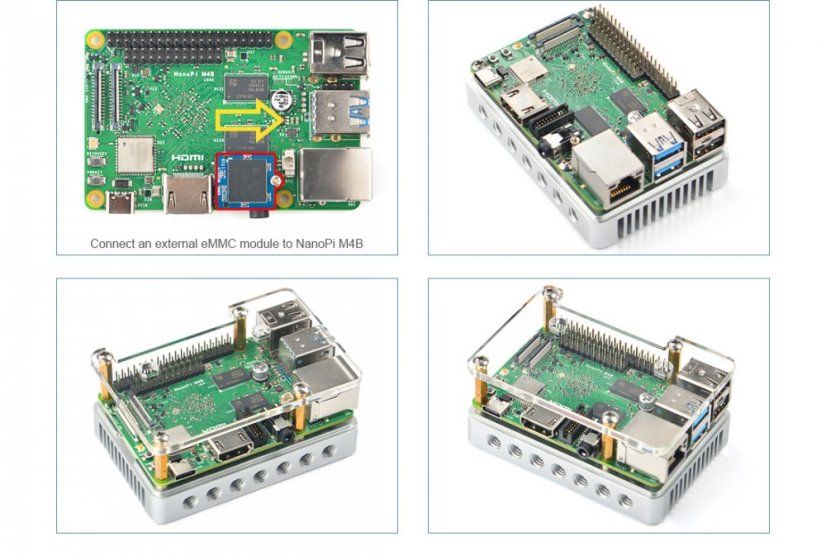

| Storage | eMMC: no built-in eMMC, but has an eMMC slot MicroSD Slot: MicroSD x1 for external storage up to 128GB |
| Connectivity | Ethernet: Native Gigabit Ethernet with unique MAC address Wi-Fi/BT: 802.11a/b/g/n/ac, Bluetooth 5.0, Wi-Fi and Bluetooth combo module Antenna x1: IPX-I connector |
| Audio | Audio output: 3.5mm dual-channel jack for headphones or HDMI Audio input: microphone input x1 |

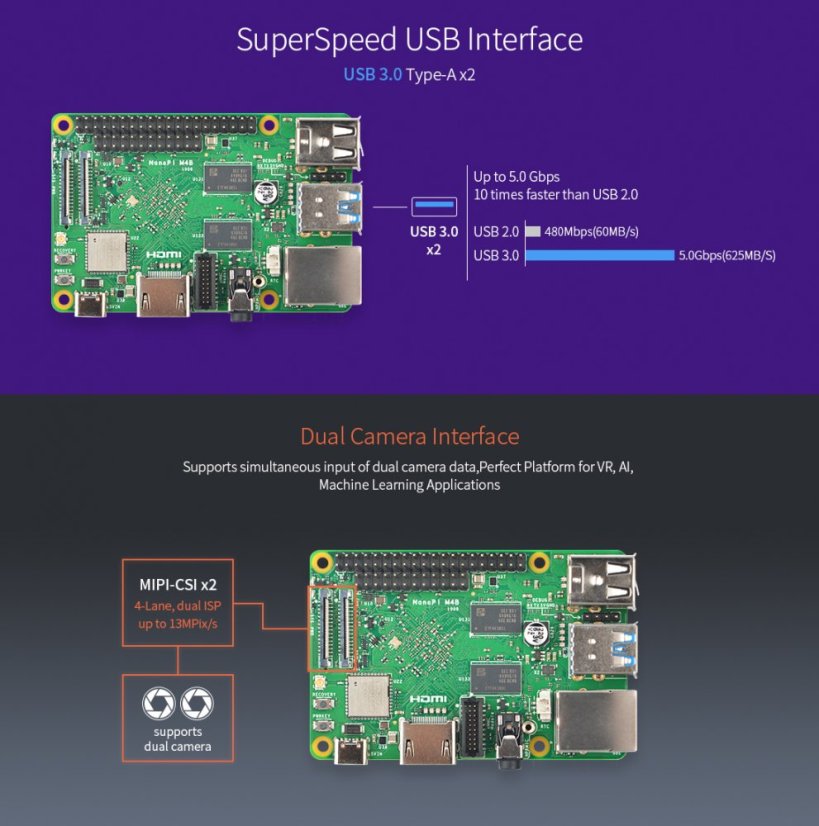

| USB | USB 3.0 x2: Native USB 3.0 Type-A ports USB 2.0 x2: Native USB 2.0 Type-A ports USB Type-C x1: for power input only |
| Video Input | one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s, supports simultaneous data input from dual cameras |
| Video Output | HDMI x1: HDMI 2.0a, supports 4K@60Hz, HDCP 1.4/2.2 4-Lane MIPI-DSI x1 |
| Pin-header |
Serial Debug Port x1: 2.54mm pitch 4-pin-header, 3V level, 1500000bps |
| LED | Power LED(Red) x1 GPIO Controlled LED(Green) x1 |
| Others | RTC: 2 Pin 1.27/1.25mm RTC battery input connector Operating temperature: -20℃ to 70℃ |
| Power | DC 5V/3A via Type-C or GPIO header |
WIKI: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_M4B

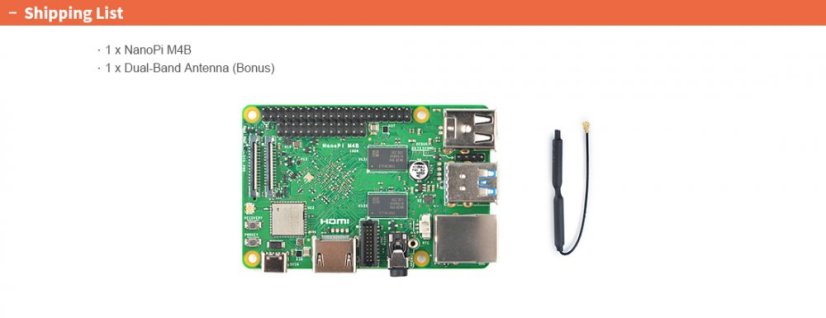

Package Contents:
1x NanoPi M4B
1x Heat Sink
