NanoPi NanoHat Hub

NanoPi NanoHat Hub

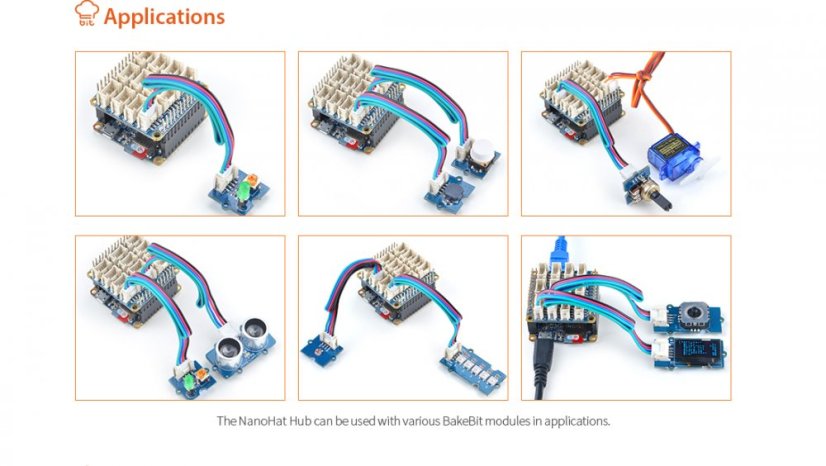

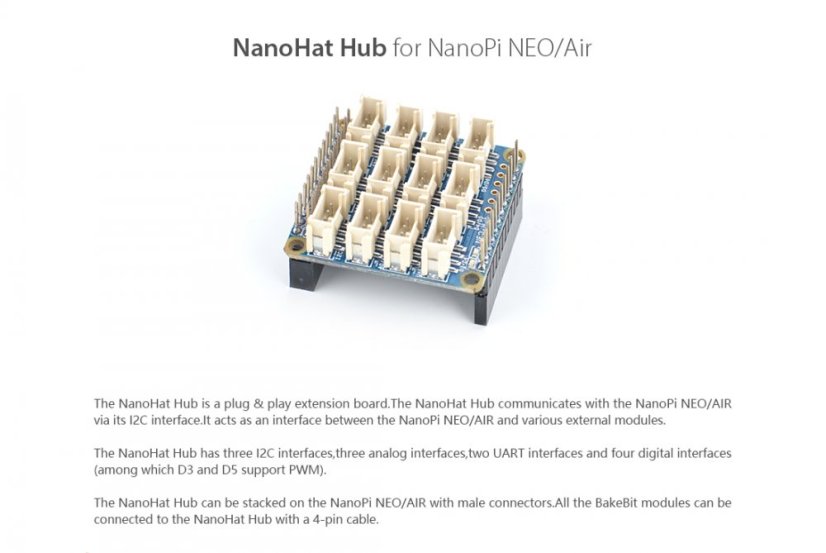

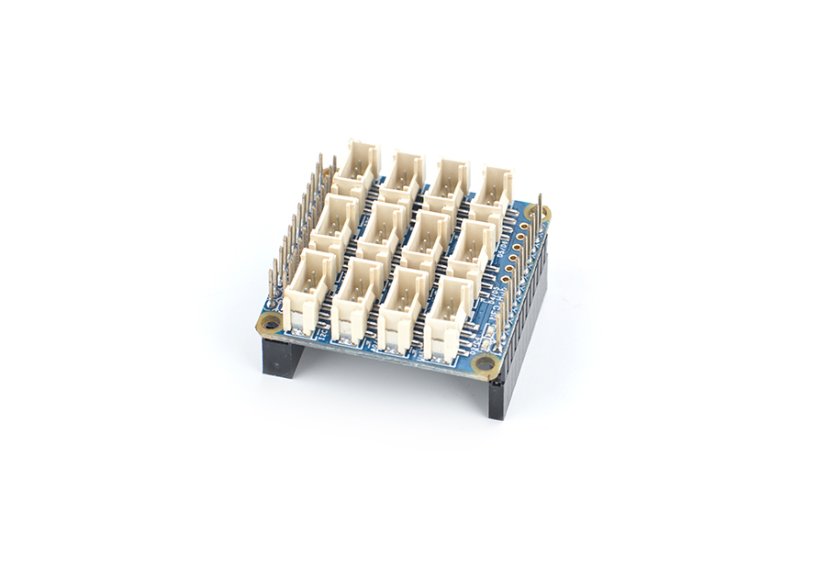

• The NanoHat Hub is a plug & play expansion board. It communicates with the NanoPi NEO/AIR through an I2C interface. It serves as an interface between the NanoPi NEO/AIR and various external modules. The NanoHat Hub features 3 I2C interfaces, 3 analog interfaces, 2 UART interfaces, and 4 digital interfaces (supporting D3 and D5 PWM). All BakeBit modules can be connected to the NanoHat Hub using a 4-pin cable.

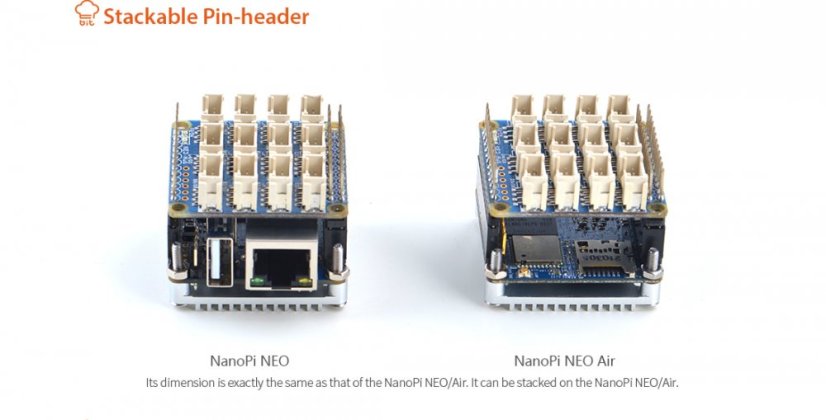

• The NanoHat Hub can be mounted on the NanoPi NEO/AIR using header connectors. It communicates with various external modules through its I2C, serial, and A/D interfaces.
• The NanoHat Hub has 3 I2C interfaces, 3 analog interfaces, 2 UART interfaces, and 4 digital interfaces (supporting D3 and D5 PWM).

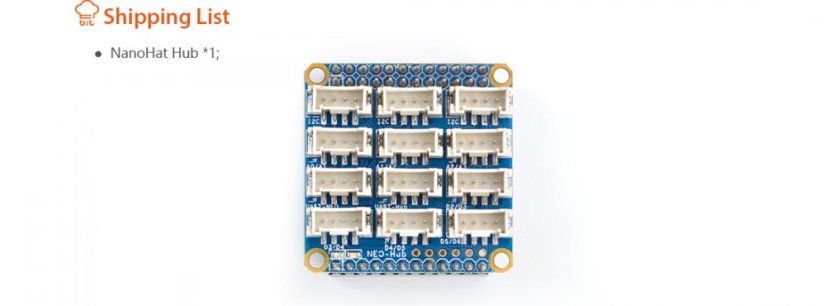

Hardware Specifications:

• Compatible with NanoPi NEO/AIR
• 3 x 2.0 mm pitch 4Pin I2C interface
• 3 x 2.0 mm pitch 4Pin analog interface
• 1 x 2.0 mm pitch UART-NEO interface
• 1 x 2.0 mm pitch UART-Hub interface
• 4 x 2.0 mm pitch digital interface
• PCB dimensions (mm): 40 x 40
