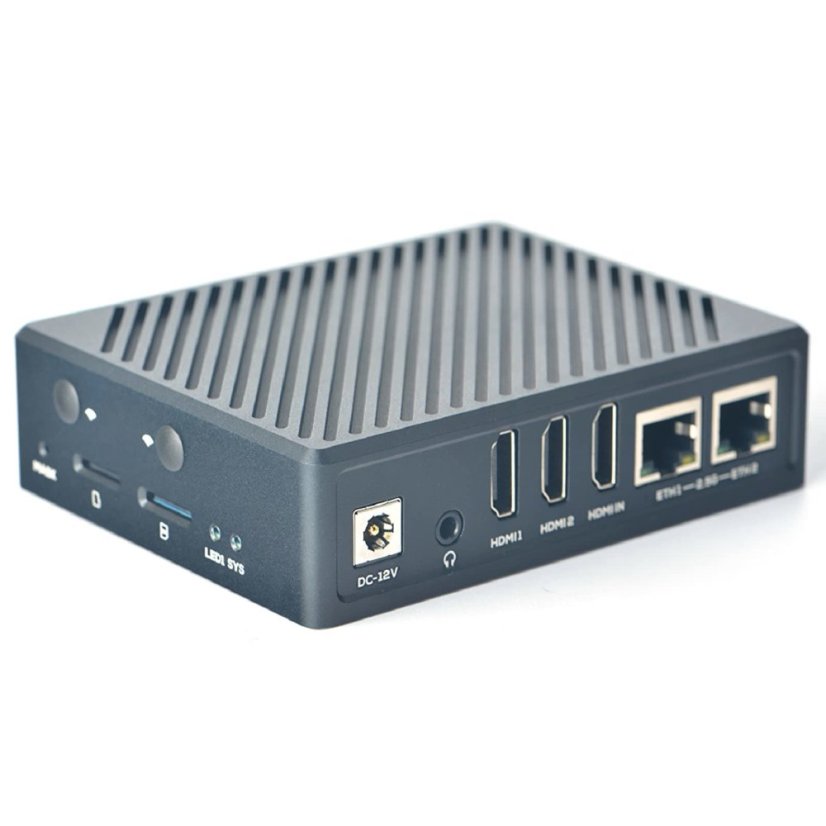

NanoPi Nanopc-T6 – High-Performance Mini-Router

NanoPi Nanopc-T6

The NanoPi Nanopc-T6 is a high-performance FriendlyElec mini-router equipped with edge computing capabilities and two 2.5Gbps Ethernet ports. Its dimensions are 86x114.5x30mm, and it is powered via a standard DC 12V jack. It supports operating systems such as FriendlyWrt, Ubuntu, Armbian, and more.

The NanoPi Nanopc-T6 utilizes the powerful RK3588S SoC by Rockchip, with frequencies reaching up to 1.8 GHz. It comes with 4/8/16GB of LPDDR4X RAM and integrated eMMC memory options of 32/64/128GB. Additionally, it features one Type-C™ port, one USB 3.0 port, and three HDMI outputs.

FriendlyElec has released a special CNC metal case for the NanoPi Nanopc-T6, providing excellent heat dissipation. During testing with this metal case, the NanoPi R6S operated smoothly without throttling.

Wiki: https://wiki.friendlyelec.com/wiki/index.php/NanoPC-T6

Specifications:

• Model:
• Nanopc-T6-4GB-32GB-2310
• Nanopc-T6-8GB-64GB-2310
• Nanopc-T6-16GB-256GB-2301
• SoC: Rockchip RK3588
• CPU: RK3588S Quad-core ARM Cortex-A76 & Quad-core Cortex-A55 CPU
• GPU: Mali-G610 MP4, compatible with OpenGLES 1.1, 2.0, and 3.2, OpenCL up to 2.2, and Vulkan 1.2
• VPU: 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
• NPU: 6TOPs, supporting INT4/INT8/INT16/FP16
• RAM: 64-bit 4GB/8GB/16GB LPDDR4X at 2133MHz
• Flash: 32GB/64GB/256GB @ HS400 mode
• Ethernet: 2x 2.5 Gigabit Ethernet
• Wi-Fi/BT: No
• Video Input:
• 1x Standard HDMI input port, up to 4Kp60
• 2x 4-lane MIPI-CSI, compatible with MIPI V1.2
• Video Output:
• compatible with HDMI2.1, HDMI2.0, and HDMI1.4
  one supports displays up to 7680x4320@60Hz, the other up to 4Kp60
  Supports RGB/YUV (up to 10bit) format
• 2x 4-lane MIPI-DSI, compatible with MIPI DPHY 2.0 or CPHY 1.1
• Audio Out: 3.5mm jack for stereo headphone output
• Audio In: 2.0mm PH-2A connector for analog microphone input
• USB:
• 1x USB 3.0 Host Type A
• 1x USB Type-C
• microSD Slot x 1 (128GB max), LAN1 LED (Green), LAN2 LED (Green)
• 12-pin 0.5mm FPC connector, up to 1x SPI, up to 3x UARTs, up to 4x PWMs, up to 8x GPIOs
• Debug: one Debug UART, 4 Pin 2.54mm header, 3V level, 1500000bps
• LED: SYS LED (Red), WAN/LAN LED (Green) x3
• RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector
• IR receiver x1 with a carrier frequency of 38kHz
• Power Supply: 12V/3A
• Operating Temperature: 0℃ to 70℃

• Dimensions: 86x114.5x30mm (with case)

• Weight: 385g (with case)

Supported OS: FriendlyWrt 21.02, FriendlyWrt 22.03, Android 12 Tablet, Android 12 TV, FriendlyCore Lite 20.04, Debian 10 Desktop, Debian 11 Desktop Buildroot
