NanoPi Neo Air Kit with Cooler - ARM Board 40x40mm

NanoPi Neo Air Kit with Cooler

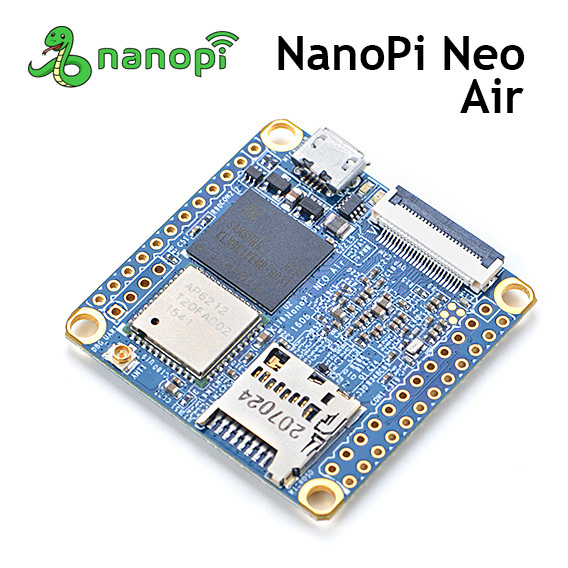

The NanoPi NEO Air is an open source ARM board measuring 40 x 40 mm, ideal for developers. It is equipped with an Allwinner H3 Quad Core A7 processor running at 1.2 GHz. The pins are compatible with the NanoPi NEO model (V 1.2), with a 24-pin connector suitable for Raspberry Pi GPIO.

The NanoPi NEO AIR features 512MB of 16-bit DDR3 RAM, 8GB of eMMC storage, and one MicroSD slot. It includes WiFi and Bluetooth, as well as a DVP interface (YUV422) that supports the Friendlyarm 5M module.

The enhanced power circuit ensures better performance and efficient heat dissipation.

Follow the manufacturer's guidelines; all NanoPi models come with a cooling assembly included in the price.

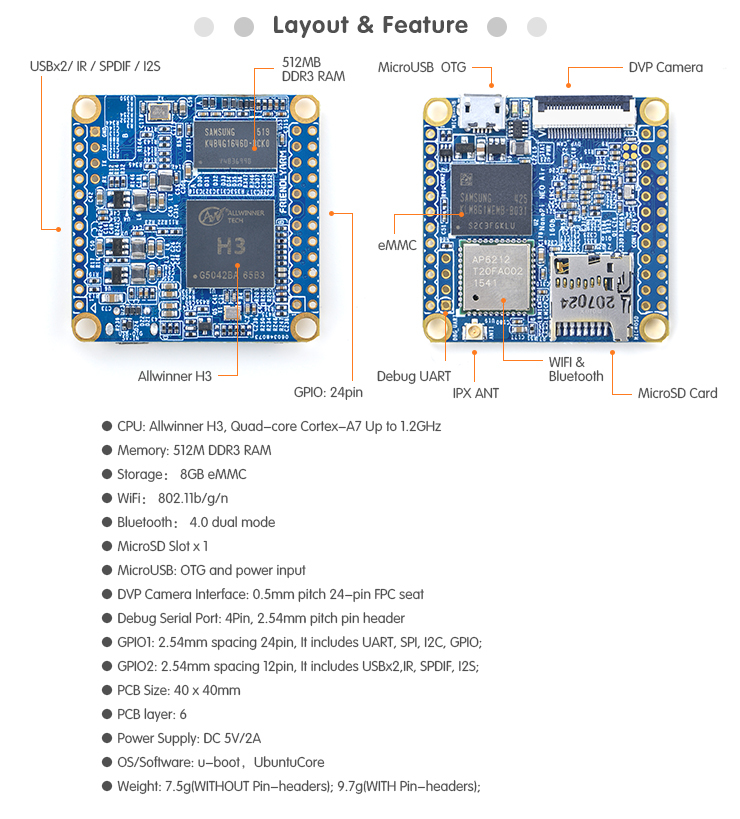

Specifications:

• Model: NanoPi Neo Air
• CPU: Allwinner H3, Quad-core Cortex-A7 up to 1.2GHz
• RAM: 512MB DDR3 RAM
• Storage: 8GB eMMC
• WiFi: 802.11b/g/n
• Bluetooth: 4.0 dual mode
• MicroSD Slot x 1
• GPIO: 2.54mm pitch 24-pin, includes UART, SPI, I2C, IO, etc.
• PCB Size: 40 x 40mm
• Power: DC 5V/2A
• OS/Software: u-boot, UbuntuCore
• Weight: 7.5g (WITHOUT pin headers); 9.7g (WITH pin headers)

Package Contents:

1x NanoPi Neo Air

1x Antenna

3x Pin headers

1x Cooler

This open source board is delivered without a manual and support. All necessary information can be found on FriendlyARM's wiki pages.

Related Resources

Wiki: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_NEO_Air

GitHub: https://github.com/friendlyarm

H3 Datasheet: http://wiki.friendlyarm.com/wiki/images/4/4b/Allwinner_H3_Datasheet_V1.2.pdf

3D Housing Set print files: NanoPi NEO Air 3D Housing Set print files
