NanoPi NEO LTS 512MB

NanoPi NEO LTS 512MB

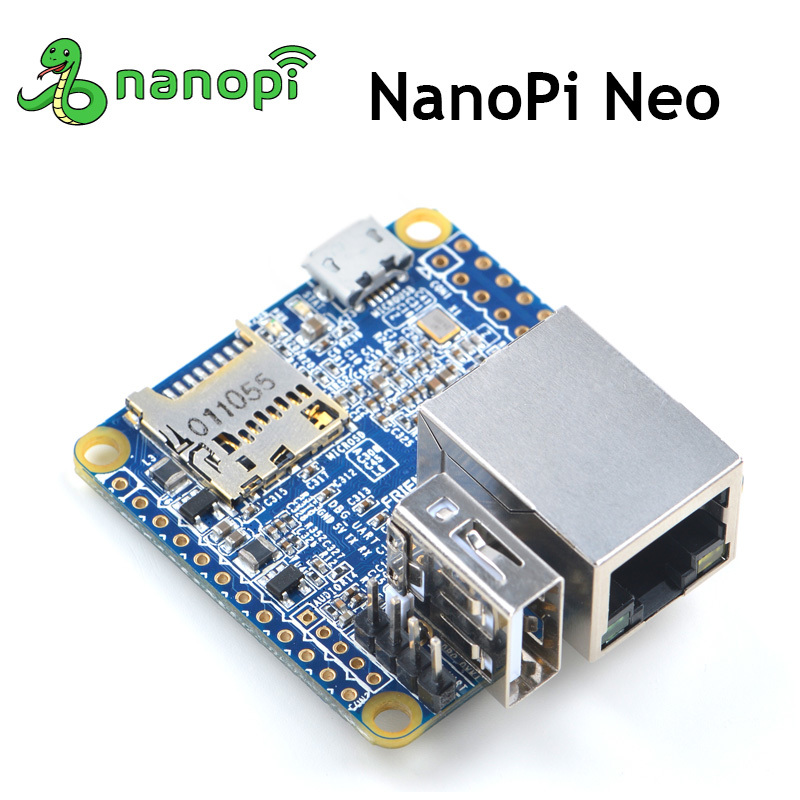

The NanoPi NEO is an ARM board based on the Allwinner H3, designed and released by FriendlyARM for electronics enthusiasts, manufacturers, and fans. Its dimensions are 40 x 40 mm. It is open source and compatible with Ubuntu MATE, Debian, and more.

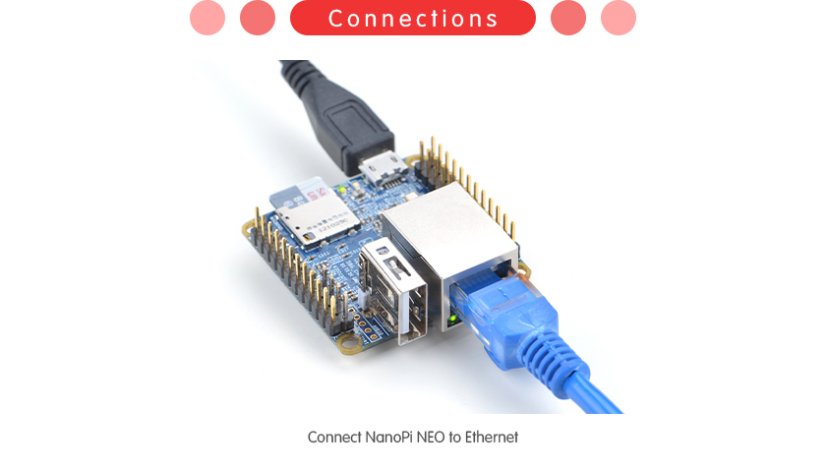

The NanoPi NEO utilizes the Allwinner H3 SoC and offers Ethernet connectivity. Powering is done through a MicroUSB port.

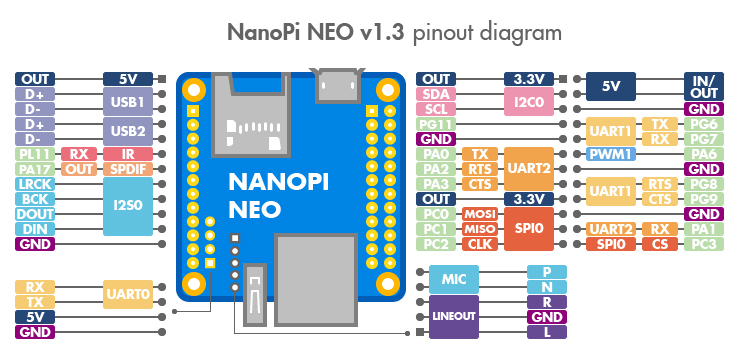

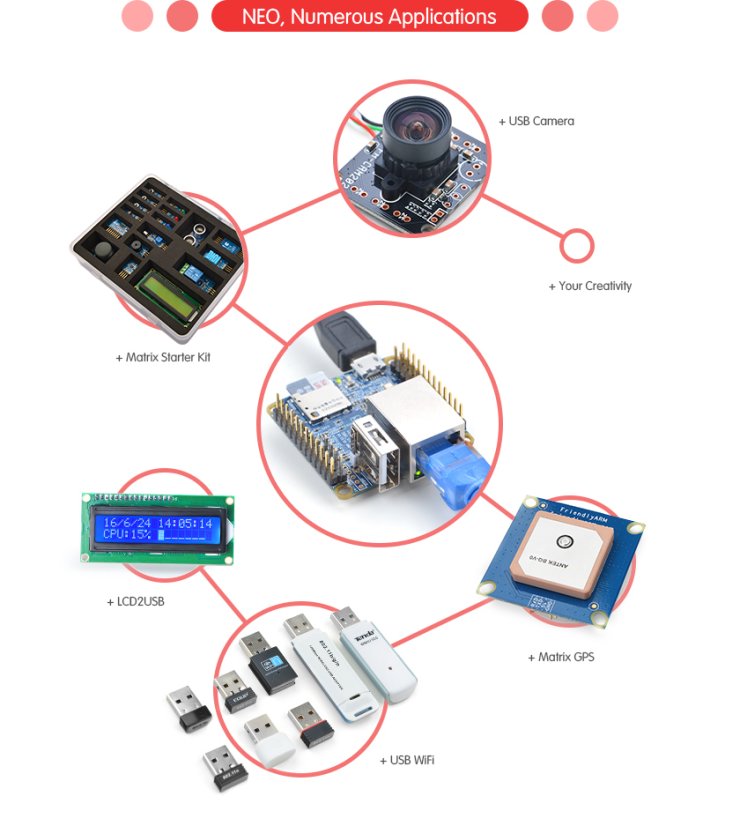

This small board includes a variety of interfaces and ports. In addition to the popular Ethernet, it has USB-Host, USB-OTG, a serial debug port, and a 36-pin GPIO connector.

On the NanoPi-NEO wiki, you can find schematics, PCBs, bootloader, kernel, and file systems, as well as a plethora of tutorials and code samples.

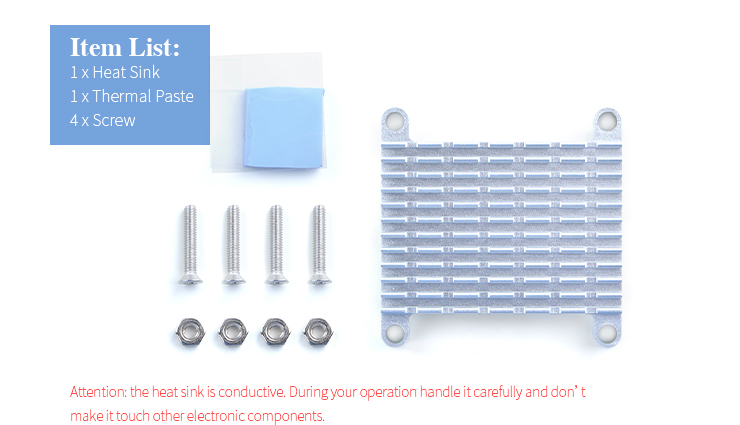

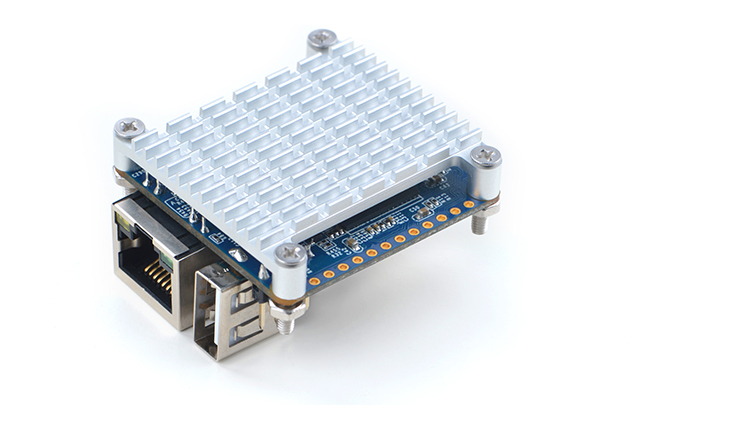

Please follow the manufacturer's guidelines; all NanoPi models come with a cooling assembly included in the price.

Specifications:

• Model: NanoPi NEO LTS
• CPU: Allwinner H3, Quad-core Cortex-A7 up to 1.2GHz
• DDR3 RAM: 512MB
• Connectivity: 10/100M Ethernet
• USB Host: Type-A x 1, 2.54 mm pin x 2
• MicroSD Slot x 1
• MicroUSB: OTG for power
• Debug Serial Port: 4Pin, 2.54 mm pitch pin header
• Audio input/output Port: 5Pin, 2.0mm pitch pin header
• GPIO: 2.54mm pitch 36pin, includes UART, SPI, I2C, IO, etc.
• PCB Dimension: 40 x 40 mm
• Power Supply: DC 5V/2A
• OS/Software: u-boot, UbuntuCore, and Android
• Weight: 14g (WITHOUT pins)

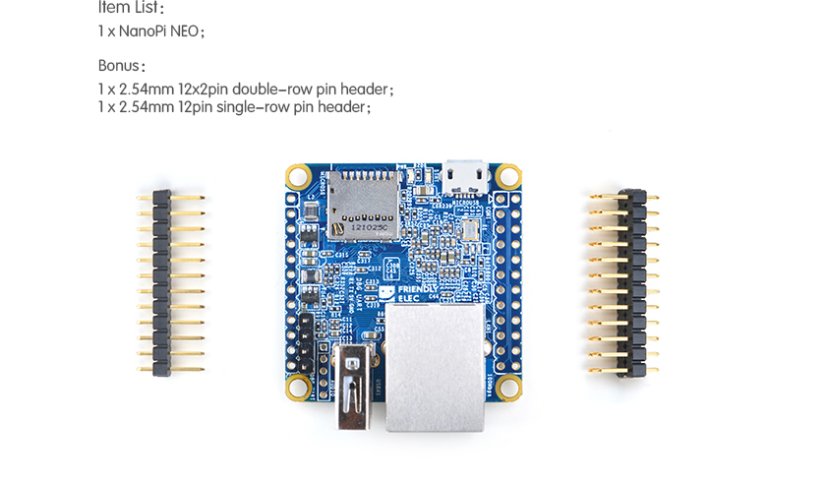

In the Package:

1x NanoPi NEO LTS 512MB (with soldered pins)

These open-source boards are delivered without a manual and support. Everything you need can be found on the FriendlyARM wiki.

Related Resources

Wiki: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_NEO

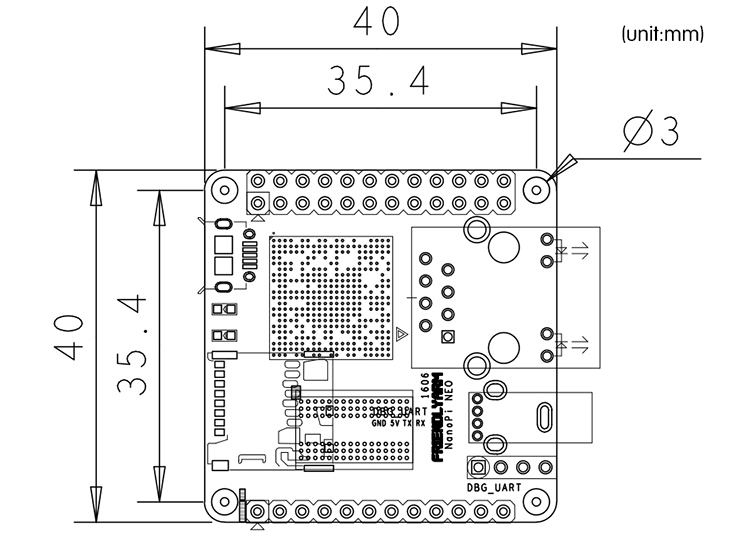

Dimensional Diagram: http://wiki.friendlyarm.com/wiki/images/9/99/NanoPi-NEO-1606-dimensions%28dxf%29.zip

Schematics: http://wiki.friendlyarm.com/wiki/images/a/aa/NanoPi-NEO-1606-Schematic.pdf

Github: https://github.com/friendlyarm

Sources: https://www.mediafire.com/folder/n5o8ihvqhnf6s/Nanopi-NEO

3D Housing Set printing files: NanoPi NEO Air 3D Housing Set printing files
