NanoPi Power Dock


Power dock for NanoPi NEO, providing efficient power management and connections. More
Manufacturer: FRIENDLYARM Product code: 50529 Shipping and payment
19,60 EUR incl. VAT
in stock (1 ks)
Power dock for NanoPi NEO, providing efficient power management and connections. More
Manufacturer: FRIENDLYARM Product code: 50529 Shipping and payment

NanoPi Power Dock



  • The NanoPi NEO Power Dock is a power management board.
  • It uses the TI TPS54331 device with a wide voltage range. The TPS54331 integrates a low RDS(on) high-side MOSFET.
  • Its soft start function limits inrush currents. The over-voltage protection circuit limits voltage spikes during startup and transient conditions.

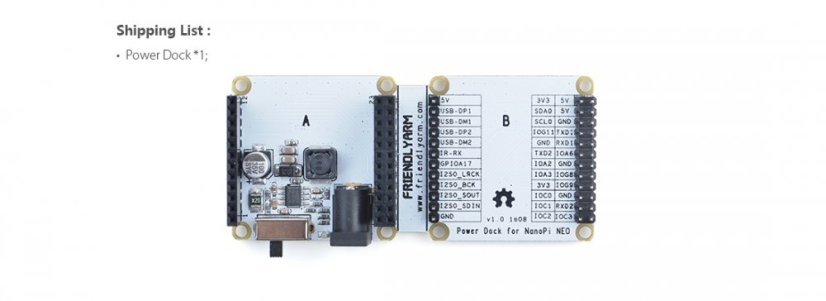

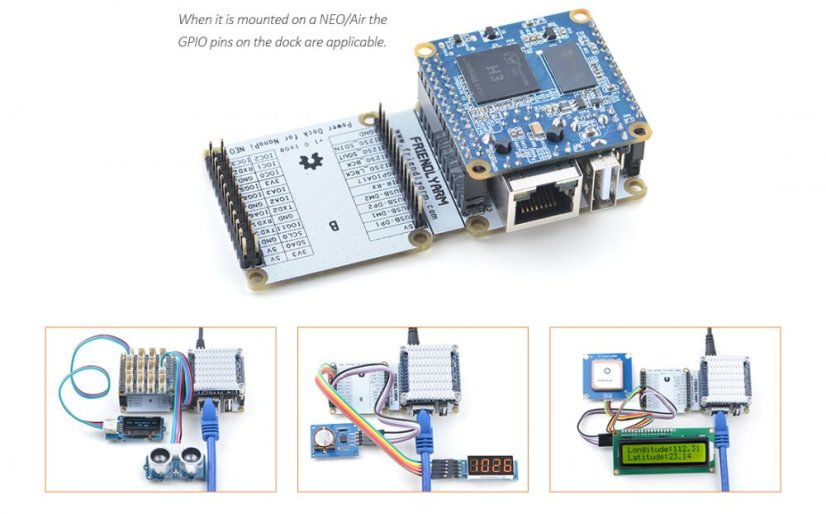

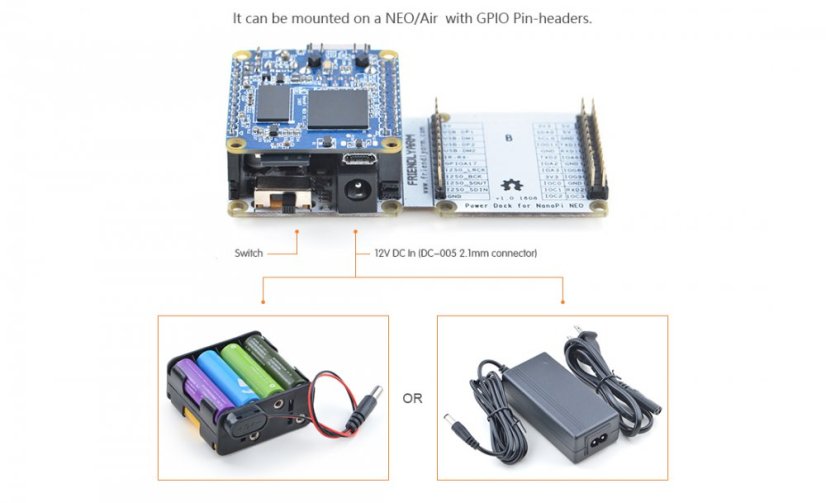

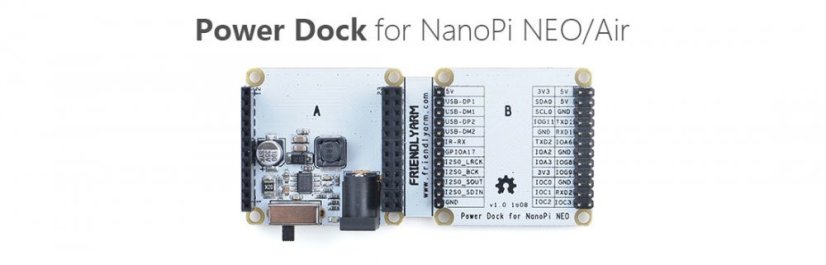

  • Side A features dual high female connectors allowing NEO stacking on the board. Side B exposes the NEO's GPIO pins.

Hardware Specifications:

  • Input Voltage: 12V
  • Output: 5V/2A
  • Switching Frequency: 570KHz
  • Quiescent current after shutdown: 1uA
  • Under-voltage lockout
  • Over-voltage protection
  • Soft start
  • PCB Dimensions (mm): 40 x 88
