NanoPi Zero2

NanoPi Zero2

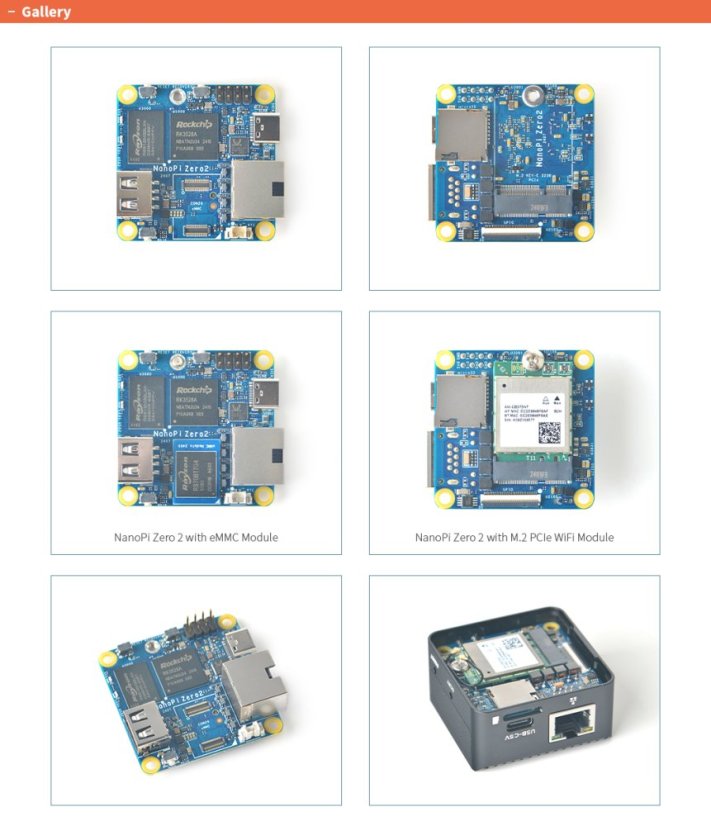

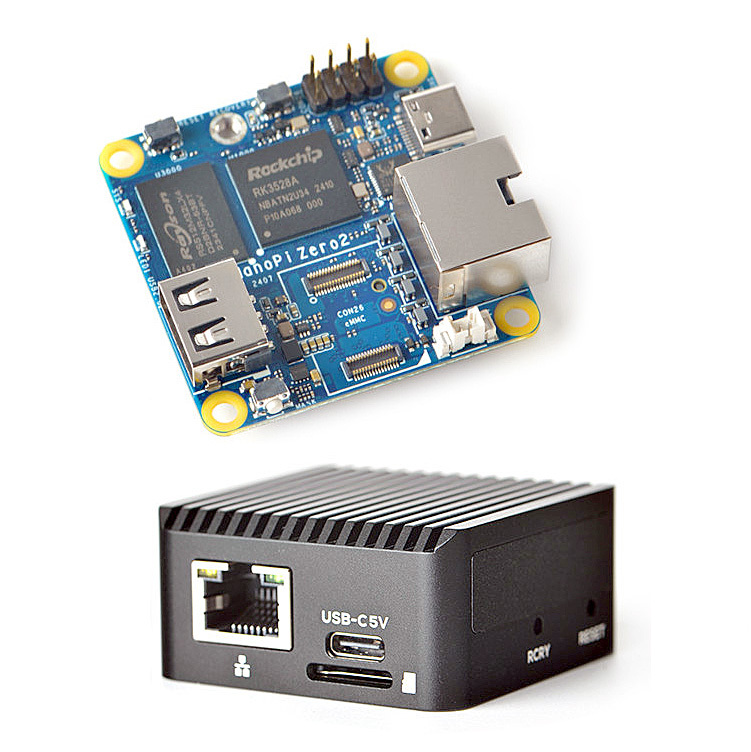

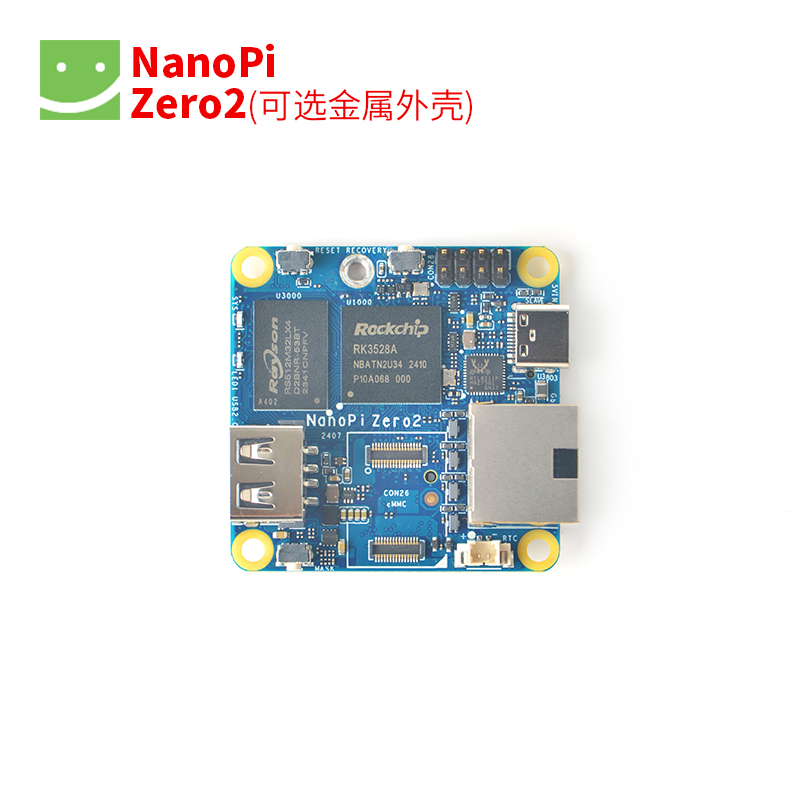

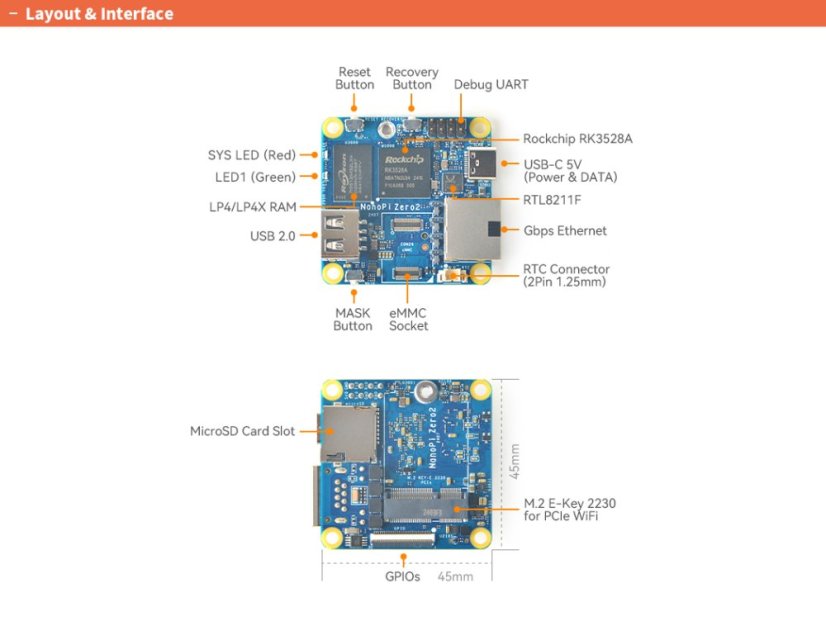

The NanoPi Zero2 is one of the smallest Arm Linux computers in the world, with a board size of 45 x 45 mm. It is equipped with a powerful quad-core Rockchip RK3528A Cortex-A53 processor, up to 2 GB of RAM, microSD and eMMC flash memory slots for data storage, a gigabit Ethernet RJ45 connector, an M.2 slot for WiFi, a Type-A USB port, and a 30-pin GPIO FPC connector for expansion.

FriendlyELEC offers support for Debian 12 Core, Ubuntu 24.04, OpenMediaVault, and FriendlyWrt, which is a fork of OpenWrt 21.05 or 23.05. All images are based on Linux 6.1 LTS. You can find the OS images and additional documentation at the wiki.

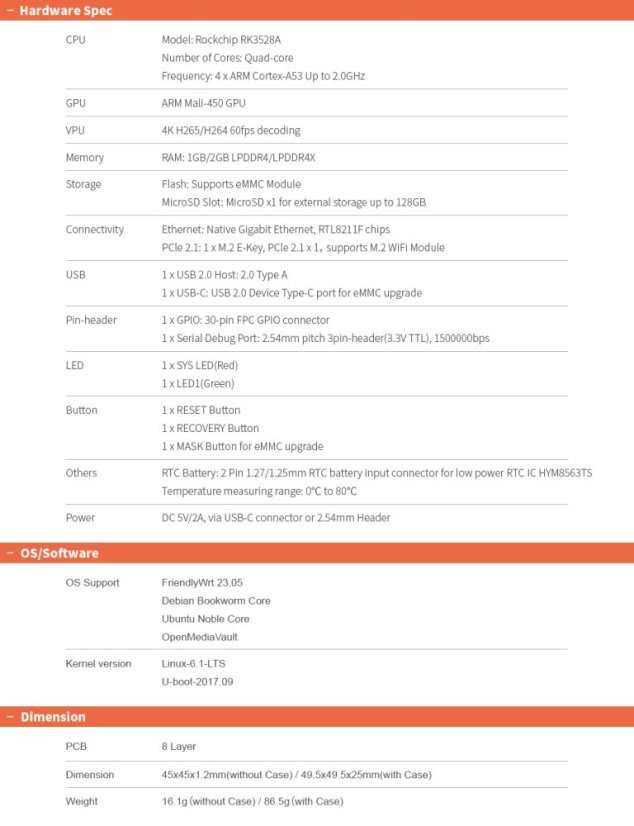

Specifications:

• Model: Zero2
• SoC – Rockchip RK3528A
• CPU – Quad-core ARM Cortex-A53 @ 2.0 GHz
• GPU – ARM Mali-450 GPU supporting OpenGL ES1.1, ES2.0, and OpenVG 1.1
• VPU – 4K H265/H264 decoding at 60 fps
• RAM – 2GB LPDDR4/LPDDR4X (1GB on request)
• Storage
• MicroSD card slot
• eMMC flash module connector, 32GB or 64GB
• Networking
• Gigabit Ethernet port
• Optional WiFi and Bluetooth via M.2 Key-E 2230 module (PCIe 2.1)
• USB
• 1x USB 2.0 host port Type-A
• 1x USB 2.0 device port Type-C for eMMC update
• Expansion – 30-pin FPC GPIO connector with up to 17x GPIO, 2x PWM, 2x UART, SPI, I2C, 2x I2S, SPDIF Tx, 5V, 3.3V, and GND
• Debugging – 8-pin debug UART, 3.3V level, 1,500,000 bps
• Others

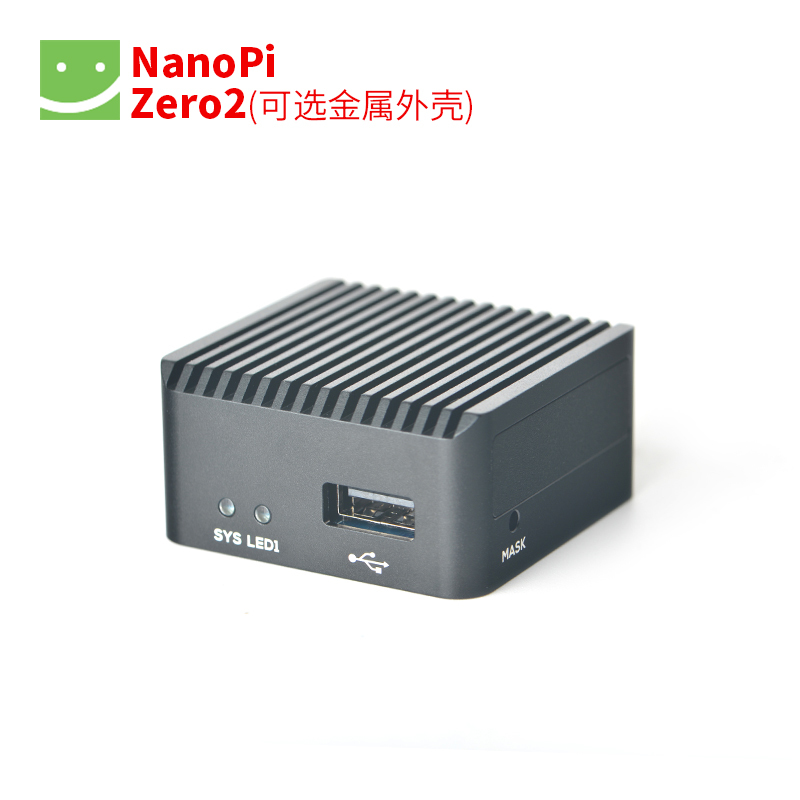

• 2x LED indicators controlled via GPIO (SYS & LED1)
• 2-pin connector for battery 1.27/1.25 mm for low-power RTC
• RESET, RECOVERY, and MASK buttons for eMMC updates
• Power Supply – 5V DC/2A through USB-C connector or 2.54mm pin header
• Dimensions and Weight
• PCB – 45 x 45 mm | 16.1 grams

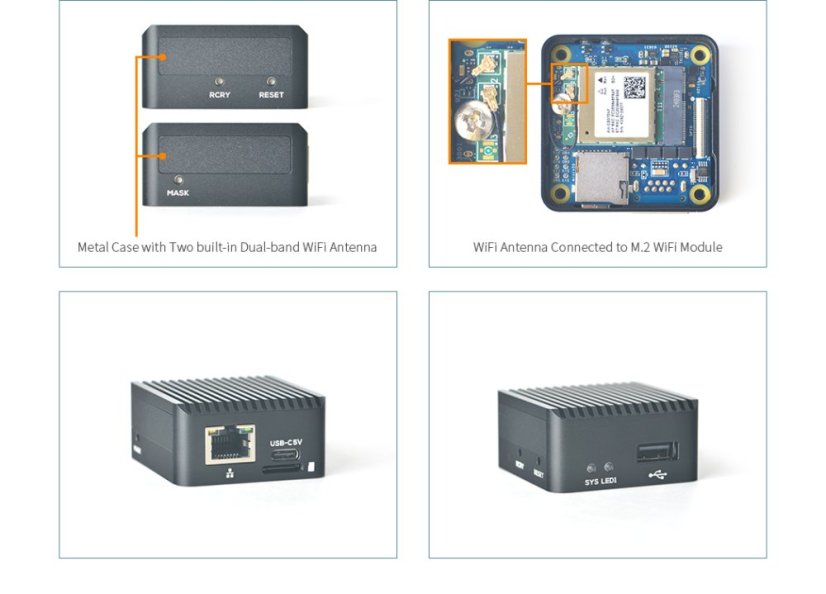

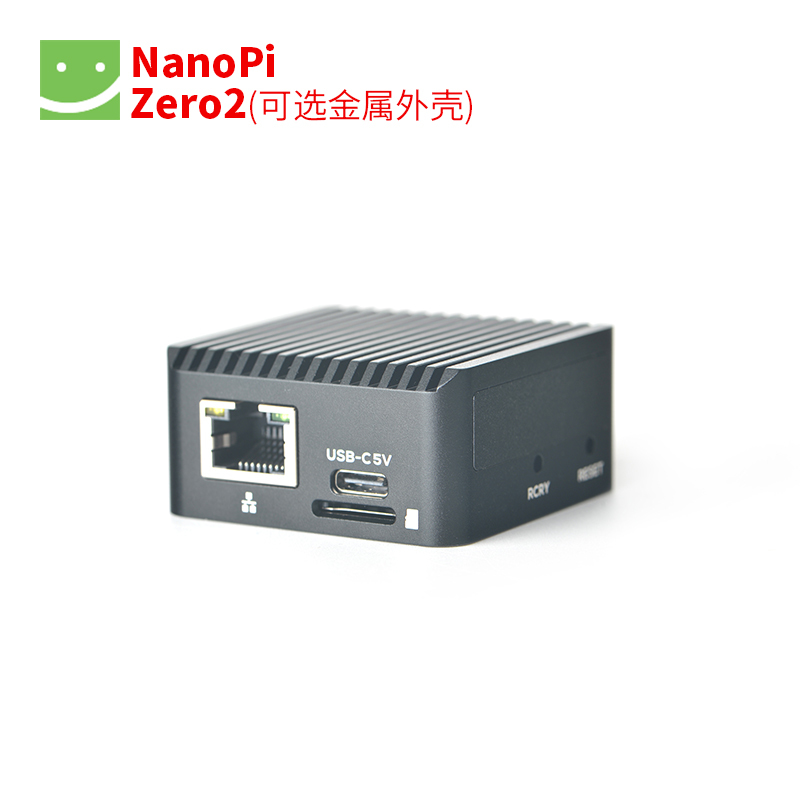

• Metal case – 49.5 x 49.5 x 25 mm | 86.5 grams
• Operating temperature range – 0°C to 80°C

Wiki: https://wiki.friendlyelec.com/wiki/index.php/NanoPi_Zero2

Package Contents:

1x NanoPi Zero2

1x Metal Case (only the Combo variant)

1x eMMC Module 32GB or 64GB
