Warning: This is RS232, NOT TTL. RS232 is not TTL!

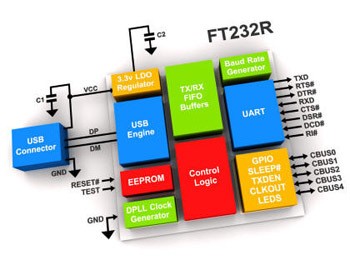

FT232R is a USB/Serial UART interface with optional clock generator output, containing FTDIChip-ID hardware key. Asynchronous and synchronous Bit-Bang modes are also available. The integration of external EEPROM, clock generator, and USB resistor simplifies the USB/UART interface FT232R.

Features:

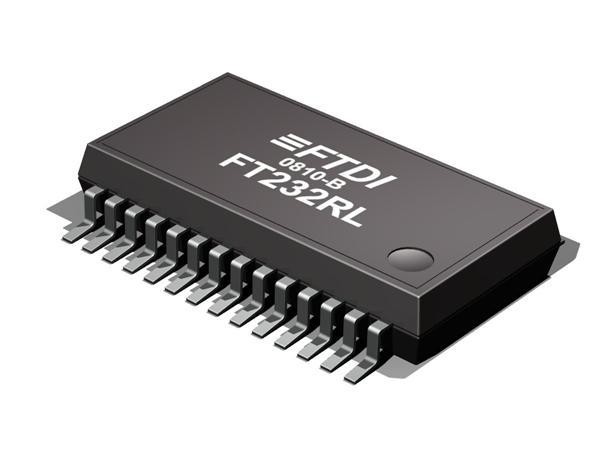

• Based on the FTDI FT232 original chip
• TTL to RS232 chip Zywyn ZT213LEEA
• FTDI USB/Serial interface adapter
• Powers directly from USB, no additional power supply needed.
• Compatible with USB-RS232-WE-1800-BT
• On-board signals: CTS, RTS, RXD, TXD, DCD, RI, DSR, DTR, GND, VCC5v
• Data transfer speeds from 300 baud to 1Mbaud
• Supports UART interface for 7 or 8 data bits, 1 or 2 stop bits, and odd/even/mark/space/no parity

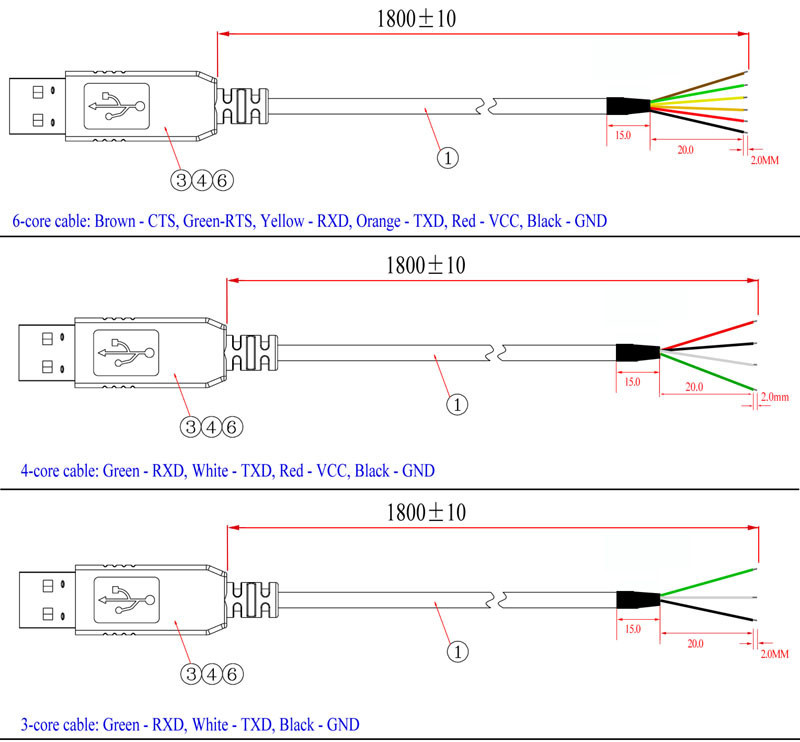

• Wires: 175 cm, 24AWG * 6 wires, PVC jacket, black, copper
• Supports Android, Windows 8, Windows 7, XP, 2000, Linux, Mac OS
• Integrated 1024 byte EEPROM with user-writable space
• Supports Vendor ID re-write, Mprog 3.5, FT_prog
• Supports FTDI VCP driver and D2XX driver
• Supports VCC = 5V from USB
• Net weight: 78g/unit
• CE, RoHS certified

Drivers: FTDI D2XX Drivers

USB driver installation made easy: Zadig
