PN532 NFC Module | 13.56MHz RFID Reader/Writer

PN532 NFC Module | 13.56MHz RFID Reader/Writer | SPI/I2C/UART

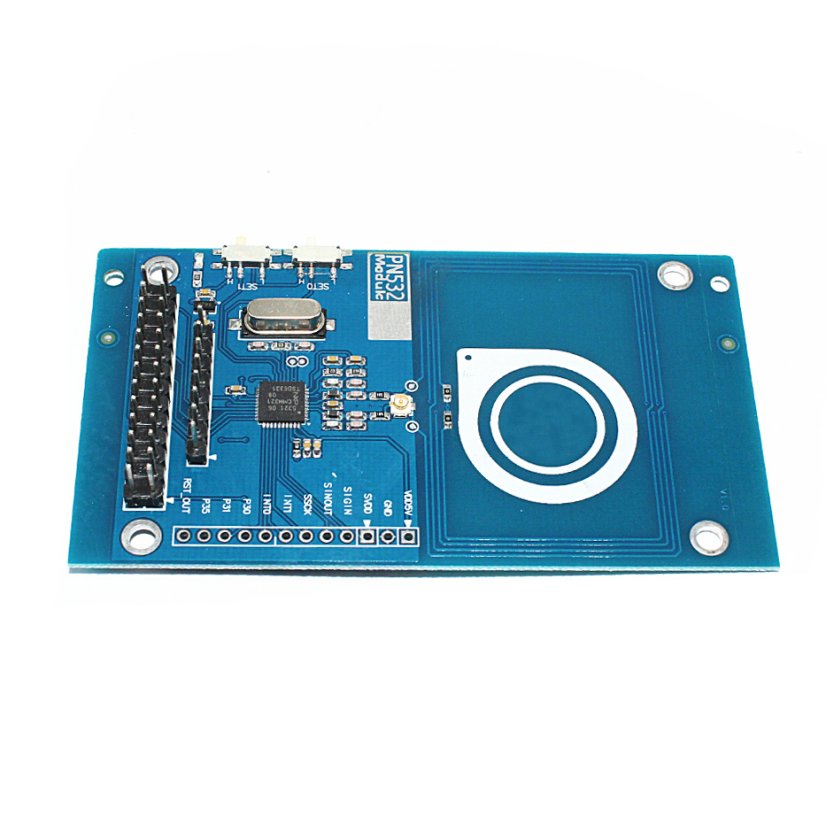

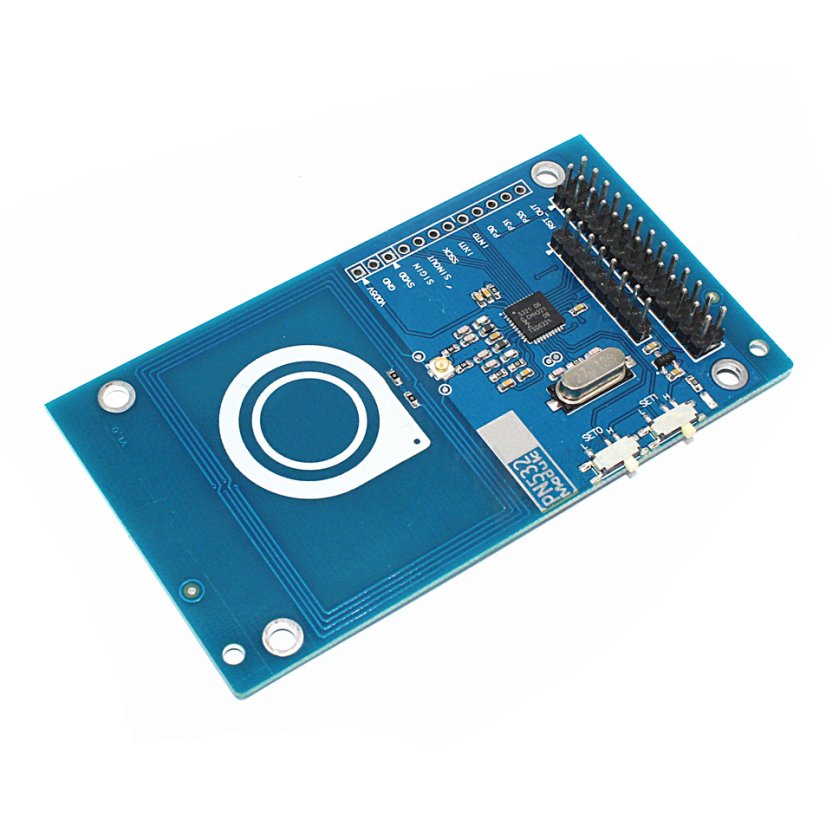

The PN532 NFC Module is a versatile RFID/NFC reader and writer based on the NXP PN532 chip, operating at 13.56MHz. It features an onboard antenna, eliminating the need for an external coil. The module supports multiple communication interfaces—SPI, I2C, and UART—making it compatible with various platforms like Arduino and Raspberry Pi. It's ideal for applications such as access control, electronic payment systems, and data exchange.

Specifications:

• Chipset: NXP PN532

• Operating Frequency: 13.56MHz

• Communication Interfaces: SPI, I2C, UART

• Operating Voltage: 3.3V

• Power Supply Voltage: 3.3V – 5.5V

• Max Supply Current: 150mA

• Working Current:

  • Standby Mode: 100mA

  • Read/Write Mode: 120mA

• Supported Standards: ISO14443 Type A & B

• Effective Communication Distance: Up to 3 cm

• Indicators: Power (PWR)

• Compatibility: Arduino, Raspberry Pi, and other microcontrollers

This is OEM version of this model:  https://wiki.iteadstudio.com/ITEAD_PN532_NFC_MODULE
