NanoPi R1 1/8GB

NanoPi R1

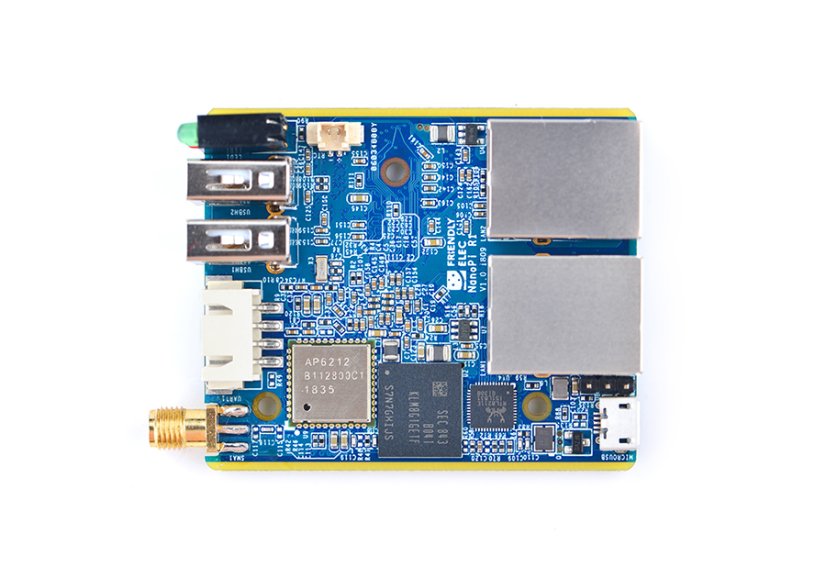

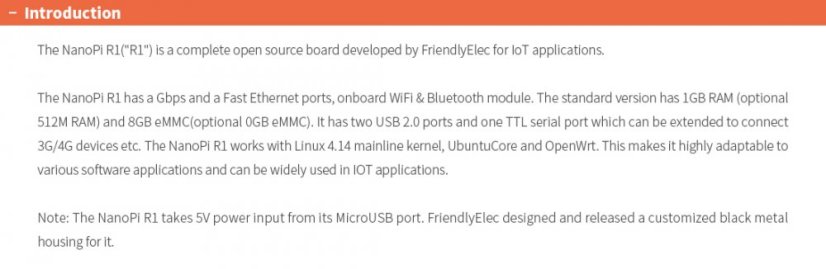

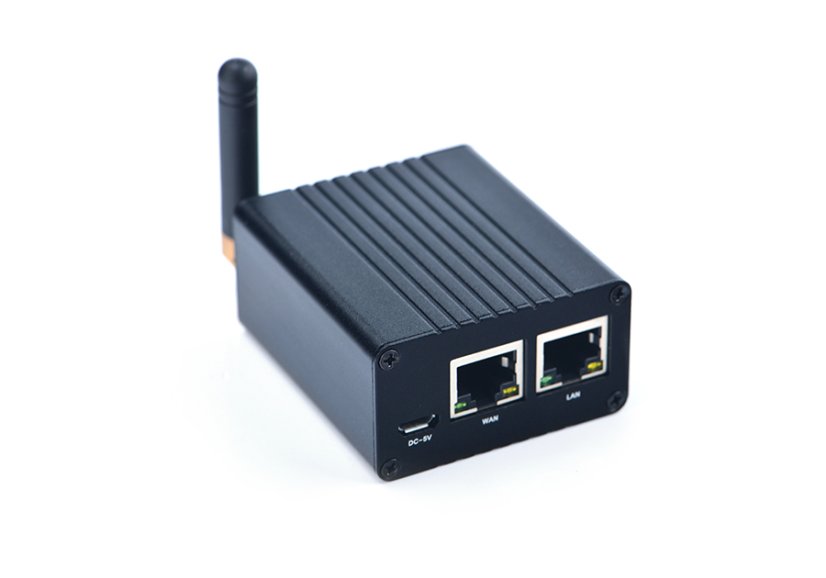

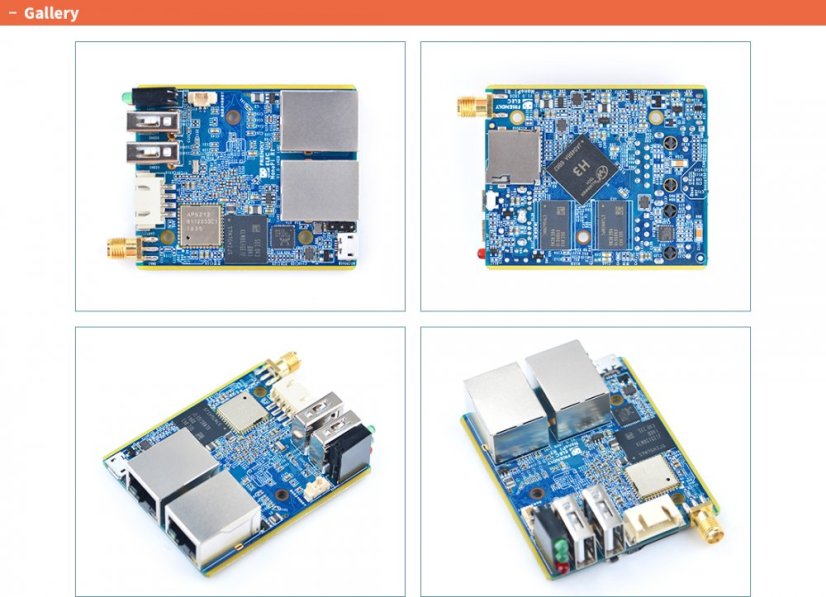

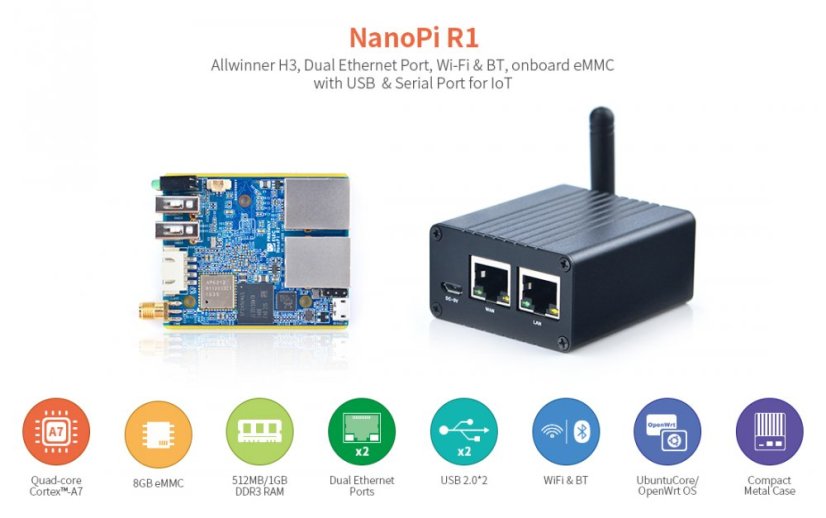

The NanoPi R1 ("R1") is a complete open-source board developed by FriendlyElec for makers, enthusiasts, and fans. The NanoPi R1 features one Gigabit Ethernet port and one Fast Ethernet port. It includes a built-in 2.4G Wi-Fi module. FriendlyElec has ported OpenWRT to the R1, and with several additional settings, it can function as a router. Its good network performance and features make it a strong platform for various networking applications.

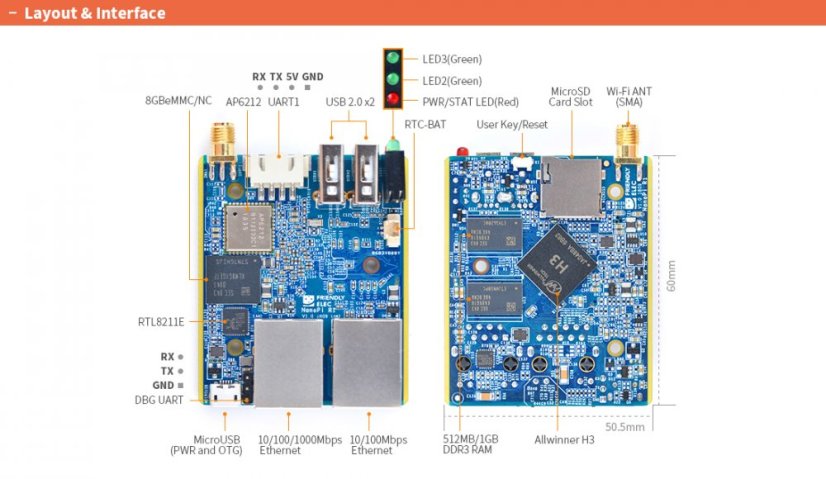

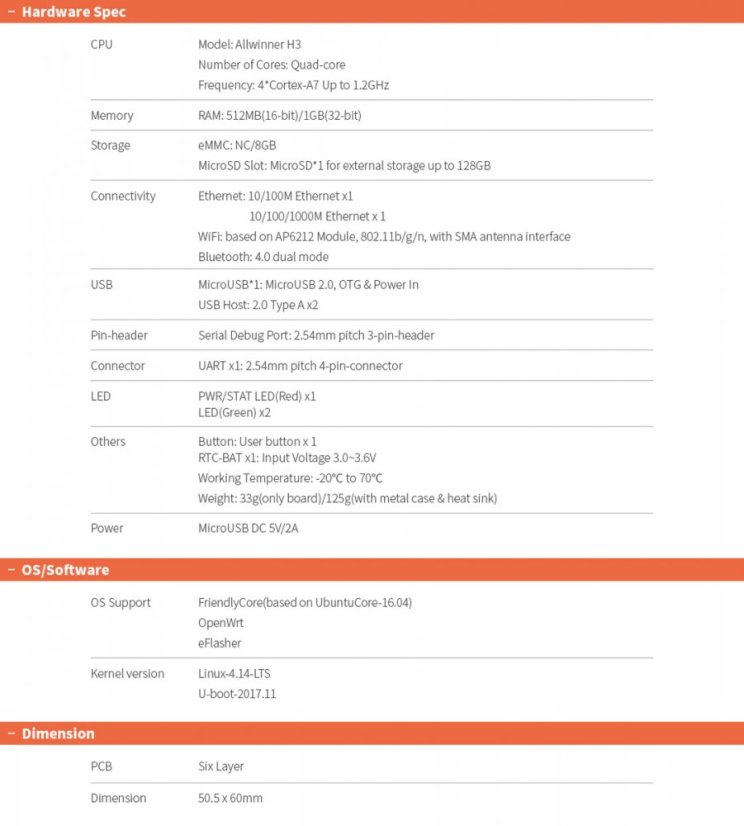

Specifications:

• Model: R1
• CPU: Allwinner H3, Quad-core Cortex-A7 up to 1.2 GHz
• DDR3 RAM: 512MB/1GB
• Storage: NC/8GB eMMC
• Network:
  • 10/100/1000M Ethernet x 1,
  • 10/100M Ethernet x 1
• WiFi: 802.11b/g/n, with SMA antenna interface
• Bluetooth: 4.0 dual mode
• USB Host: Type-A x2
• MicroSD Slot: x 1
• MicroUSB: for OTG and power
• Debug Serial Port: 3Pin 2.54mm pin-header
• UART: 4Pin 2.54mm pin-header
• LED: LED x 3
• KEY: KEY x 1
• PC Size: 50.5 x 60mm (2.0 x 2.4 inches)
• Power: DC 5V/2A
• Temperature Range: -40℃ to 80℃
• OS/Software: U-boot, Ubuntu-Core, OpenWRT
• Weight: xxg

http://wiki.friendlyarm.com/wiki/index.php/NanoPi_R1
