TS101 Digital Soldering Station with OLED Display - Fast and Precise Welding

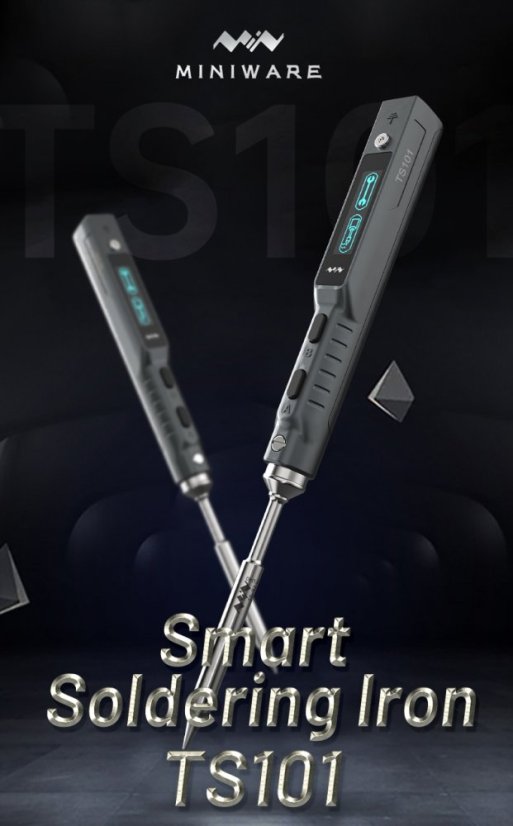

TS101 Digital Soldering Station with OLED Display

The TS101 is an intelligent, fast, and lightweight soldering station featuring an OLED display, allowing for easy and precise temperature adjustments ranging from 50 to 400 °C. The soldering tips are easily replaceable, and the station supports programmability via USB for specific projects. Ideal for laboratory use, design, or home work!

Main Features

• Built-in intelligent STM32 MCU chip.

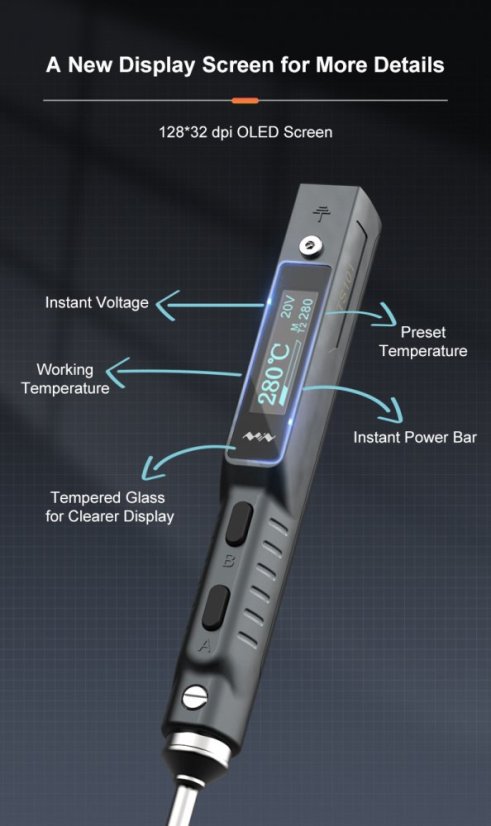

• Bright OLED display to show current temperature and other information.

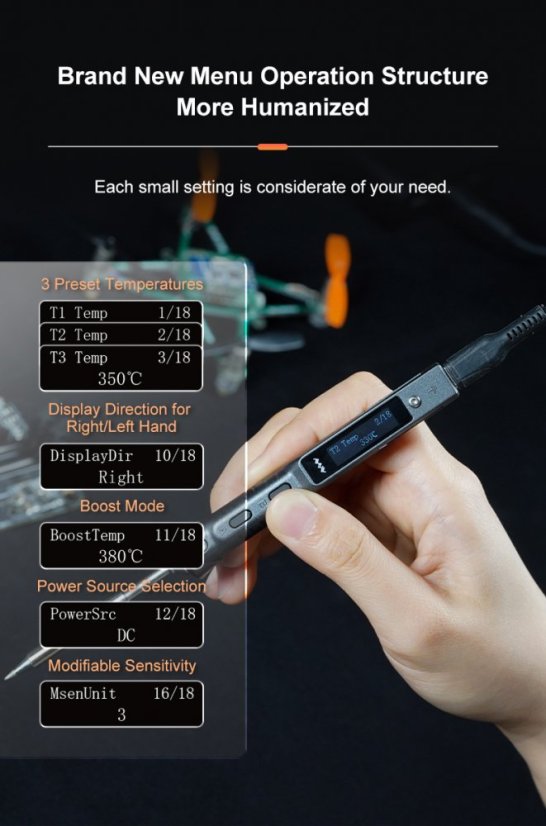

• Simple operation using buttons.

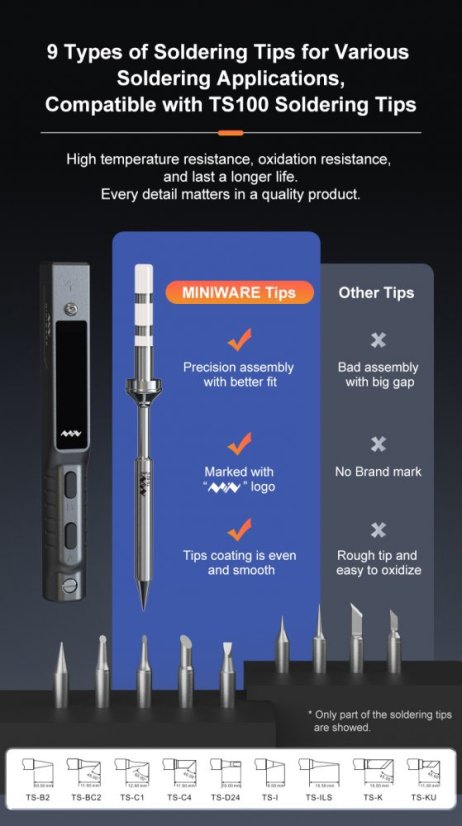

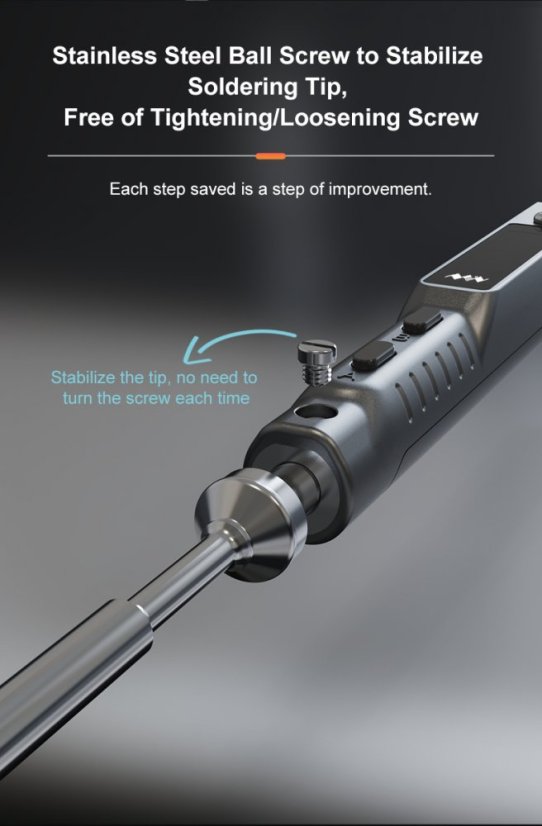

• Easily replaceable tips.
• Antistatic body with grounding cable for enhanced protection.

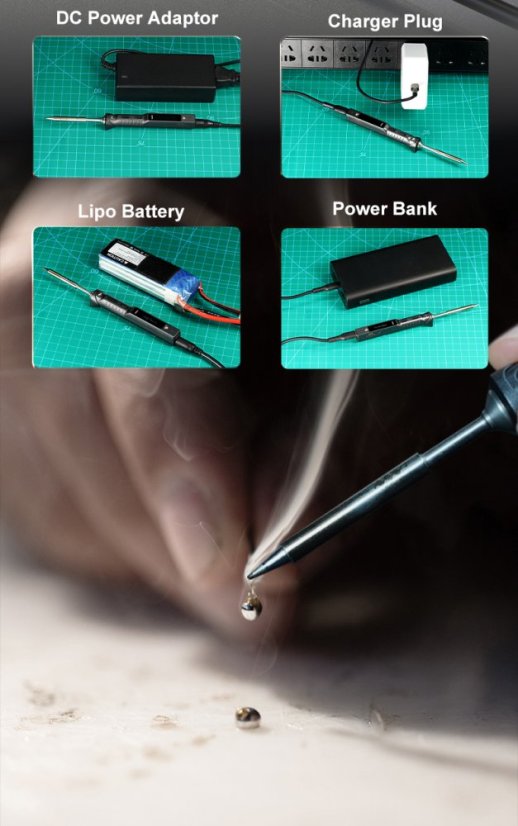

• Works with an external power source (not included) using a DC5.5x2.5mm jack or USB-C, supporting a wide voltage range of 12V to 24V.

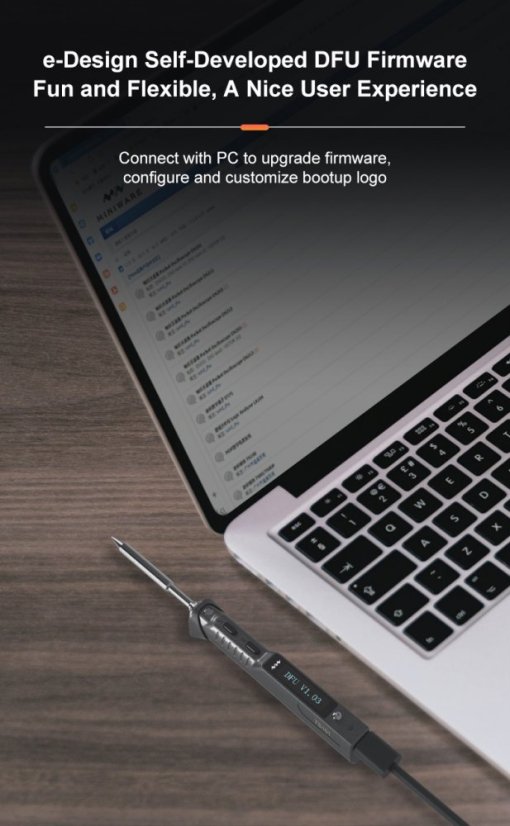

• USB interface for programming and firmware updates.

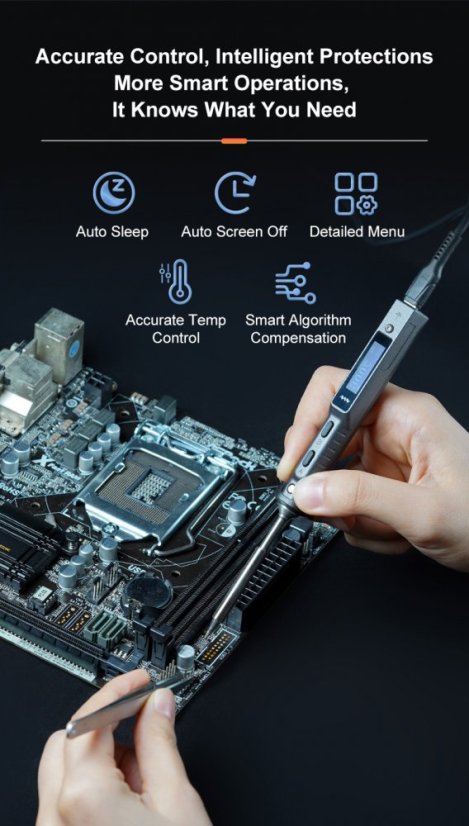

• Auto-sleep mode and overheat warning function.

Specifications:

• Model: TS101

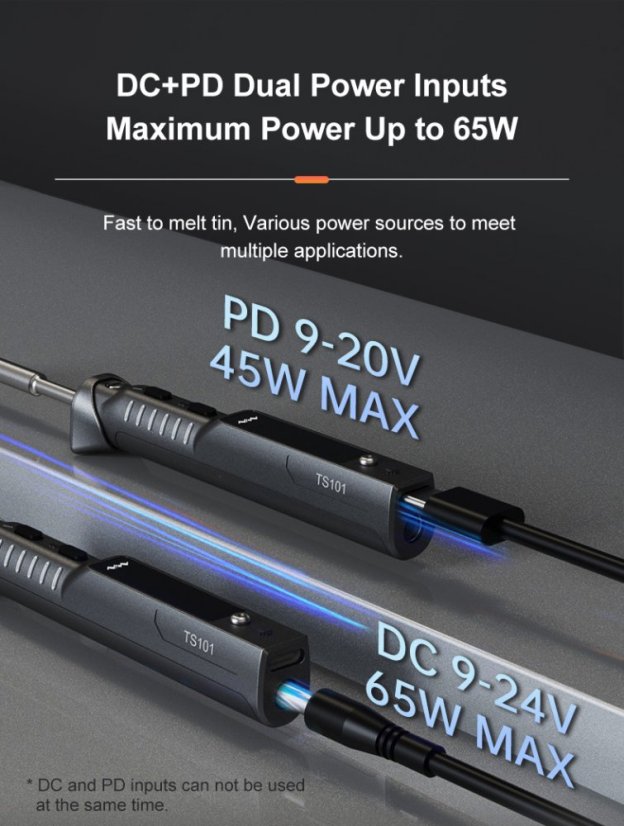

• Power: DC 9-65W, PD3.0 45W
• Temperature Range: 50℃~400℃ (max.)
• Temperature Stability: ±2%
• Tip to Ground Resistance: < 2Ω
• Operating Voltage: DC 9-24, PD3.0 9-20V
• Power Input: DC, USB-C

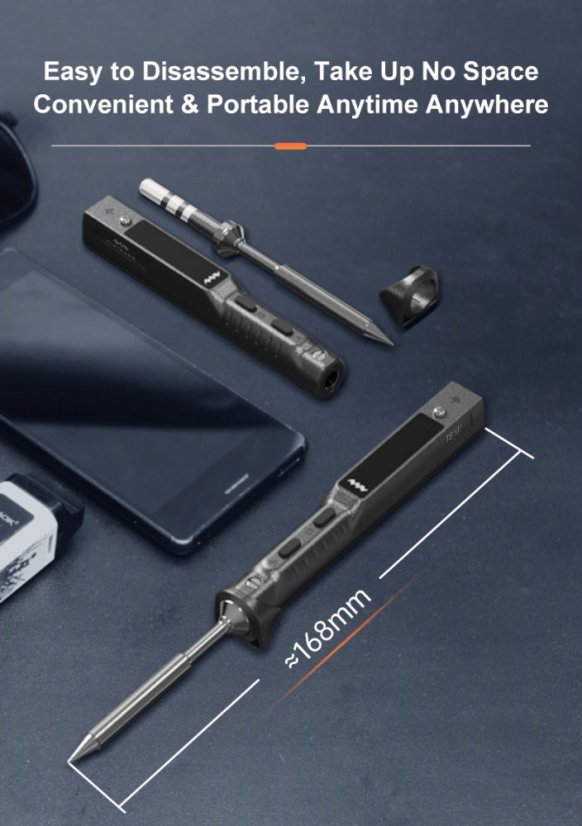

• Dimensions: Unit Length (Handle): 98mm, Diameter: 16.5mm, Length of Heating Section: 72+33mm, Diameter: 5.5mm
• Weight: 33g (power adapter not included)

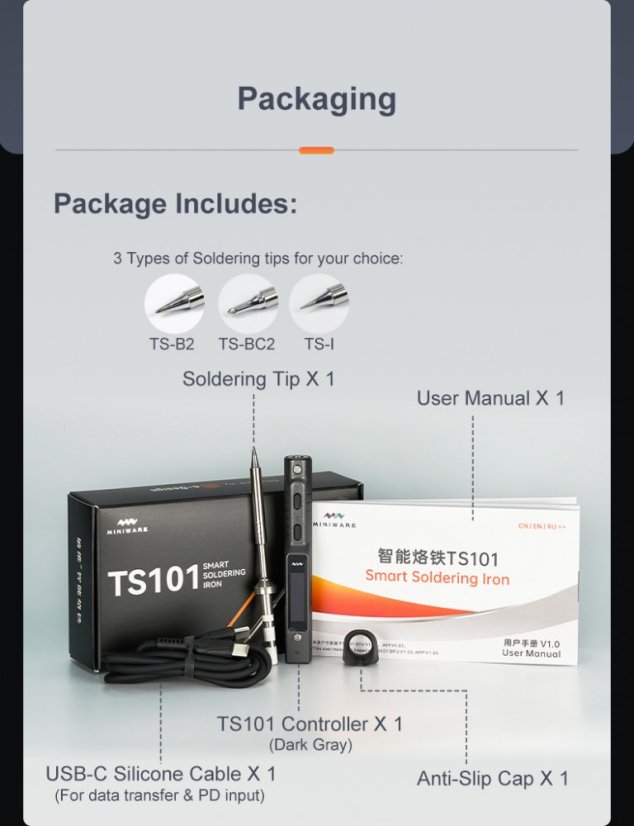

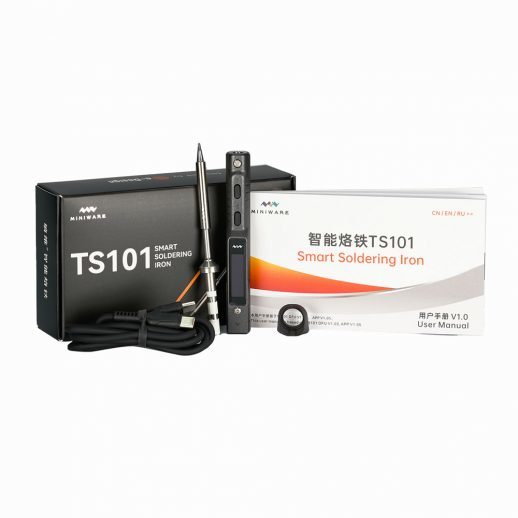

Package Includes:

• 1 x TS101 Digital LCD Soldering Station
• 1 x TS-B2 Soldering Tip
• 1 x USB-C Cable
• 1 x Anti-Slip Cap

Warning: Power source is not included. A 12-24V power source with a 5.5x2.5mm jack or our USB-C PD3.0 can be used.

You can purchase the power source here.
