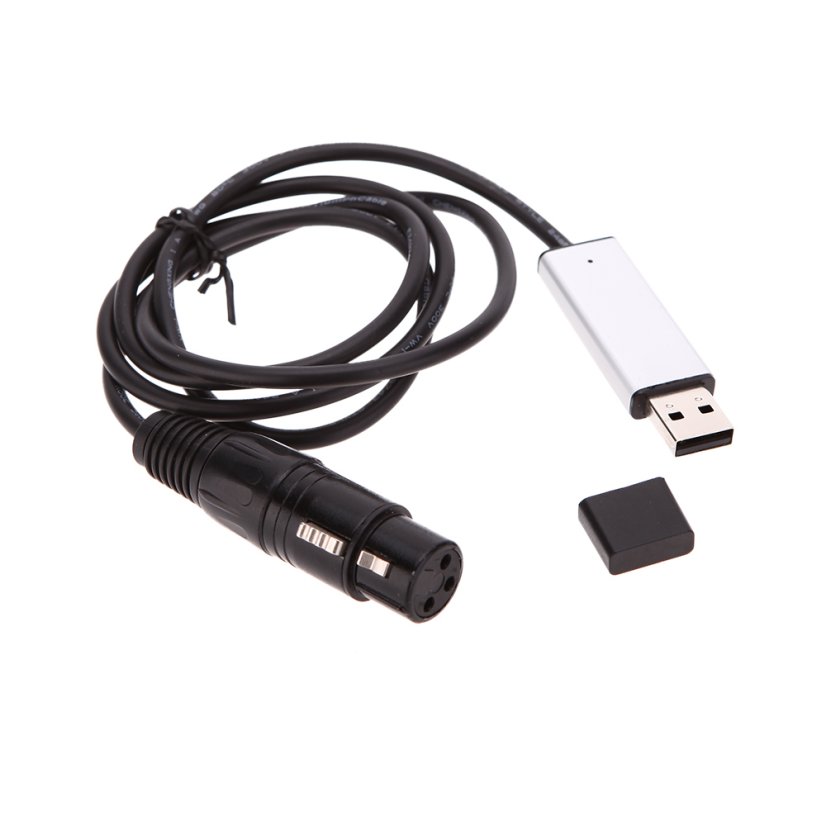

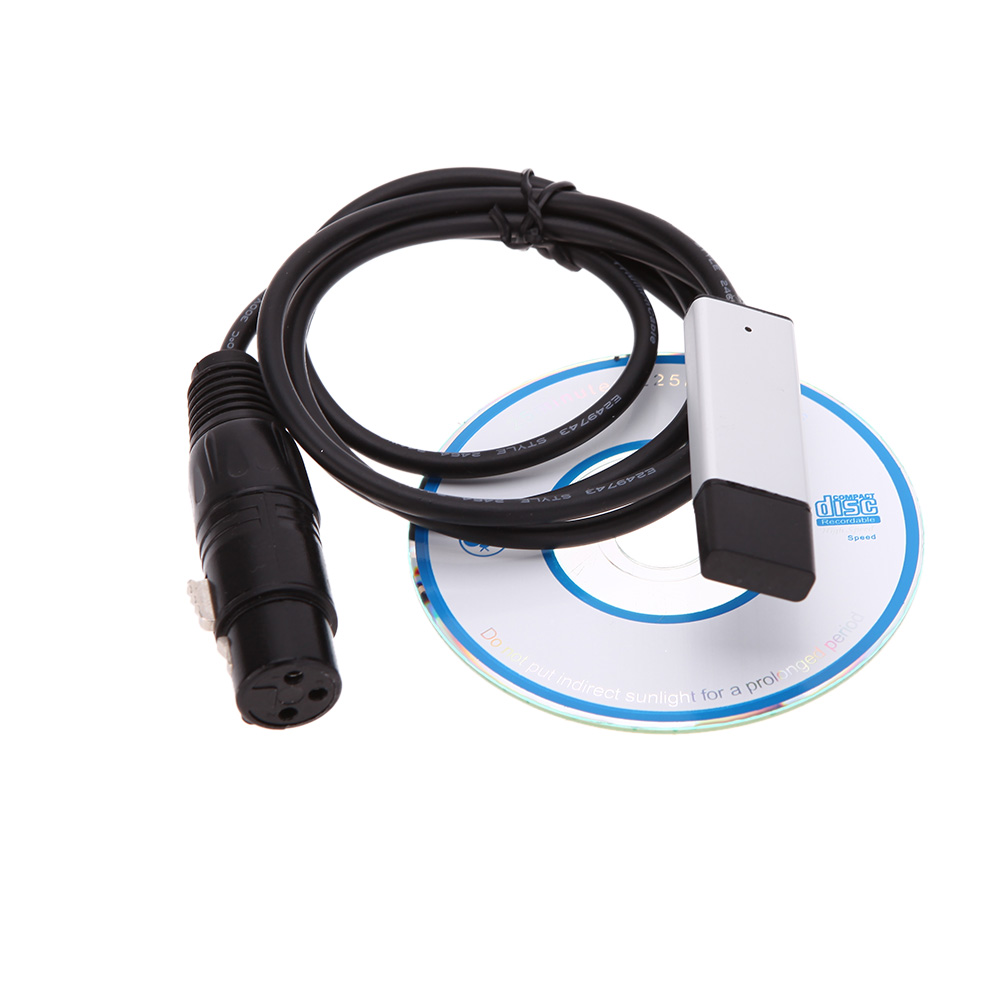

USB DMX512 Interface Cable with XLR 5P - UDMX FTDI

USB DMX512 Interface Cable with XLR 5P - UDMX FTDI

Controlling DMX lights from your computer requires an interface. The Neven DMX USB is the most affordable interface on the market, designed for users who do not require advanced features. It is compatible with multiple software programs and allows control of up to 512 channels.

It features a USB 2.0 input and one DMX512 output (non-isolated), RDM is not supported.

This DMX USB interface is based on the FTDI 232BM chip, converting USB to serial interface. With a simple application, you can send and receive DMX512.

Features:

• 720 transmission speeds
• Control of all 512 channels
• Transmission/reception over the DMX512 bus

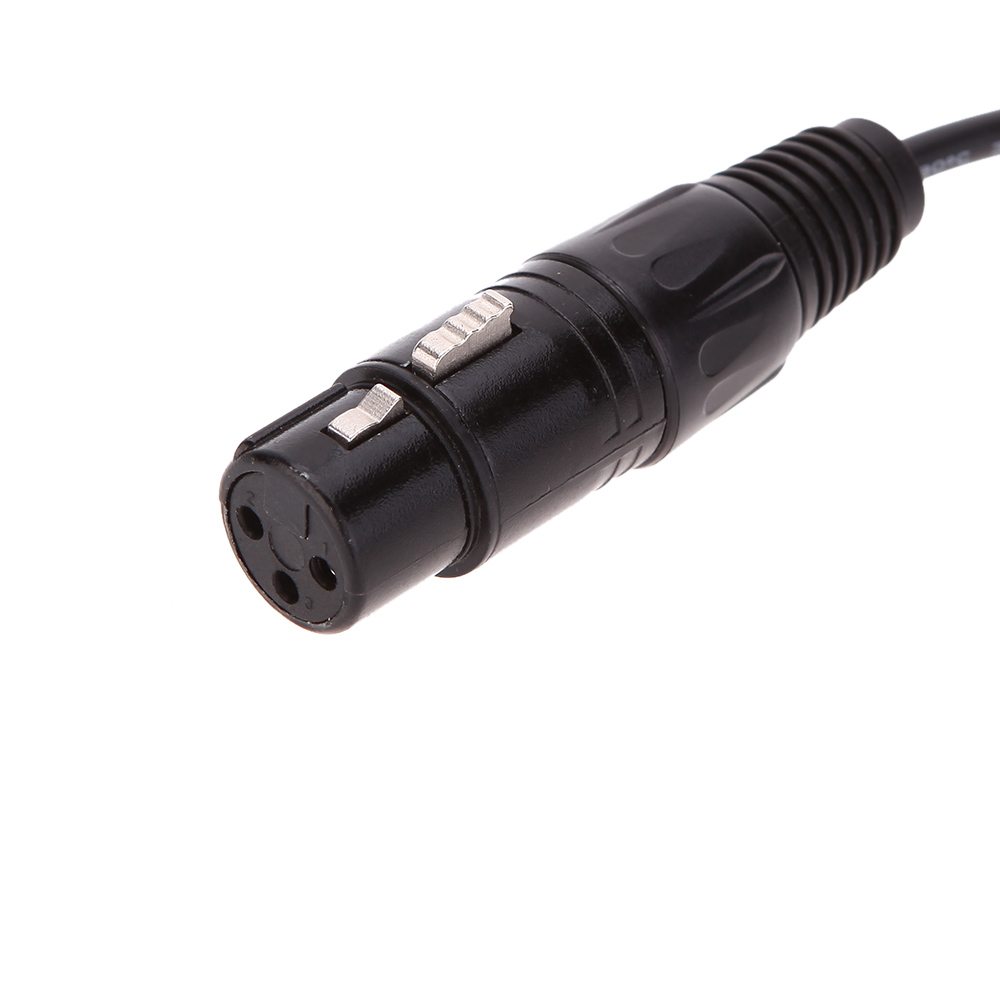

• 5-pin XLR female
• Full DMX512 speed - 300 ~ 3Mbps baud rates
• Transmission distance up to 5 km
• Half duplex, non-isolated
• Optional ESD protection
• Support for Android, Win 8, Win 7, XP, 2000, Linux, Mac OS
• Internal EEPROM with writeable space
• Support for Vendor ID re-write, support for Mprog3.5
• Support for FTDI VCP and D2XX drivers
• 26AWG * 3 wires, OD3.8mm, PVC sheath
• 0.15m ~ 1.8m

Technical Specifications:

• Model: USB-DMX512-FTDI
• Based on chip FTDI FT232
• Manufacturer: non-original/clone
• Input: USB B connector
• Output: 5-pin XLR connector
• Module power supply: from USB
• Weight: 0.012 Kg
• Operating position: any safe position
• Output: DMX512 (EIA-485)
• Warranty: 24 months

Tested with: FreeStyler DMXControl PC-Dimmer, Q Light Controller Vixen Abuelites, MagicQ.

Compatibility: Windows XP, Vista, Win7 (32bit), 8 and Linux.

NOTE: This product is just a USB to RS485 connecting cable and requires only drivers. We do not provide support for software and hardware. Check for compatibility before purchase.

Drivers: FTDI D2XX Drivers

USB driver installation made easy: Zadig

Freestyler full 12.9.2014
