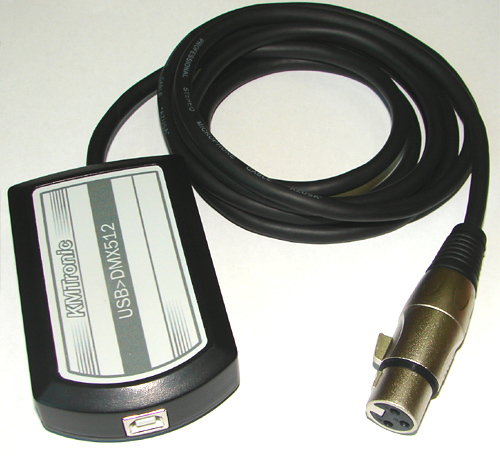

USB DMX512 Interface Converter - uDMX

USB to DMX Interface Converter DMX512 uDMX Cable

Features:

• Control of all 512 channels
• Send/receive over DMX512 bus
• Full DMX512 speed
• USB 2.0 compatible
• Low power consumption from USB
• Operating temperature range -40 °C to 85 °C (-40 °F to 185 °F)
• Drivers for Windows, Linux, and Mac OS

Technical Specifications

• Model: SS_DMX
• Based on FT232RL chip
• Manufacturer: KMtronics Bulgaria
• Input: USB B connector
• Output: 3-pin XLR connector
• Module Power Supply: From USB
• Weight: 0.012 Kg (0.026 lbs)
• Operating Position: Any safe position
• Output: DMX512 (EIA-485)
• Warranty: 24 months

Tested: FreeStyler, PCdimmer, DMXControl, 'Q Light Controller', VenueMagic, Vixen Lighting Software, Madrix - LED Lighting Control

Compatibility: Windows XP, Vista, Win7 (32bit), 8, 10 and Linux.

NOTE

This product is a USB to RS485 connecting cable with a 3-pin XLR connector. It is based on the FT232RL chip and requires only drivers to function; no additional software is needed. It allows DMX software on your computer to communicate with your DMX equipment. We do not provide and cannot provide any support for your software and hardware. Please double-check its compatibility with your equipment/software before making a purchase.

Drivers: FT232RL Drivers

Original test software: http://info.kmtronic.com/software/DMX/DMX_tester.zip

Freestyler full 12.9.2014

The package includes:
1x USB to DMX converter
