USB to DMX512 Converter uDMX with Optical Isolation

USB to DMX512 Converter uDMX with Optical Isolation for LED Walls

Features:

• Control of all 512 channels
• Transmission/ reception via DMX512 bus
• Full DMX512 speed
• USB 2.0 compatible
• Low power consumption from USB
• Operating temperature range -40 °C to 85 °C (-40 °F to 185 °F)
• Windows, Linux and Mac OS drivers

Technical Specifications

• Model: SS_DMX_opto_LED
• Based on FT232RL chip
• Manufacturer: KMtronics Bulgaria
• Input: USB B connector
• Output: 3-pin terminal
• Optically Isolated: YES
• Module Power Supply: from USB
• Weight: 0.1 Kg (0.22 lbs)
• Operating Position: any safe position
• Output: DMX512 (EIA-485)
• Warranty: 24 months

Tested with: FreeStyler, PCdimmer, DMXControl, 'Q Light Controller', VenueMagic, Vixen Lighting Software, Madrix - Led Lighting Control

Compatibility: Windows XP, Vista, Win7 (32 bit), 8, 10 and Linux.

NOTE

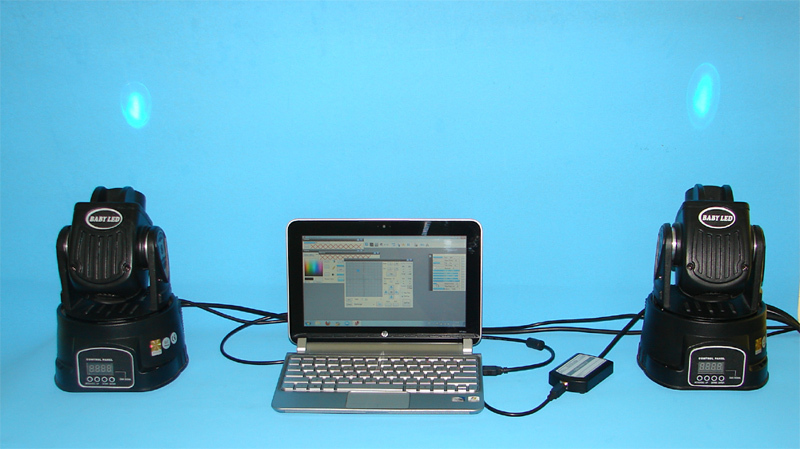

This product is a USB to RS485 adapter with a 3-pin XLR connector. It is based on the FT232RL chipset and requires only drivers to function; no other software is necessary. It allows DMX software on your computer to communicate with your DMX equipment. We do not provide and cannot provide any support for your software and hardware. Please double-check if it will work with your equipment/software before purchasing.

Drivers: FT232RL Drivers

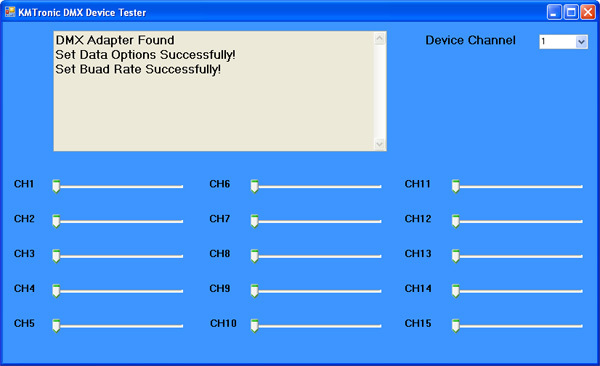

Original test software: http://info.kmtronic.com/software/DMX/DMX_tester.zip

Freestyler full 12.9.2014

Package includes:
1x USB to DMX converter

1x USB cable
