Warning: This is TTL, NOT 232. TTL is not RS232!

This USB2.0 Full Speed IC offers a compact bridge for basic UART interface. The device is UART capable of operating at speeds up to 3MBaud with lower power consumption (8mA). FT230X includes complete features of the FT-X series and allows for quick and easy USB connection to the system via UART interface.

Features:

• Win 7, 8, 10 - installation without the need for driver installation
• USB 2.0 Full Speed compatible

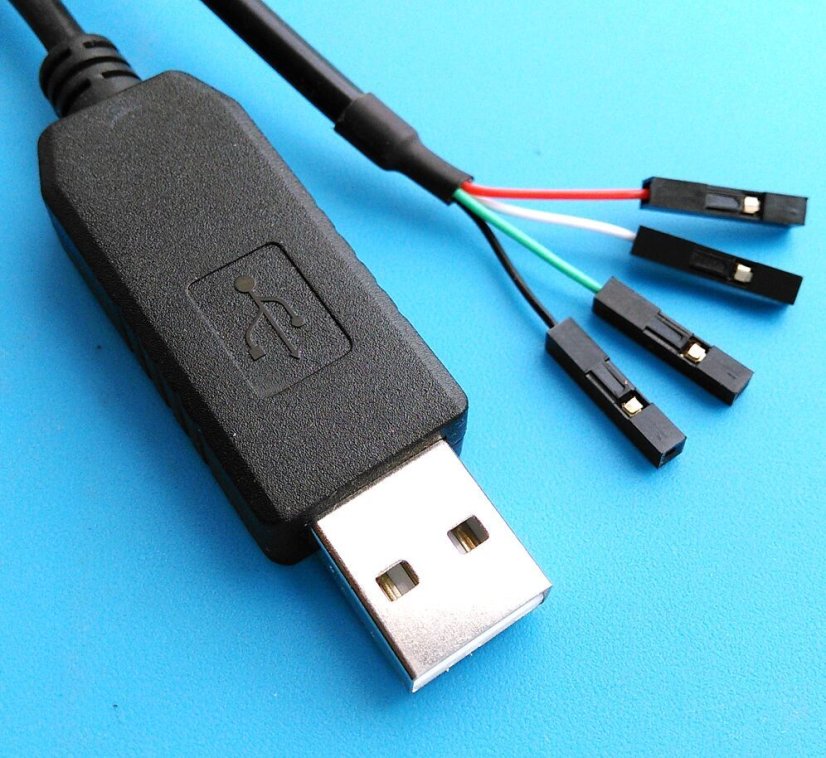

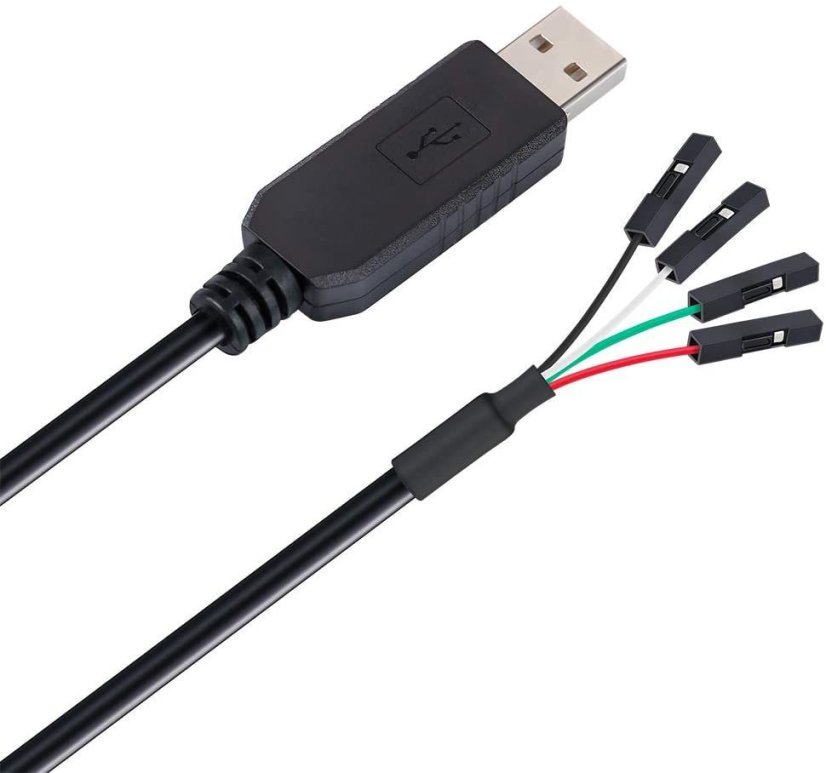

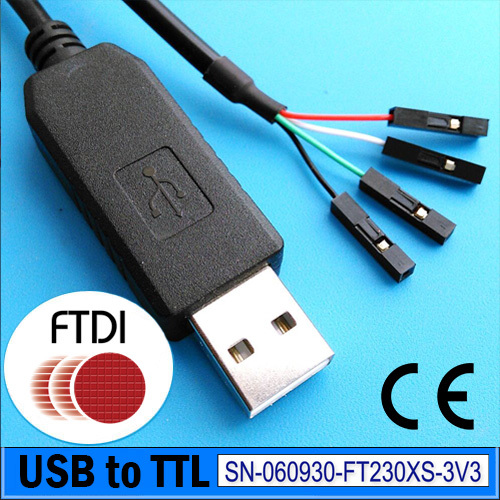

• FT230XS USB TTL CABLE
• USB UART TTL 3.3v cable
• Fully integrated 2048-byte EEPROM for storing device descriptors and CBUS I/O configuration.
• Data transfer speeds from 300 baud to 3Mbaud
• Support for UART interface with 7 or 8 data bits, 1 or 2 stop bits, and odd/even/mark/space/no parity
• True 3.3V CMOS drive output and TTL input.
• Wire: 175 cm DuPont, 24AWG * 6 wires, PVC sheath, black, copper
• Wire color coding: Red-VCC(5V), Orange -TX, Yellow-RX, Black-GND, Green-RTS, Brown-CTS
• Integrated 2048-byte EEPROM, supports Vendor ID rewrite, supports Mprog3.5
• Support for Android, Win10, Win 8, Win 7, XP, 2000, Linux, Android, Mac OS
• Support for FTDI VCP driver and D2XX driver
• FCC, RoHS compliance

drivers: FTDI D2XX Drivers

USB driver installation made easy: Zadig
