UV Radiation Meter LS128 - Professional UV LED Tester

UV Radiation Meter LS128

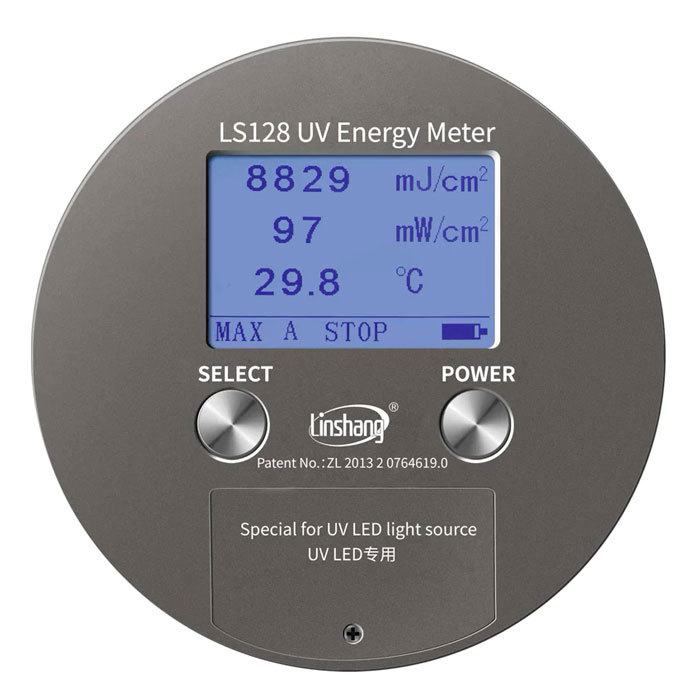

The LS128 UV Radiation Meter is a professional device for testing UV LED light sources. It measures a spectral response range of 340 nm to 420 nm. You can test various wavelengths including 365 nm, 375 nm, 385 nm, 395 nm, 405 nm, and more UV LED bulbs. If you are looking for a quality UV radiation meter, the LS128 is your top choice!

• Designed specifically for UV LED (365, 385, 395, 405 nm, etc.)
• UV radiation intensity measurement range of 40,000 mW/cm²

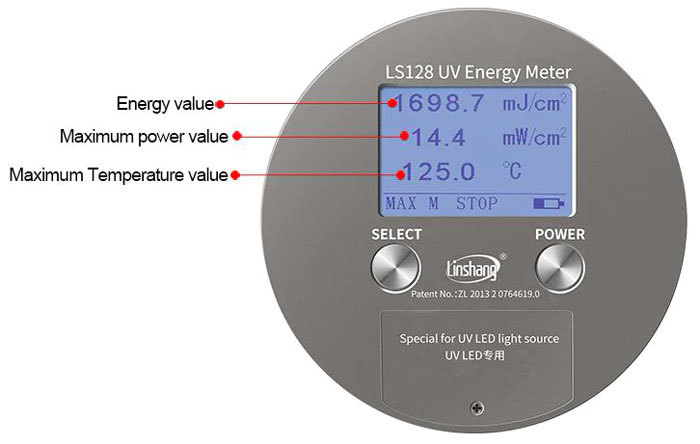

• Records UV radiation intensity, energy, temperature, and test duration
• Measures temperature and power simultaneously and can display process trends

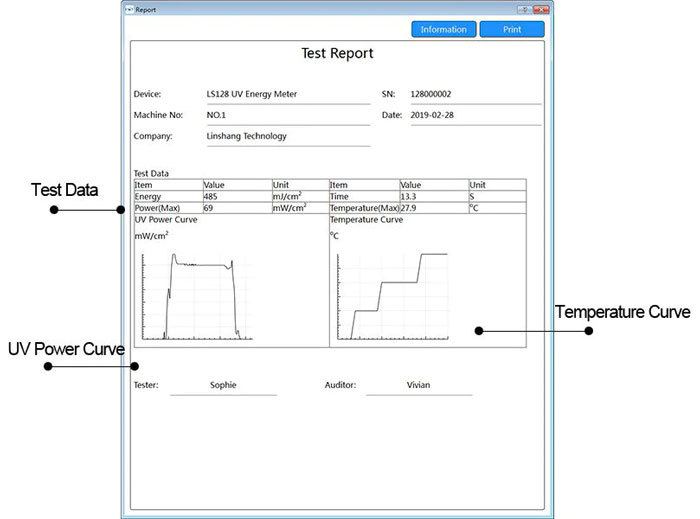

• PC software for exporting data from conducted tests

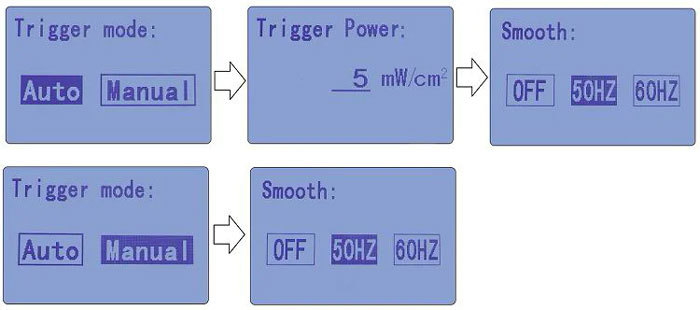

How to use the LS128 UV Radiation Meter for testing LED UV light source:

Technical Parameters of the LS128:

• Model: LS128
• Usage: Measuring light intensity, energy, and temperature of LED UV light sources

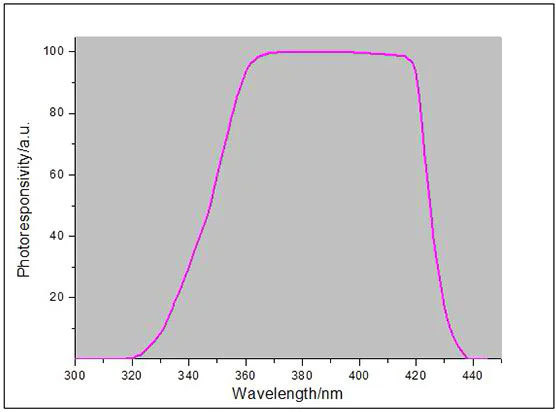

• Spectral range: 340 nm – 420 nm, calibrated for 395 nm LED UV light sources
• Irradiance measurement range: 0 – 40,000 mW/cm²
• Irradiance resolution: 1 mW/cm²
• Energy measurement range: 0 – 999,999 mJ/cm²
• Energy measurement accuracy: ± 10 %, ± 5 % (typical)
• Temperature measurement range: -55 °C - +125 °C
• Sampling rate: 2048 times per second
• Irradiance data saving interval: 32 times per second
• Temperature data saving interval: 2 times per second
• Recording duration: 32 min.
• Power supply: 2 AAA alkaline batteries
• Dot matrix LCD display: 240*160

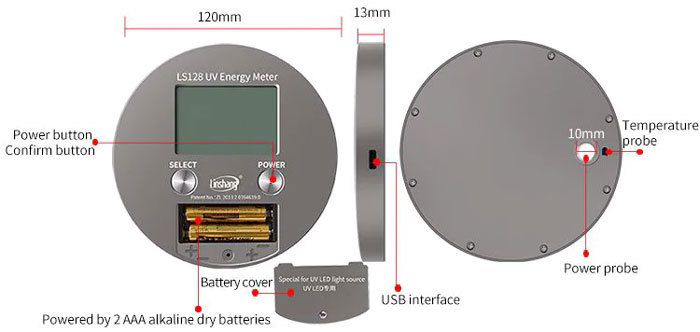

• Dimensions: diameter 120 mm * thickness 13 mm
• Weight: 327 g

Features:

1. Thanks to its wide spectral response range, the UV radiation meter can test UV LED light sources with peaks ranging from 365 nm to 405 nm.

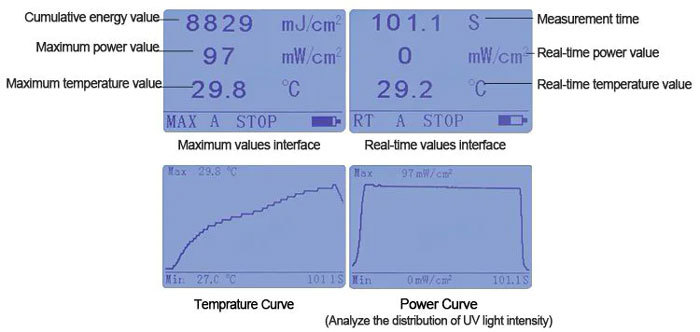

2. Truly intelligent UV radiation meter. It allows switching among the following options: maximum value, real-time value, temperature curve, and power curve.
3. Extremely large measurement range. The UV radiation meter can measure up to 40,000 mW/cm² and is capable of testing high-performance UV light sources.
4. Highly accurate and fast-responding temperature detector is used to measure the current temperature in the curing machine.
5. High temperature resistant design, can be exposed to environments of 100 degrees Celsius for extended periods.
6. Built-in large-capacity memory.
7. The UV radiation meter can be connected via USB interface to PC software for detailed analysis and data reporting.
8. Essential timer for precise measurement of UV curing time.

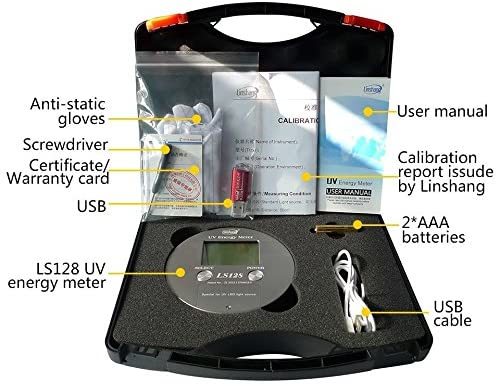

Package Contents:

• LS128 UV Radiation Meter
• USB cable
• AAA batteries
• Anti-static gloves
• Screwdriver
• User manual

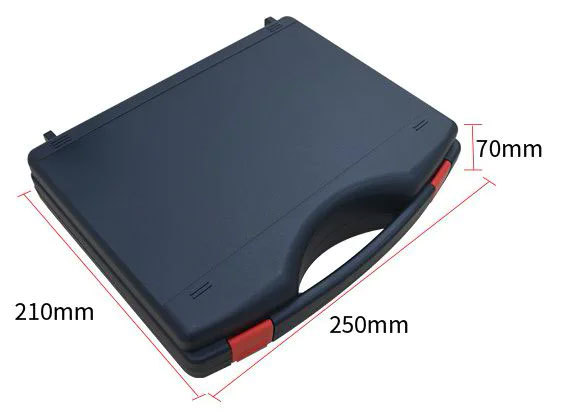

• Dimensions of plastic box 25*21*7 cm (L*W*H)

Upon request, the manufacturer can provide a calibration certificate from SOUTH CEINA NATIONAL CENTER OF METROLOGY.
