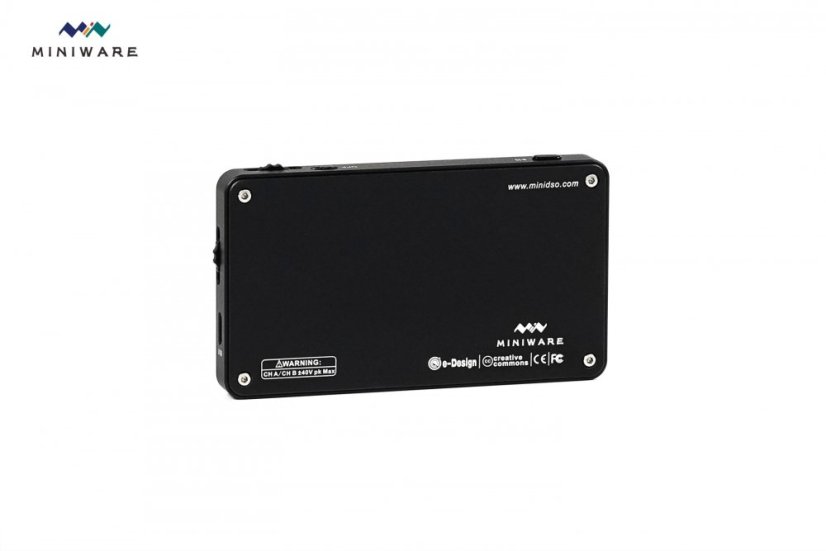

Mini Oscilloscope DS212

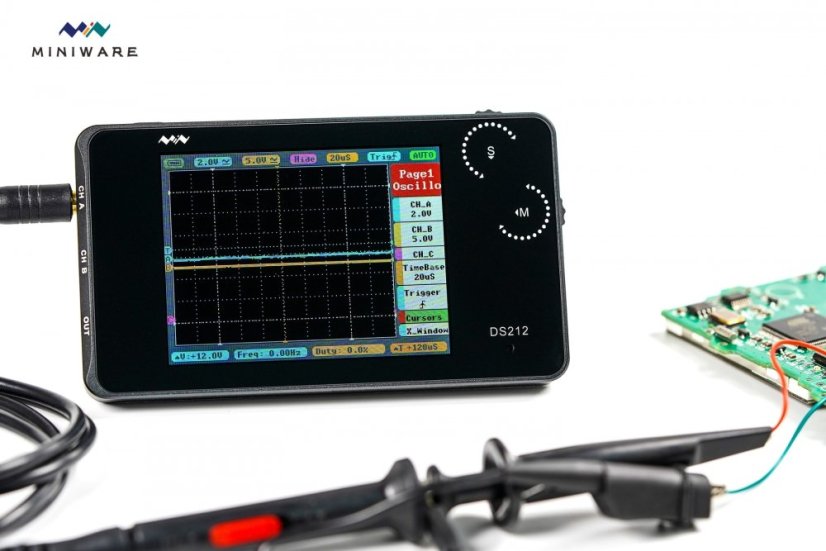

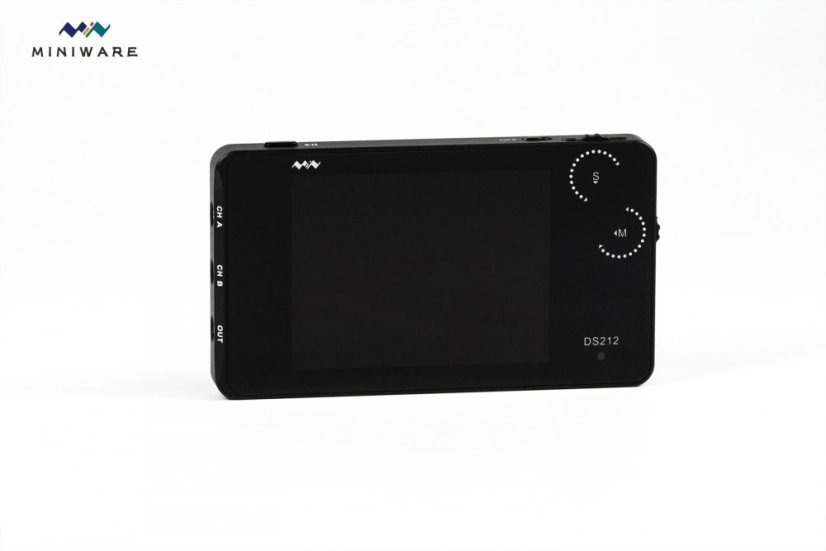

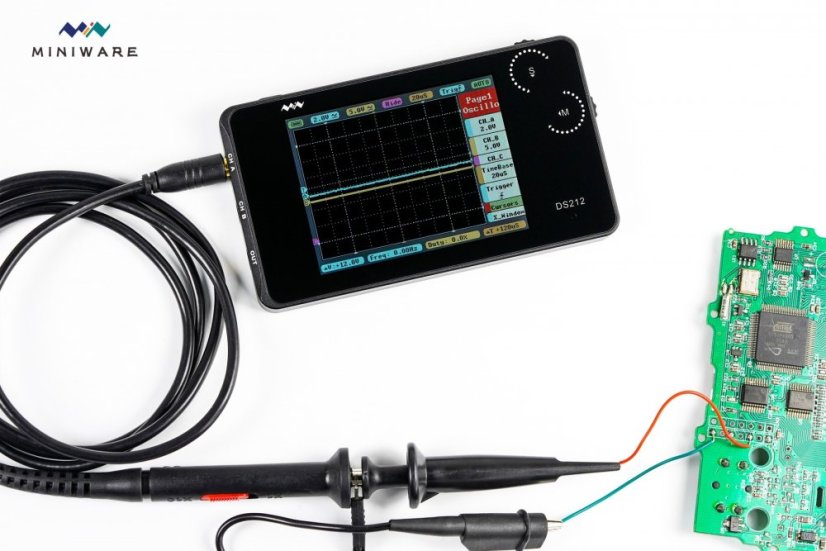

The very small DS212 oscilloscope is a two-channel digital storage oscilloscope equipped with a color TFT display having a resolution of 320 x 240 and a rechargeable battery. You will find it compact and modern, as it measures only 10 mm in width and is made from aluminum alloy. It offers an 8MB storage capacity and charges via USB. It has a wide range of applications in academic experiments, electronics maintenance, electronic engineering tasks, etc.

Specifications:

• Very small digital storage oscilloscope that meets the basic requirements of electronic engineering.

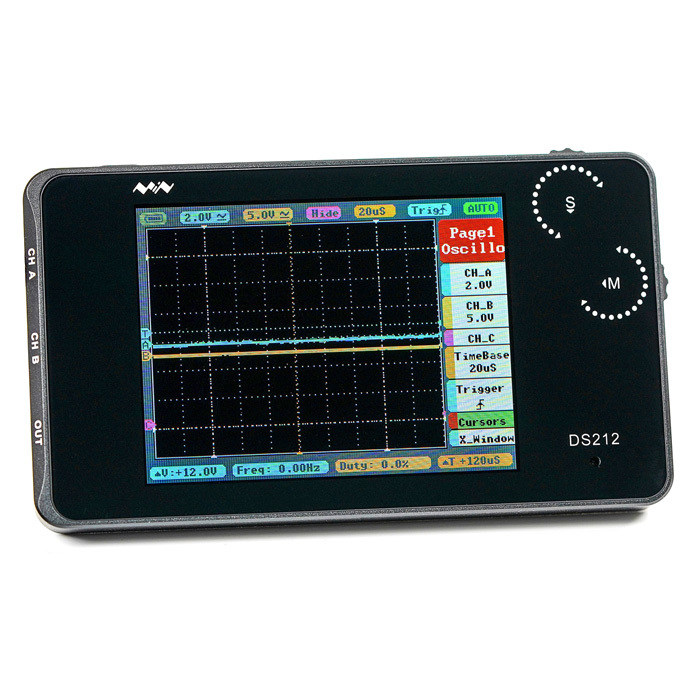

• 2.4" color TFT display with a resolution of 320 x 240, small and compact design with a rotary knob for adjustment.
• Two-channel, bandwidth 1MHz, input impedance 1 MΩ, maximum sampling range 10MSa/s.
• Rising/falling edge trigger; adjustable height, level, and trigger sensitivity.
• Precise vertical/horizontal measurement modes and trigger threshold levels.
• Built-in 8MB U-disk for curve data and images.
• Sync mode: automatic, normal, single, none, scanning.
• Automatic measurements: frequency, duty cycle, working cycle, DC voltage RMS/Vpp/Vmax/Vmin/Vavg.
• Built-in signal generator / 10 Hz–1 MHz (adjustable operation) or 10–20 KHz Sine/Square/Triangle/Sawtooth.

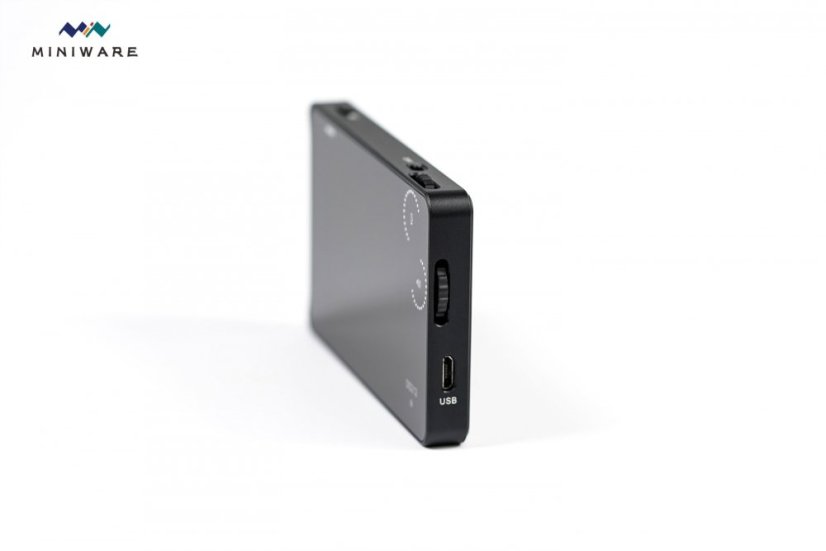

• Built-in 3.7V 500mAh lithium battery, charges via micro USB interface.

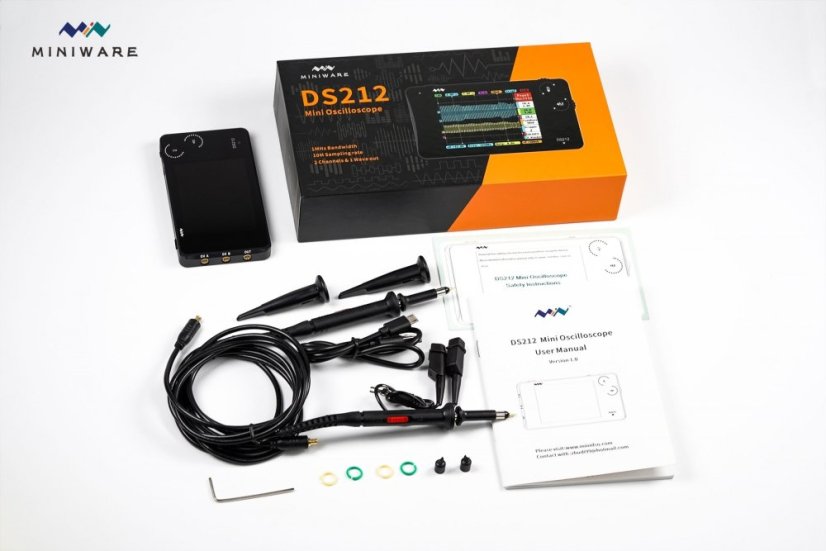

Package List:
1 x Oscilloscope DS212
1 x Cable clamp
1 x Test hook
1 x USB cable
1 x User manual (English)

Manufacturer's Page: https://www.miniware.com.cn/en/Mini-Oscilloscope-DS212-PG9226721
