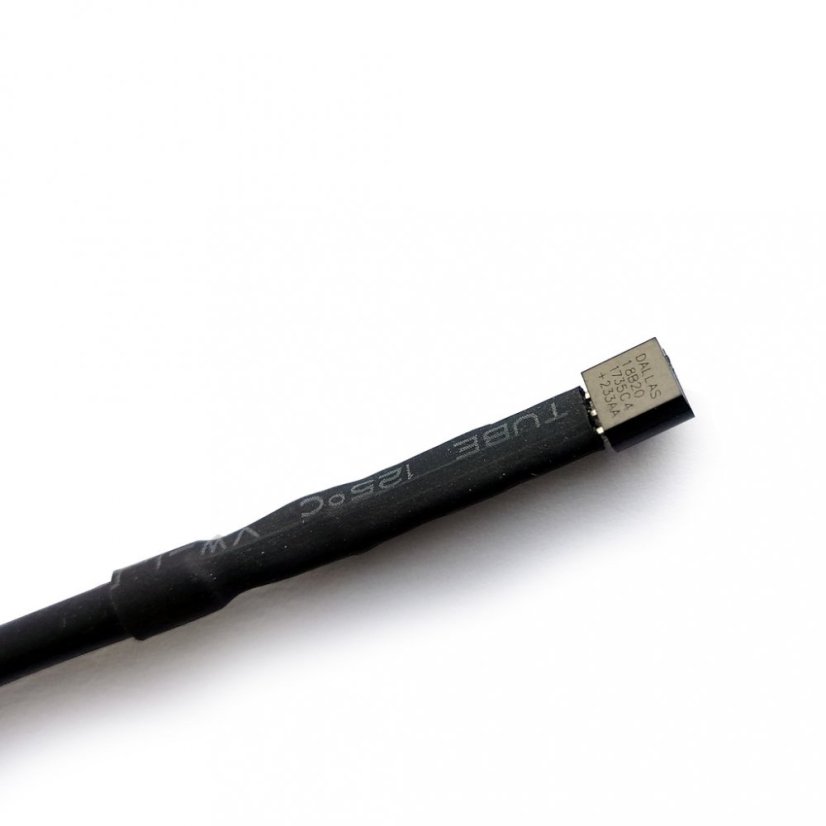

DS18B20 Waterproof Temperature Sensor – Length 25 cm

• 1 x DS18B20 Waterproof Sensor

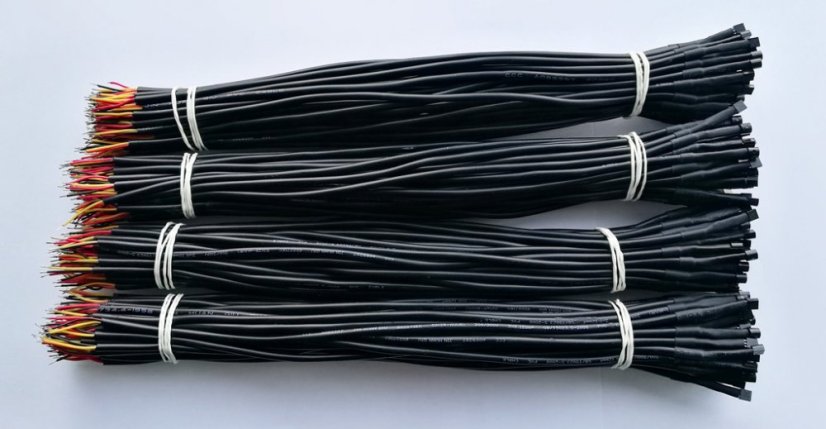

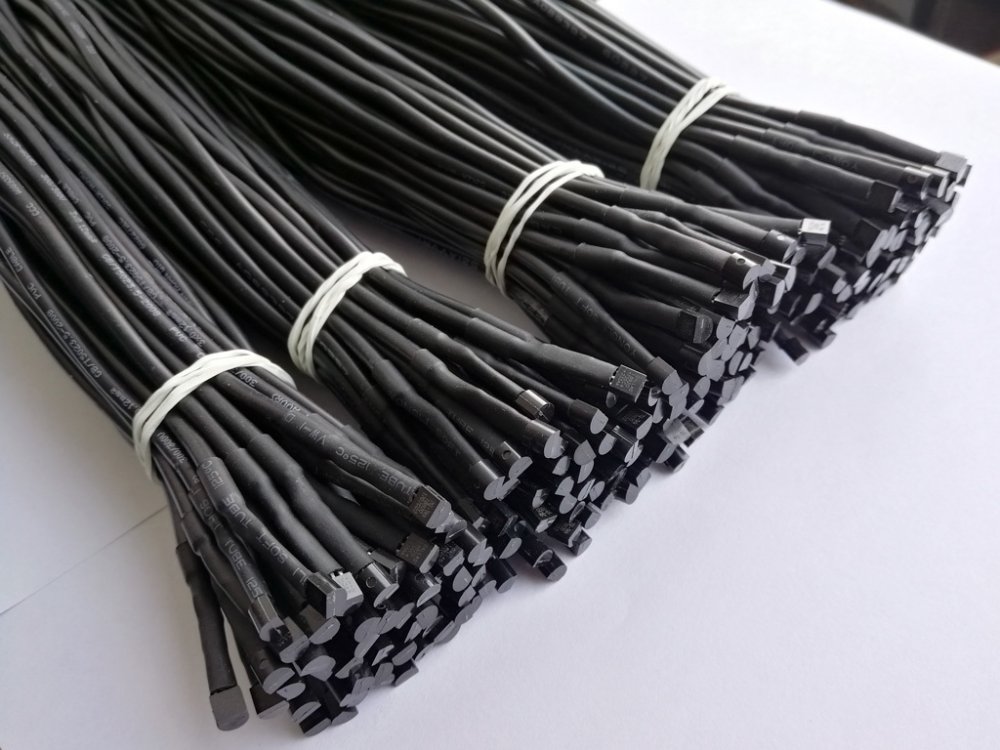

All DS18B20 sensors are based on the DS18B20+ TO92 chip (non-original). For orders of more than 200 pcs, we can customize the cable and connector based on your requirements. Larger orders and custom requests are processed within 10 business days.

Usage:

This sensor operates in "parasitic" mode. This means it draws power from the data line and requires only two wires. The two wires can be connected directly to a TTL-to-USB adapter:

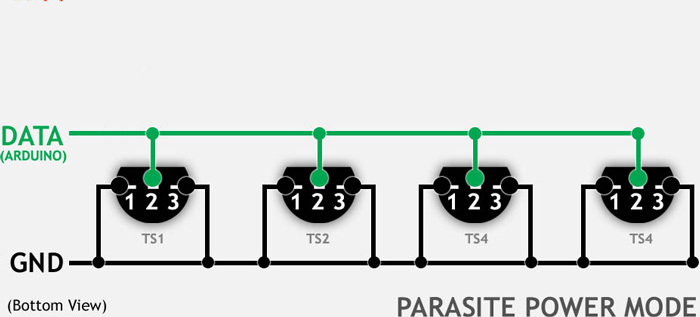

It is possible to connect multiple sensors in parallel:

In Windows, temperature can be read using the "1-Wire" software from Maxim: 1-Wire Drivers x86

Third-party Windows software can also be used: LogTemp

In Linux, it is supported by the Digitemp low-level sensor driver: Digitemp sensor driver
