MDP-M01 Power Control Module with TFT Display

MDP-M01 Power Control Module with TFT Display

MDP (Mini Digital Power System) is a modular, programmable power supply system. Multiple modules can be combined as needed to create a multi-channel system tailored to the target application.

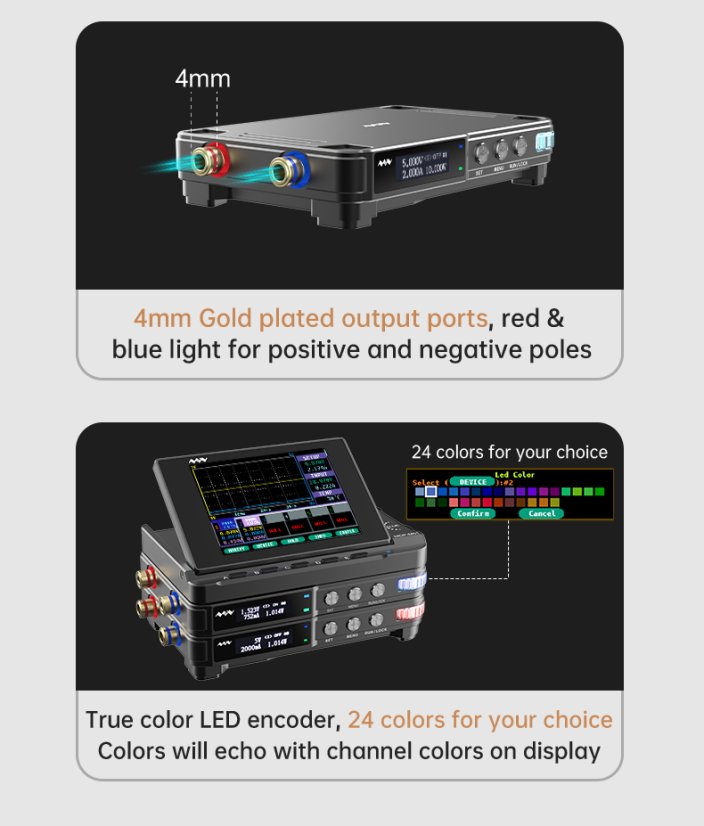

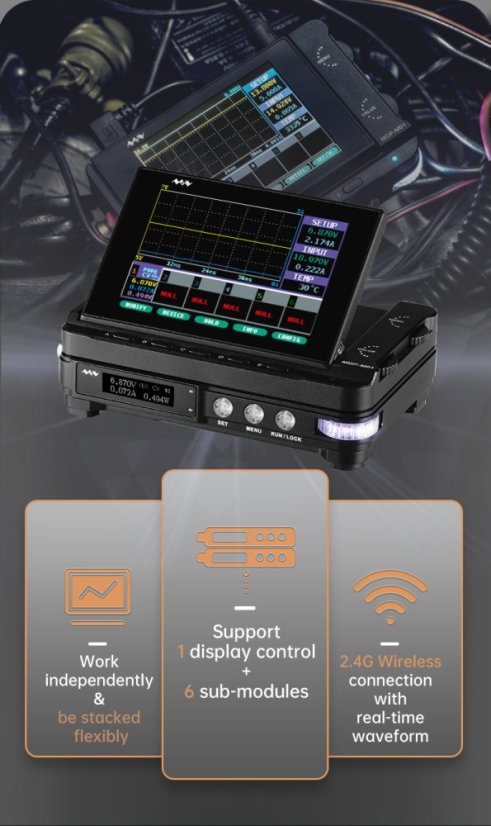

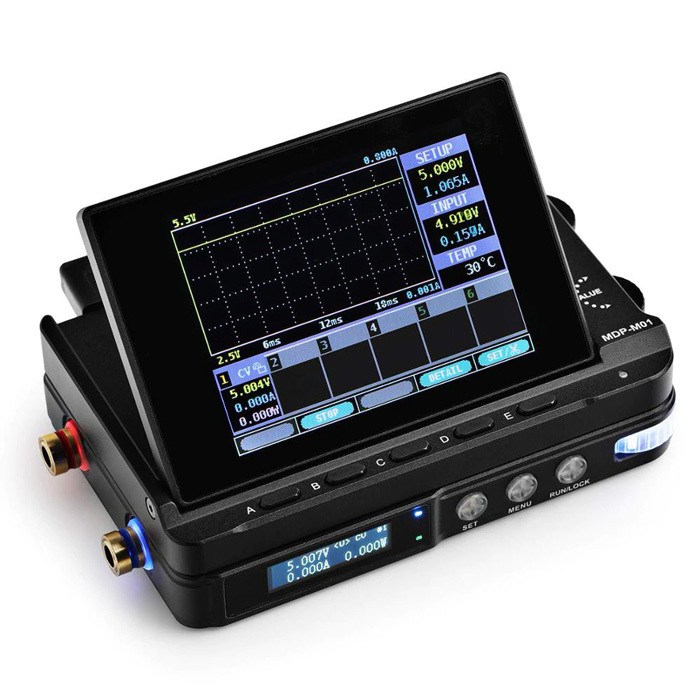

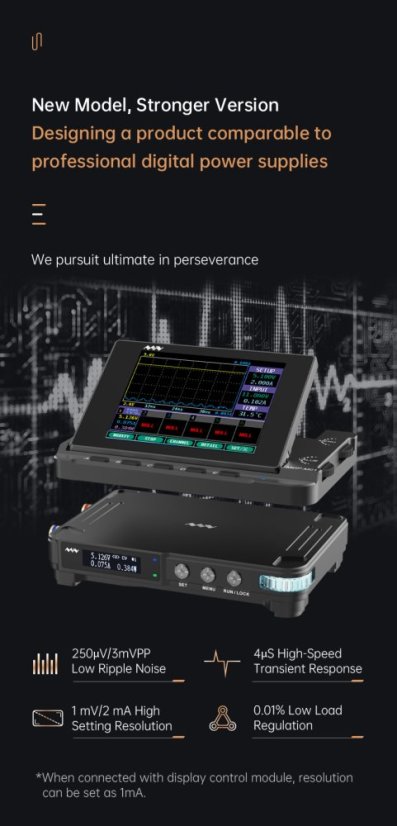

The MDP-M01 control module features a 2.8-inch TFT display and can display voltage and current waveforms in real-time. It supports data statistics and can be connected to a maximum of six power modules simultaneously. The MDP-M01 power module utilizes a highly efficient hybrid technology: the output is managed by a low-noise switched regulator followed by a linear regulator, ensuring very low residual ripple (0.25 mV), rapid transient response, and precise tuning.

Specifications:

• Model: MDP-M01
• Screen Size: 2.8-inch TFT Display
• Input: 3.6~5.5V, 0.1A
• Screen Resolution: 240×320
• Number of Controllable Channels: 6
• Dimensions: 101.5 mm × 64 mm × 2 mm
• Weight: 133g

Package Contents:
1x MDP-M01 Display Module (without modular power supply)
1x User Manual
1x Accessories - Micro USB to Jack Cable

Accessories:

MDP-P906 Modular Power Supply

Testing Cable 4mm Banana Plugs 5v1, Banana Split Cable

USB-C - USB 2.0 A/M, Black, 25cm Cable

USB-C, USB 3.1 Gen 2, 5A, 100W, 10Gbit/s, 1.8m Cable
