MDP-P906 Modular Power Supplies

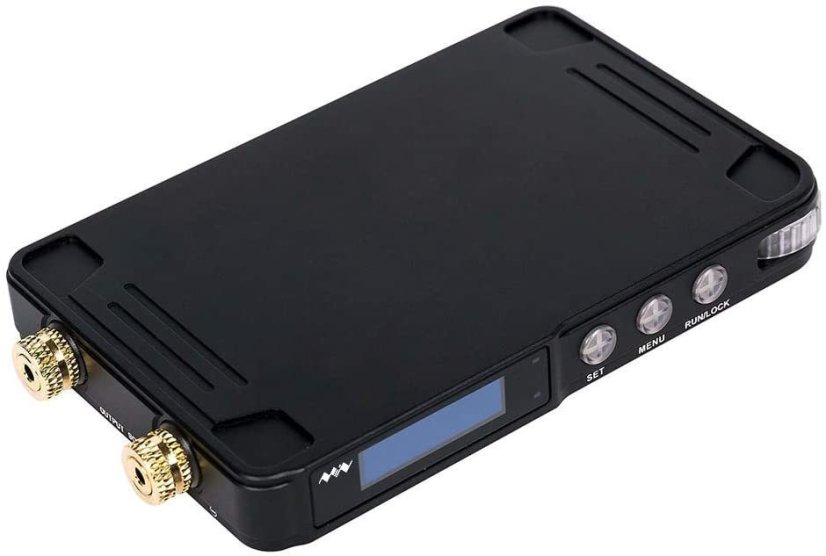

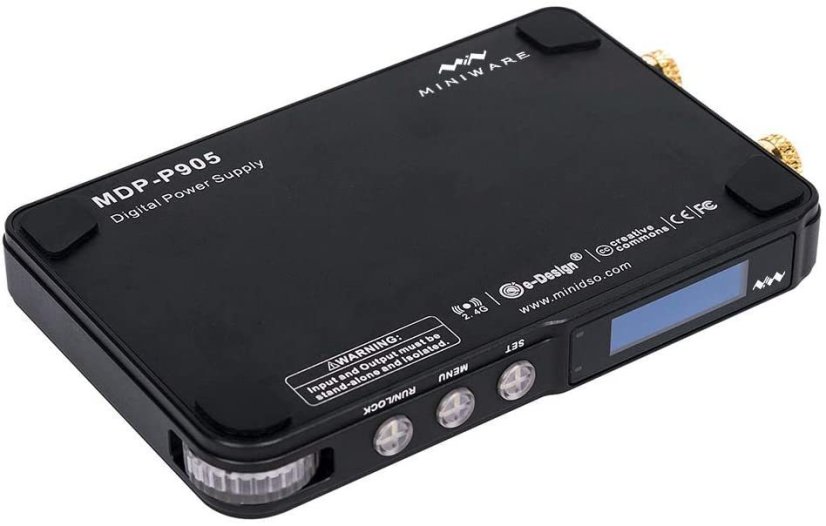

Modular Power Supply Miniware MDP-P906

Programmable modular power supply (300W, 30V/10A), expandable and multi-channel.

MDP (Mini Digital Power System) is a modular, programmable power supply system. It allows the combination of multiple modules as needed, enabling the creation of a multi-channel system tailored to the target application.

The MDP-M01 power module is based on highly efficient hybrid technology: The output is regulated by a low-noise switching regulator followed by a linear regulator, ensuring low residual ripple (0.25 mV), fast transient response, and precise tuning.

Features

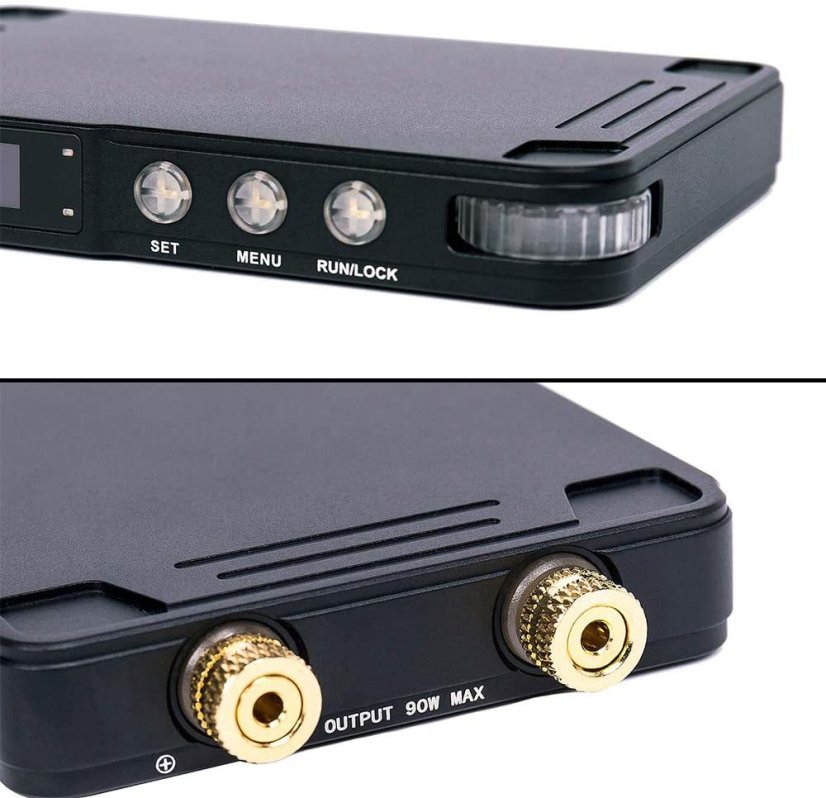

• Output up to 30 V/10A with maximum power of up to 90 W.
• Wireless 2.4 GHz for communication between the display module and power modules.

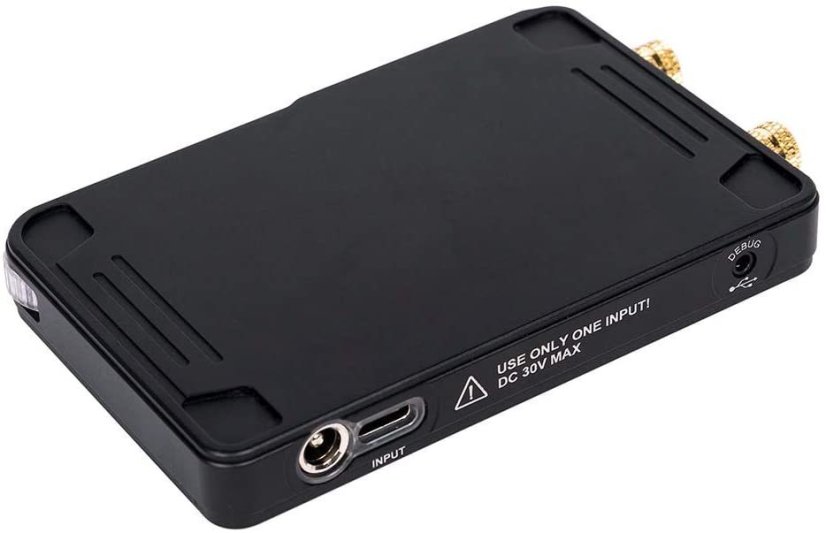

• DC wideband input between 4.2 V and 30 V, which can drop to 2.7 V upon startup.
• Fast transient response and sensitive over-current protection.
• Highly stable load regulation and intelligent lead compensation.
• Passive cooling thanks to a highly efficient output topology with power up to 300W.
• Supports symmetrical, series, and parallel connections.
• Comprehensive protection features: input overvoltage/undervoltage, reverse polarity, back current, overheating, and overcurrent.

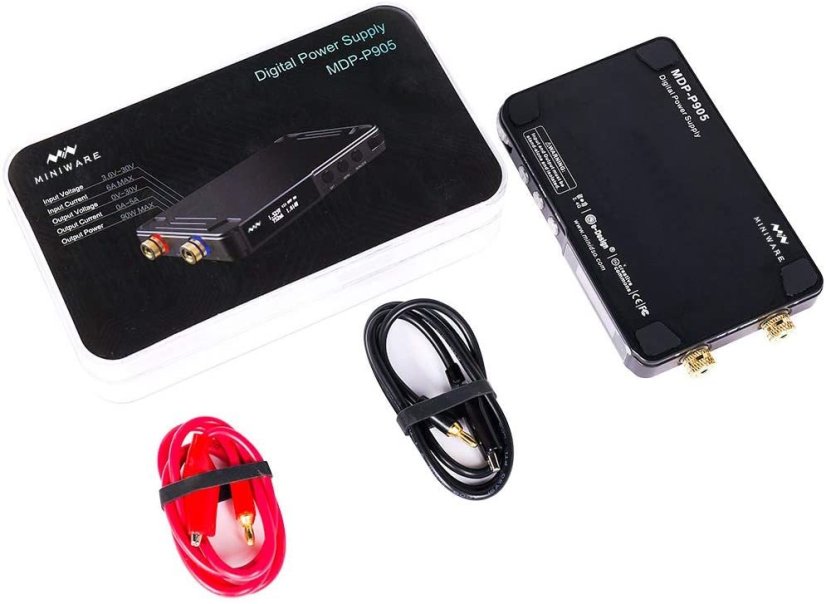

Package Contents

• 1x Power Module MDP-P906 (without display module)
• User Manual
• Accessories - Cables

Specifications:
