MDP-XP2 Modular Power Supply with Powerful Display

MDP-XP2 Modular Power Supply with Display

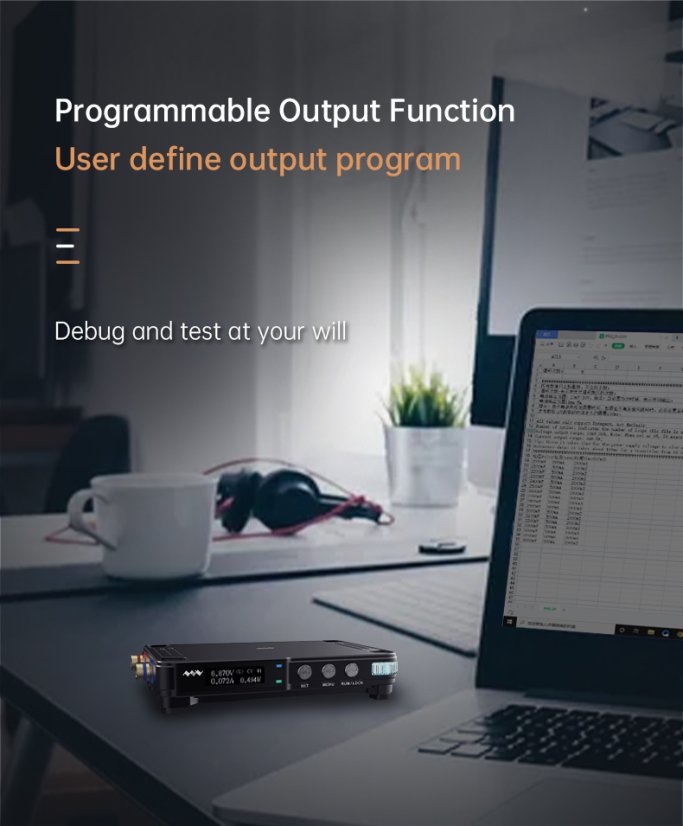

The MDP-XP2 is a programmable modular power supply system (90W, 30V/5A), consisting of a display control unit and additional modules that can be combined according to your application's needs.

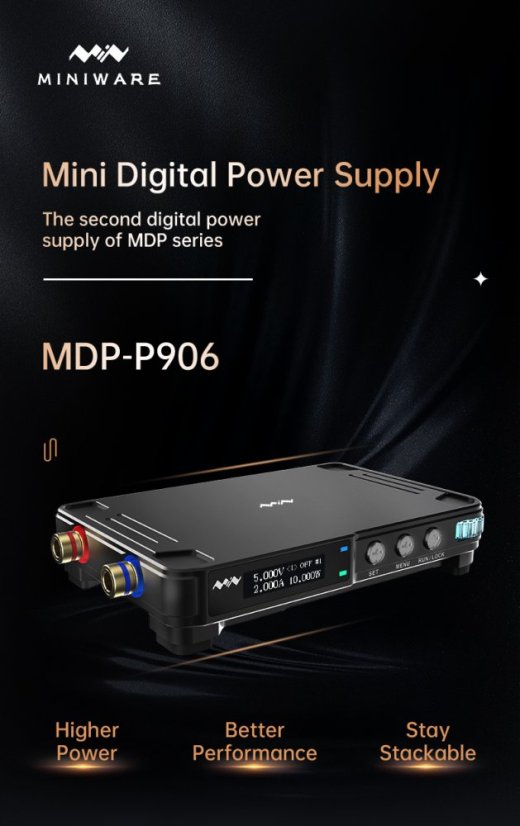

The MDP-XP2 consists of the MDP-M01 display control module and the MDP-P906 digital power module. The 2.4 GHz wireless connectivity allows for the combination of several channels (each up to 300W). This linear DC power supply offers high stability and reliability, and its user interface is intuitive. The MDP-XP is comparable to more demanding and expensive power supplies.

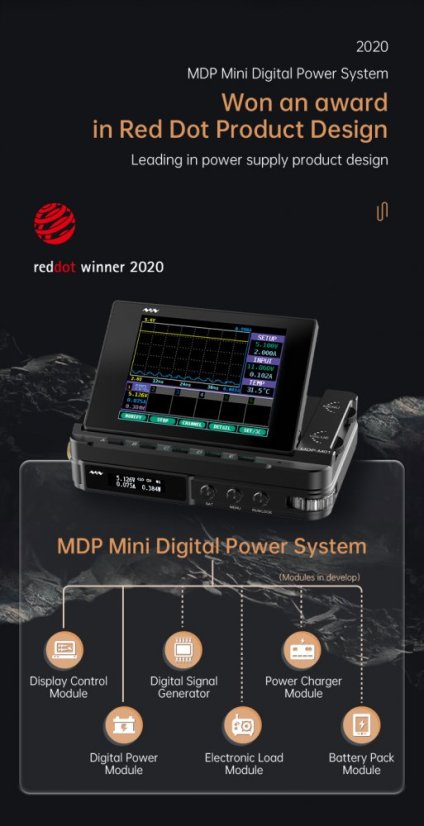

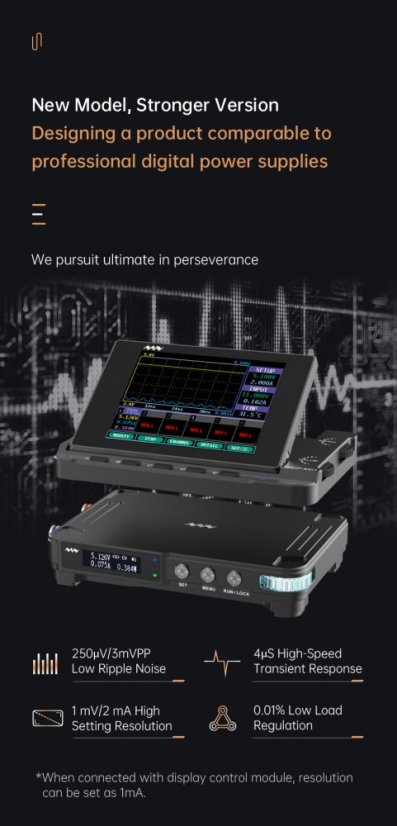

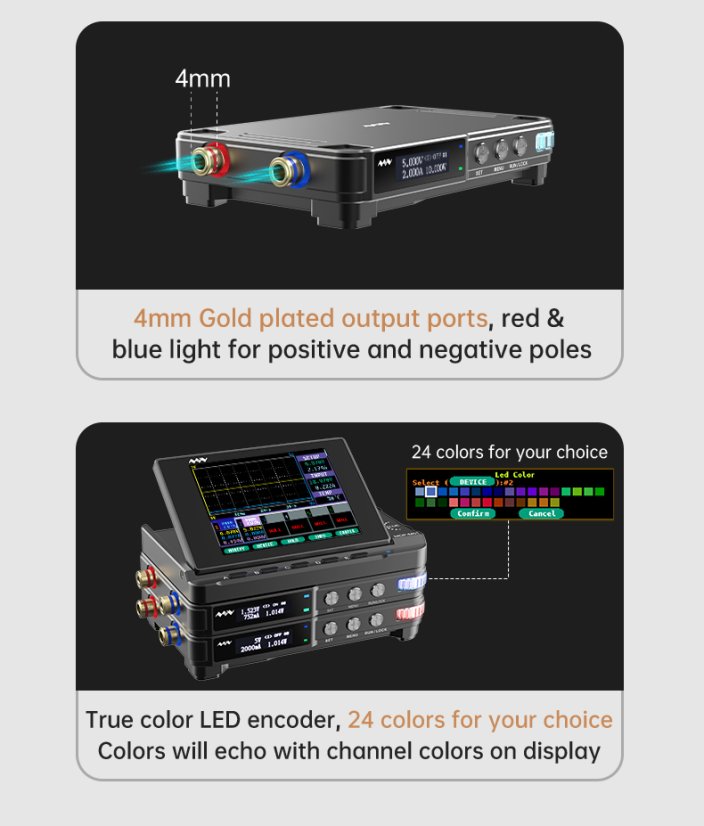

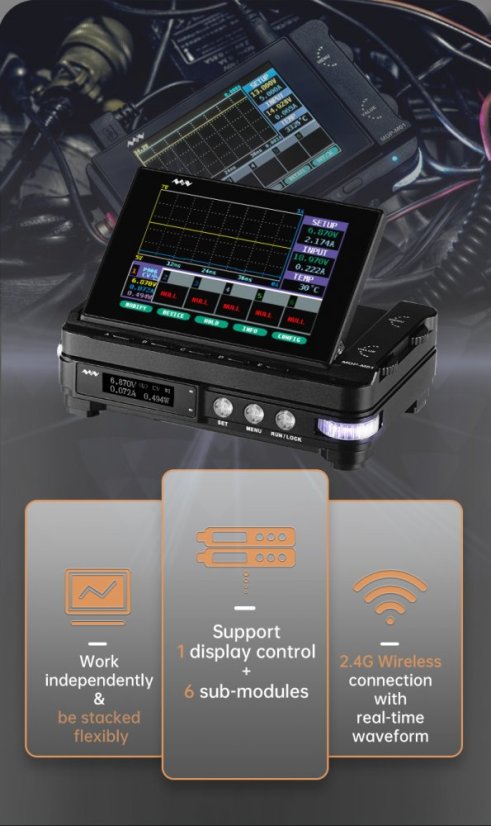

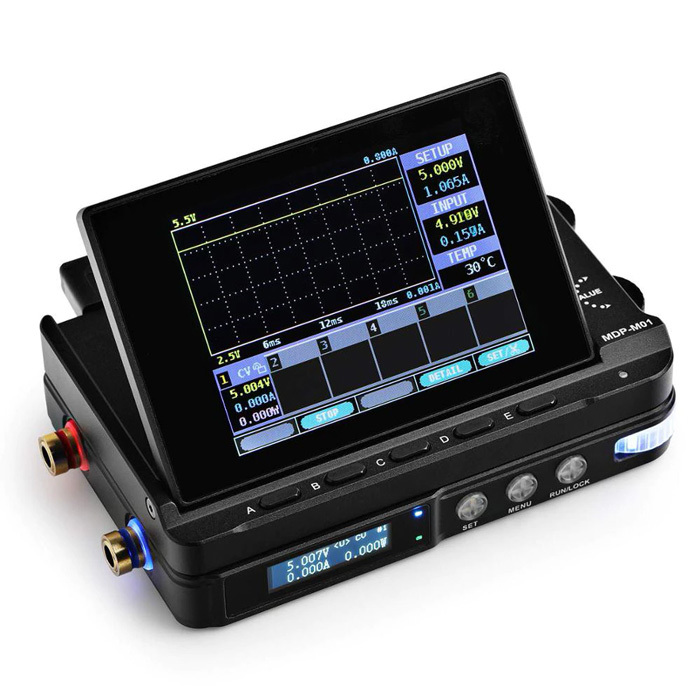

The MDP-M01 control module with a 2.8" TFT screen displays real-time voltage and current waveforms, supports data statistics, and can connect to up to six power modules. The power module employs hybrid technology for low-noise output control and minimizes residual ripple to 0.25 mV.

Product Features

• Output 30V/10A with power up to 300W
• 2.4 GHz wireless interface for seamless communication

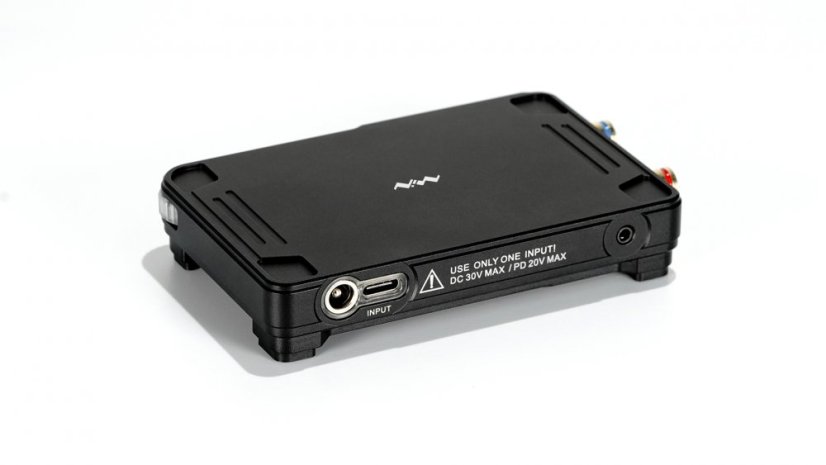

• Support for broad DC input from 4.2V to 30V
• Quality transient response and overload protection
• Intelligent load compensation for stable performance
• Passive cooling due to efficient design

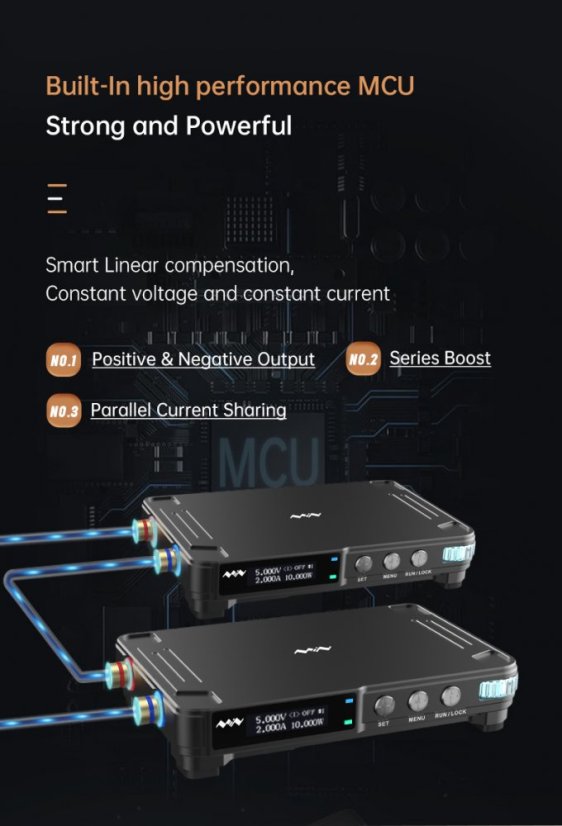

• Series, parallel, and symmetric connection options available
• Comprehensive protection features: overvoltage, undervoltage, polarity reversal, etc.

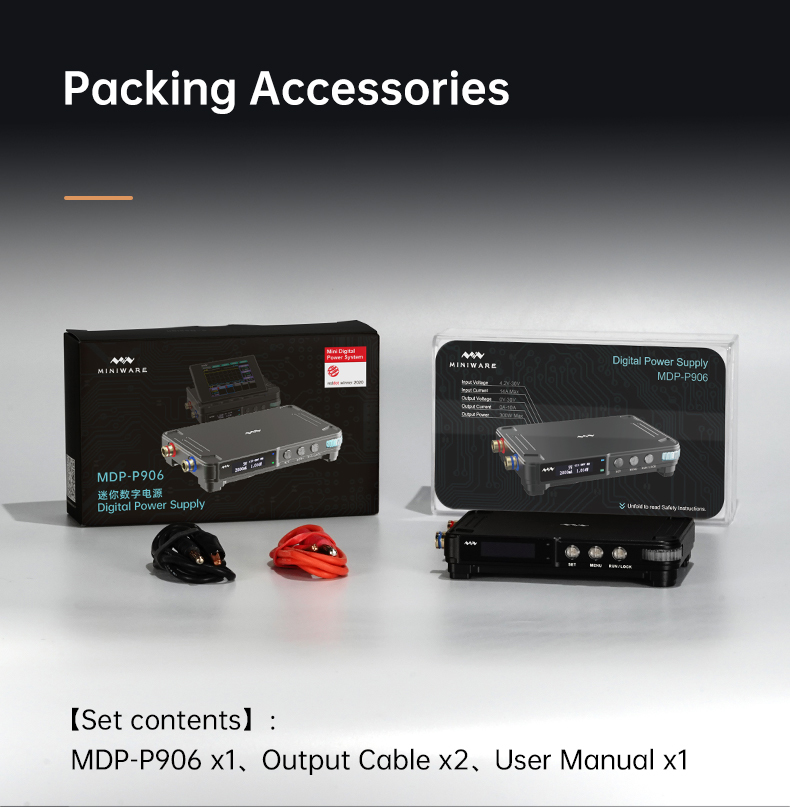

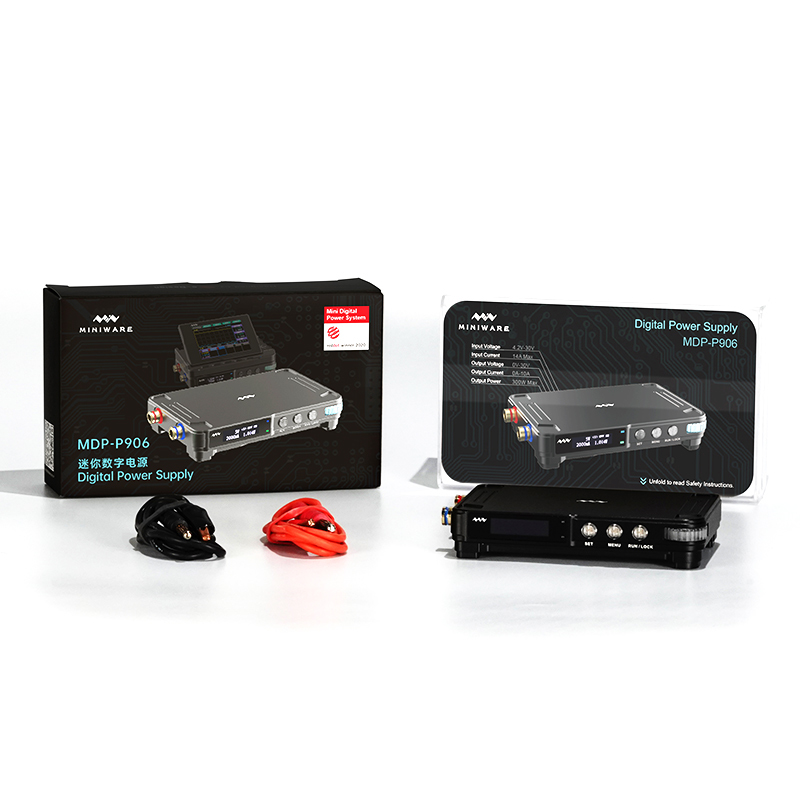

What’s in the package

• Display module MDP-M01

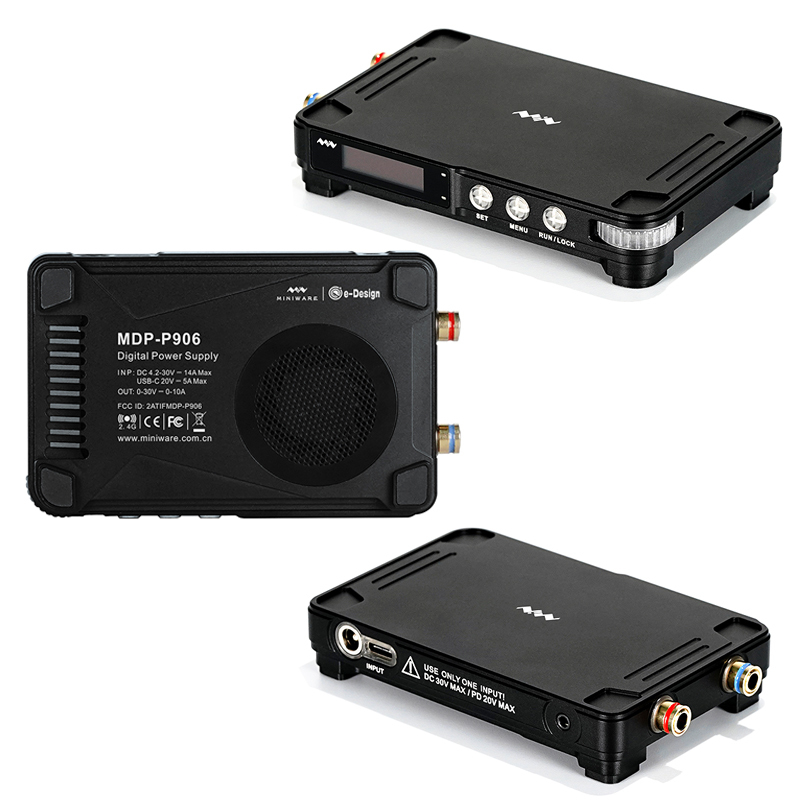

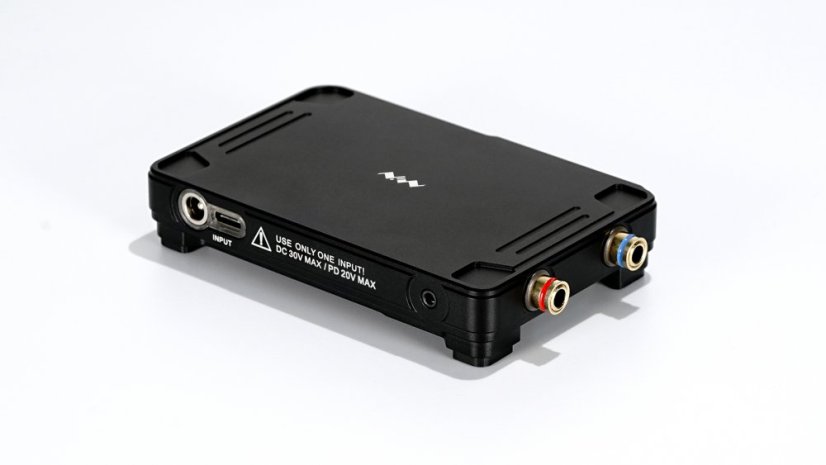

• Power module MDP-P906
• User manual
• Accessories - cables

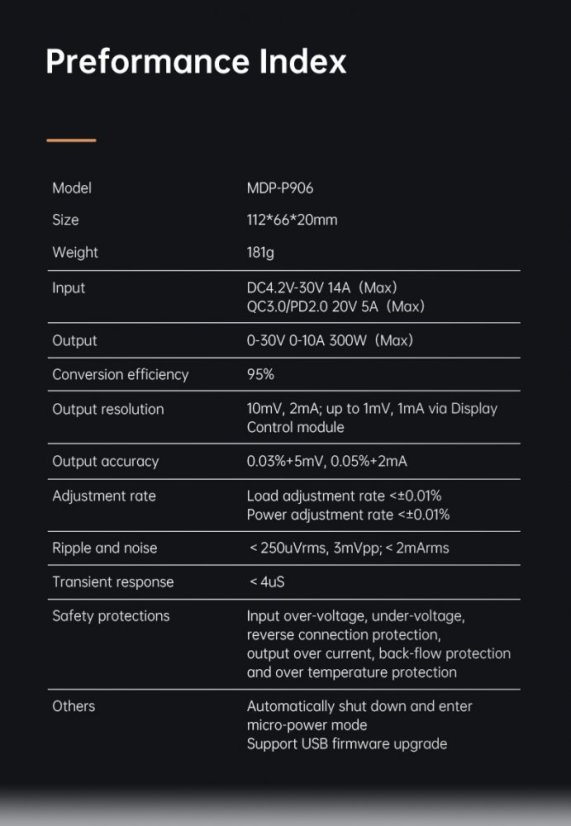

Specifications:
