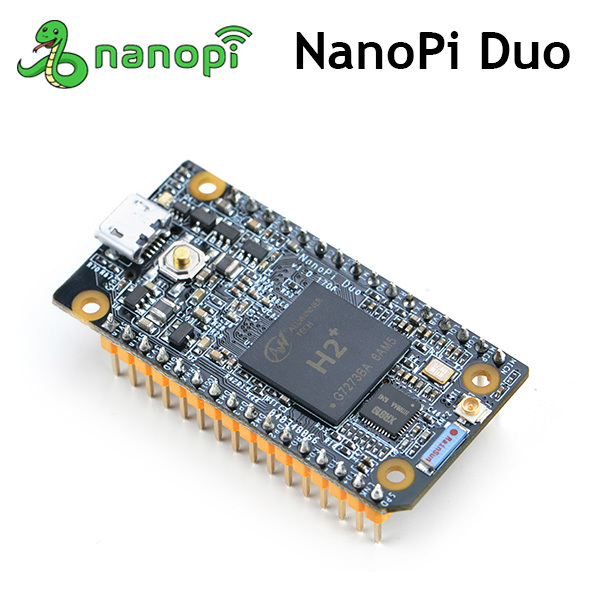

NanoPi Duo - Miniature Development Board with Wi-Fi

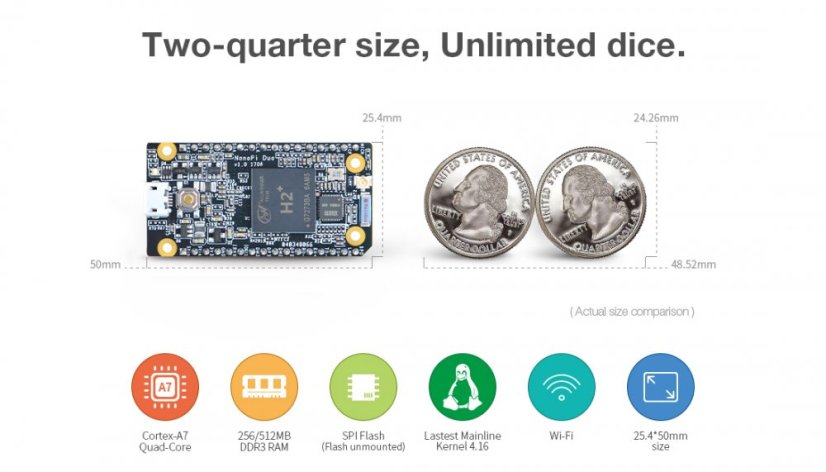

The NanoPi Duo was designed and developed by FriendlyElec for developers, enthusiasts, and professionals. It is compact, measuring only 50 x 25.4 mm. Equipped with an Allwinner Cortex-A7 H2+ processor, it offers a choice of 256M or 512M DDR3 RAM and an integrated Wi-Fi module with an UbuntuCore image ready to use.

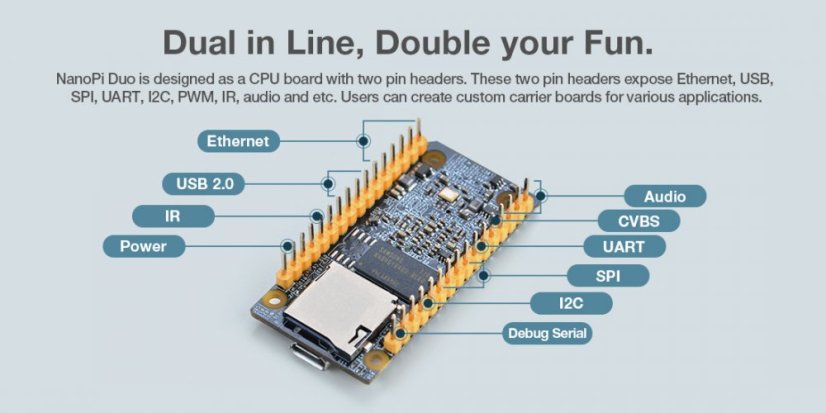

This small board is equipped with a wide range of interfaces, such as Ethernet, USB, SPI, UART, I2C, PWM, IR, and audio. It is powered via a microUSB port and boots the operating system from a microSD card.

Popular libraries and tools include WiringPi, RPi.GPIO, and Python, which have been ported to the NanoPi Duo and are available as open-source. The NanoPi Duo is ideal for various IoT applications.

Specifications:

• Model: NanoPi Duo
• CPU: Allwinner H2+, Quad-core Cortex-A7
• DDR3 RAM: 256MB/512MB
• Connectivity: 10/100M Ethernet
• Wifi: XR819
• USB Host: 2.54 mm pin x2, exposed in a 2.54 mm pin header
• MicroSD Slot x 1
• MicroUSB: OTG and power
• Debug Serial Interface: exposed in a 2.54 mm pin header
• Audio input/output Interface: exposed in a 2.54 mm pin header

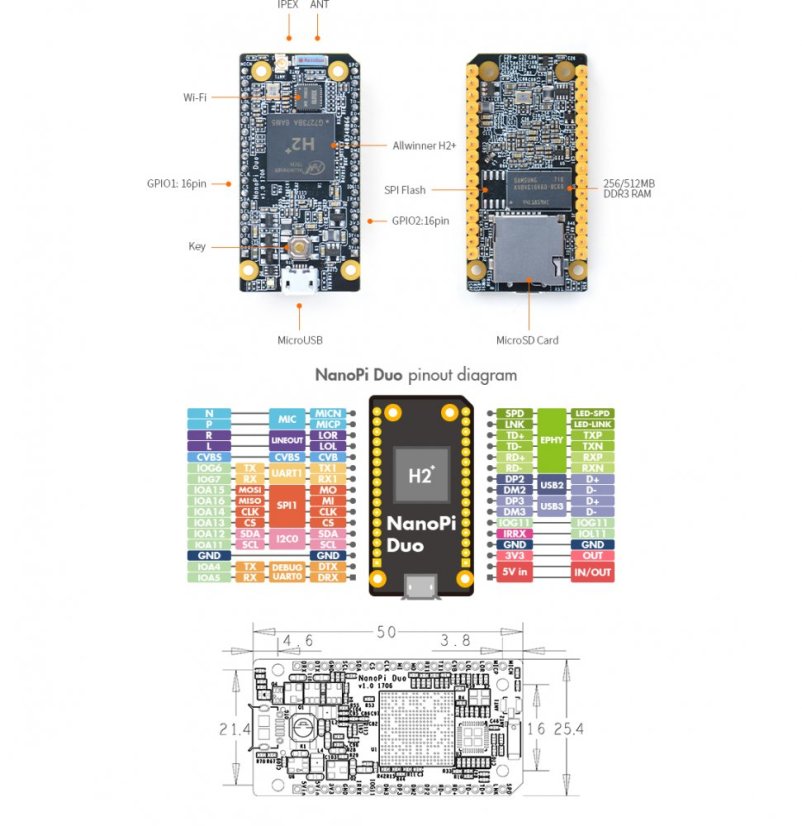

• GPIO: 2.54 mm pitch 12-pin x2, includes UART, SPI, I2C, IO, etc.
• PCB Size: 25.4 x 50 mm
• Power Supply: DC 5V/2A
• Temperature Range: -40℃ to 80℃
• OS/Software: U-boot, Linux Kernel 4.11.2 (mainline), Ubuntu 16.04.2 LTS (Xenial)
• Weight: xxg (with pins)

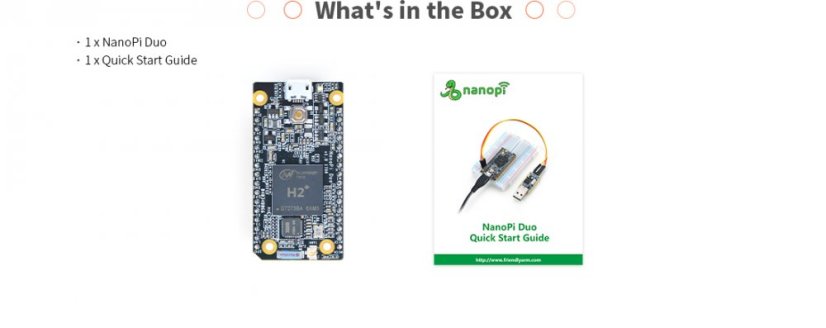

Package Contents:

1x NanoPi Duo

These open-source boards are delivered without a manual and support. Everything you need can be found on the FriendlyARM wiki page.

Related Resources

Wiki: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_Duo
