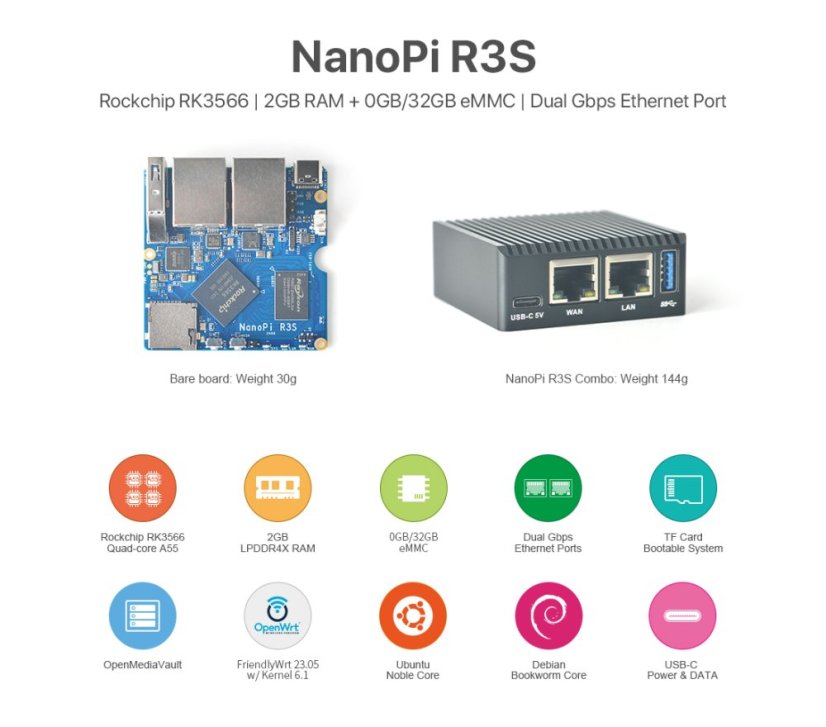

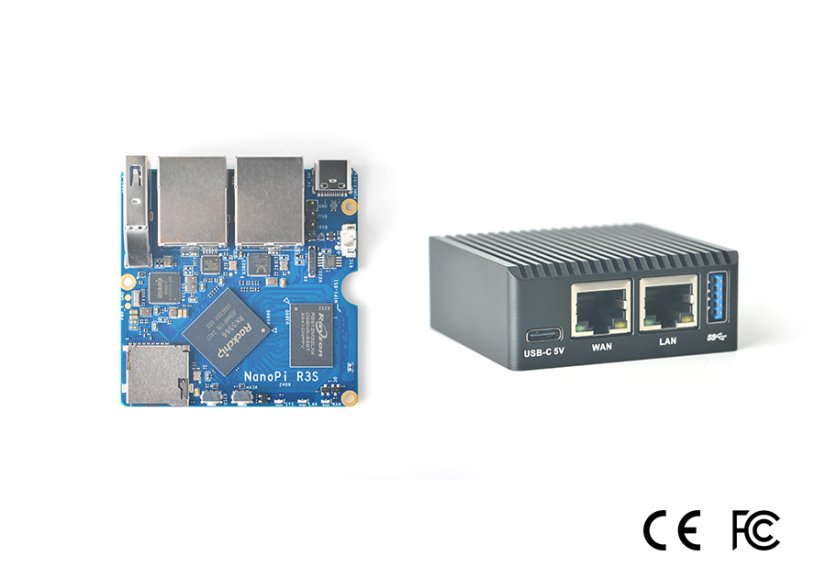

NanoPi R3S Plus Dual GbE IoT Board and Gateway

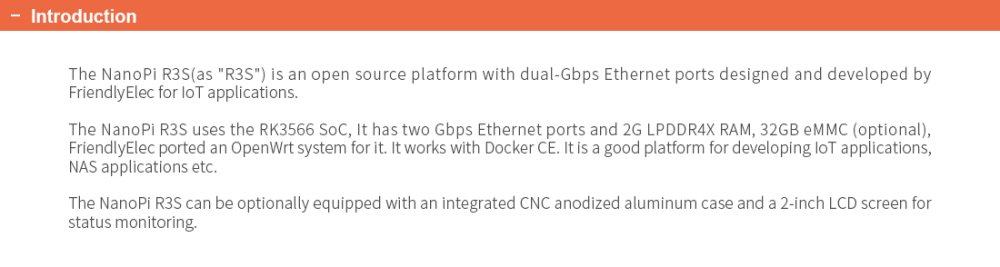

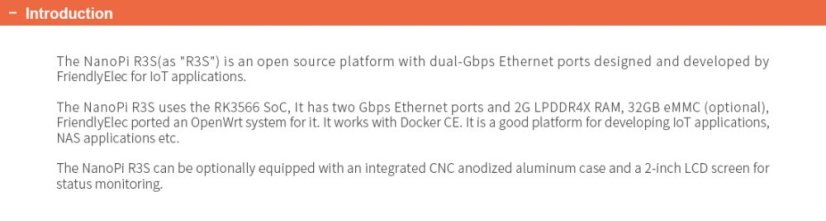

The NanoPi R3S is an open-source platform featuring dual Gigabit Ethernet ports based on the RK3566 SoC. It offers two Gigabit Ethernet ports and 2 GB of LPDDR4X RAM, with an option for 32GB eMMC. The device can run OpenWrt and is compatible with Docker CE. It is an ideal platform for developing IoT applications, NAS applications, and other uses.

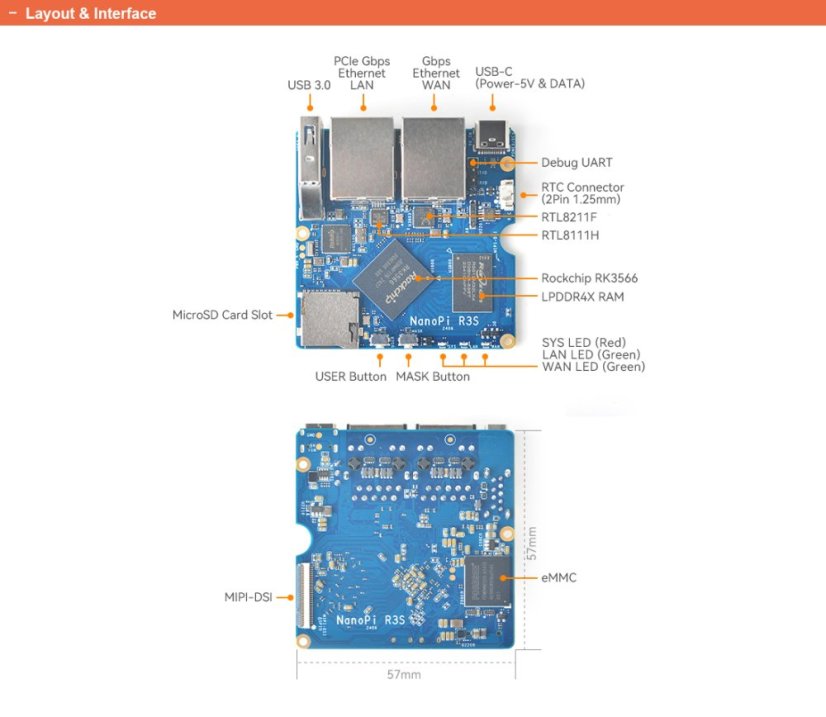

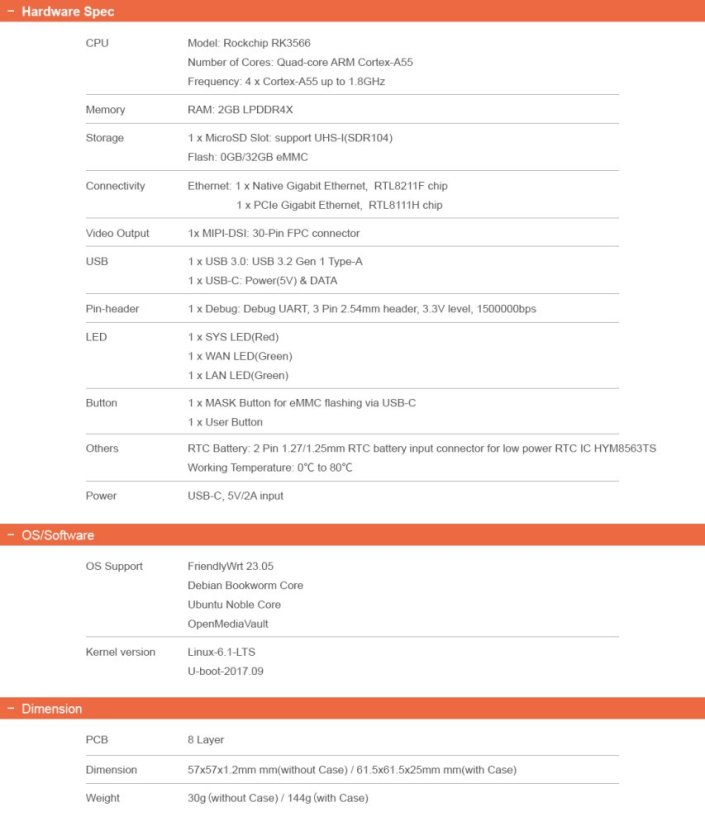

Specifications:

• Model: R3S
• CPU: Rockchip RK3566, Quad-core Cortex-A55
• RAM: 2GB LPDDR4X
• Ethernet: one native Gigabit Ethernet and one PCIe Gigabit Ethernet
• USB3.0 Host: Type-A x1
• Storage: MicroSD Slot x 1, and options for 0 or with 32GB eMMC
• Debug Serial Port: 3.3V TTL, 3-pin 2.54mm connector, 1500000 bauds
• LED: LED x 3
• RTC: One low-power RTC, battery backup support

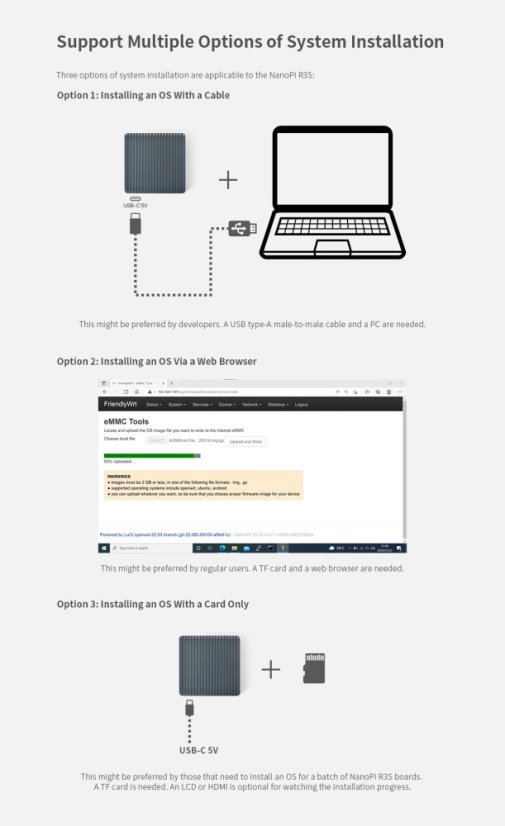

• Buttons: 1x User button, 1x MASK button for USB-C eMMC flashing
• Display: 1x MIPI-DSI 30-pin FPC connector

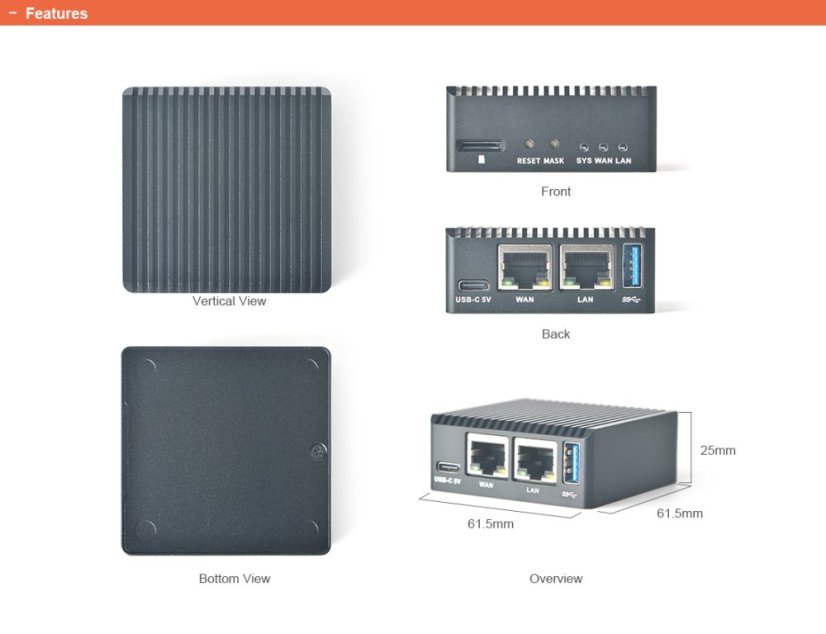

• PCB Size: 57*57*1.2mm
• Power: USB-C 5V/2A input
• Temperature Range: 0℃ to 80℃
• OS/Software: U-boot, Ubuntu-Core, Debian-Core, OpenMediaVault, OpenWrt
• CE

Package Contents:

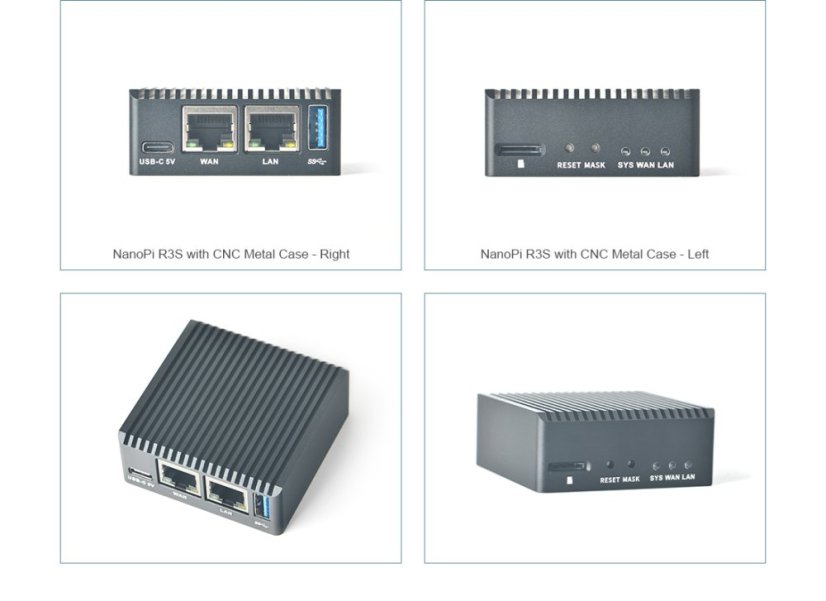

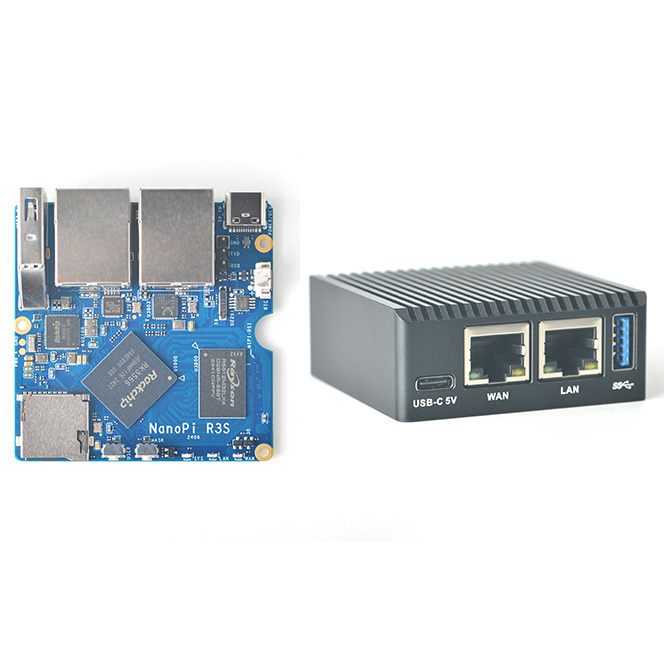

1x NanoPi R3S Plus Combo with Box
