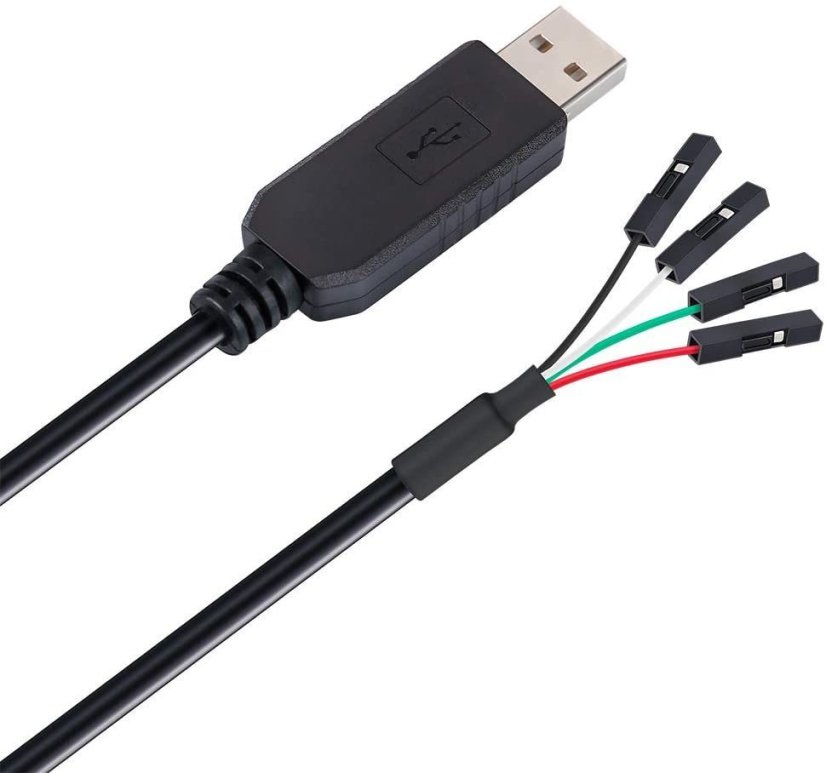

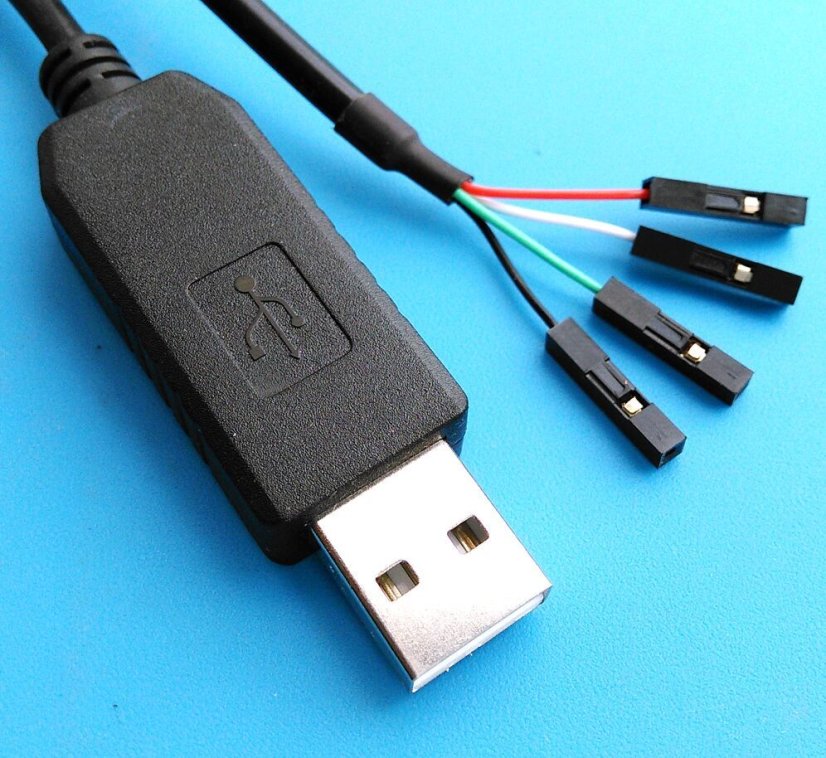

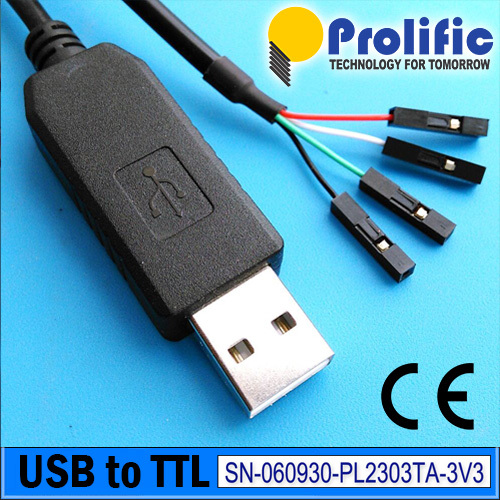

Original Prolific PL2303TA USB to TTL UART 3.3V interface cable

Warning: This is TTL, NOT 232. TTL is not RS232!

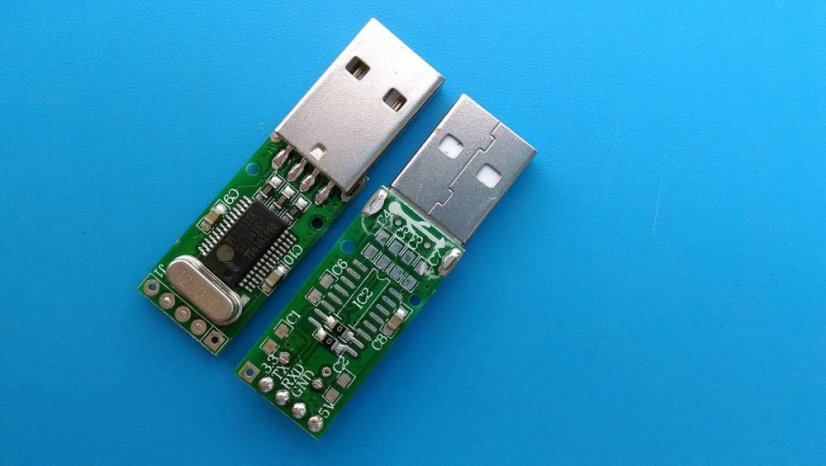

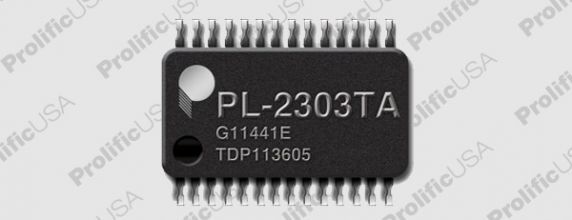

This USB2.0 Full Speed IC offers a compact bridge for basic UART interface. The device is a UART capable of operating speeds up to 3MBaud with lower consumption (8mA). The PL2303TA encompasses the full features of the PL series and enables quick and straightforward USB connectivity to the system through the UART interface.

Features:

• Win 7,8,10 - installation without the need for drivers
• USB 2.0 Full Speed compatible
• PL2303TA USB TTL CABLE
• RED-VCC(5v), BLACK-GND, BROWN-CTS, GREEN-RTS, ORANGE-TXD, YELLOW-RXD
• USB UART TTL 3.3v cable
• Data transfer rates from 300 baud to 3Mbaud
• Supports UART interface for 7 or 8 data bits, 1 or 2 stop bits, and odd/even/mark/space/no parity
• True 3.3V CMOS drive output and TTL input.
• Wire: 175 cm DuPont, 24AWG * 6 wires, PVC sheath, black, copper
• Wire color coding: Red-VCC(5V), White -TX, Green-RX, Black-GND
• Supports Android, Win10, Win 8, Win 7, XP, 2000, Linux, Android, Mac OS
• FCC, RoHS compliant

Datasheet: http://www.prolific.com.tw/ShowProductPDF.aspx?p_id=153

drivers: Prolific PL2303TA Drivers

USB driver installation made easy: Zadig
