PRO MINI ATmega328P - Arduino Compatible Development Board

PRO MINI ATmega328P - Arduino Compatible Development Board

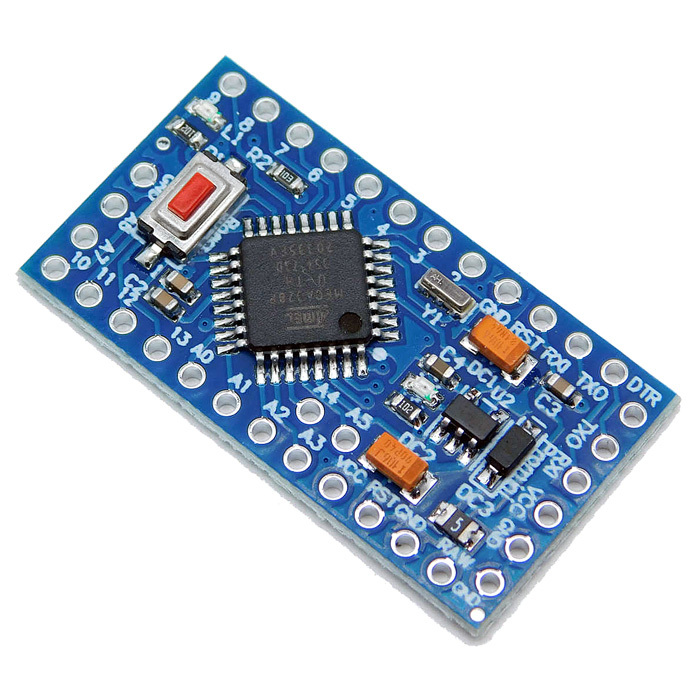

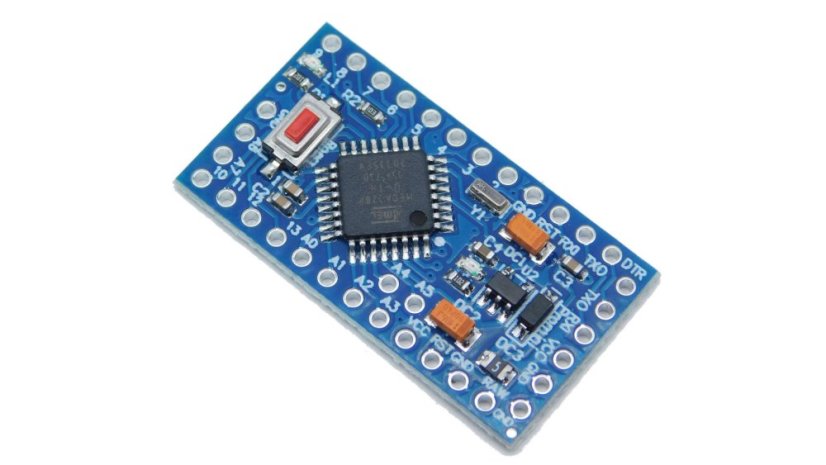

The PRO MINI development board is a fully Arduino-compatible compact development board with an ATmega328 controller. It has the same functionality as the Arduino UNO and is designed for use with breadboards or for integration into custom printed circuit boards. All inputs and outputs are distributed around the edges of the module. The module lacks a USB chip, and programming must be done using a TTL (UART) converter. The board includes 14 digital input/outputs and 8 analog inputs. There is one controllable LED on the board.

Specifications:

• Model: Pro MINI ATmega328P
• Chip: ATmega328
• Power Supply Voltage: 5-12 V
• Operating Circuit Voltage: 3.3V/5V
• Frequency: 8 MHz/16 MHz
• Maximum DC Current for I/O Pin: 40 mA
• Memory: 32 kB, 2 kB used by bootloader
• SRAM: 2 kB
• EEPROM: 1 kB

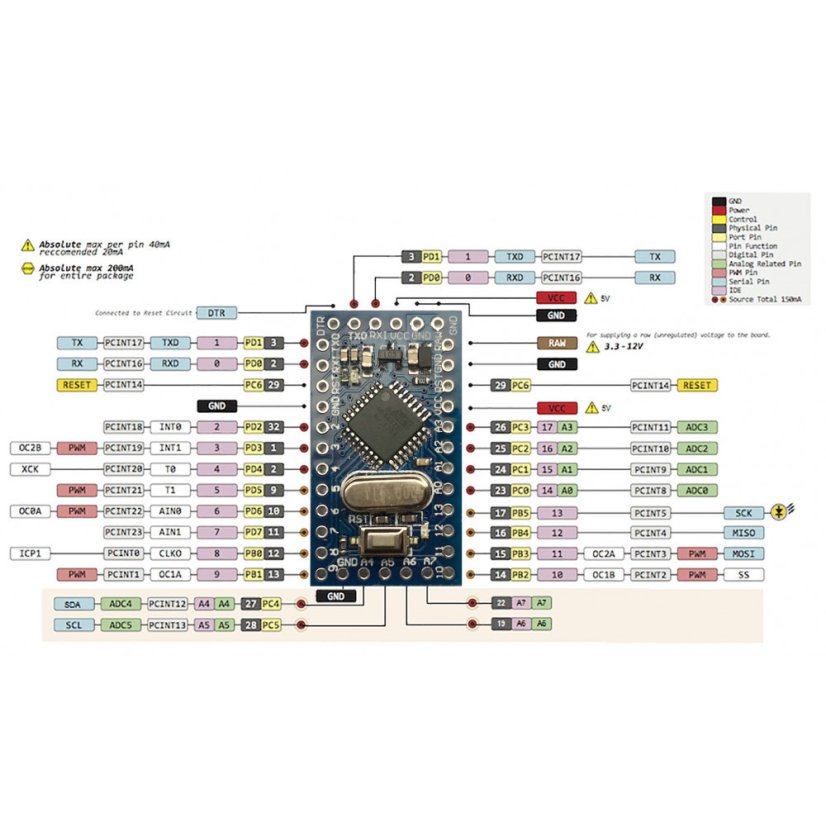

• 14 x Digital Input/Output
• 8 x Analog Input
• Interface:
• 6x PWM
• 1x UART
• 1x SPI
• 1x I2C
• 2x External Interrupts

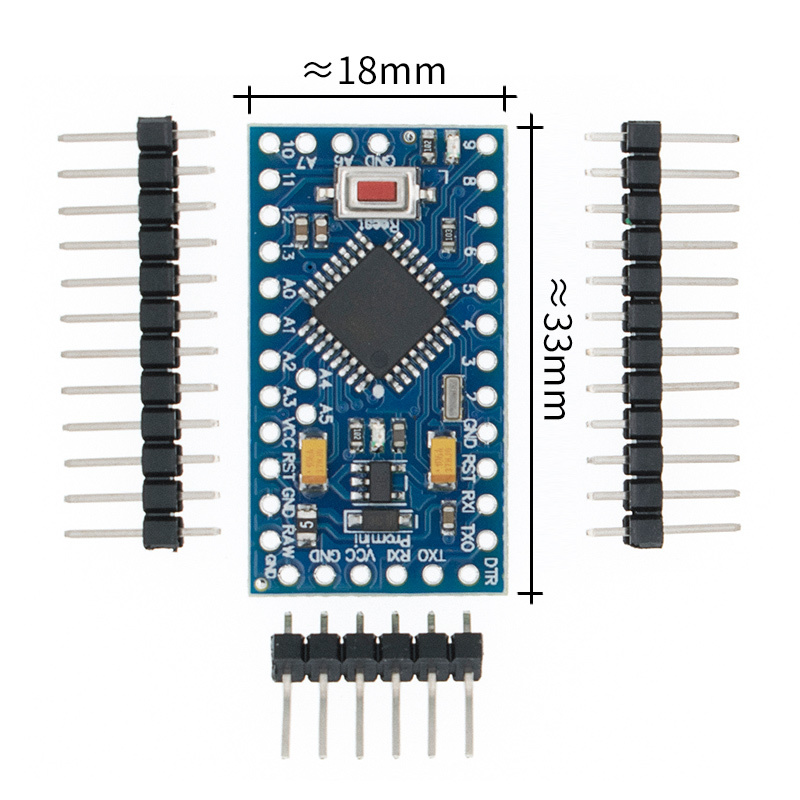

• Dimensions: 33.8mm x 18mm

Package Contents:

1x PRO MINI Board

1x Solder Pins
